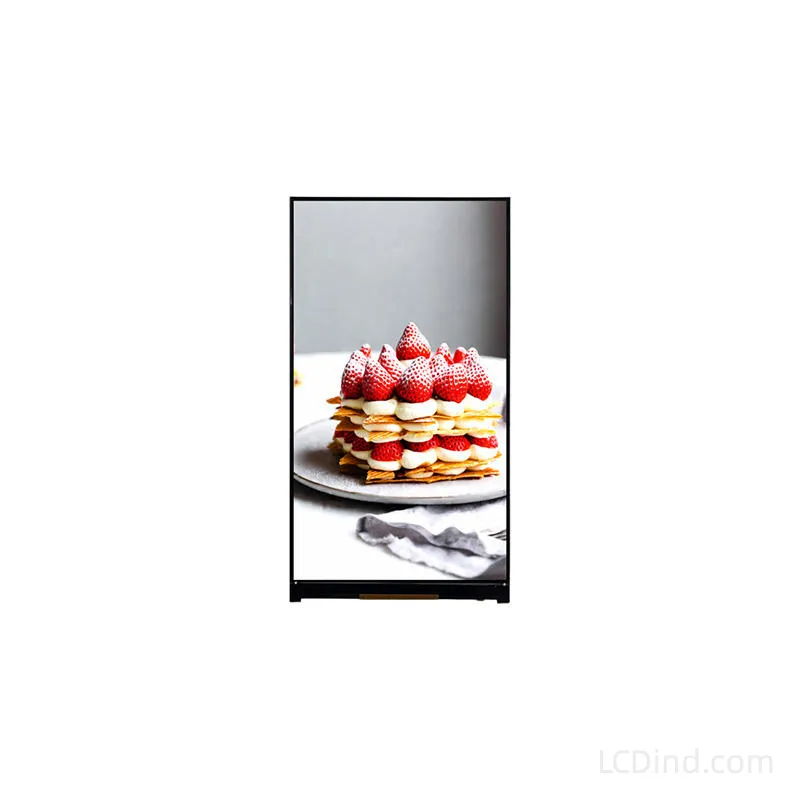

5 Inch Incell Touch Screen Module 480×854 MIPI IPS Display
The 5 Inch Incell Touch Screen redefines compact industrial interfaces by integrating the touch sensor directly into the LCD cell. This 480×854 Incell LCD Module offers a slimmer profile and superior optical clarity compared to traditional bonding methods. Equipped with a wide-temperature IPS panel (-20°C to 70°C) and a high-speed 30-pin MIPI interface, it is the perfect solution for handheld terminals, smart home controllers, and outdoor portable devices. Upgrade your product design today. Click “Inquire Now” for a custom quote and full technical datasheet.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Interface | MIPI |
| Resolution | 480×854 |
| Size | 5.0 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |
Next-Gen Integration: 5 Inch Incell Touch Screen Display
The 5 Inch Incell Touch Screen Display combines visual performance with capacitive touch sensitivity in a single, ultra-thin module. By utilizing Incell technology, we eliminate the air gap found in standard touch screens, resulting in higher brightness efficiency (450 nits) and a wider viewing angle of 80/80/80/80 degrees.
Industrial Durability & Performance
Designed for harsh environments, this module supports an operating temperature range of -20°C to 70°C. Whether deployed in freezing outdoor kiosks or heated industrial workshops, the ST7102 driver IC ensures stable performance and rapid touch response.
- Interface: 30-Pin MIPI (Mobile Industry Processor Interface) for high-speed video data.
- Resolution: 480×854 (FWVGA) offering sharp text and graphics in portrait mode.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Model Type | TFT LCD with Incell Touch |
| Display Size | 5.0 Inch |
| Resolution | 480 x 854 (Portrait) |
| Panel Type | IPS / Transmissive |
| Active Area | 61.78(H) x 109.91(V) mm |
| Outline Dimension | 64.70(H) x 118.70(V) x 2.22(D) mm |
| Brightness | 450 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Deg.) |
| Interface | MIPI (30 Pins) |
| Driver IC | ST7102 |
| Pixel Pitch | 0.1287(H) x 0.1287(V) mm |
| Operating Temp | -20°C ~ 70°C |
| Touch Technology | Incell Capacitive Touch |
Engineering FAQ
Q: What is the advantage of Incell technology in this 5 inch display?
A: Incell technology integrates the touch sensor layers directly into the LCD liquid crystal cells. This results in a significantly thinner module (only 2.22mm thick), better light transmittance for vivid colors, and lower manufacturing costs compared to traditional On-cell or bonding solutions.
Q: Can this 5 inch MIPI LCD work in outdoor environments?
A: Yes. It features an industrial operating temperature range of -20°C to 70°C, making it suitable for outdoor use. The 450 nits brightness is sufficient for shaded outdoor environments, though for direct sunlight applications, please contact us to customize a high-brightness backlight (1000+ nits).
Q: How do I connect the 30-pin MIPI interface?
A: The module uses a standard FPC connector with a 30-pin definition. We can provide the pinout diagram and initialization code (init code) for the ST7102 driver IC to help your engineers bring up the display on platforms like STM32, Raspberry Pi (via adapter), or custom embedded boards.
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Interface | MIPI |
| Resolution | 480×854 |
| Size | 5.0 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |
Q: What is the advantage of Incell technology in this 5 inch display?
A: Incell technology integrates the touch sensor layers directly into the LCD liquid crystal cells. This results in a significantly thinner module (only 2.22mm thick), better light transmittance for vivid colors, and lower manufacturing costs compared to traditional On-cell or bonding solutions.
Q: Can this 5 inch MIPI LCD work in outdoor environments?
A: Yes. It features an industrial operating temperature range of -20°C to 70°C, making it suitable for outdoor use. The 450 nits brightness is sufficient for shaded outdoor environments, though for direct sunlight applications, please contact us to customize a high-brightness backlight (1000+ nits).
Q: How do I connect the 30-pin MIPI interface?
A: The module uses a standard FPC connector with a 30-pin definition. We can provide the pinout diagram and initialization code (init code) for the ST7102 driver IC to help your engineers bring up the display on platforms like STM32, Raspberry Pi (via adapter), or custom embedded boards.
