5.1 Inch Square LCD Display 480×480 IPS Module | High Brightness SPI Interface with Capacitive Touch (CTP)
Looking for a 5.1 Inch Square LCD Display? Industrial grade 480×480 IPS panel with SPI interface and Capacitive Touch (CTP). Perfect for smart home & thermostats.
Product Attributes
| Brand | Duobond |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | SPI |
| Panel Type | IPS |
| Resolution | 480×480 |
| Size | 5.1 inch |
| Operating Temp | Industrial (-20 to +70°C) |
Compact Control: 5.1 Inch Square LCD Display
For designers of next-generation smart home devices and industrial controllers, the 5.1 Inch Square LCD Display offers the perfect balance of size and clarity. With a sharp 480×480 resolution and a compact 91.44 x 91.44 mm active area, this module is tailor-made for replacing traditional wall switches with modern, touch-interactive interfaces.
Industrial Grade Performance
Built by Duobond, this module is not just a consumer toy. It features Industrial Grade durability with an operating temperature range of -20°C to +70°C. Whether installed in a freezing warehouse or a warm server room, the 5.1 Inch Square LCD Display performs reliably.
-
IPS Technology: Enjoy vivid colors and wide viewing angles (80/80/80/80) from any direction.
-
High brightness: With a luminance of 500-700 nits, graphics remain crisp even under bright overhead lighting.
Seamless Interface & Touch
The module utilizes a 50-Pin SPI interface, making it compatible with a wide range of embedded systems and microcontrollers. Designed for interaction, this display supports Capacitive Touch Panel (CTP) integration, allowing for intuitive swipe, tap, and gesture controls essential for modern “Smart Knob” thermostats and control panels.
Detailed Specifications
| Feature | Specification |
| Product Name | 5.1 Inch Square LCD Display |

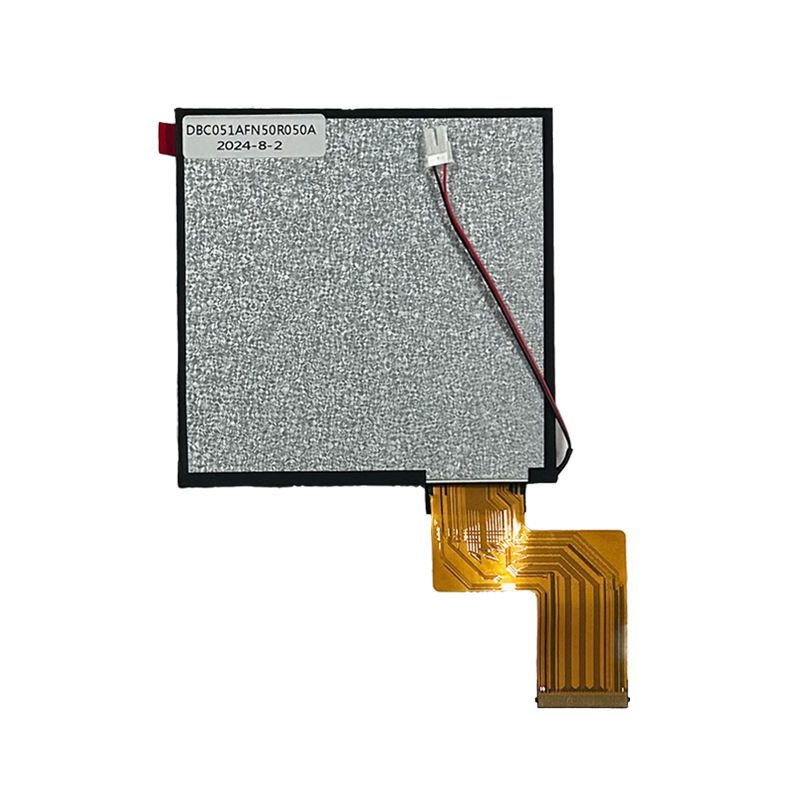

| Brand / Model | Duobond / DBC051AFN50R050A |
| Display Size | 5.1 Inch Diagonal |
| Resolution | 480 (RGB) × 480 |

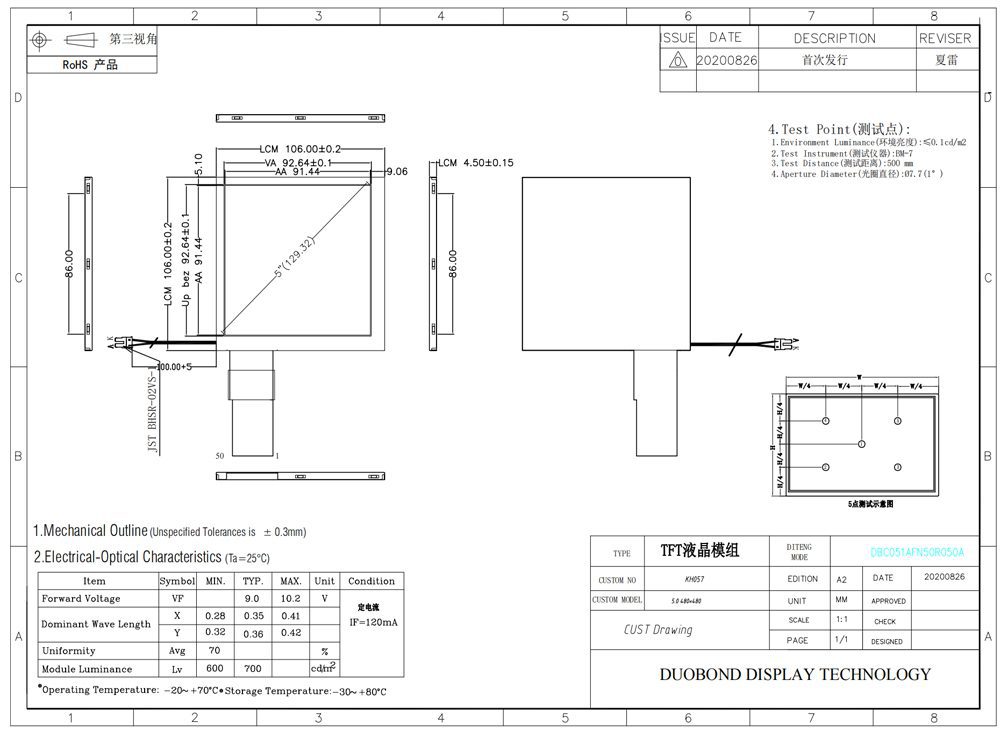

| Active Area | 91.44 × 91.44 mm |
| Module Size | 106.0 × 106.0 × 4.5 mm |
| Interface | SPI (50 Pins) |
| Brightness | 500~700 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) |
Ideal Applications
-
Smart Thermostats: The 1:1 aspect ratio fits perfectly on standard wall-mount boxes.
-
Industrial Encoders: Digital readouts for rotary machinery.
-
IoT Control Hubs: Centralized touch panels for smart office lighting and HVAC.
| Brand | Duobond |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | SPI |
| Panel Type | IPS |
| Resolution | 480×480 |
| Size | 5.1 inch |
| Operating Temp | Industrial (-20 to +70°C) |
What makes the 5.1 Inch Square LCD Display different from a standard 5.0 inch?
The 5.1-inch size offers a slightly larger active area (91.44mm square), optimized for specific industrial bezel enclosures. It is a "true square" specifically designed for HMI applications, unlike some 5-inch screens that might be cut from rectangular glass.
What interface does this 480x480 module use?
It uses an SPI (Serial Peripheral Interface) with 50 Pins. This interface is ideal for applications requiring efficient pin usage on the host microcontroller while maintaining good data transfer speeds for the 480x480 resolution.
Is this display sunlight readable?
With a brightness of 500-700 nits, this display is classified as high-brightness and offers excellent visibility in bright indoor environments. For direct outdoor sunlight, optical bonding improves contrast significantly—contact us for bonding services.
Does it come with a Touch Screen?
Yes, this model is designed as a Capacitive Touch Panel (CTP) solution. The precise touch integration allows for modern user interfaces like sliders and wheels, popular in smart home devices.
