10.4 inch HDMI TFT LCD Display Kit 1024×768 HDMI 700 nits

10.4 Inch HDMI TFT LCD Kit for High-Brightness Embedded Display Builds

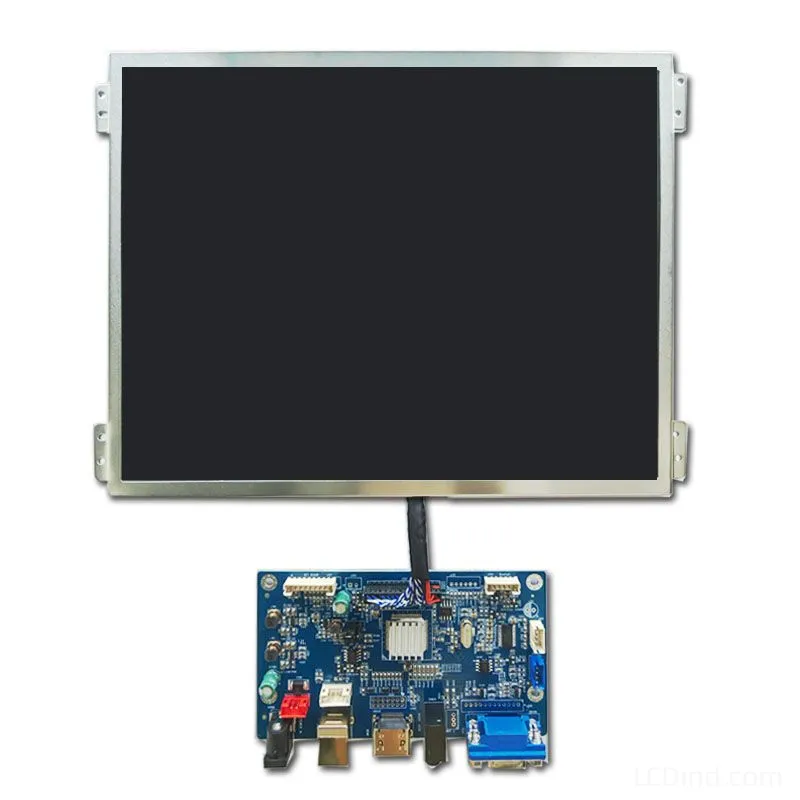

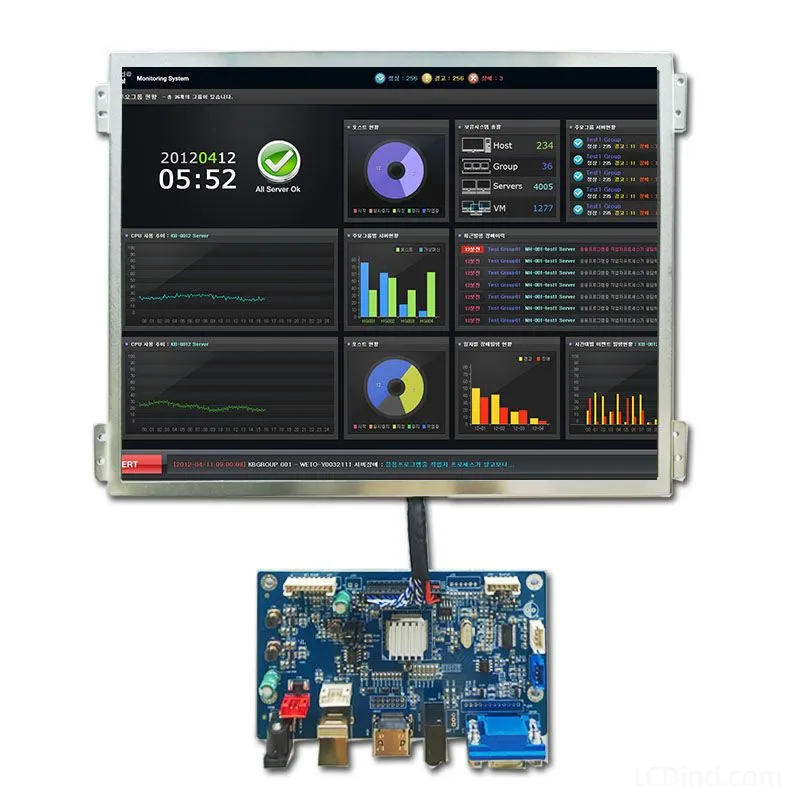

This 10.4 inch HDMI TFT LCD display kit is suited to projects that need a faster integration path than a bare LVDS panel. The production page confirms 1024 x 768 resolution, HDMI interface, 700 cd/m² brightness, 85/85/85/85 viewing angle, all-view direction, touch support, -30°C to 80°C operating temperature, -30°C to 80°C storage temperature, 215.4(W) x 175.8(H) x 5.2(T) mm outline, 210.43(W) x 157.82(H) mm active area, 1200 contrast ratio, and LVDS string connection internally. The value of this product is the kit architecture: it reduces controller-board selection work for industrial prototypes and small production devices.

Kit-Level Use Case

A HDMI display kit is useful when the host platform already provides HDMI output and the engineering team wants to avoid low-level panel timing work. Typical buyers include embedded HMI developers, laboratory equipment builders, test fixture designers, kiosk suppliers, industrial PC integrators, and automation projects that need a defined screen assembly for evaluation. It can also help during prototype stages before a final custom LVDS or MIPI display path is chosen.

Brightness and Environment

The 700 cd/m² brightness and wide temperature rating give this kit more application headroom than a low-cost indoor display. It can be considered for bright factory floors, vehicle-adjacent equipment, outdoor-protected terminals, and instrument panels that need higher readability. However, 700 nits should not be described as automatically sunlight readable in every installation. Cover glass reflection, touch stack, enclosure angle, thermal design, and backlight duty cycle determine the real field result.

HDMI Does Not Remove Mechanical Review

The HDMI input simplifies the signal path, but the mechanical design still needs careful review. The active area, outline, thickness, connector position, cable routing, and touch-panel construction must fit the target enclosure. If the kit will be mounted behind a front cover, define the viewing window, screw posts, cable strain relief, and service access. For a production program, ask whether LCDind should supply the display as a panel kit, touch kit, harnessed assembly, or customized front module.

Controller and Touch Considerations

Because this is a kit, the quotation should identify the expected board input, power input, touch output, mounting method, cable lengths, and operating system environment. Touchscreen support on the page should be translated into a specific touch controller and USB or other host interface during project review. If the final system uses Linux or an embedded OS, driver support and calibration should be tested during sample approval.

Procurement Fit

This product is strongest for medium-volume industrial display builds where speed of integration matters. If the buyer already has a custom mainboard with direct LVDS output, a bare 10.4 inch LVDS module may be more cost-effective. If the buyer wants plug-and-play display behavior, the HDMI kit can shorten validation time. LCDind should review expected annual quantity, enclosure drawing, power budget, operating temperature, and whether a customized cable or cover lens is required.

Sample Validation Plan

For the HDMI kit, validation should cover boot timing, HDMI detection, supported input resolutions, scaling behavior, brightness adjustment, touch response, power cycling, and cable retention. Test the kit with the same host board or industrial PC that will ship in the final product. If the device is operated in a vehicle or outdoor-protected enclosure, run a heat soak test with full brightness because controller-board and backlight temperature rise can be different from a bare panel test.

Production Risk Control

The buyer should freeze the kit bill of materials before production: LCD panel, controller board, touch panel, cables, power connector, button board, firmware, and packaging. A change in any one of these items can affect mounting, image orientation, touch calibration, or EMC behavior. For repeat orders, ask LCDind to keep a reference sample or approval photo set so incoming assemblies can be compared against the validated configuration.

Ordering Notes for Kit Projects

When requesting a quote, state whether the kit is for engineering samples, pilot production, or a repeatable finished assembly. Prototype orders can tolerate more manual configuration, but production orders need fixed cable lengths, board settings, mounting hardware, labels, and packaging rules. This distinction helps LCDind quote the correct support scope instead of only quoting the screen.

Confirmed Product Specifications

These values are preserved from the live product specification table. Any missing mechanical, electrical, optical, or compliance item should be confirmed through drawing, datasheet, sample approval, or LCDind engineering review before production use.

RFQ Checklist

• Target equipment type and application environment.
• Host board interface, voltage, cable direction, and connector requirement.
• Display orientation, active-area window, enclosure drawing, and mounting method.
• Touchscreen, cover lens, anti-glare, optical bonding, or protective glass requirement.
• Sample quantity, forecast annual volume, lifecycle expectation, and approved alternatives policy.

Engineering FAQ

Is this a bare LCD panel or a kit?

It is positioned as an HDMI TFT LCD display kit. Confirm the exact kit contents, board, cable, touch structure, and power input before ordering.

Is 700 nits suitable for sunlight?

It improves readability in bright environments, but direct sunlight use requires optical-stack and thermal review.

Can the kit be customized?

Project-specific customization can include cable, touch, cover lens, mounting, controller configuration, and packaging, depending on quantity and engineering scope.
