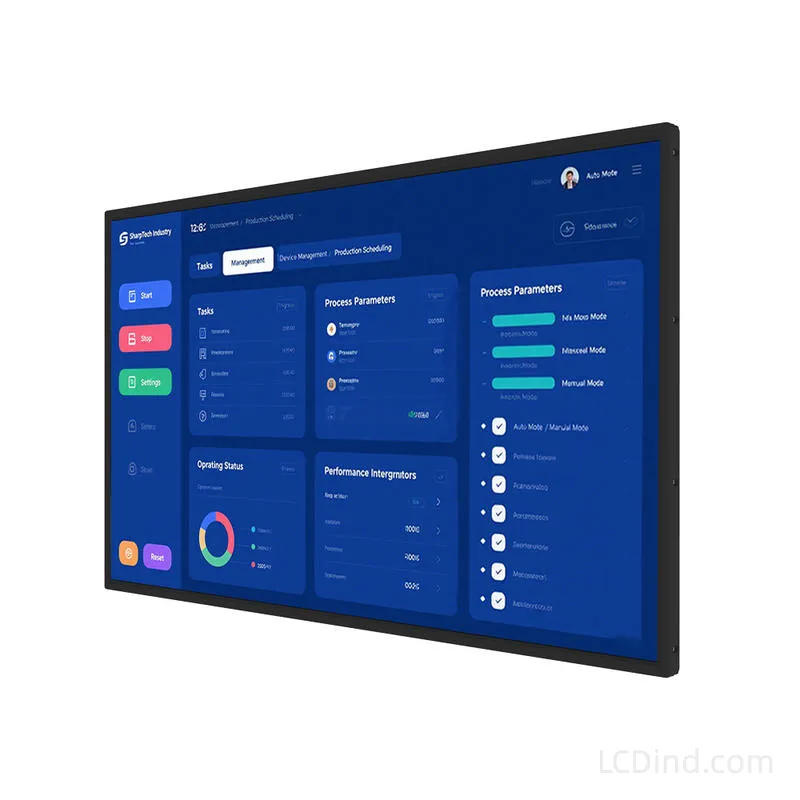

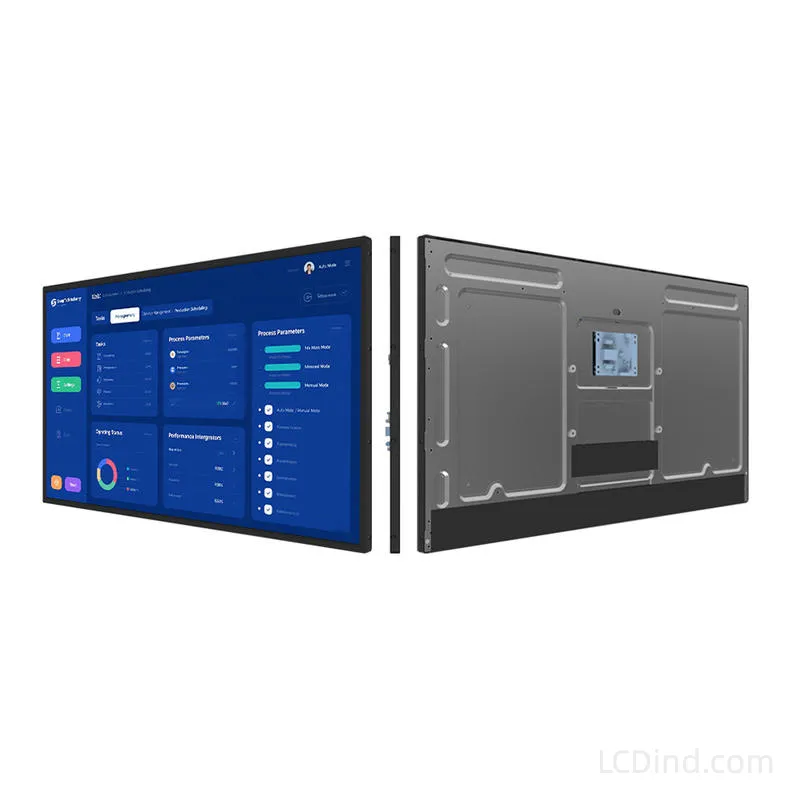

32 Inch LCD Display Module 1920×1080 500 Nits LVDS
The LCDind 32 Inch LCD Display Module is a high-performance visual solution designed for commercial digital signage and industrial control rooms. Featuring a 1920×1080 Full HD resolution and 500 nits brightness, this module ensures crystal-clear content delivery even in bright indoor environments. Powered by ADS/IPS technology, it offers superior color accuracy across ultra-wide viewing angles. With a robust LVDS interface, it integrates seamlessly into existing display systems. Transform your visual experience today. Click “Inquire Now” for bulk pricing and technical drawings.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | All View / IPS |
Immersive Visuals: 32 Inch FHD Industrial Display

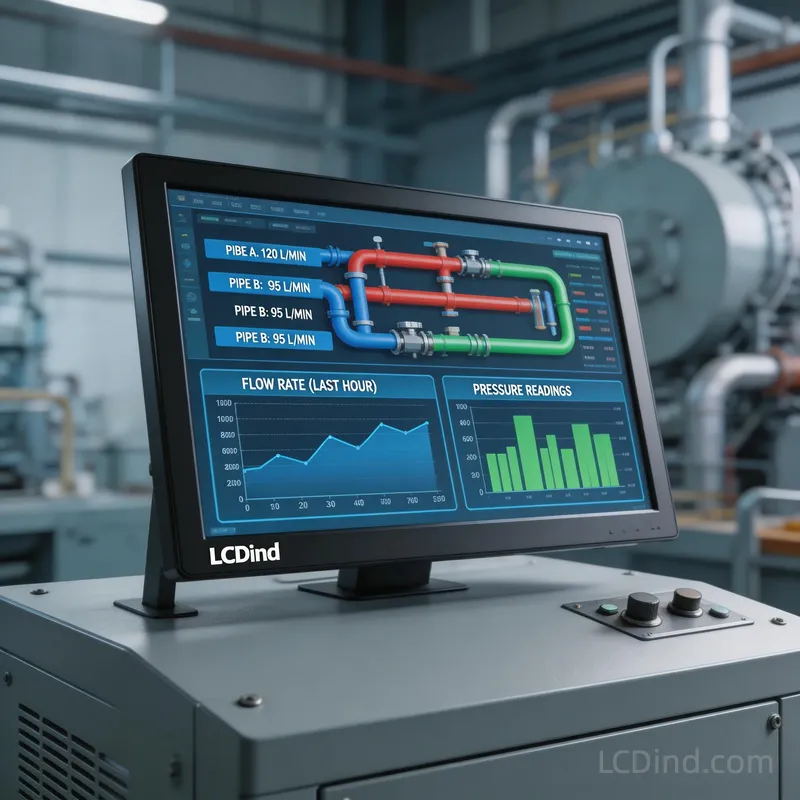

The 32 Inch LCD Display Module delivers an expansive viewing area of 698.4 x 392.85 mm, making it perfect for applications where detail is paramount. With a 1920×1080 pixel array (Full HD) and a contrast ratio of 1200:1, this screen produces deep blacks and vibrant colors (16.7M), ensuring your SCADA diagrams or commercial advertisements look stunningly realistic.
Wide Viewing Angle with ADS Technology

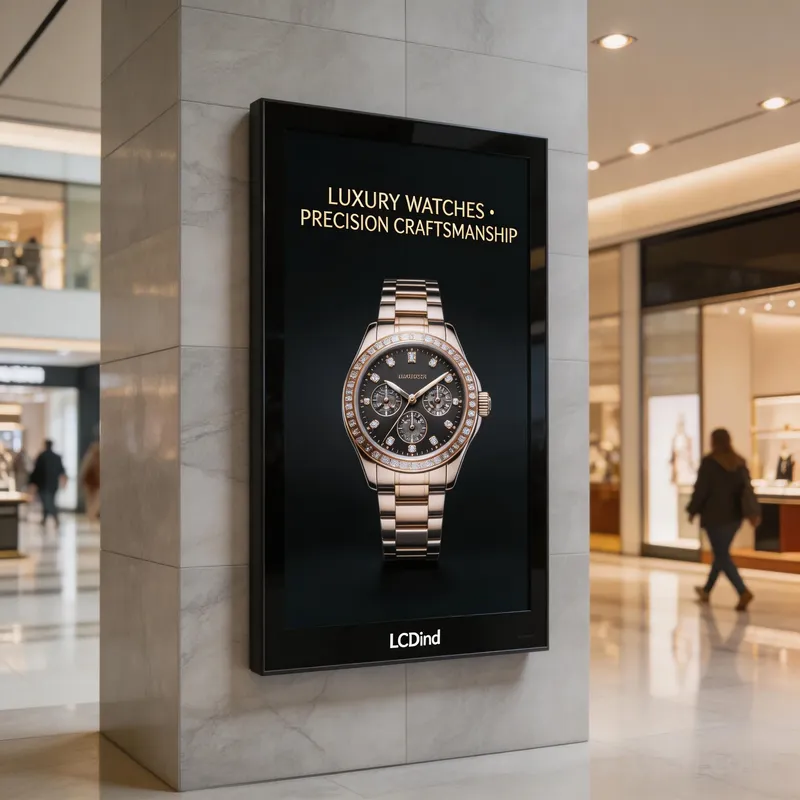

Equipped with advanced ADS (Advanced Super Dimension Switch) technology, this panel rivals traditional IPS screens by offering an 89/89/89/89 viewing angle. This means the image quality remains consistent whether viewed from the side, above, or below, which is critical for wall-mounted public information displays.
Robust Connectivity & Performance
The module utilizes a standard 51-pin LVDS (Low Voltage Differential Signaling) interface. This 2-port pixel/clock interface is the industry standard for large-format displays, ensuring high-speed data transmission with low noise and power consumption. The 500 nits brightness ensures visibility in well-lit retail or factory environments.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Model Name | DBT320BHN51L050A |
| Display Size | 32 Inch (31.51″ Active) |
| Resolution | 1920 x 1080 (FHD) |
| Panel Technology | ADS / IPS (Transmissive) |
| Active Area | 698.4(H) x 392.85(V) mm |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Deg.) |
| Interface | LVDS (2 ch, 8-bit), 51 Pins |
| Display Colors | 16.7M (8-bit) |
| Pixel Pitch | 121.25(H) x 363.75(V) um |
| Operating Temp | 0°C ~ 50°C |
| Surface Treatment | Anti-Glare (Haze 1%, 2H) |
Engineering FAQ
Q: What is the interface definition for this 32 inch module?
A: This module uses a 51-pin LVDS interface. It supports 2-port LVDS (Dual Channel) to handle the 1920×1080 FHD bandwidth effectively. We can provide the full pin definition and datasheet upon request.
Q: Is this display suitable for outdoor use?
A: The standard brightness is 500 nits, which is excellent for indoor environments (shopping malls, control rooms). For direct sunlight outdoor applications, we recommend our high-brightness customization service to upgrade the backlight to 1000+ nits.
Q: What is ADS technology mentioned in the specs?
A: ADS (Advanced Super Dimension Switch) is a wide-viewing angle technology similar to IPS. It provides vivid colors and maintains image quality at extreme viewing angles (89 degrees in all directions), ensuring the display looks great from any position.
Q: Does it come with a touch screen?
A: The standard DBT320BHN51L050A is a display module without touch. However, as part of our customization options, we can bond a large-format Capacitive Touch Panel (PCAP) or Infrared Touch frame to create an interactive kiosk solution.
