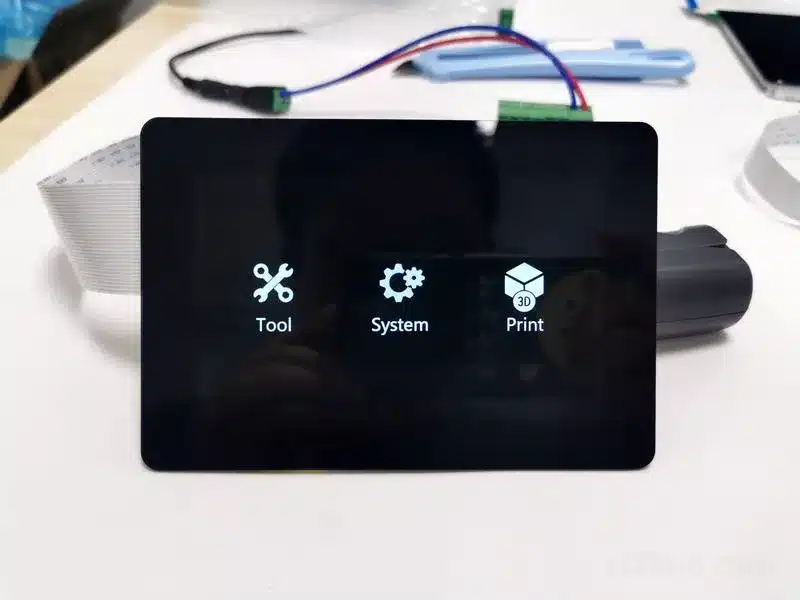

5 Inch RGB LCD Display 800×480 Module 30Pin High Brightness Touch

5 Inch 800×480 30-Pin RGB/MCU LCD Module with 600-Nit Brightness and Capacitive Touch

This 5 inch RGB LCD display is a high-brightness touch module for embedded equipment and industrial HMI projects that need direct board integration rather than HDMI. The confirmed specification lists 5 inch size, 800 RGB x 480 resolution, 30-pin RGB/MCU interface, 600 nits typical brightness, -20°C to +70°C operating temperature, 108.00 x 64.80 mm active area, capacitive touch, and wide 80/80/80/80 viewing angle in the attributes. Some mechanical outline and controller details should still be confirmed from drawing before production.

Confirmed Product Specifications

Embedded HMI Fit

This module is suitable for industrial controllers, equipment panels, 3D-printer interfaces, test instruments, smart terminals, and embedded systems where the mainboard can drive RGB or MCU signals directly. Compared with HDMI modules, it can reduce subsystem complexity when the host PCB is designed for raw display integration.

30-Pin RGB/MCU Interface Review

The confirmed 30-pin RGB/MCU interface must be matched with the host pinout, timing, voltage, connector, FPC direction, and initialization sequence. RGB and MCU modes are not automatically interchangeable; the buyer should specify which mode the host will use. If the product currently has HDMI output only, a different display kit may be easier.

600-Nit Brightness

The 600-nit typical brightness provides more margin than standard 350 or 400 nit 5 inch modules. It is useful for bright workshops, equipment panels behind cover glass, and protected outdoor terminals. It should still be tested with the final lens, UI colors, and thermal enclosure because high brightness affects heat and power.

Capacitive Touch Integration

The module includes capacitive touch, so grounding, ESD, cover-lens thickness, touch controller interface, glove use, and wet-touch expectations should be reviewed. Capacitive touch can give a modern interface, but industrial equipment often needs stricter noise and durability validation than consumer devices.

Mechanical and Optical Review

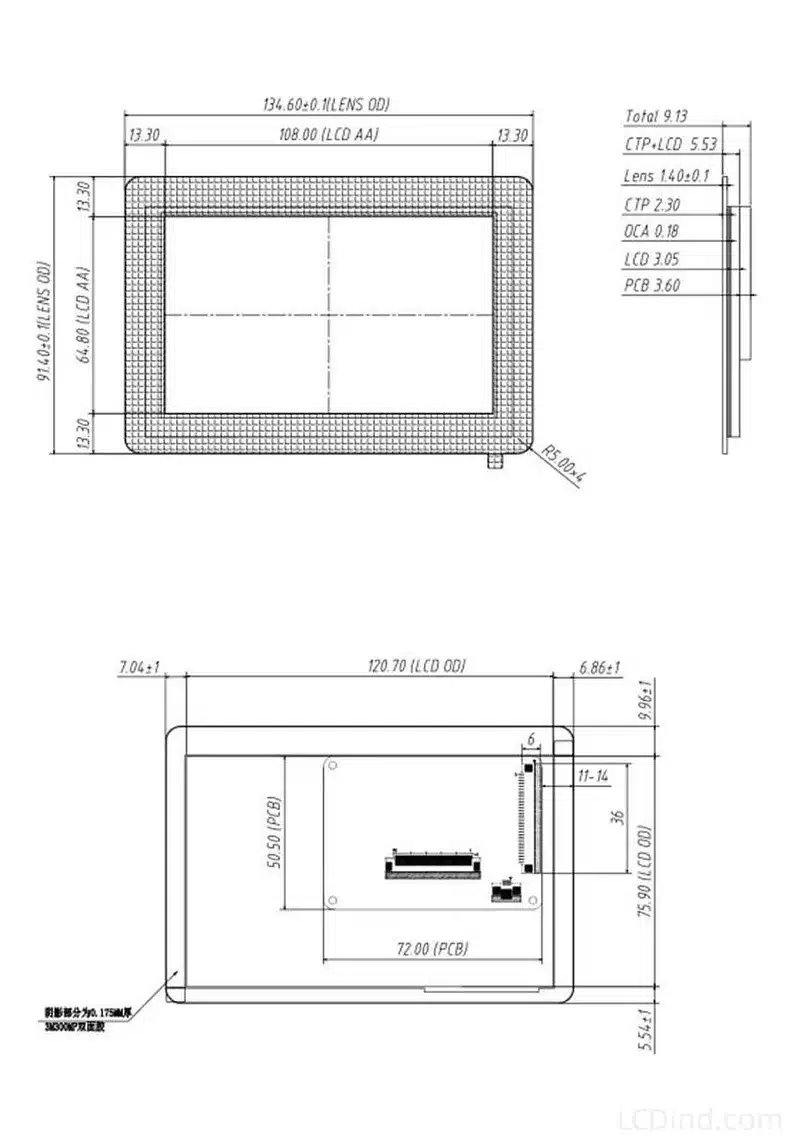

The active area is 108.00 x 64.80 mm. The full outline and cover-lens stack should be requested from the datasheet or drawing. If the product has a printed front lens, align the active area, touch sensor, border, and mounting gasket before tooling. Poor stack-up can cause touch instability or visible misalignment.

Selection Boundary

Choose this module when the host board supports 30-pin RGB/MCU and the product needs high brightness plus capacitive touch. Choose HDMI touch modules when a single-board computer or embedded PC is the host. Choose non-touch RGB modules when physical buttons handle all input.

Production Acceptance

Approval should include RGB/MCU timing, touch controller behavior, brightness, thermal rise, ESD, color test, cable strain, and final cover-lens readability. The production file should include pin definition, approved interface mode, drawing, touch configuration, and sample photos.

Direct Board Integration

This module is intended for projects where the buyer can integrate a 30-pin RGB/MCU display path into the mainboard. That can reduce the need for HDMI conversion electronics, but it also moves more responsibility to the hardware and firmware team. Pin definition, signal timing, backlight driving, touch controller wiring, and EMI behavior should be reviewed before the PCB layout is frozen.

High-Brightness Tradeoff

The 600-nit typical brightness is valuable for bright indoor equipment and protected outdoor panels, but it increases attention on power and heat. The sample should be tested at the intended operating brightness, with the final cover lens and enclosure, for several hours. If the product runs continuously, thermal rise and backlight life are more important than a short bench demonstration at maximum brightness.

Touch and Cover Glass

Capacitive touch gives a clean operator interface, yet the finished product must control cover-glass thickness, grounding, ESD, noise, and touch controller settings. If the buyer needs a branded front lens or thicker protective glass, LCDind should review whether the existing touch stack is still suitable. Touch performance should be approved on the final mechanical stack, not only on an open sample.

Replacement and Revision Control

For production programs, this product should be approved with a locked pinout, interface mode, drawing, touch configuration, optical requirement, and inspection standard. A replacement panel with the same 5 inch 800×480 headline may still differ in FPC, timing, active area, or touch controller. LCDind should compare those details before recommending an alternative for cost reduction or supply continuity.

RFQ Checklist

• Host interface mode, 30-pin pinout, voltage, timing, connector, FPC direction, and initialization support.
• Touch controller path, grounding, ESD, cover lens, glove/wet-touch requirement, and UI interaction needs.
• Mechanical drawing, active-area alignment, brightness target, thermal limits, and duty cycle.
• Sample quantity, annual forecast, inspection standard, packaging, and revision-control requirement.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, operating environment, touch behavior, accessory requirement, and quantity plan. This avoids selecting a display that matches the headline but fails the enclosure, firmware, brightness, thermal, or supply requirements of the finished equipment.

Engineering FAQ

Is this an HDMI display?

No. The confirmed interface is 30-pin RGB/MCU.

Is touch included?

Yes. The product is listed with capacitive touch.

When should this be chosen over HDMI touch displays?

Choose it when the host board is designed for raw RGB/MCU display integration and needs high brightness plus touch.
