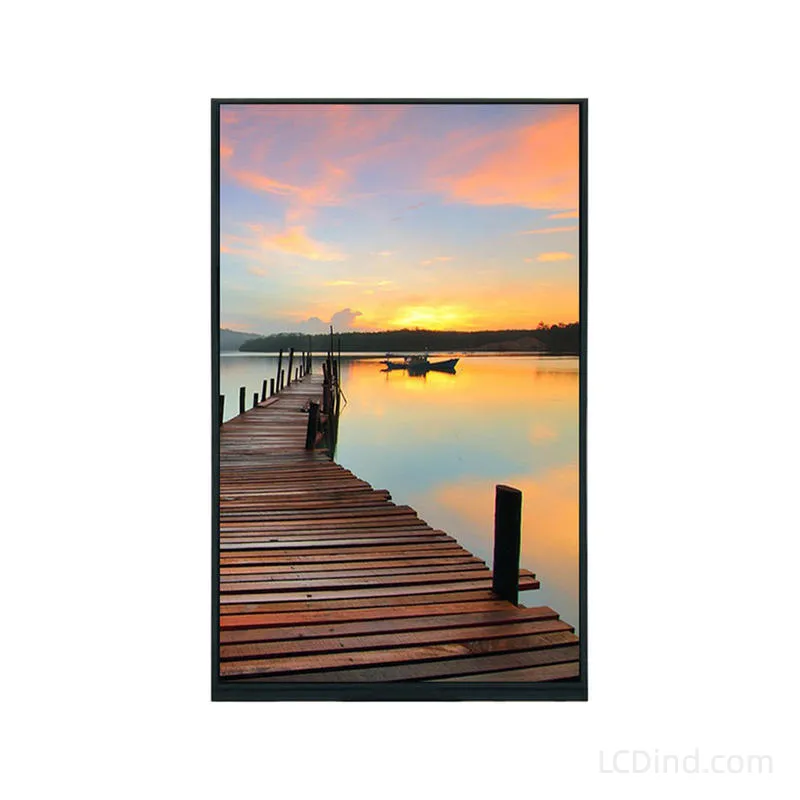

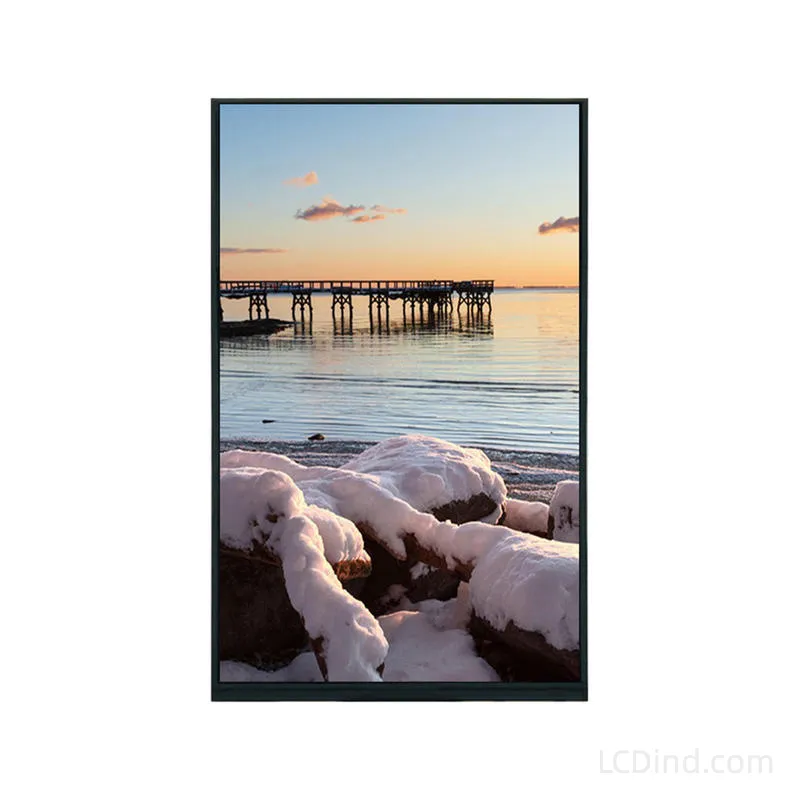

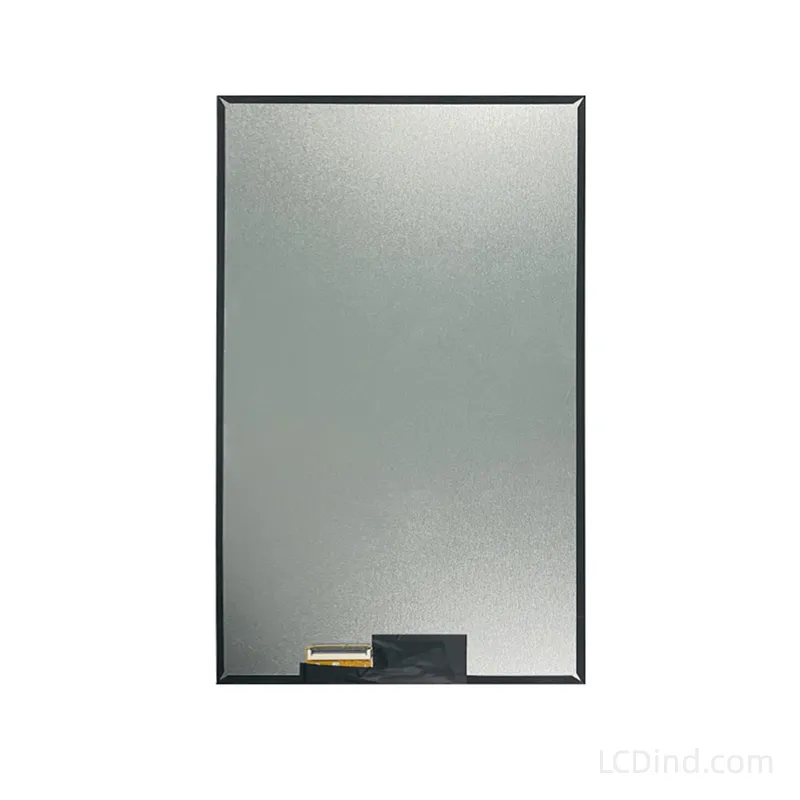

10.1 Inch MIPI TFT LCD Module 800×1280 IPS Portrait Display
The LCDind 10.1 Inch MIPI TFT LCD is engineered to deliver exceptional visual clarity for next-generation industrial handheld devices and vertical control panels. Featuring advanced IPS technology and a high-speed interface, this module ensures your user interface remains sharp and readable from any angle. Whether you are developing rugged data collectors or smart building controllers, our display solution offers the reliability and color accuracy your project demands. Ready to upgrade your device? Click the “Inquire Now” button above to get a competitive quote and full datasheet within 24 hours.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×1280 |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | All View / IPS |
Industrial Precision: 10.1 Inch Portrait Display

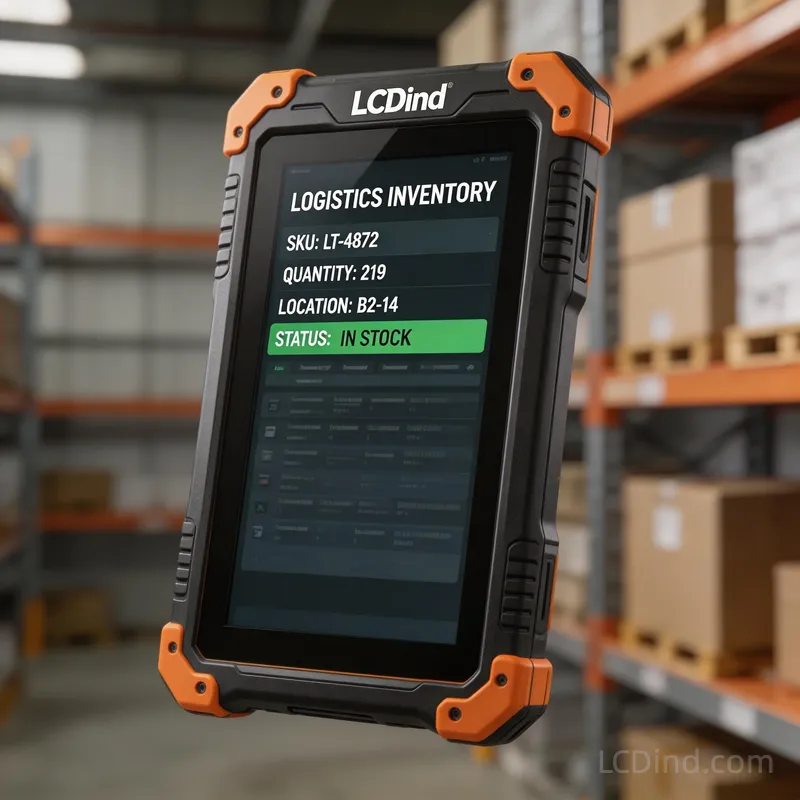

The DBT101BEN40M045A is a specialized 10.1 Inch MIPI TFT LCD designed primarily for portrait-orientation applications. Unlike standard landscape monitors, this module’s native 800×1280 resolution is optimized for vertical content, making it the ideal choice for handheld terminals, POS machines, and medical monitoring devices where vertical data visualization is critical.
Superior IPS Technology vs. TN Panels
In the industrial sector, viewing angles matter. This module utilizes IPS (In-Plane Switching) technology, offering significant advantages over traditional TN panels:
- Full Viewing Angles: With an 85/85/85/85 (U/D/L/R) viewing range, operators can read the screen clearly even when the device is tilted or mounted at eye level.
- Color Consistency: Eliminates the “color inversion” effect common in low-cost screens, ensuring safety warnings and data charts are displayed accurately.
High-Efficiency MIPI Interface
Equipped with a 40-pin MIPI (Mobile Industry Processor Interface), this display supports high-speed data transmission required for high-resolution graphics while maintaining low electromagnetic interference (EMI). This makes it highly compatible with modern ARM-based processors used in sophisticated industrial embedded systems.
Technical Specifications
| Model Name | DBT101BEN40M045A |
| Panel Type | IPS TFT LCD (Normally Black) |
| Display Size | 10.1 Inch (Diagonal) |
| Resolution | 800(RGB) x 1280 (Portrait Mode) |

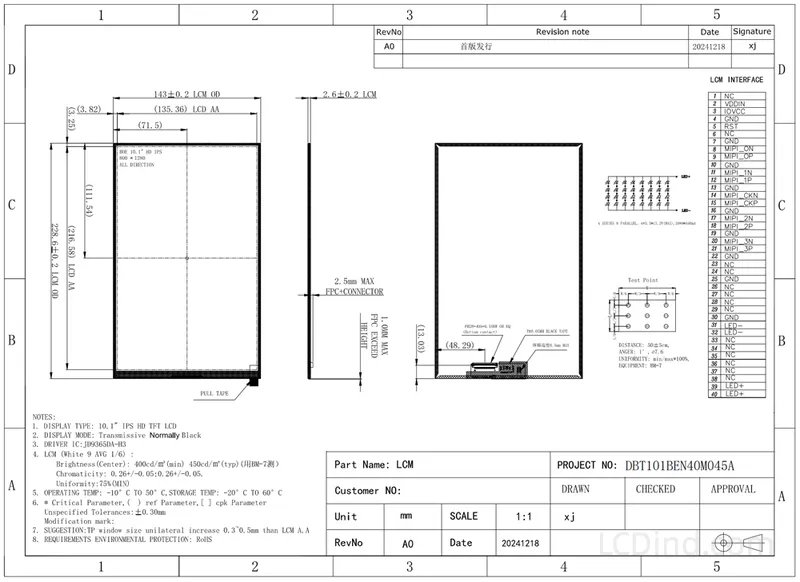

| Active Area | 135.36(H) x 216.58(V) mm |
| Module Outline | 143.0(H) x 228.6(V) x 2.65(D) mm |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Deg.) |
| Interface | MIPI (4 data lanes), 40 Pins |
| Pixel Pitch | 0.1175(H) x 0.1088(V) mm |
| Operating Temp | -10°C ~ 50°C |
| Storage Temp | -20°C ~ 60°C |
Engineering FAQ
Q: Can I change the orientation from Portrait to Landscape?
A: Yes. While the native resolution is 800×1280 (Portrait), the display content can be rotated to 1280×800 (Landscape) via software configuration on your host controller. The IPS panel ensures the image remains clear in either orientation.
Q: Is this 10.1 inch MIPI display compatible with Raspberry Pi?

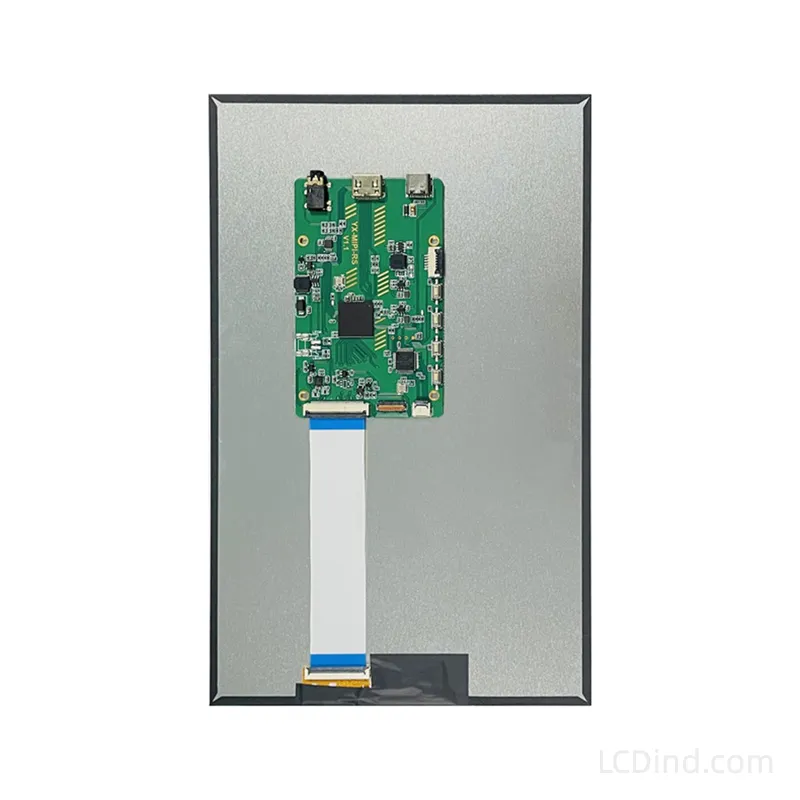

A: This module uses a raw MIPI DSI interface. Connecting to a Raspberry Pi typically requires a specific driver board or adapter bridge (HDMI to MIPI or DSI conversion). Please contact our engineering team for compatible driver board solutions.
Q: What is the backlight life of this unit?
A: The LED backlight is rated for approximately 30,000 to 50,000 hours of operation, depending on the brightness settings used, ensuring long-term reliability for industrial applications.
Q: Do you offer a touch version for this screen?
A: The DBT101BEN40M045A is a non-touch module. However, we can bond a Capacitive Touch Panel (PCAP) or Resistive Touch Panel (RTP) upon request. Custom cover glass options (AG/AR coating) are also available.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×1280 |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | All View / IPS |
Q: Can I change the orientation from Portrait to Landscape?
A: Yes. While the native resolution is 800x1280 (Portrait), the display content can be rotated to 1280x800 (Landscape) via software configuration on your host controller. The IPS panel ensures the image remains clear in either orientation.
Q: Is this 10.1 inch MIPI display compatible with Raspberry Pi?
A: This module uses a raw MIPI DSI interface. Connecting to a Raspberry Pi typically requires a specific driver board or adapter bridge (HDMI to MIPI or DSI conversion). Please contact our engineering team for compatible driver board solutions.
Q: What is the backlight life of this unit?
A: The LED backlight is rated for approximately 30,000 to 50,000 hours of operation, depending on the brightness settings used, ensuring long-term reliability for industrial applications.
Q: Do you offer a touch version for this screen?
A: The DBT101BEN40M045A is a non-touch module. However, we can bond a Capacitive Touch Panel (PCAP) or Resistive Touch Panel (RTP) upon request. Custom cover glass options (AG/AR coating) are also available.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
