Displays for Mission-Critical Applications
Reliability is not optional. LCDind engineers display solutions that withstand extreme temperatures, vibration, and EMI interference for the world's most demanding industries.

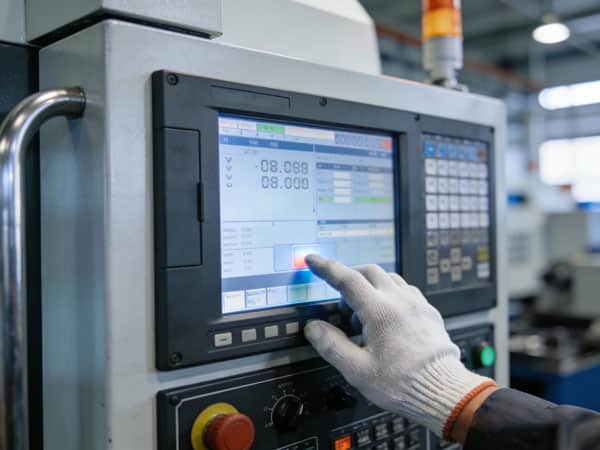

Rugged HMI & Control Panels
The Challenge: Factory floors are filled with dust, oil mist, and constant vibration. Standard consumer screens fail within months.
Our Solution: We provide rugged TFT LCD modules with industrial-grade driver ICs and thick cover glass (up to 4mm) that supports glove operation and resists impact (IK08).
- Longevity: 5-7 years minimum supply lifecycle (No sudden EOL).
- Durability: 50,000+ hours LED life with aluminum heat dissipation.
- Interference: Enhanced EMI shielding to prevent noise from motors.

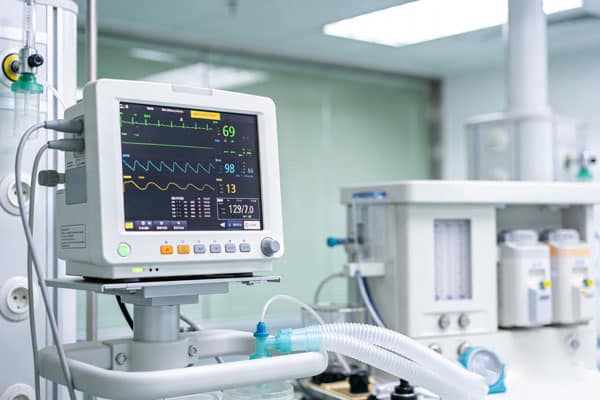

Precision Medical Monitors
The Challenge: Medical devices require absolute color accuracy, low electromagnetic emission, and surfaces that can withstand harsh disinfectants.
Our Solution: LCDind offers IPS panels with high color gamut and anti-bacterial coating on the cover lens. Our modules pass strict EMC tests compatible with IEC 60601 standards.
- Optical Clarity: High contrast IPS / OLED for precise diagnostics.
- Hygiene: AF (Anti-Fingerprint) coating resistant to alcohol cleaning.
- Stability: Low leakage current design for patient safety.

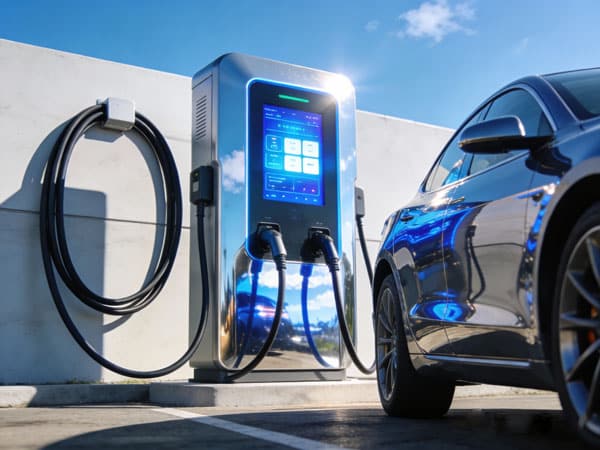

EV Chargers & Outdoor Kiosks
The Challenge: "Black screen" effect under sunlight and fogging due to humidity/temperature changes.
Our Solution: We utilize High Brightness (1500+ nits) backlights and Optical Bonding to eliminate internal reflection. Our wide-temperature liquid crystal fluid prevents freezing at -30°C.
- Readability: Sunlight readable with auto-dimming sensors.
- Protection: UV-protection film to prevent yellowing over time.
- Weatherproof: Watertight bonding support for IP65 designs.
Sector Specification Matrix
Compare the typical requirements for different industrial applications.
| Feature | Industrial HMI | Medical | Automotive / Outdoor |
|---|---|---|---|
| Operating Temp | -20°C ~ +70°C | 0°C ~ +50°C | -30°C ~ +85°C |
| Brightness | 300 - 500 nits | 300 - 600 nits | 1000 - 2000 nits |
| Touch Tech | RTP / PCAP (Gloves) | PCAP (Fine Touch) | PCAP (Water/Thick Glass) |
| Surface | Anti-Glare (AG) | Anti-Fingerprint (AF) | Anti-Reflective (AR) + UV |
| Key Requirement | Vibration Resistance | EMC / Color Accuracy | Sunlight Readability |
Proven Track Record
Selected case studies from our recent B2B projects.
Designed a custom 10.1" IPS display with EMI shielding tape. Passed IEC 60601-1-2 certification.
Volume: 5k pcs/year.
Provided 7" 1000 nits sunlight readable module with Optical Bonding. Solved overheating issue with custom aluminum backframe.
Volume: 10k pcs/year.
Retrofit 8" display to replace discontinued Sharp module. Redesigned FPC to match original connector pinout.
Result: Saved client $500k in redesign costs.
