AUO 12.3-inch IPS Car Screen 1920×720 CTP Touch Display with LVDS Interface
BASED ON AUO FOG: C123HAX04.G
|
NO.
|
Item
|
Unit
|
Specification
|
|
1
|
Display Resolution
|
dot
|
1920 RGB(H) x 720 (V)
|
|
2
|
Active Area
|
mm
|
292.032 (H) x 109.512 (V)
|
|
3
|
Screen Size
|
inch
|
12.3” (Diagonal)
|
|
4
|
Dot Pitch
|
μm
|
152.1×152.1
|
|
5
|
Color Configuration
|
—
|
R. G. B. Stripe
|
|
6
|
Color Depth
|
—
|
16.7M Colors
|
|
7
|
Overall Dimension
|
mm
|
296.032 (H) x 118.844 (V) x 1.024 (T)
|
|
8
|
Display Mode
|
—
|
Normally Black
|
|
9
|
Surface Treatment
|
H
|
Hard Coating
|
|
10
|
Viewing Angle
|
deg.
|
85/85/85/85
|
|
11
|
Interface
|
60Pin LVDS
|
|
|
12
|
operation temperature
|
℃
|
-30~85
|
Product Attributes
| Brand | AUO |
|---|---|
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | Capacitive Touch (PCAP) |

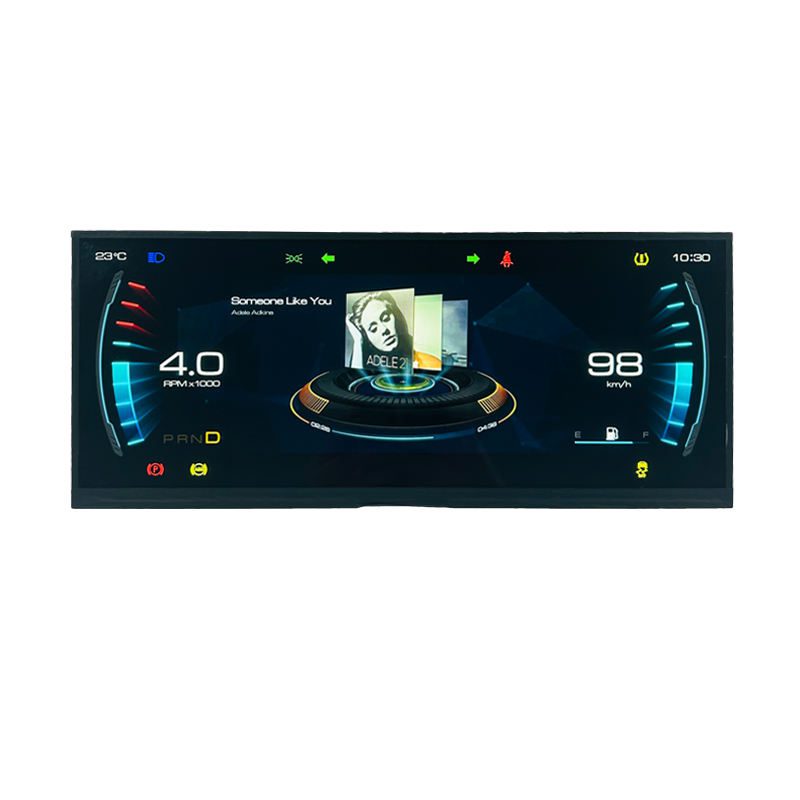

AUO 12.3-inch IPS Car Screen 1920×720 CTP Touch Display (Model C123HAX04.G)
AUO 12.3-inch IPS Car Screen 1920×720 CTP Touch Display (model C123HAX04.G) is a high-performance LTPS TFT-LCD built for automotive infotainment. Featuring AUO’s AHVA wide-view technology and in-cell touch, this 8:3 ratio screen delivers 1920×720 RGB resolution with crisp, vibrant visuals (80% NTSC gamut, 1100:1 contrast).
Its 292.032(H)×109.512(V) active area, paired with 85° all-around viewing angles, ensures clarity from any seat. Engineered for harsh vehicle conditions, it operates at -30℃~85℃ (stores at -40℃~95℃) and connects via a 60Pin LVDS interface for easy integration. The responsive CTP capacitive touch panel and RoHs compliance add practicality for automotive applications.
Source this reliable AUO car display for your projects—visit lcdind.com today.
| Brand | AUO |
|---|---|
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | Capacitive Touch (PCAP) |
