14 Inch 1600×1200 IPS LCD Display | 800 nits High Brightness | LVDS with Driver Board
Upgrade your visual experience with our 14-inch UXGA High Brightness Display Kit. Engineered for professionals, this 1600×1200 IPS panel delivers crystal-clear imagery even in bright environments thanks to its 800 nits brightness. It comes as a complete solution with a 50-pin LVDS interface and a compatible Driver Board, making it the ultimate choice for Flight Simulators, Industrial HMIs, and Medical Imaging.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Resolution | |
| Size | 14.0 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
Are you looking for a reliable 14 Inch High Brightness TFT LCD for your simulation project?
The search ends here. Our 14 Inch High Brightness TFT LCD module is a comprehensive solution designed to meet the rigorous demands of avionics, industrial automation, and high-end medical devices. With a rare 1600×1200 resolution and 800 nits luminance, it outperforms standard screens in clarity and visibility.
Key Features of this 14 Inch High Brightness TFT LCD
- Superior Visual Clarity (UXGA): With a native resolution of 1600×1200, this screen provides high pixel density for intricate flight instruments.
- High Brightness & Visibility: Rated at 800 nits, this 14 Inch High Brightness TFT LCD cuts through glare, ensuring readability in bright environments.
- Wide Viewing Angles (IPS): Enjoy 85/85/85/85 viewing angles. The image remains consistent without color inversion.

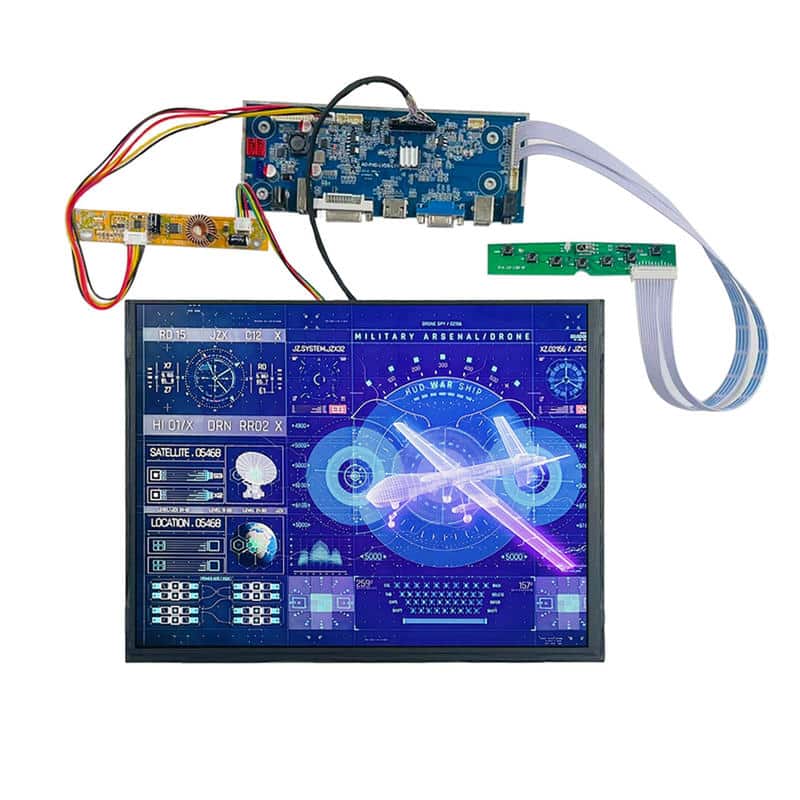

- Plug-and-Play Integration: Includes a 50-PIN LVDS interface and a matched Driver Board (HDMI/VGA), simplifying your development.
Technical Specifications
| Attribute | Specification |
| Panel Size | 14.0 inch Diagonal |
| Resolution | 1600(RGB) x 1200 [UXGA] |
| Panel Type | a-Si TFT-LCD, IPS (Free Angle) |
| Brightness | 800 cd/m² (nits) |
| Contrast Ratio | 800:1 (Typ.) |
| Interface | LVDS (2 ch, 8-bit), 50 pins |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Aspect Ratio | 4:3 (Square Screen) |
| Backlight | WLED, 30K Hours Life |
| Active Area | 285.6(H) × 214.2(V) mm |

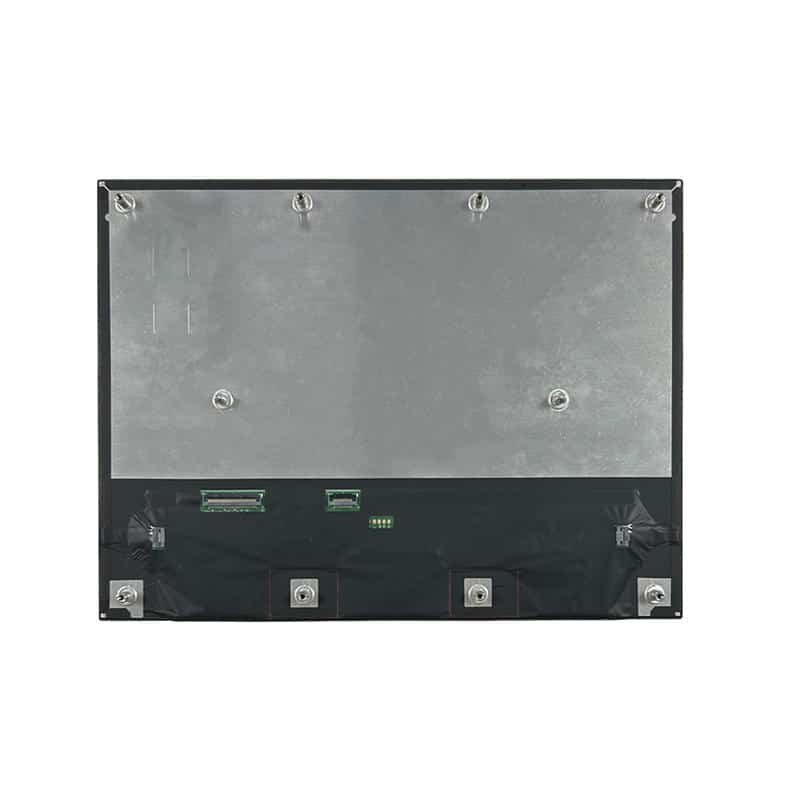

| Outline Dim. | 299.96(H) × 229.79(V) × 8.5(D) mm |
| Operating Temp | Standard (0 to +50°C) |
| Touch Screen | Optional (Capacitive/Resistive available on request) |
Target Applications
This module is specifically curated for industries requiring a square screen format:

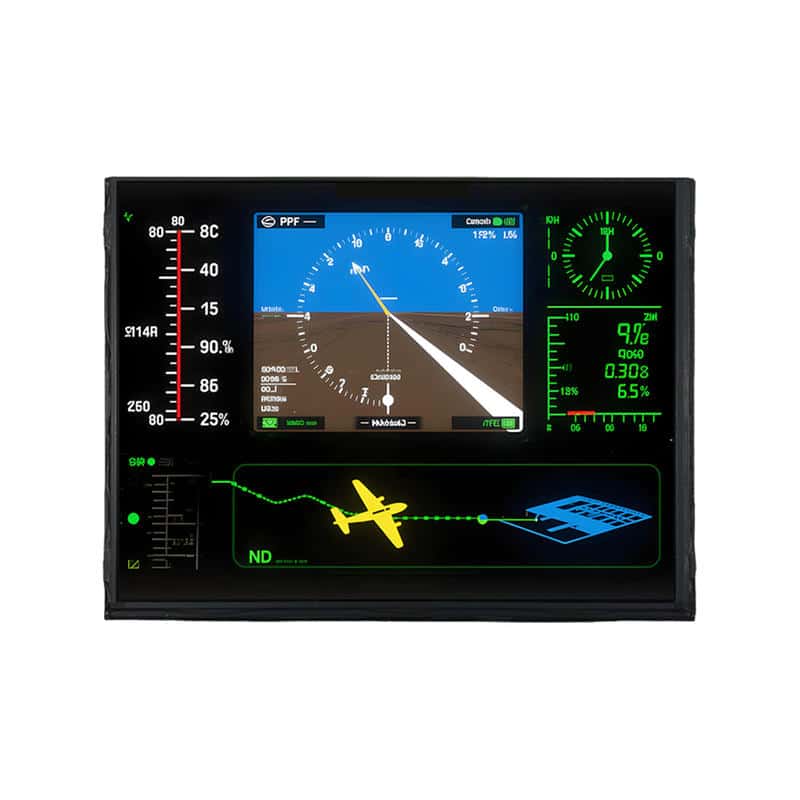

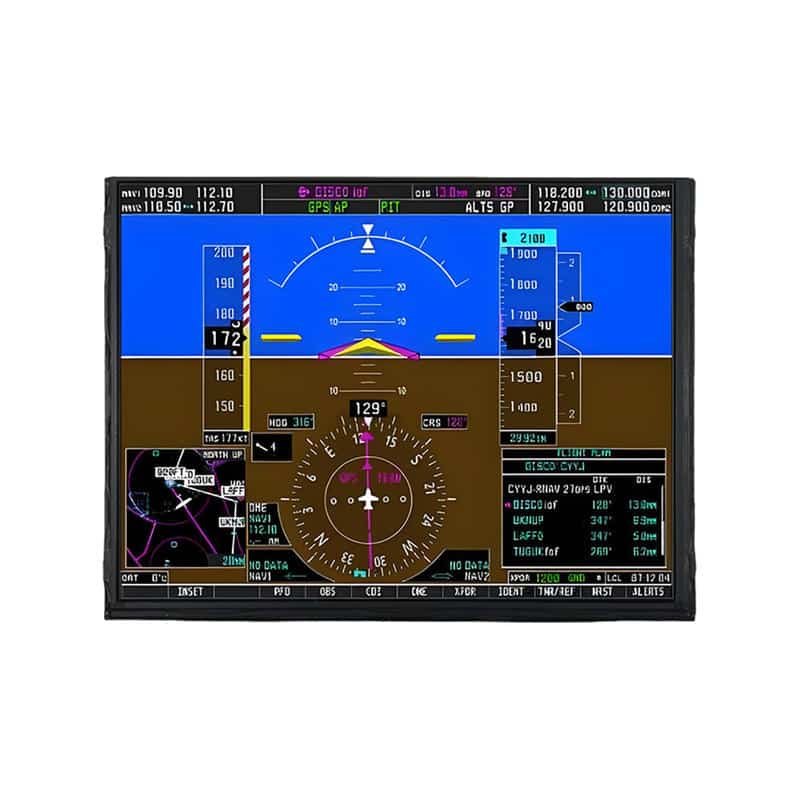

- Flight Simulation & Avionics (PFD/MFD)
- Industrial Control Systems (CNC)
- Medical Imaging Displays
Frequently Asked Questions

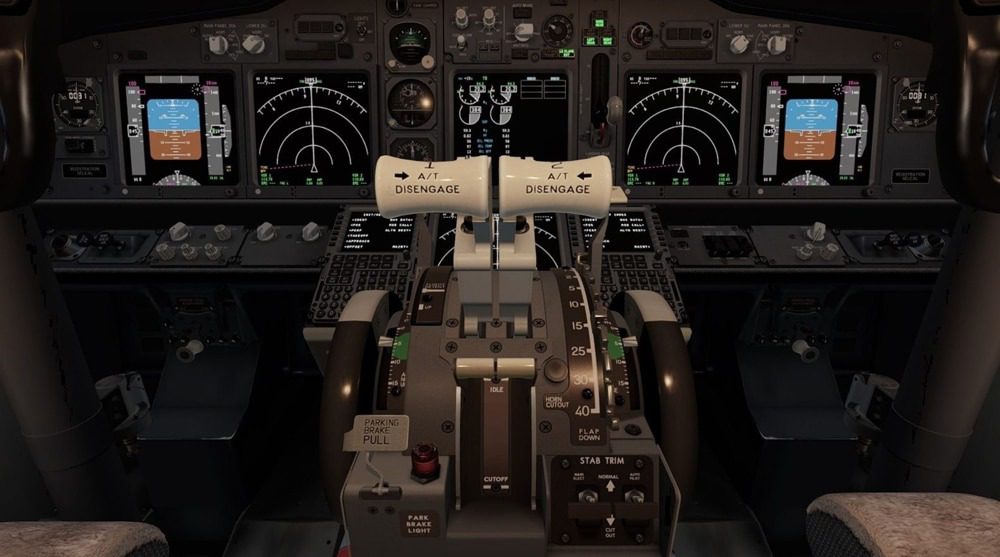

What makes this 14 Inch High Brightness TFT LCD suitable for flight sims?
The 1600×1200 resolution offers a 4:3 aspect ratio, matching real-world aircraft instruments better than widescreen monitors.
Is the driver board included?
Yes, this kit comes with a compatible driver board supporting HDMI and VGA inputs.
| Brand | OEM / ODM |
|---|---|
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Resolution | |
| Size | 14.0 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
What is the advantage of a 1600x1200 resolution for flight simulators?
The 1600x1200 resolution offers a 4:3 aspect ratio, which matches the format of many real-world aircraft instrument panels and avionics displays better than modern 16:9 wide screens. This allows for a more realistic simulation experience without stretching or distorting the gauges.
Is the 800 nits brightness enough for outdoor use?
Yes, 800 nits is classified as High Brightness. While full direct sunlight usually requires 1000+ nits, 800 nits is significantly brighter than standard laptop screens (250 nits). It is excellent for environments with high ambient light, such as bright cockpits or outdoor shaded areas.
Does this LCD module come with a controller board?
Yes, this specific SKU includes a compatible Driver Board. The board typically supports HDMI and VGA inputs, allowing you to connect the display directly to a PC, Raspberry Pi, or other media players via the LVDS interface without needing custom engineering.
Can I request a touchscreen overlay for this 14-inch display?
Absolutely. We offer customization services. You can request the addition of a Projected Capacitive (PCAP) or Resistive touch panel. Please contact our sales team for MOQ and customization details regarding touch integration.
What is the interface type of the panel?
The raw panel uses a 50-pin LVDS (Low Voltage Differential Signaling) interface. However, with the included driver board, you can interface with standard HDMI/VGA cables.
