12 Inch 1200×1600 750-Nit LVDS IPS Flight Simulator LCD Module with Driver Board
12 inch 1200×1600 IPS Flight Simulator TFT LCD module with 750 cd/m² brightness, 40-pin LVDS, 180 × 240 mm active area, wide -30°C to +85°C operation and a driver-board configuration for flight simulator displays.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 12 inch |
| Resolution | 1200×1600 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
| Panel Type | IPS |
| Operating Temp | Wide (-30°C to +85°C) |
| Touchscreen | Not specified |

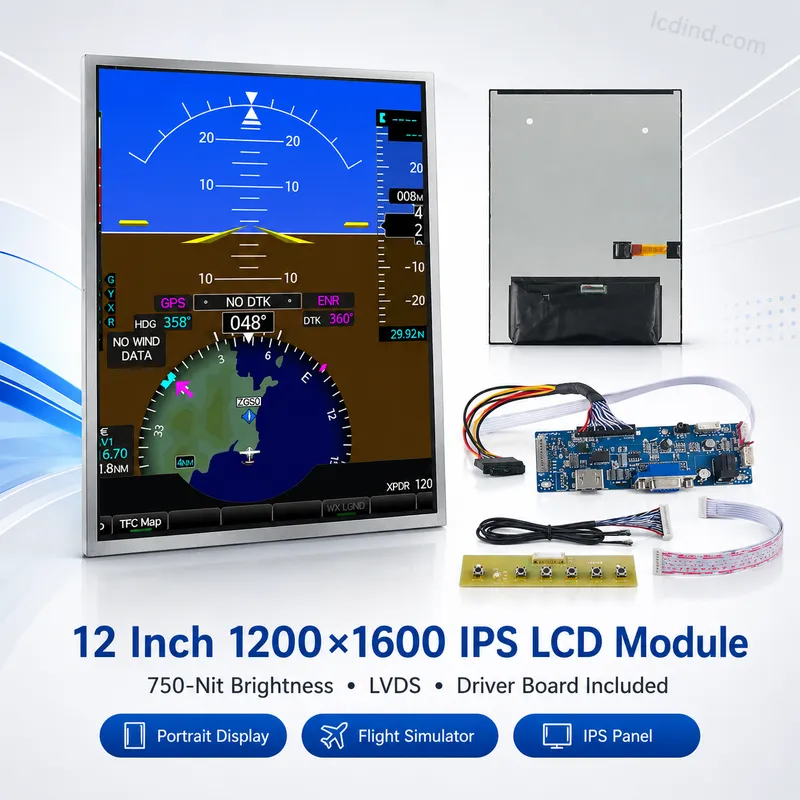

12 Inch 1200×1600 High-Brightness LVDS Flight Simulator LCD Module
This portrait-format Flight Simulator TFT LCD combines 1200 × 1600 resolution, 750 cd/m² brightness, IPS display mode and a 40-pin LVDS interface. The supplier identifies model DBT120VUN40L075A and lists the product for flight simulator display integration with a driver-board configuration.

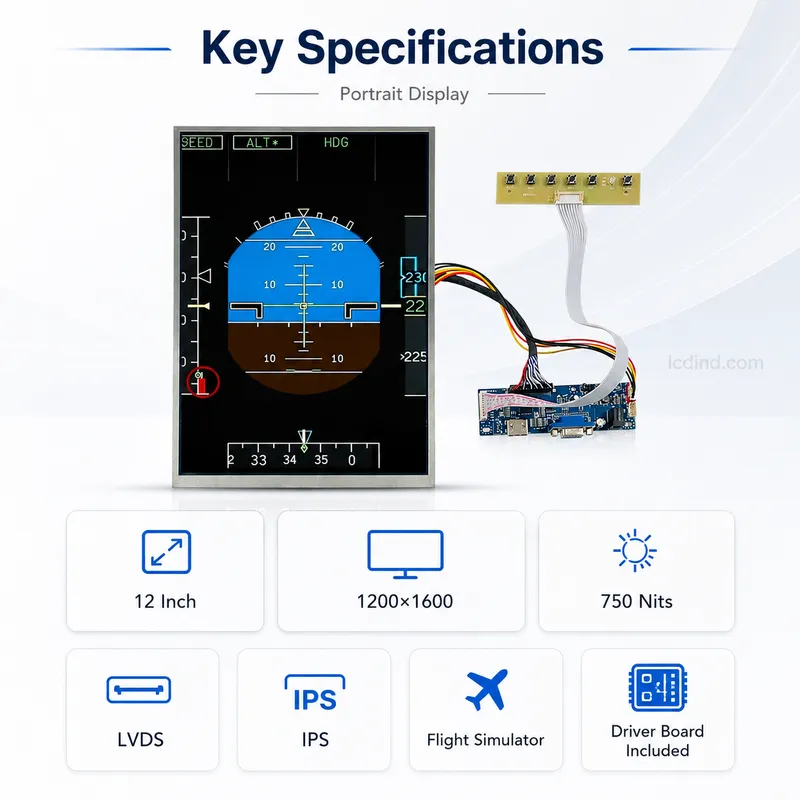

Confirmed Product Specifications
| Display size | 12 inch diagonal |
|---|---|
| Model | DBT120LCDVUN40L075A |
| Resolution | 1200 × 1600 pixels |
| Panel technology | IPS TFT LCD |
| Brightness | 750 cd/m² |
| Active area | 180 × 240 mm |
| Outline dimension | 194 × 258.55 × 10.6 mm |
| Panel interface | 40-pin LVDS |
| Viewing angle | 85/85/85/85° typical |
| Display mode | Normally black |
| Color support | 16.7 million colors |
| Backlight | LED display screen |
| Operating temperature | -30°C to +85°C |

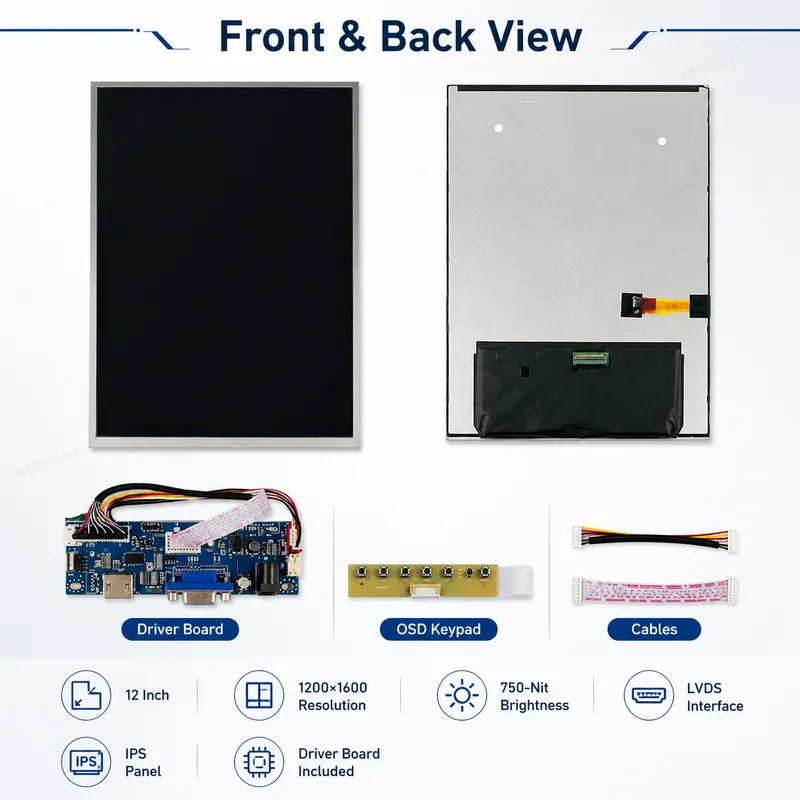

| Configuration | LCD with driver board |
| Primary application | Flight simulator display |

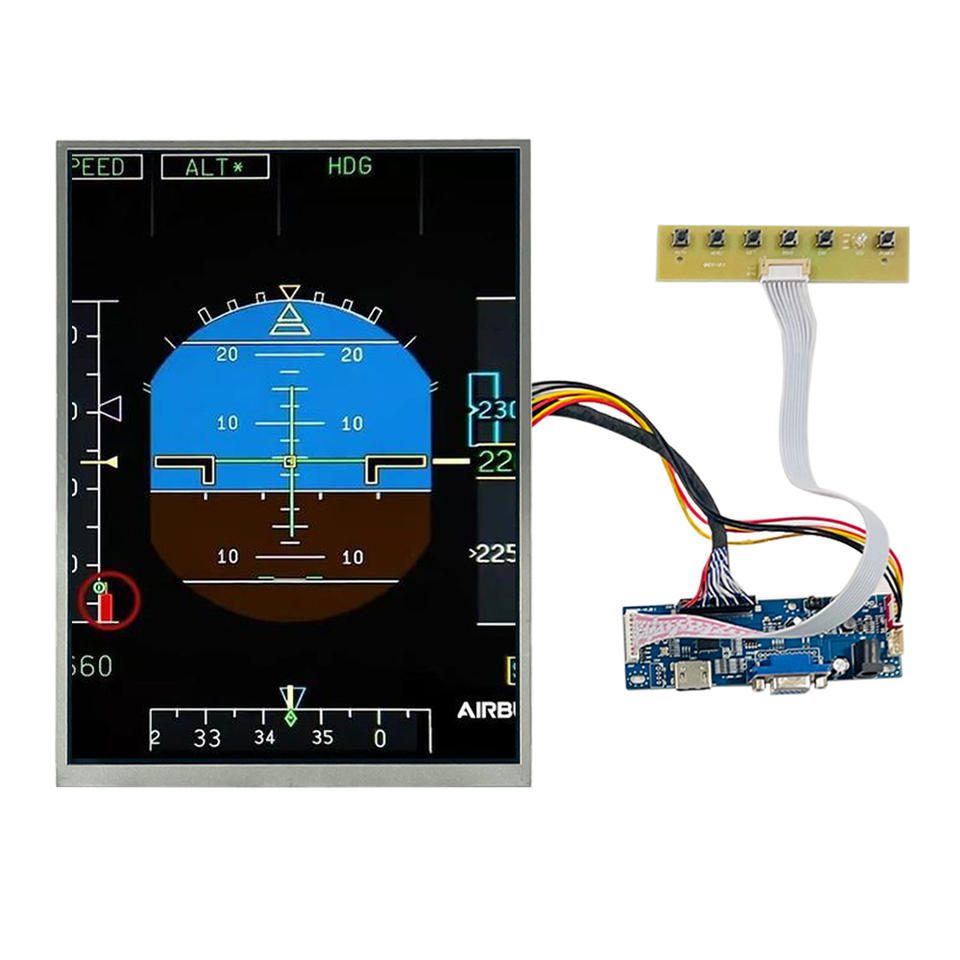

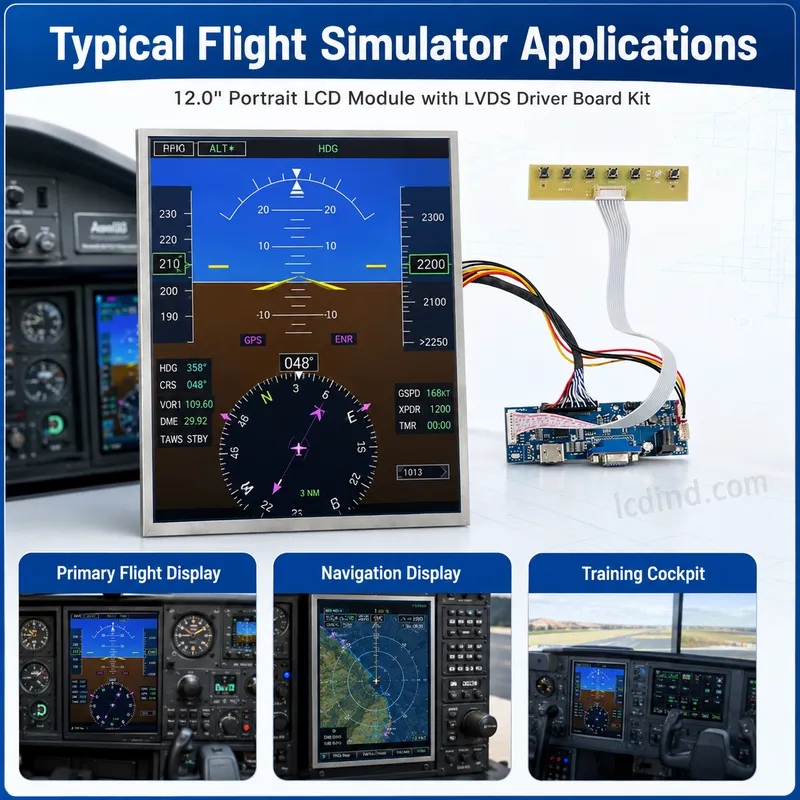

Portrait-Format Simulator Integration
The 1200 × 1600 portrait layout can support instrument panels, navigation interfaces and simulator control displays where vertical screen space is important. Mechanical approval should use the supplier drawing because the live page does not show mounting-hole locations, bezel opening, connector position or FPC direction.
Brightness and Viewing Qualification
The listed 750 cd/m² brightness and 85/85/85/85° typical viewing angles support high-brightness, wide-angle indoor applications. These values do not by themselves guarantee sunlight readability. Final optical qualification should include the cover lens, reflections, optical bonding, dimming range and enclosure temperature.

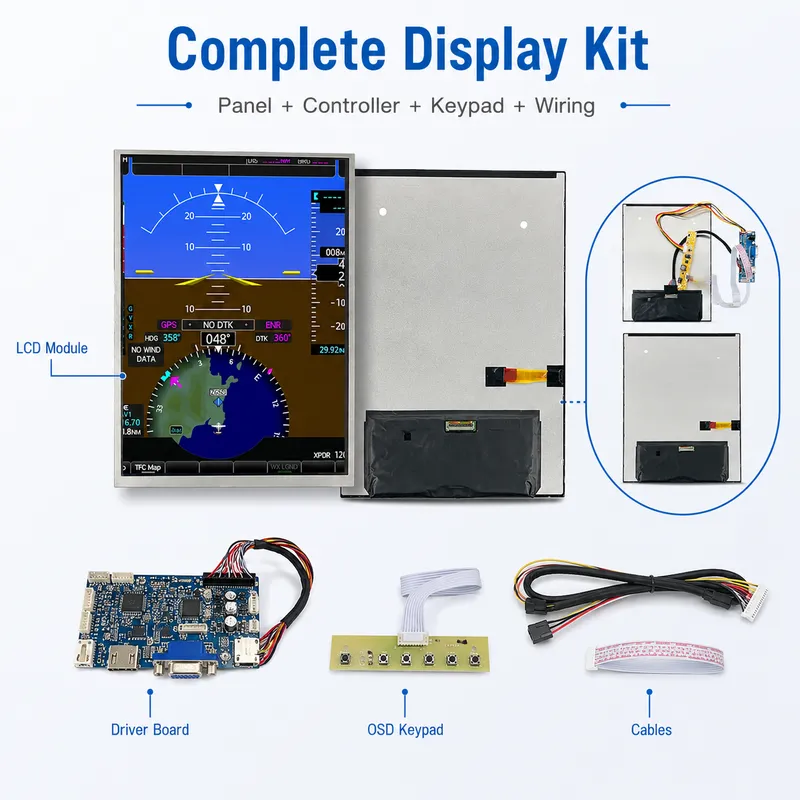

LVDS and Driver-Board Scope
The source identifies a 40-pin LVDS panel and a driver-board configuration, but it does not identify the board input ports, supply voltage, timing support, firmware, cable set or power consumption. Confirm the complete board kit and interface timing against the target host before sample approval.
Supply and Customization Review
The listing shows a minimum order quantity of one set. General terms state that stocked samples may ship within two days and mass production may require three to six weeks, while the FAQ separately says stocked products can ship within three working days. Confirm current stock, lead time, warranty, packaging and driver-board revision in the quotation.
RFQ Checklist
- Approved model revision, datasheet, mechanical drawing and sample-label photo.
- Host LVDS timing, 40-pin connector pinout, cable and power sequence.
- Driver-board input ports, supply voltage, firmware and supported signal formats.
- Cover lens, touch requirement, optical bonding, dimming and thermal path.
- Mounting points, bezel opening, connector position and installation orientation.
- Sample quantity, annual forecast, lead time, warranty and approved-substitute policy.
Engineering FAQ
Is sunlight readability guaranteed?
No. The source lists 750 cd/m² brightness; sunlight readability depends on the completed optical and thermal stack.
Is touch included?
No touch panel is specified on the live product page. Treat touch, cover lens and optical bonding as separate requirements.
Is the driver board fully specified?
No. A driver-board configuration is listed, but its input ports, power requirements and firmware are not defined on the page and must be confirmed before ordering.
