10.3 Inch Square LCD Display (768×768) Professional Avionics Visuals

10.3 Inch Square LVDS LCD for Cockpit, Marine and Instrument Displays

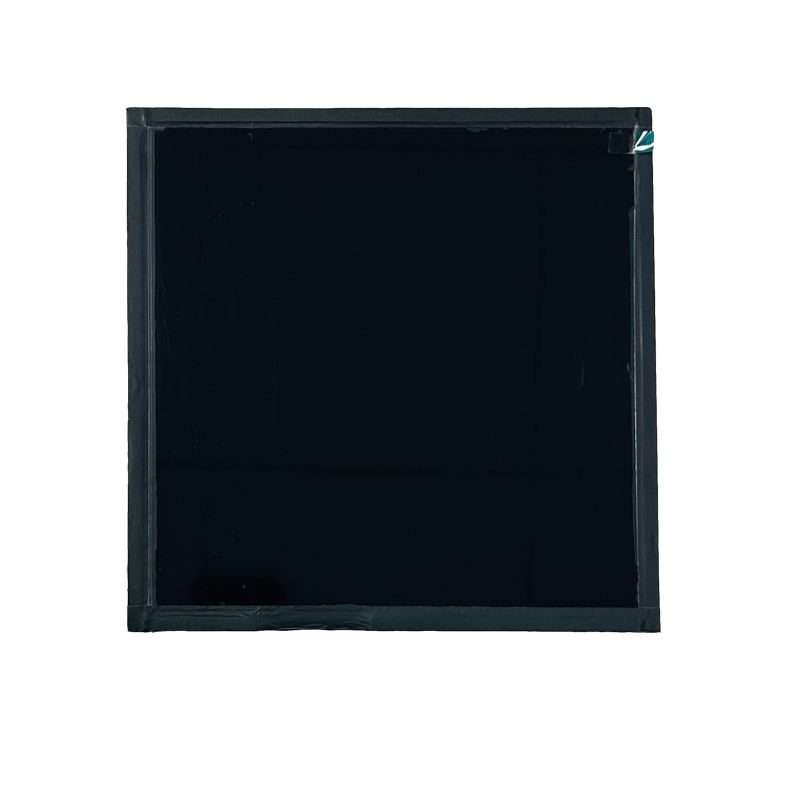

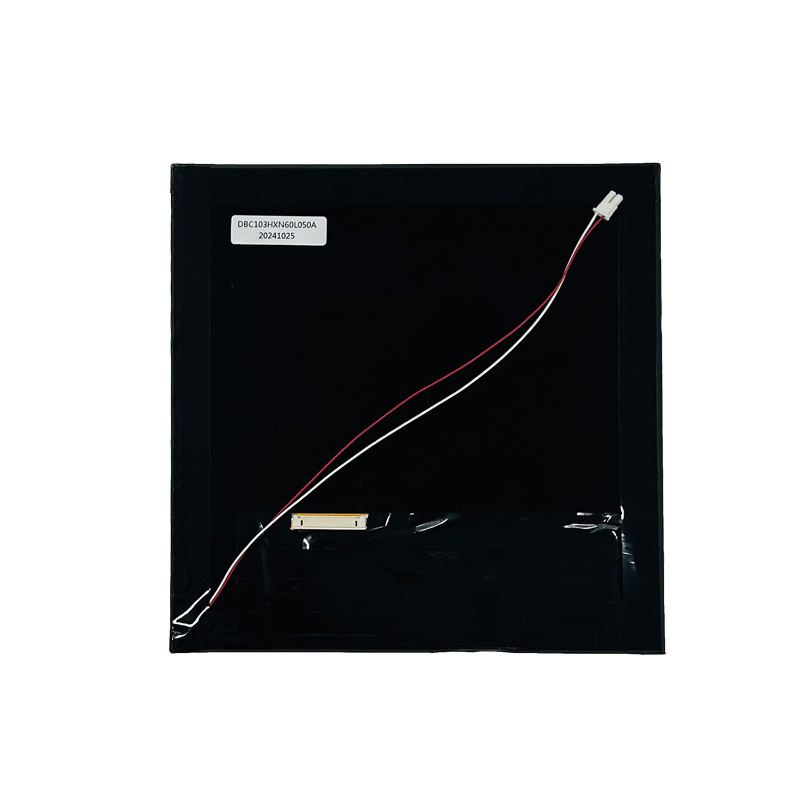

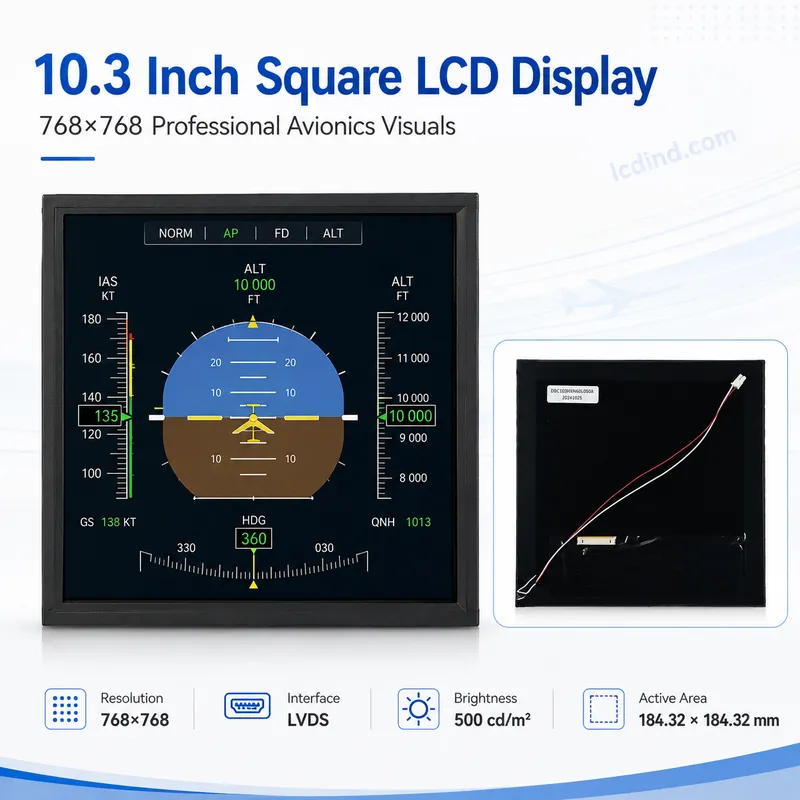

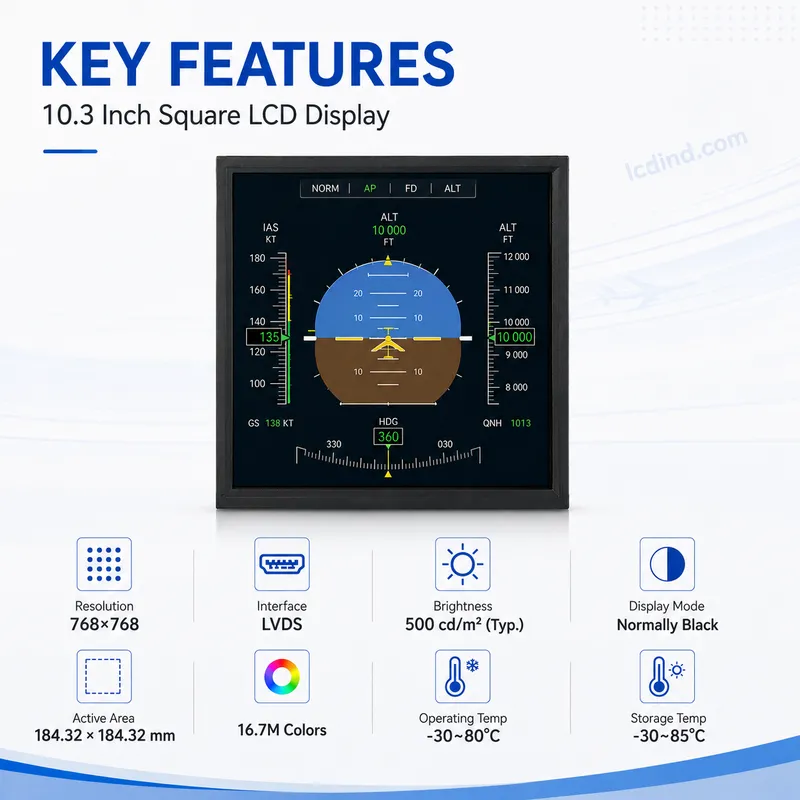

This 10.3 inch square LCD display is a specialist format for projects where a conventional 16:9 panel would waste enclosure space or distort the intended interface. The live specification lists model LCD103HXN20L050A, 768(H) x 768(V) resolution, IPS normally black transmissive mode, 500 nits brightness, 184.32 x 184.32 mm active area, 204 x 204 x 10.5 mm outline dimension, 20-pin LVDS interface, and -30°C to +80°C operating temperature. Those facts make it relevant for avionics-style visuals, simulator panels, marine consoles, square industrial dashboards, and equipment that needs symmetrical screen geometry rather than consumer multimedia proportions.

Why the Square Format Matters

Square displays solve a different design problem from standard wide displays. They provide equal horizontal and vertical workspace, which is useful for radar-like views, map tiles, round-gauge clusters, camera views, alarm matrices, diagnostic dashboards, and flight-simulator instruments. In B2B projects, the square format can reduce wasted bezel area and allow several screens to be tiled in a control panel. Procurement should therefore specify the actual interface layout and bezel design, not only ask for a 10.3 inch LCD.

LVDS and System Timing

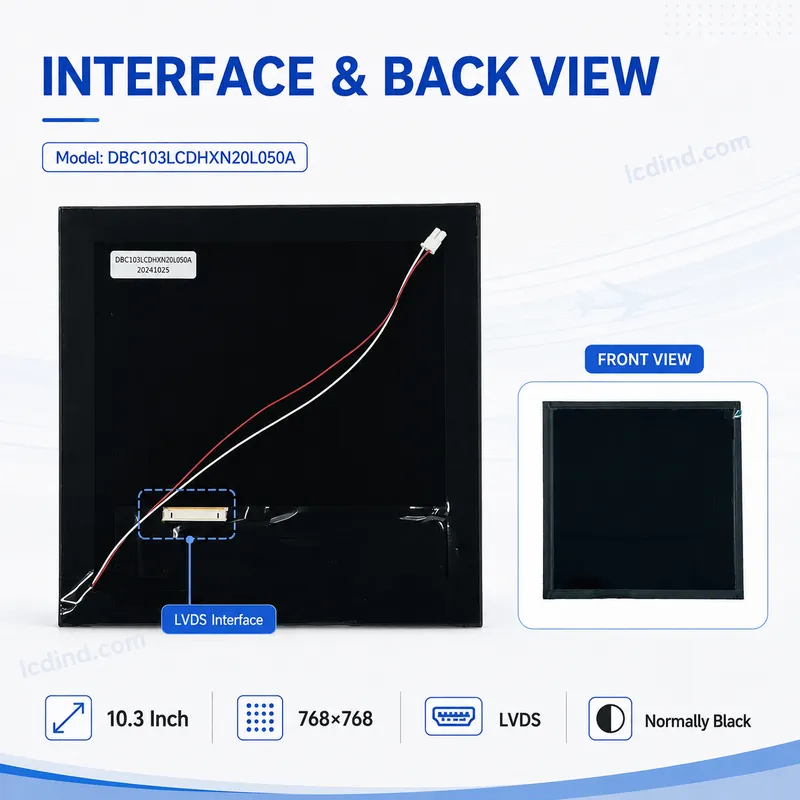

The confirmed 20-pin LVDS interface is an advantage for embedded controllers that already support stable parallel-to-LVDS display output. Before approval, engineers should check mapping, clock frequency, color depth, cable length, shield grounding, and connector orientation. A square 768 x 768 timing may not be preconfigured on every controller board, so LCDind should be given the controller model or timing requirements during sample review. This avoids treating the display as if it were a common XGA or WXGA panel.

Environmental Suitability

The -30°C to +80°C operating temperature supports harsh equipment environments, including marine cabins, automotive-adjacent systems, industrial test rigs, outdoor enclosures, and high/low-temperature simulation use. The 500-nit brightness is stronger than many indoor commodity panels, but final readability still depends on cover glass, anti-glare treatment, backlight duty, ambient light, and installation angle. If the display will be exposed to sunlight or vibration, those requirements should be included before samples are approved.

Mechanical Integration

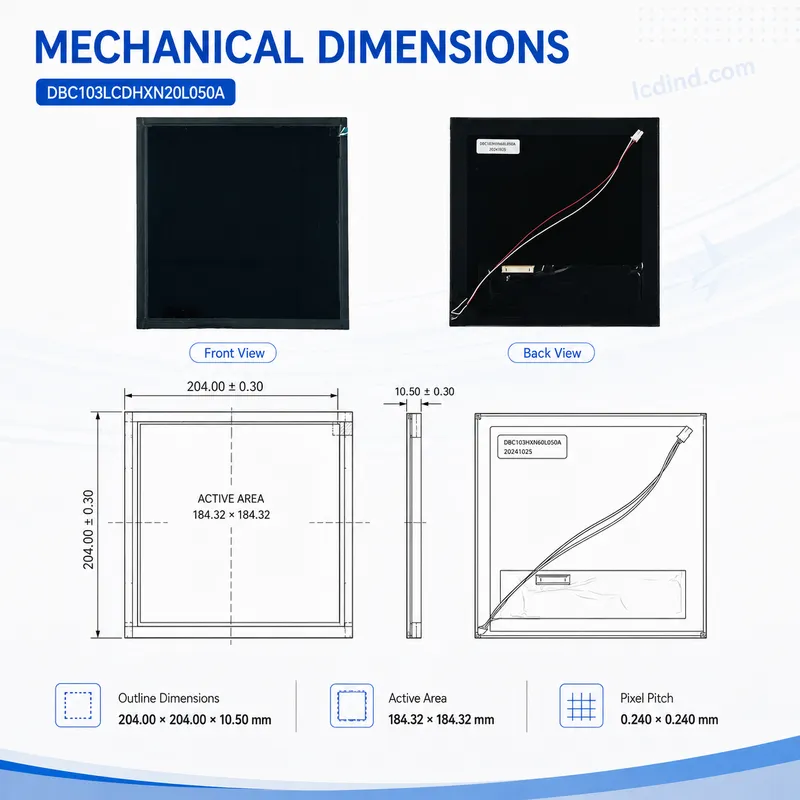

The 204 x 204 x 10.5 mm outline and 184.32 x 184.32 mm active area must be checked against the enclosure and front mask. Square panels often fail in projects because the active area, mounting border, and bezel opening are assumed rather than measured. For cockpit and marine-style projects, also confirm cable exit direction, gasket compression, bracket clearance, and whether the panel will be optically bonded to a protective lens.

Supply and Project Fit

This product is appropriate for OEM display programs, simulator equipment manufacturers, marine electronics builders, industrial dashboard integrators, and replacement projects where the original square display is difficult to source. It is not a broad consumer monitor item. A useful RFQ should include drawings, existing panel photos if applicable, target controller board, brightness requirement, temperature requirement, and forecast quantity.

Sample Validation Plan

A square LVDS display should be tested with the actual UI, not only with a color-bar signal. Validation should include square-pixel geometry, map or instrument readability, black-level uniformity, wide-angle readability, cold-start behavior, and cable stability under vibration. If the screen is used in a simulator or marine console, check whether the bezel, front glass, and viewing distance preserve the intended scale of the displayed instruments.

Production Risk Control

Square panels are less interchangeable than common widescreen panels. The project should control active-area position, outline dimension, LVDS timing, and mounting references before tooling is released. If an alternative panel may be needed later, the buyer should define which dimensions and brightness values are critical and which items can be adjusted without changing the product enclosure.

Ordering Notes for Niche Formats

Because square displays are not commodity stock in the same way as widescreen panels, purchasing should separate prototype demand from long-term service demand. If the display supports a simulator, marine console, or industrial panel that may be sold for several years, keep a small approved spare-part plan and confirm packaging protection for the square glass format.

Confirmed Product Specifications

These values are preserved from the live product specification table. Any missing mechanical, electrical, optical, or compliance item should be confirmed through drawing, datasheet, sample approval, or LCDind engineering review before production use.

RFQ Checklist

• Target equipment type and application environment.
• Host board interface, voltage, cable direction, and connector requirement.
• Display orientation, active-area window, enclosure drawing, and mounting method.
• Touchscreen, cover lens, anti-glare, optical bonding, or protective glass requirement.
• Sample quantity, forecast annual volume, lifecycle expectation, and approved alternatives policy.

Engineering FAQ

Is this panel only for flight simulators?

No. The square 768 x 768 format also fits marine, industrial dashboard, diagnostic, and instrument-cluster applications.

Can it work with any LVDS controller?

Not automatically. Confirm LVDS mapping, timing, voltage, connector, and cable before approving the controller/display combination.

Is 500 nits enough for outdoor use?

It may be suitable for bright indoor or protected environments, but direct sunlight readability depends on optical stack and installation conditions.
