7 Inch Square LCD Display 768×768 Flight Simulator LCD LVDS 500nit TFT LCD Module for Flight Simulator
Engineered for high-fidelity avionics and professional simulation, this 7 Inch Square LCD Display brings your cockpit to life. Unlike standard rectangular screens, its native 1:1 aspect ratio and vivid IPS panel deliver a pixel-perfect replication of Weather Radars (WXR) and Navigation Displays (ND). With a robust 20-Pin LVDS interface, it is designed for seamless integration into complex industrial and marine instrument clusters, ensuring critical data is readable from any angle.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Resolution | 768×768 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
The Avionics Specialist: 7 Inch Square LCD Display

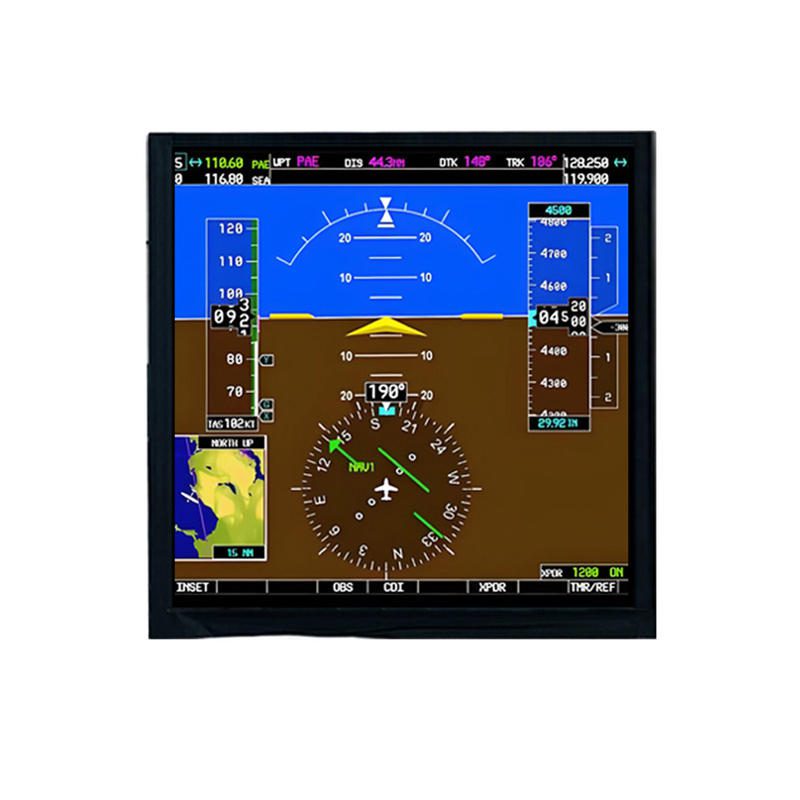

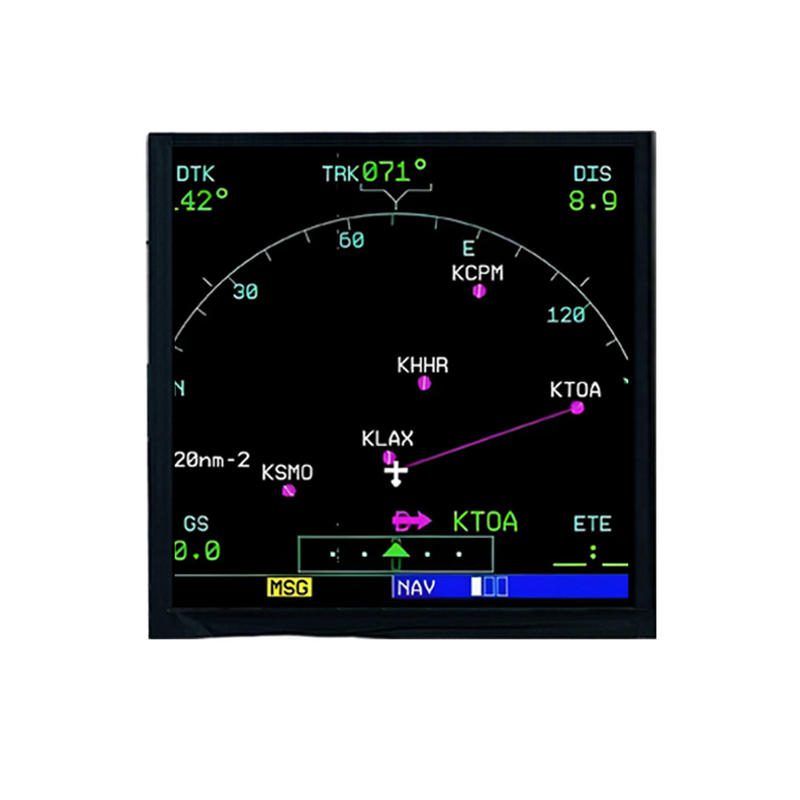

Designed specifically for high-end simulation and precision instrumentation, the 7 Inch Square LCD Display delivers a pristine 1:1 visual experience. With a 127.8 x 127.8 mm active area, this module is the definitive choice for replicating Weather Radars (WXR), Navigation Displays (ND), and square engine monitoring clusters where reliability is paramount.
Precision Visuals (768×768 IPS)
At the heart of this module is a premium IPS Panel, offering ultra-wide viewing angles of 89/89/89/89. Whether you are viewing the screen from the pilot’s seat or the co-pilot’s station, the colors remain accurate and the contrast sharp. The 768×768 resolution ensures that fine radar lines and small text characters are rendered without aliasing.
Simplified Industrial Integration

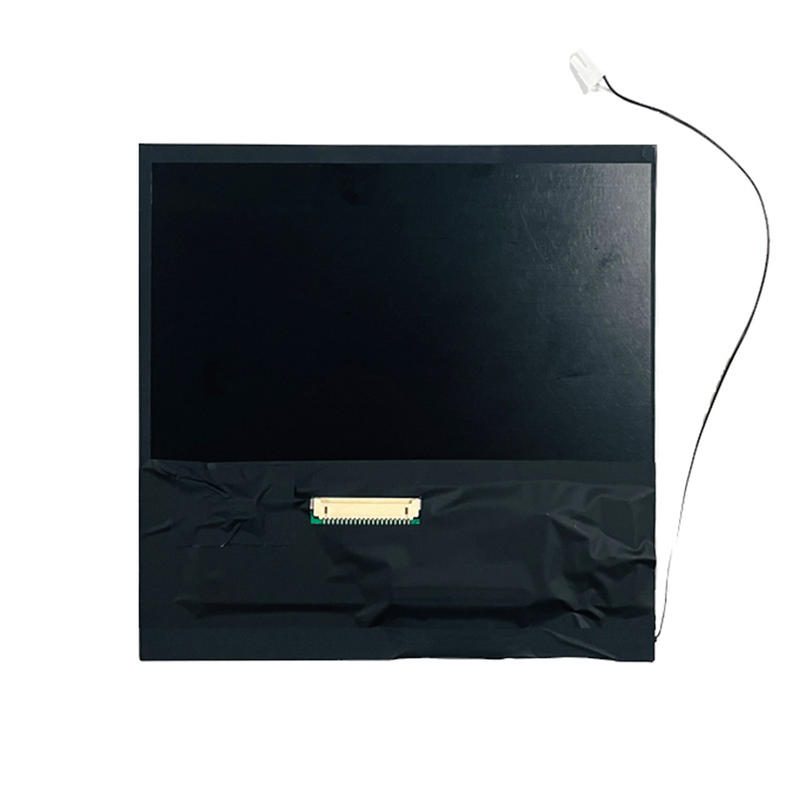

Unlike consumer screens that require complex adapters, this 7 Inch Square LCD Display utilizes a robust 20-Pin LVDS interface. This industry-standard connection ensures high noise immunity and reliable data transmission in electrically noisy environments.
-

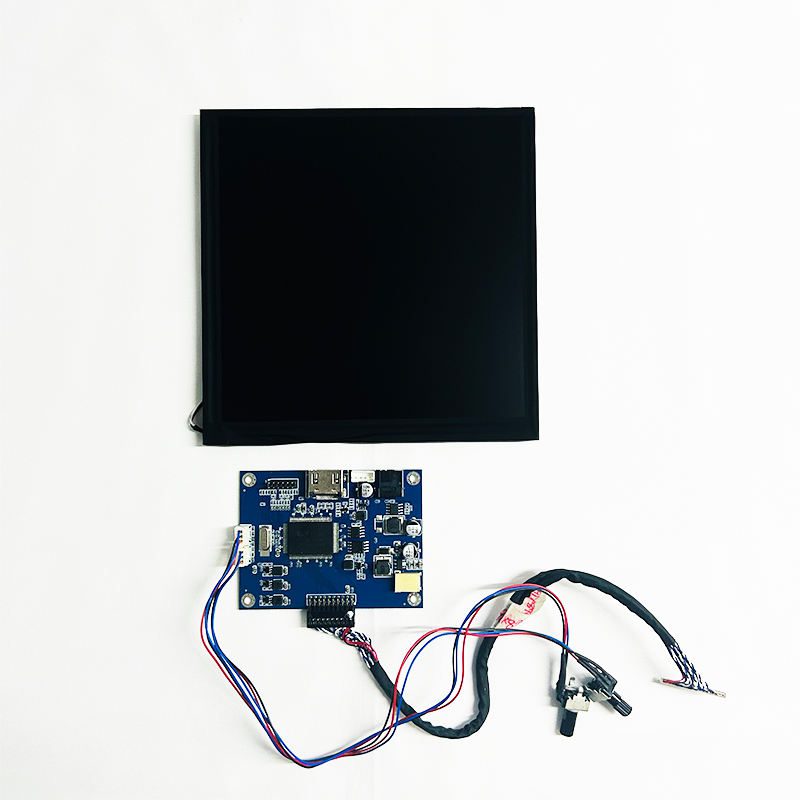

Driver Board Compatibility: As shown in our product showcase, this panel pairs perfectly with universal HDMI/VGA Controller Boards, allowing for instant plug-and-play capability with PC-based simulators (MSFS, X-Plane).
Detailed Specifications Summary
-
Product Name: 7 Inch Square LCD Display
-
Active Area: 127.8 (H) × 127.8 (V) mm
-
Interface: 20-Pin LVDS
-
Backlight: High Efficiency LED
-
Response Time: Fast response for smooth radar sweeps
Ideal Applications
-

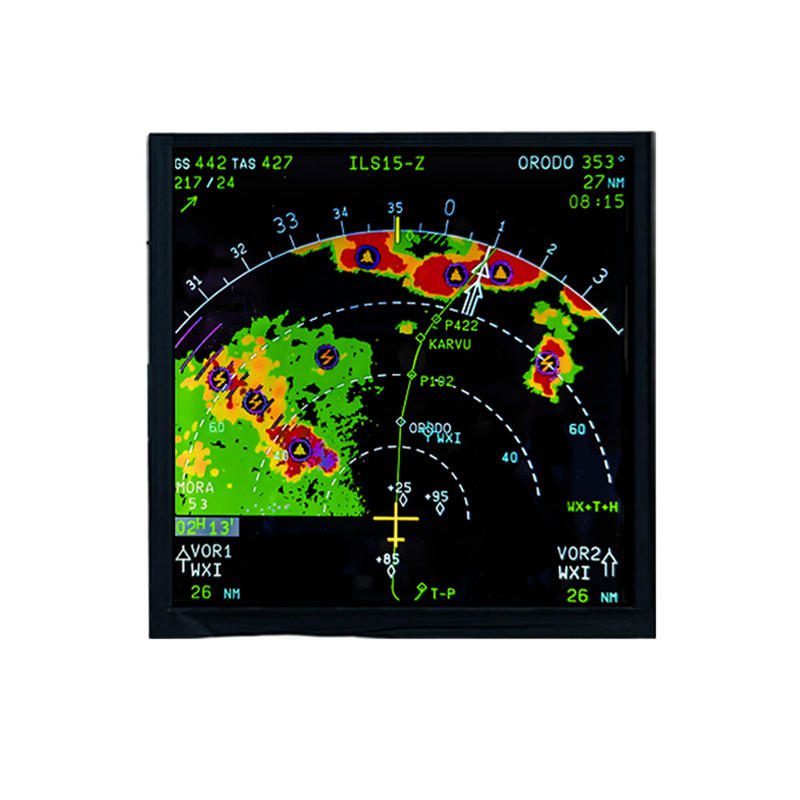

Flight Sim Weather Radar: The square aspect ratio is perfect for displaying circular radar sweeps without wasted bezel space.
-
Marine Sonar: Fish finders and depth gauges requiring a square footprint.
-
Industrial HMI: Control panels for CNC machines and medical analyzers.
Looking for a more budget-friendly option? Check out our 7 Inch 720×720 Square LCD Kit
| Brand | OEM / ODM |
|---|---|
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Panel Type | IPS |
| Resolution | 768×768 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
What is the difference between the 6.8-inch and this 7-inch model?
The 7 Inch Square LCD Display offers a slightly larger active area (127.8mm vs 121.5mm) and importantly, uses a 20-Pin LVDS interface. In contrast, our 6.8-inch model typically uses a 40-Pin interface. Many specific avionics controller boards are pre-designed for the 20-pin standard, making this 7-inch model the preferred choice for retrofits.
Can I use this 7-inch square screen as a PC monitor?
Yes. By adding our compatible LCD Controller Board (HDMI/VGA), Windows or Linux will recognize this as a secondary monitor. You can then drag your flight simulator instrument windows (like Pop-out Manager or Air Manager) directly onto this 7 Inch Square LCD Display.
Is the screen viewable from the side?
Absolutely. It features IPS technology with 89-degree viewing angles in all directions (Left/Right/Up/Down), making it perfect for dual-seat cockpits where the pilot sits off-center from the central instruments.
