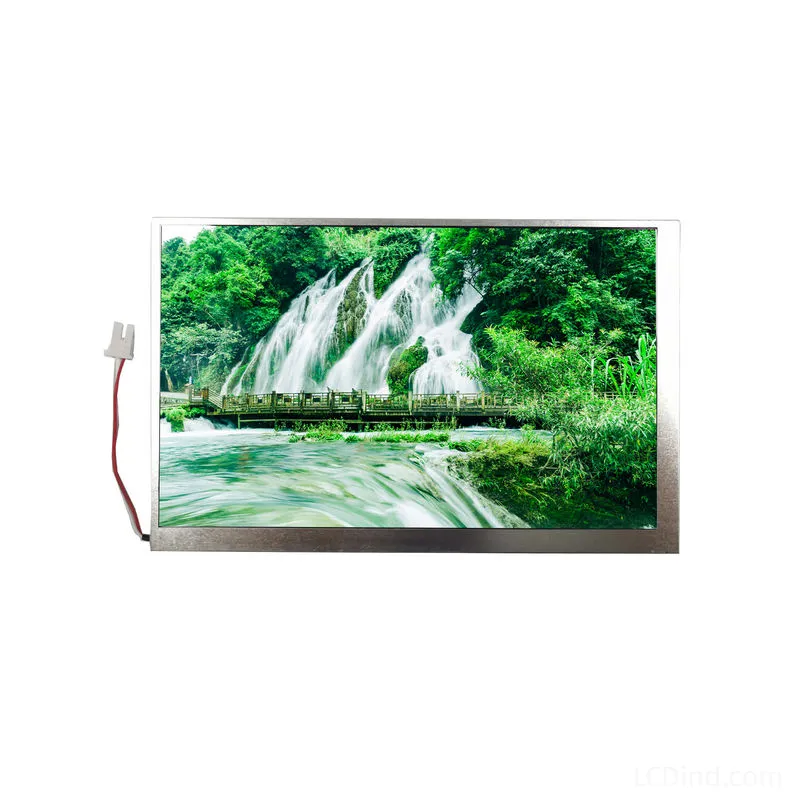

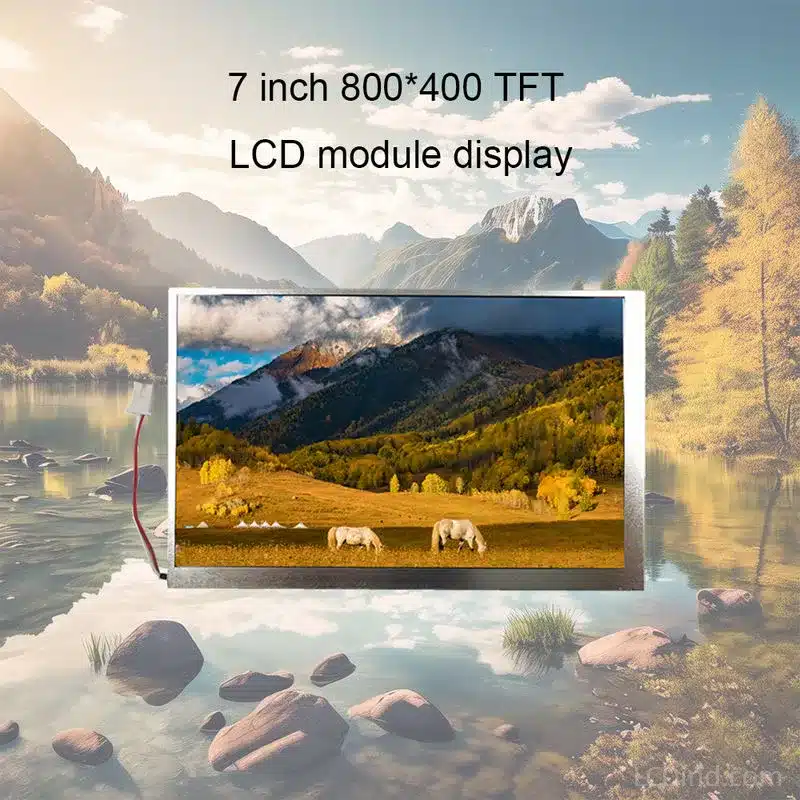

7 Inch High Brightness LCD Module 1000 nits Outdoor Sunlight Readable 40-Pin TTL
7.0 Inch 1000 nits High Brightness TFT LCD (800×480). Features Sunlight Readability, -30°C~+85°C Extreme Temp range, and standard 40-Pin TTL Interface. Engineered for Outdoor & Marine HMI.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Outline Dimension: | 165 × 104.09 × 5.3 mm |
| Backlight: | Optimized Heat Emission Design |
7 Inch High Brightness LCD: Unbeatable Outdoor Visibility
When your equipment operates under direct sunlight, standard screens turn black or become unreadable. The 7 Inch High Brightness LCD Display Module is engineered to solve this challenge. With a powerful 1000 cd/m² backlight and IPS technology, it ensures critical data remains visible in outdoor kiosks, marine navigation, and heavy machinery.
Key Technical Advantages
1. 1000 Nits Sunlight Readability
Standard indoor screens typically offer 300-500 nits. This module delivers 1000 nits, making it a true Sunlight Readable Display.
-
Application: Perfect for gas pump displays, outdoor payment terminals, and handheld field devices where glare is a constant issue.

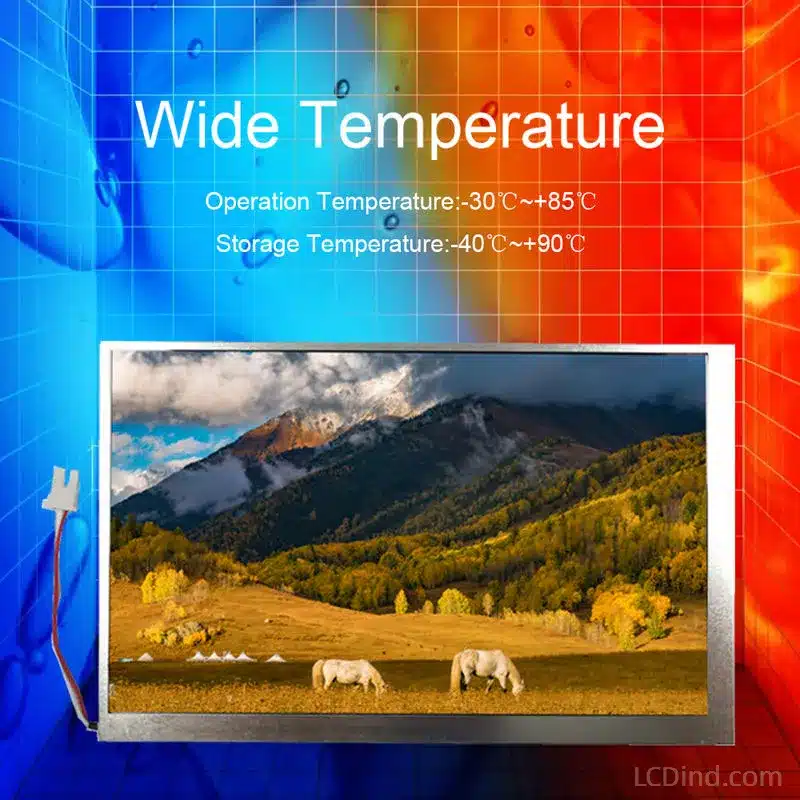

2. Extreme Temperature Durability (-30°C to +85°C)
This is not just a bright screen; it is a rugged one. It supports an operating temperature range of -30°C to +85°C.
-
Reliability: Whether deployed in freezing arctic monitoring stations or scorching desert solar inverters, the liquid crystal fluid will not freeze or overheat (blackening), ensuring 24/7 reliability.
3. Optimized Thermal Management
High brightness usually means high heat. However, this module features a special backlight design that maximizes heat emission efficiency. This prolongs the LED life span and prevents the backlight from dimming prematurely over time.
4. Drop-In Compatibility (40-Pin TTL)
Despite its high performance, it maintains the industry-standard 40-Pin TTL (RGB) interface. This allows engineers to upgrade existing designs from standard brightness screens to high brightness versions without redesigning the mainboard.
Detailed Specifications
| Feature | Specification |
| Model Name | 7 Inch High Brightness LCD |
| Resolution | 800 (RGB) × 480 |
| Luminance | 1000 cd/m² (Typ.) |
| Display Mode | IPS / Normally Black |
| Interface | 40-Pin TTL |
| Operating Temp | -30°C ~ +85°C |
| Storage Temp | -40°C ~ +90°C |
| Surface | Antiglare |
Engineering FAQ
Q: Does the 1000 nits brightness generate too much heat?
A: High brightness does generate heat, but our module utilizes a special backlight structure designed for efficient heat dissipation. For enclosed housings, we recommend ensuring the metal bezel is in contact with the chassis for passive cooling.
Q: Can I adjust the brightness for night mode?
A: Yes. The LED backlight driver requires an external power source (typically higher voltage for the LED rail), and brightness can be controlled via PWM (Pulse Width Modulation) signal on the backlight adjust pin to dim it for night-time usage.
Q: Is it compatible with the previous 350 nits model?
A: Electrically, yes (both are 40-Pin TTL). Physically, the outline dimensions are very similar (165×104.09mm). However, due to the brighter backlight assembly, please check the total thickness (5.3mm) to ensure it fits your enclosure.
Power Your Outdoor Innovation
Don’t let the sun dim your display. Upgrade to High Brightness today.
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Outline Dimension: | 165 × 104.09 × 5.3 mm |
| Backlight: | Optimized Heat Emission Design |
Q: Does the 1000 nits brightness generate too much heat?
A: High brightness does generate heat, but our module utilizes a special backlight structure designed for efficient heat dissipation. For enclosed housings, we recommend ensuring the metal bezel is in contact with the chassis for passive cooling.
Q: Can I adjust the brightness for night mode?
A: Yes. The LED backlight driver requires an external power source (typically higher voltage for the LED rail), and brightness can be controlled via PWM (Pulse Width Modulation) signal on the backlight adjust pin to dim it for night-time usage.
Q: Is it compatible with the previous 350 nits model?
A: Electrically, yes (both are 40-Pin TTL). Physically, the outline dimensions are very similar (165x104.09mm). However, due to the brighter backlight assembly, please check the total thickness (5.3mm) to ensure it fits your enclosure.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
