10.1 Inch High Brightness LCD Module 1280×800 IPS 1200 nits LVDS Sunlight Readable
10.1 Inch High Brightness LCD Module (1280×800). Features 1200 nits Sunlight Readability, 40-Pin LVDS Interface, and IPS Technology. Designed for Outdoor Kiosks & Marine.
Product Attributes
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
|---|---|
| Brand | LCDind |
| Resolution | 1280×800 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Viewing Angle | All View / IPS |
| Outline Dimension | 229.46 × 149.20 × 4.8 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Backlight: | High Brightness White LED |
10.1 Inch High Brightness LCD Module: Conquer the Sun

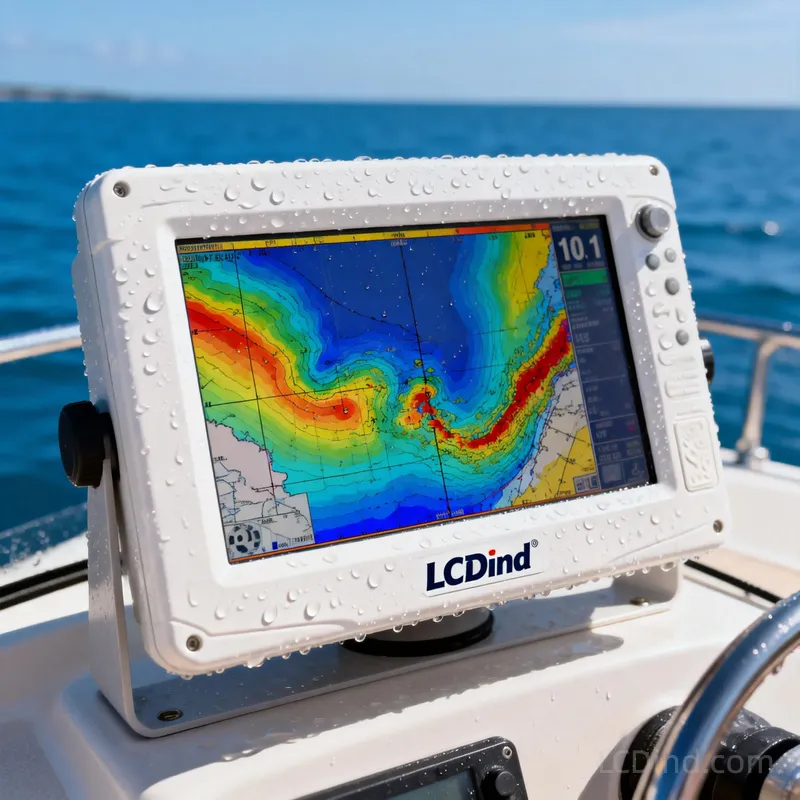

The 10.1 Inch High Brightness LCD Display Module is engineered for environments where standard screens fail. Boasting an ultra-high luminance of 1200 cd/m² (nits), this IPS panel ensures that your graphical user interface remains vivid and legible even under direct sunlight, making it the ultimate solution for outdoor kiosks and marine electronics.
Why Choose This 10.1 Inch High Brightness LCD?
1. 1200 Nits Sunlight Readability
Visibility is the #1 challenge for outdoor HMI. While standard indoor screens offer only 300-400 nits, our 10.1 Inch High Brightness LCD delivers 1200 nits. This high-intensity backlight cuts through glare, ensuring that maps, payment instructions, and advertisements are clearly visible at noon on a sunny day.
2. Robust 1280×800 Resolution
The module features a 1280×800 (WXGA) resolution with a 16:10 aspect ratio. This resolution strikes a perfect balance between visual clarity and driver performance, allowing for crisp text and images without overburdening the graphics processor.
3. Wide Viewing Angles (IPS)
Equipped with IPS technology, the screen offers ultra-wide viewing angles of 89/89/89/89 degrees. Whether viewed from the side by a passenger or from above by an operator, the colors remain accurate without washing out or inverting.
4. Industrial LVDS Connectivity
Reliability is key. The 40-Pin LVDS interface ensures stable data transmission even in environments with electrical noise. It operates reliably across a wide temperature range of -20°C to +70°C, suitable for all-weather deployment.
Detailed Specifications
| Feature | Specification |
| Model Name | 10.1 Inch High Brightness LCD |
| Resolution | 1280 (RGB) × 800 |
| Brightness | 1200 cd/m² (Typ.) |
| Interface | 40-Pin LVDS |
| Display Mode | IPS / Normally Black |

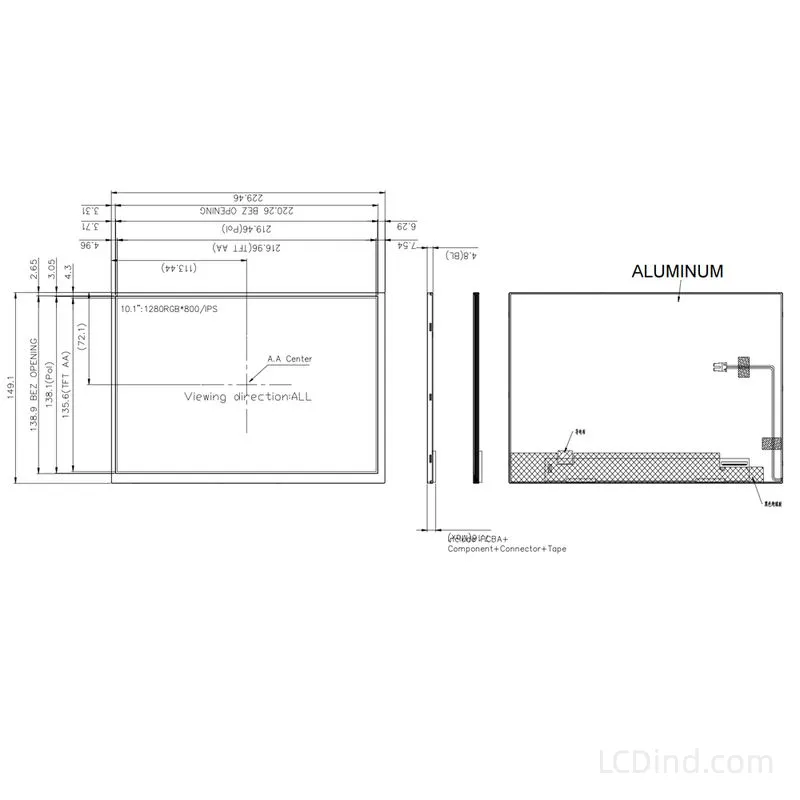

| Active Area | 216.96 × 135.60 mm |
| Outline Dimension | 229.46 × 149.20 × 4.8 mm |
| Contrast Ratio | 800:1 |
| Operating Temp | -20°C ~ +70°C |
Engineering FAQ
Q: Does the high brightness shorten the LED life?
A: No. We use high-efficiency LEDs designed for high output. The rated LED Life-Time is typically 30,000 to 50,000 hours, ensuring years of service even at full brightness.
Q: Can I dim the brightness at night?
A: Yes. The LED driver supports PWM dimming signals. This allows you to automatically lower the brightness at night to prevent glare and save power, and boost it to 1200 nits during the day.
Q: Is this compatible with the previous 1920×1080 model?
A: No. The resolution (1280×800 vs 1920×1080) and likely the LVDS channel mapping (Single channel vs Dual channel) are different. You cannot directly swap them without updating your mainboard’s firmware or LVDS configuration.
Illuminate Your Outdoor Design
Don’t stay in the dark. Upgrade to high brightness today.
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
|---|---|
| Brand | LCDind |
| Resolution | 1280×800 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Viewing Angle | All View / IPS |
| Outline Dimension | 229.46 × 149.20 × 4.8 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Backlight: | High Brightness White LED |
Q: Does the high brightness shorten the LED life?
A: No. We use high-efficiency LEDs designed for high output. The rated LED Life-Time is typically 30,000 to 50,000 hours, ensuring years of service even at full brightness.
Q: Can I dim the brightness at night?
A: Yes. The LED driver supports PWM dimming signals. This allows you to automatically lower the brightness at night to prevent glare and save power, and boost it to 1200 nits during the day.
Q: Is this compatible with the previous 1920x1080 model?
A: No. The resolution (1280x800 vs 1920x1080) and likely the LVDS channel mapping (Single channel vs Dual channel) are different. You cannot directly swap them without updating your mainboard's firmware or LVDS configuration.
