7 Inch LCD070AVN40R035C IPS 800×480 Replacement LCD Screen:Direct Replace Innolux AT070TN83

Duobond LCD070AVN40R035C 7 Inch IPS 800×480 TTL Replacement for Innolux AT070TN83

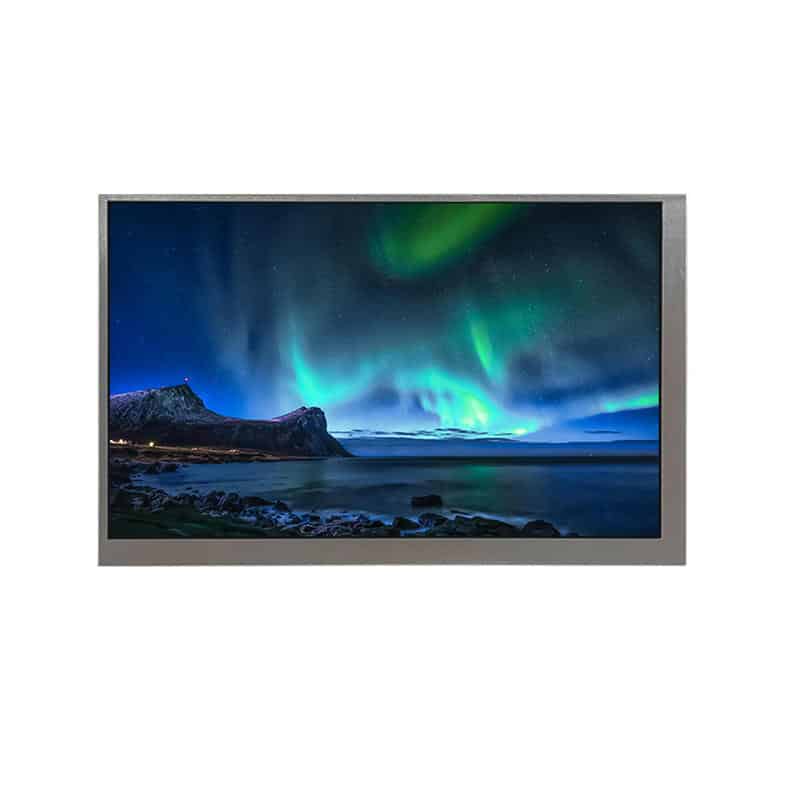

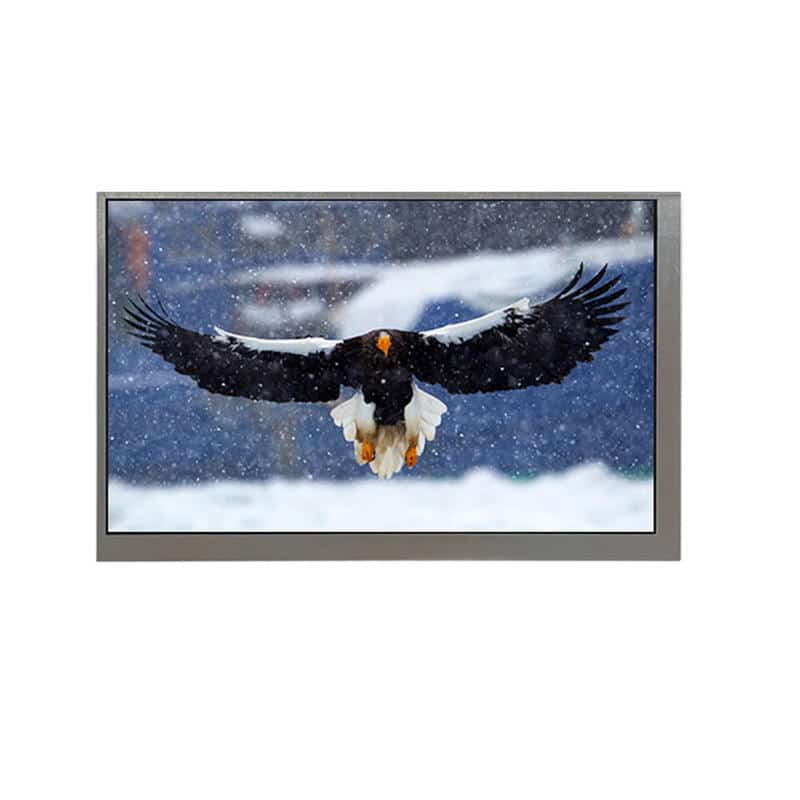

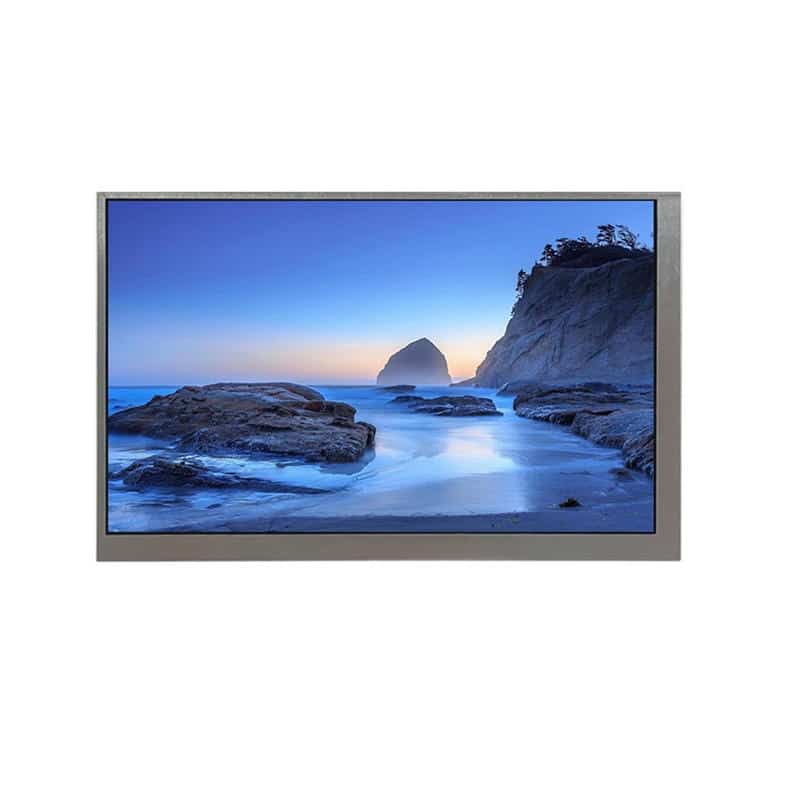

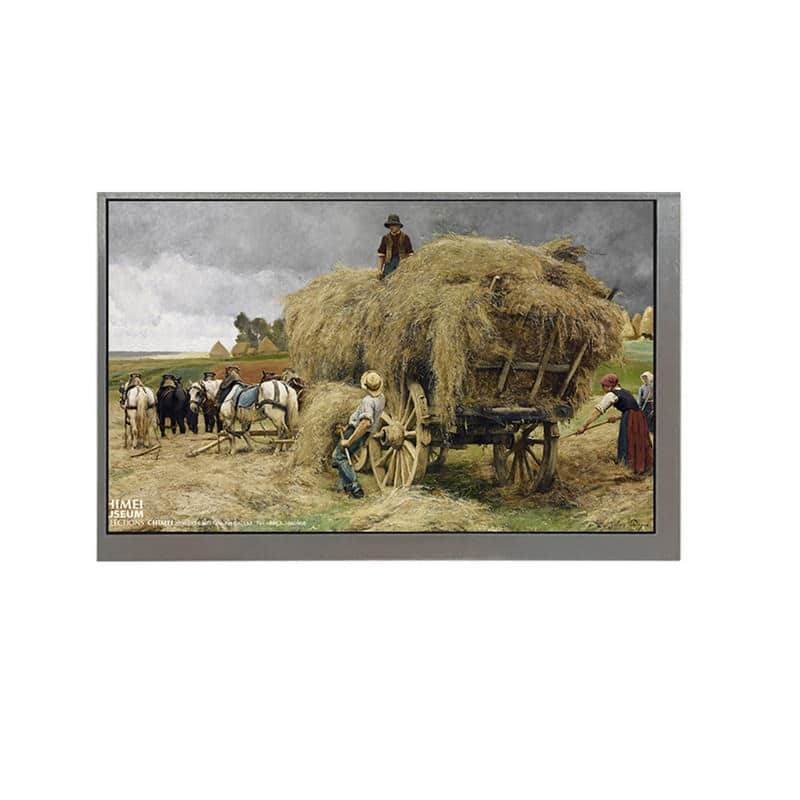

Duobond LCD070AVN40R035C is a 7 inch 800×480 IPS replacement LCD screen positioned as a direct pin-matched replacement for Innolux AT070TN83. The public page states that the pin definition can directly correspond to the Innolux AT070TN83 LCD module and can be replaced directly. Confirmed specifications include 7.0 inch diagonal size, 350 cd/m² luminance, 800×480 resolution, 152.4×91.44 mm active area, IPS 80/80/80/80 typical viewing angle, RGB-stripe color arrangement, -20 to +70 ℃ operating temperature, 165×104.09×5.3 mm outline, anti-glare surface and digital TTL interface. The page also mentions optional 1000-nit version, air bonding and optically bonded touch panel capability.

Confirmed Product Specifications

Replacement Project Fit

This product is most relevant for repair integrators, OEM maintenance teams and equipment manufacturers that need a controlled replacement path for Innolux AT070TN83. It is not just a generic 7 inch panel. The value is in pin matching, IPS viewing upgrade and the ability to support repeat replacement or customized brightness/touch stack for industrial equipment.

Pin-Matching Still Needs Verification

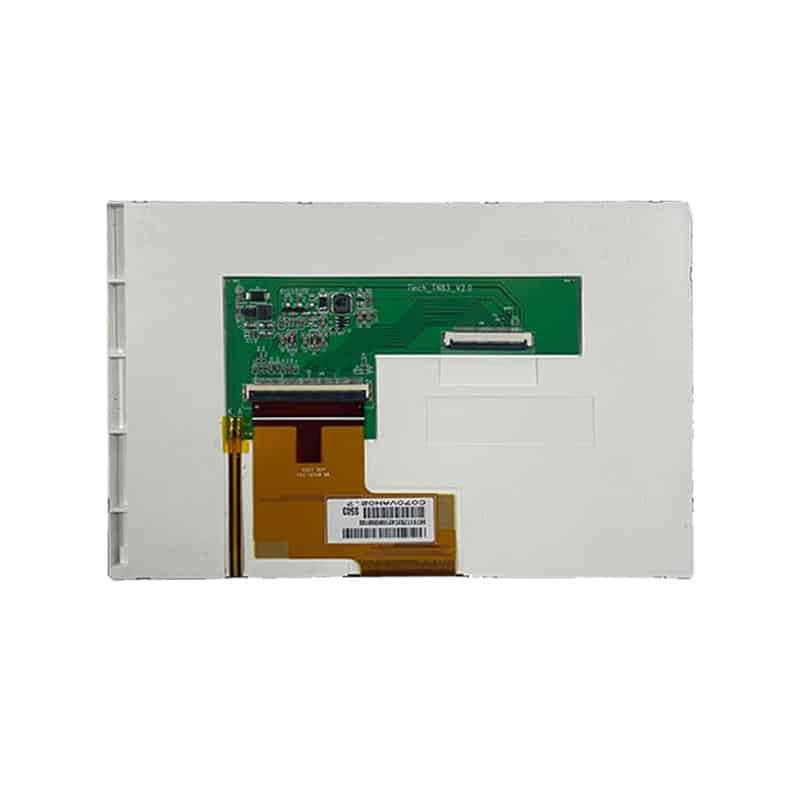

Although the page states direct replacement, the buyer should still provide the original panel label, FPC photo, connector photo, host board information and mechanical drawing. Replacement success depends on pinout, timing, backlight current, mounting, thickness and cable direction. Engineering should approve a sample in the actual equipment before stocking service inventory.

IPS Upgrade Boundary

The IPS viewing angle can improve readability compared with older TN panels, especially when operators view the screen from the side or from above. However, IPS upgrade does not automatically solve brightness, color calibration, connector or mechanical issues. If the original equipment uses a specific viewing direction or optical stack, compare the sample with the original screen under real operating conditions.

Brightness and Bonding Options

The standard data lists 350 cd/m², while the page says LCDind can support 1000 nits, air bonding or optically bonded touch. These should be quoted as separate options. A high-brightness or bonded version changes backlight power, thermal behavior, thickness, reflection and cost. The RFQ should clearly state whether the buyer wants standard replacement or an upgraded assembly.

TTL Interface Review

The interface is listed as digital TTL. The RFQ should confirm voltage, timing, pin mapping, backlight pins and any adapter requirement. TTL replacement screens can be sensitive to cable length and signal integrity, so the original device should be used for validation when possible.

Mechanical Fit

The 165×104.09×5.3 mm outline and 152.4×91.44 mm active area should be compared with the existing bezel and mounting frame. If touch, bonding or cover glass is added, the total thickness and front-surface position can change. Buyers should provide the housing drawing before selecting an upgraded version.

Service Inventory Control

For after-sales programs, record the accepted Duobond model, original Innolux target, sample approval photos, inspection method and packaging. If the buyer supports multiple equipment revisions, validate each revision separately instead of assuming all AT070TN83 applications are identical.

Sample Acceptance

Test boot behavior, image alignment, backlight brightness, viewing angle, hot/cold start, cable movement, vibration exposure if relevant and UI readability. If upgraded brightness or bonding is ordered, include thermal and optical checks in the final enclosure.

Compatibility Evidence to Collect

For a direct replacement claim, the strongest evidence is not the diagonal size but the old screen label, FPC pin definition, connector photo, backlight circuit and successful powered test in the original equipment. Buyers should keep these records in the approval file. If the equipment has several hardware revisions, each revision should be checked because a supplier may have used different panels under the same machine model.

Industrial Upgrade Path

The page mentions optional 1000-nit, air bonding and optically bonded touch versions. These options are useful when the original 350 cd/m² panel is hard to read, exposed to vibration or installed behind a front lens. However, an upgrade should be treated as a new stack: backlight current, heat, thickness, touch controller, cover glass and adhesive reliability all need review. It should not be ordered as a casual substitute for the standard replacement.

Service Program Control

For after-sales supply, define packaging, incoming inspection, allowed pixel defects, brightness tolerance, interface test method and whether the replacement must remain pin-compatible with Innolux AT070TN83. This prevents a future batch from drifting into a visually similar but electrically different 7 inch display. A controlled Duobond replacement can reduce EOL risk only if the approval data is maintained.

Practical Sample Checks

Run the sample in the original equipment through the same boot cycle and operating screens used by customers. Check image position, color, viewing angle, backlight uniformity, heat, cable stability and front-window fit. If bonding or high brightness is selected, test under the actual lighting and enclosure condition before stocking multiple units.

RFQ Checklist

• Provide original Innolux AT070TN83 label, FPC/connector photos, host board and equipment model.
• Confirm standard 350 cd/m² replacement or optional 1000-nit/bonded/touch version.
• Confirm TTL pinout, timing, backlight current, mechanical drawing and visible window.
• Define sample quantity, repair volume, inspection criteria, packaging and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is it presented as a direct replacement?

Yes, the page states pin correspondence with Innolux AT070TN83, but sample validation is still required.

Is the standard brightness 1000 nits?

No. The table lists 350 cd/m²; 1000 nits is described as an optional capability.

What interface is listed?

Digital TTL.
