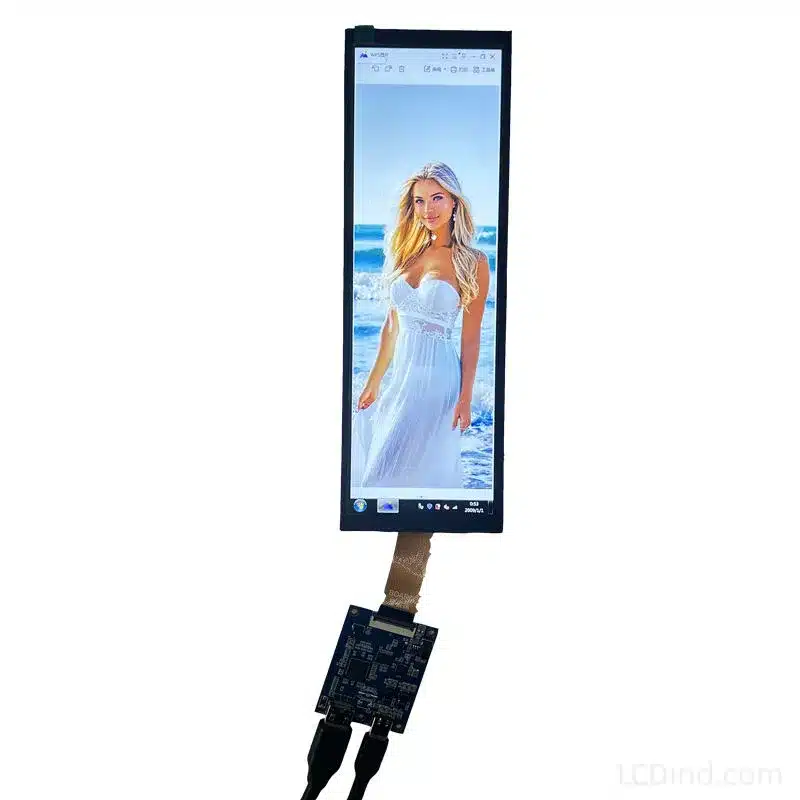

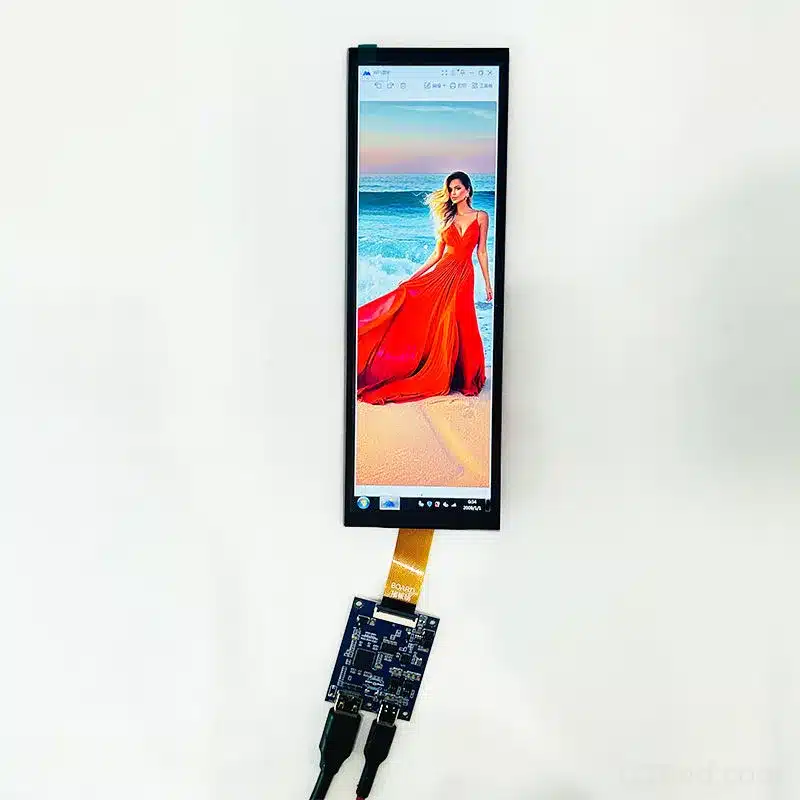

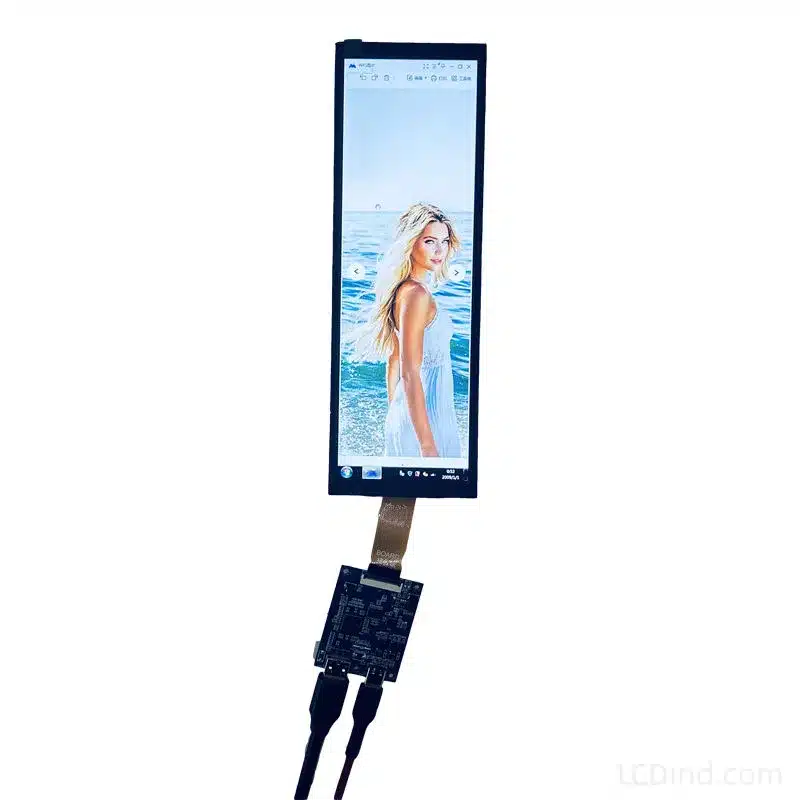

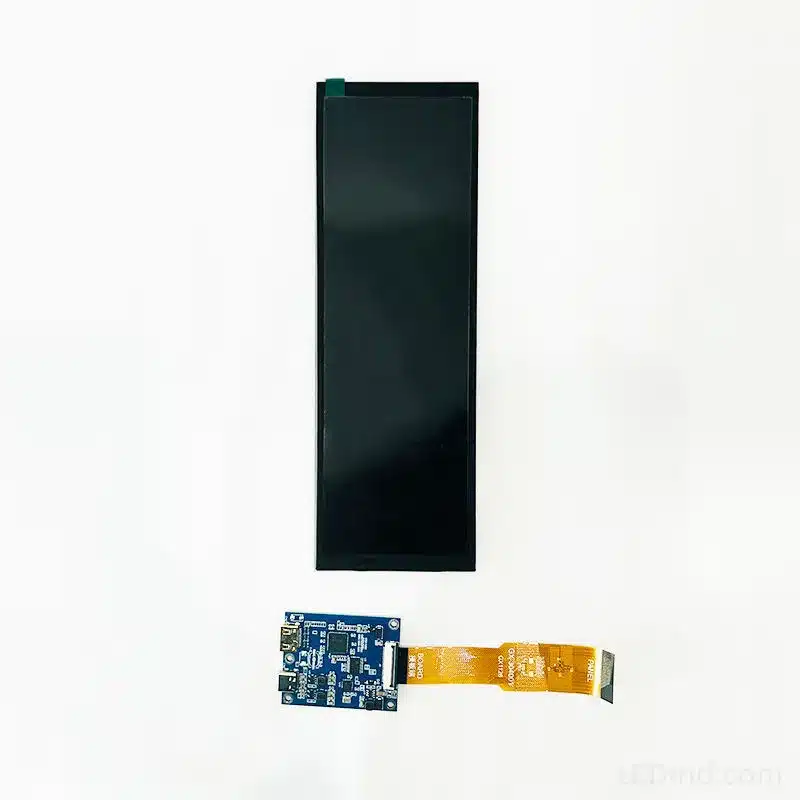

7.8 Inch Bar Type LCD Display Module 400×1280 IPS 800 nits High Brightness MIPI Interface
7.8″ High Brightness Stretched Bar LCD (400×1280). Features 800 nits Luminance, MIPI Interface, and IPS Wide Viewing. Sunlight Readable for Outdoor & Industrial use.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.8 inch |
| Resolution | |
| Interface | MIPI |
| Brightness | High Brightness (500-900 nits) |
| Outline Dimension | 67.80 × 205.78 × 7.25 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Pixel Pitch | 0.1485 × 0.1485 mm |
7.8 Inch High Brightness Bar Type LCD: Visibility Where It Matters

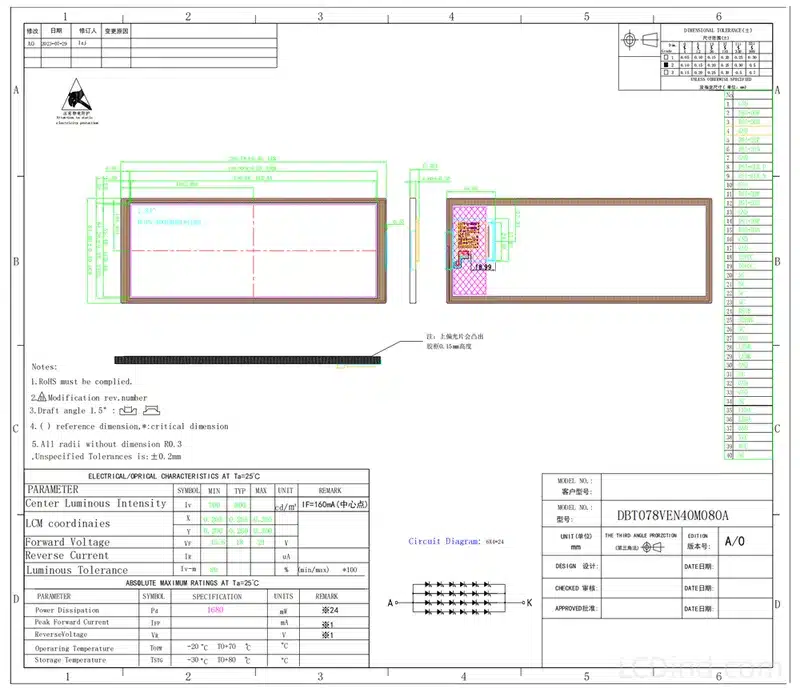

Standard screens fade under direct light. The 7.8 Inch Bar Type LCD Display Module (Model: DBT078VEN40M080A) is engineered to overcome this challenge. With a powerful 800 cd/m² (nits) backlight and a 400×1280 resolution, this stretched display delivers crystal-clear visibility for outdoor payment terminals, EV chargers, and brightly lit medical environments.
Technical Specifications
1. 800 nits Sunlight Readability
The standout feature of this module is its luminance. At 800 nits, it is significantly brighter than typical indoor displays (usually 300 nits). This ensures that critical data—such as payment instructions or temperature warnings—remains legible even in semi-outdoor environments or under harsh overhead factory lighting.
2. High-Definition 1:3 Format
The 400×1280 resolution provides a crisp pixel density with a 0.1485mm pixel pitch. The 1:3.2 aspect ratio allows designers to utilize vertical space efficiently on slim devices like:
-
Smart Appliances: Refrigerators and washing machines.
-
Industrial Handhelds: Barcode scanners and inventory terminals.
3. MIPI High-Speed Integration
Designed for modern embedded systems, the module utilizes a MIPI interface. This supports high frame rates and complex GUI rendering, necessary for the fluid animations expected in premium consumer electronics and automotive displays.
Target Applications
-
Outdoor HMI: EV Charging Stations, Parking Meters, Access Control Systems.
-
White Goods: High-end kitchen appliance control panels.
-
Automotive: Rear-seat entertainment controls, pillar displays.
-
Medical: Portable diagnostic equipment.
Detailed Specifications
| Feature | Specification |
| Model Name | 7.8 Inch Bar Type LCD |
| Resolution | 400 (RGB) × 1280 |
| Brightness | 800 cd/m² (Sunlight Readable) |
| Interface | MIPI |
| Active Area | 59.40 × 190.08 mm |
| Outline Dimension | 67.80 × 205.78 × 7.25 mm |
| Display Mode | IPS / Normally Black |
| Operating Temp | -20°C ~ +70°C |
Engineering FAQ
Q: Can this 800 nits brightness be dimmed?
A: Yes, the LED backlight driver supports PWM dimming. This is crucial for applications that run day and night (like EV chargers), allowing the screen to be bright during the day and dimmed at night to prevent glare.
Q: Is the MIPI interface 2-lane or 4-lane?
A: High-resolution screens like this typically use a 4-lane MIPI DSI to ensure sufficient bandwidth for 60Hz refresh rates. Please check the full datasheet pinout for exact lane configuration.
Q: Does it support portrait and landscape modes?
A: Yes. The IPS panel technology (85/85/85/85 viewing angles) ensures that the color and contrast remain stable whether the screen is mounted vertically (Portrait) or horizontally (Landscape).
Supply & Customization
We provide long-term availability for industrial projects. Custom Cover Glass (AG/AR/AF coatings) available upon request.
| Brand | LCDind |
|---|---|
| Size | 7.8 inch |
| Resolution | |
| Interface | MIPI |
| Brightness | High Brightness (500-900 nits) |
| Outline Dimension | 67.80 × 205.78 × 7.25 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Pixel Pitch | 0.1485 × 0.1485 mm |
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
