8.8 Inch Square LCD Display 1000 nits Sunlight Readable | 768×768 HDMI Monitor Kit for Flight Simulator

8.8 Inch 768×768 Square LCD Display Kit with 1000-Nit Brightness and HDMI Board

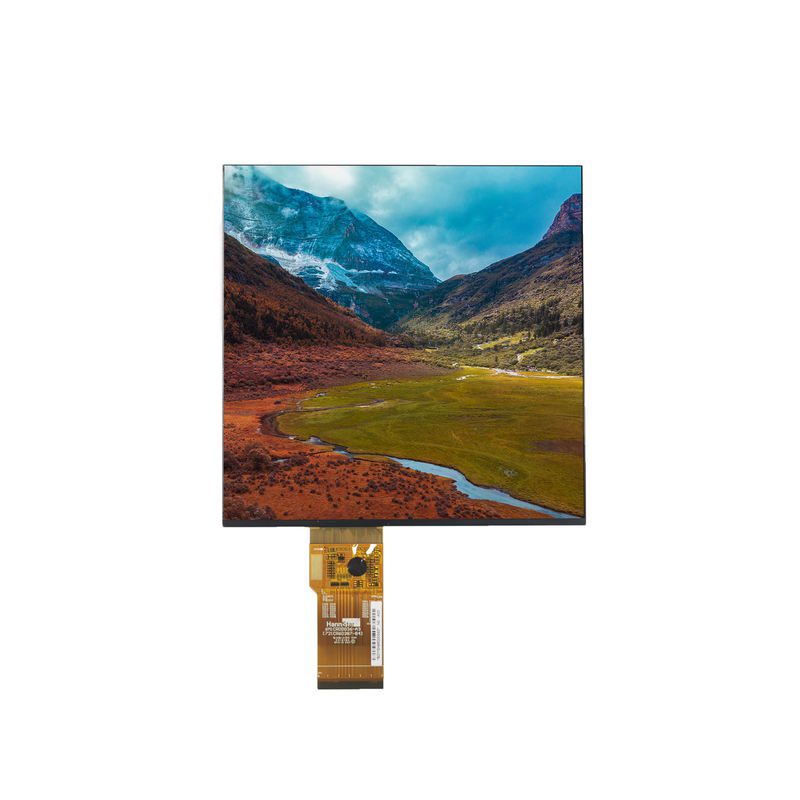

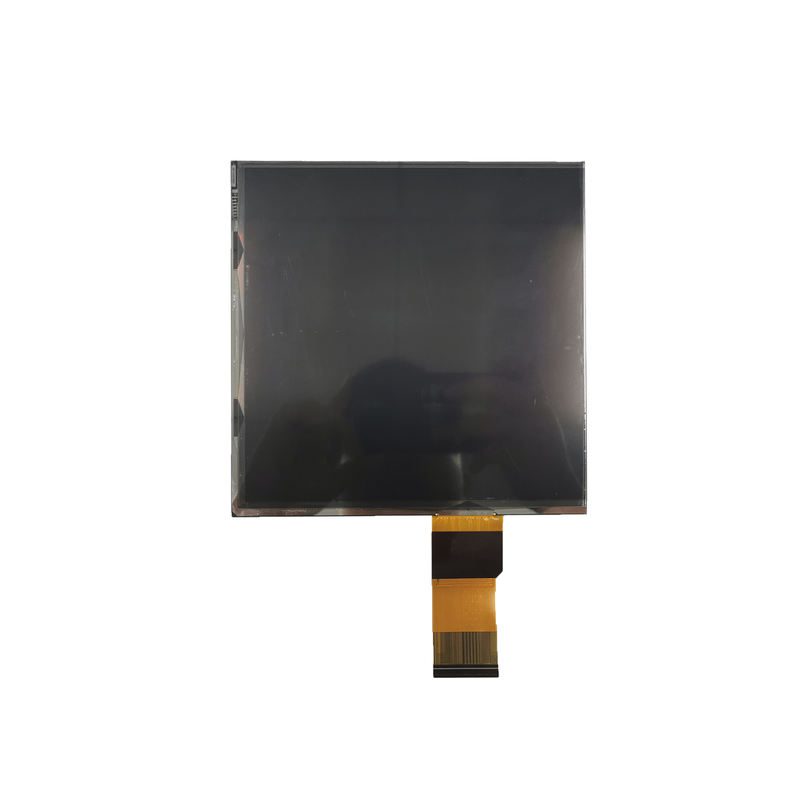

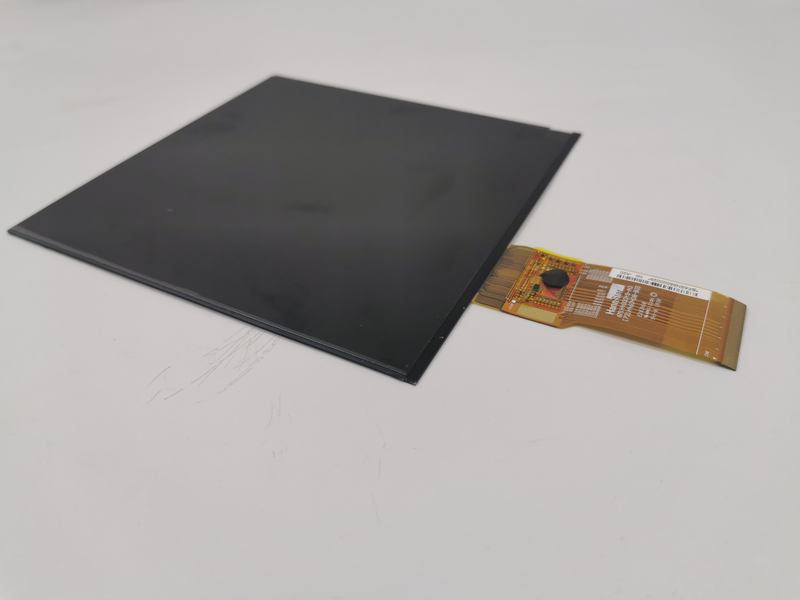

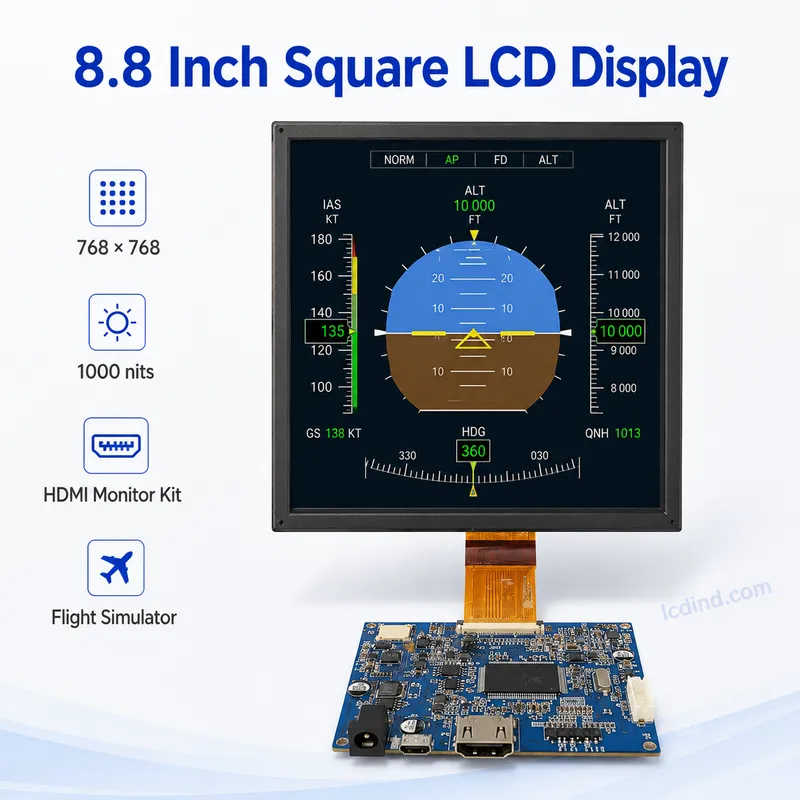

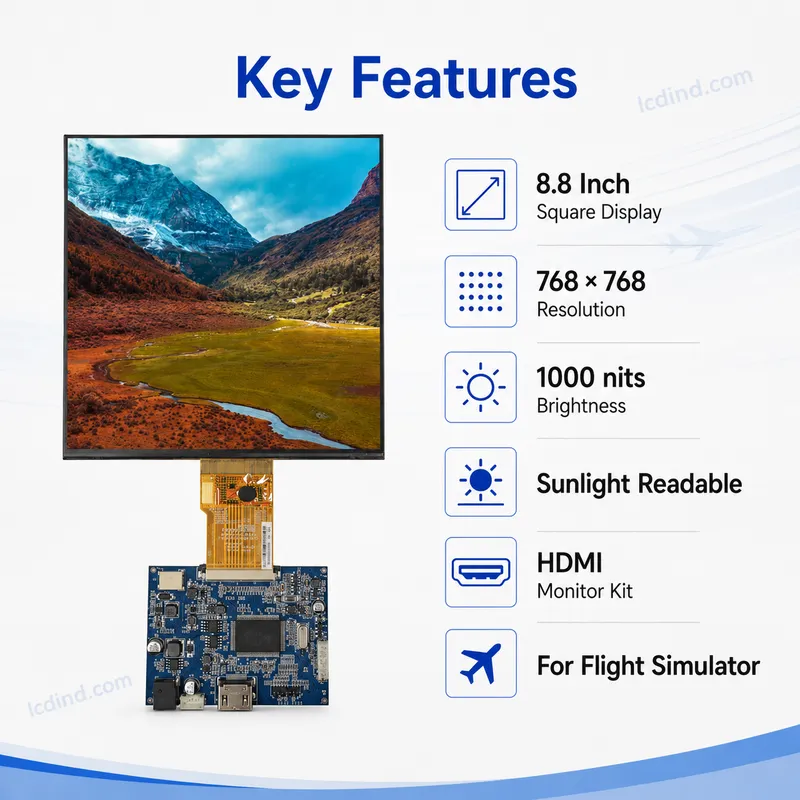

This 8.8 inch square LCD display kit is a high-brightness 1:1 display solution for flight simulator panels, outdoor industrial kiosks, square dashboards and custom HMIs that need a larger square active area. The confirmed public data lists model LCD088HIX60L01, 8.8 inch diagonal size, 768 RGB × 768 resolution, 1000 nits brightness, RGB 60-pin panel interface with HDMI board, 900:1 contrast ratio, 158.4×158.4 mm active area and 176.85×176.85×8.22 mm outline dimensions. The attributes also list HDMI, IPS panel type, 1000+ nit sunlight-readable class and industrial -20 ℃ to +70 ℃ operating range.

Confirmed Product Specifications

Square Display Fit

This product is useful when a project needs a large square UI area for gauges, central consoles, industrial status panels, marine dashboards, simulator instruments or outdoor kiosks. The 158.4×158.4 mm active area gives more room than smaller square modules for circular graphics, centered warnings and large operator values.

HDMI Kit Versus Panel Interface

The public table lists RGB 60-pin panel interface and HDMI with board. That means the buyer should define whether the quote includes a driver board, cable set, power input and mounting accessories. Bare RGB panel supply and HDMI kit supply are different engineering scopes.

1000-Nit Optical Review

The 1000-nit brightness is valuable for bright environments, but it should be tested through the final front lens and at the intended installation angle. If a touch overlay, smoked cover or protective glass is added, brightness and reflection must be rechecked. High brightness also requires thermal review.

Simulator and Industrial Validation

For simulator use, test the actual 768×768 software output, scaling, night mode, gauge labels and refresh behavior. For industrial kiosks, test sunlight exposure, heat, cable retention, boot recovery and long-duration operation. The same square module may need different acceptance tests depending on the application.

Mechanical Planning

The outline is 176.85×176.85×8.22 mm. Designers should check bracket support, front aperture, active-area alignment, cable exit and service clearance. If the product is behind a circular or shaped mask, confirm that the visible graphics do not lose edge labels or alarm indicators.

Procurement Control

Approval should identify model LCD088HIX60L01, HDMI board revision if used, cable set, power input, brightness setting and packaging. If the buyer wants repeat kit orders, the board and accessories must be controlled together with the LCD panel.

Common Misuse Risk

The main risk is assuming that HDMI kit means finished monitor. Unless enclosure, mounting, lens and cables are included, the buyer still needs integration work. Quote scope should state exactly what is supplied.

Square Display Use Cases

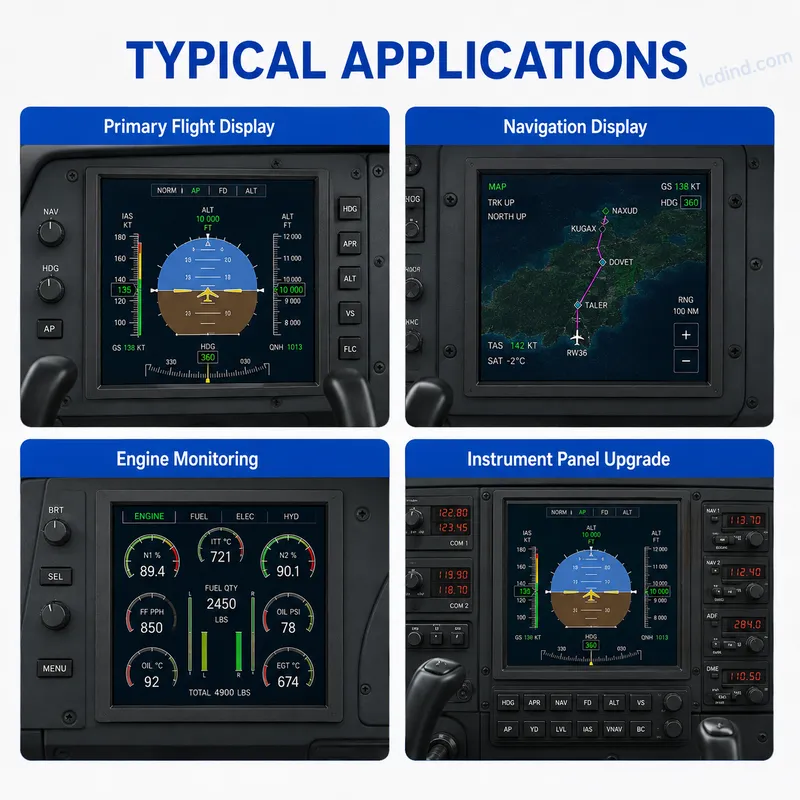

A square 768×768 display is selected when the equipment interface is not a normal landscape screen. It can fit simulator instruments, compact industrial dashboards, circular-style gauges, medical equipment status displays, test instruments and control panels where the same horizontal and vertical pixel count simplifies UI layout. The 1000-nit brightness is useful when the front stack, lighting environment or installation angle would make a standard panel hard to read. Buyers should still evaluate the final cover lens and graphics because a bright panel alone does not guarantee readability in every enclosure.

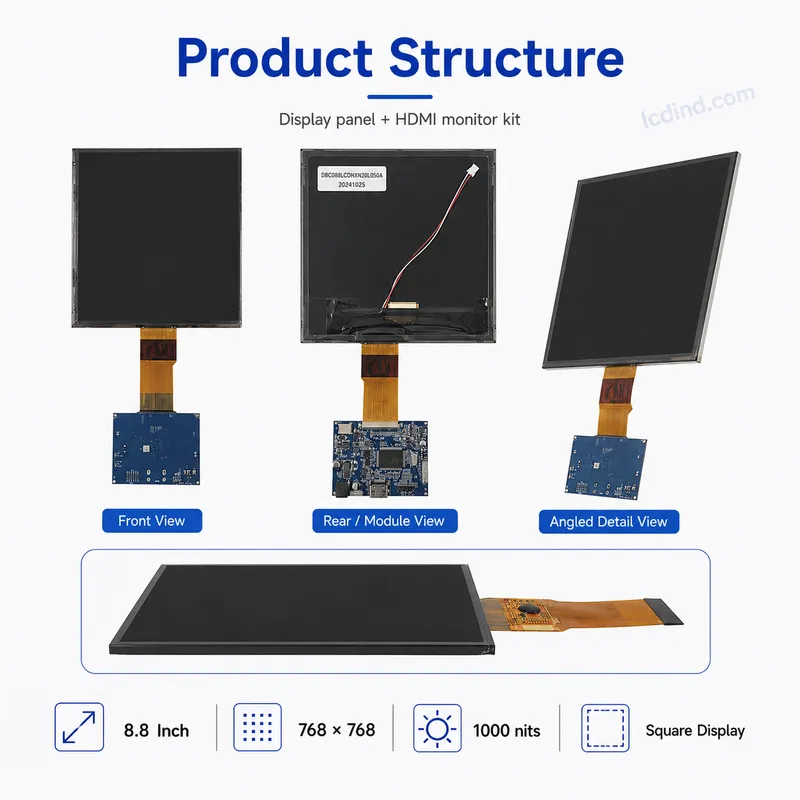

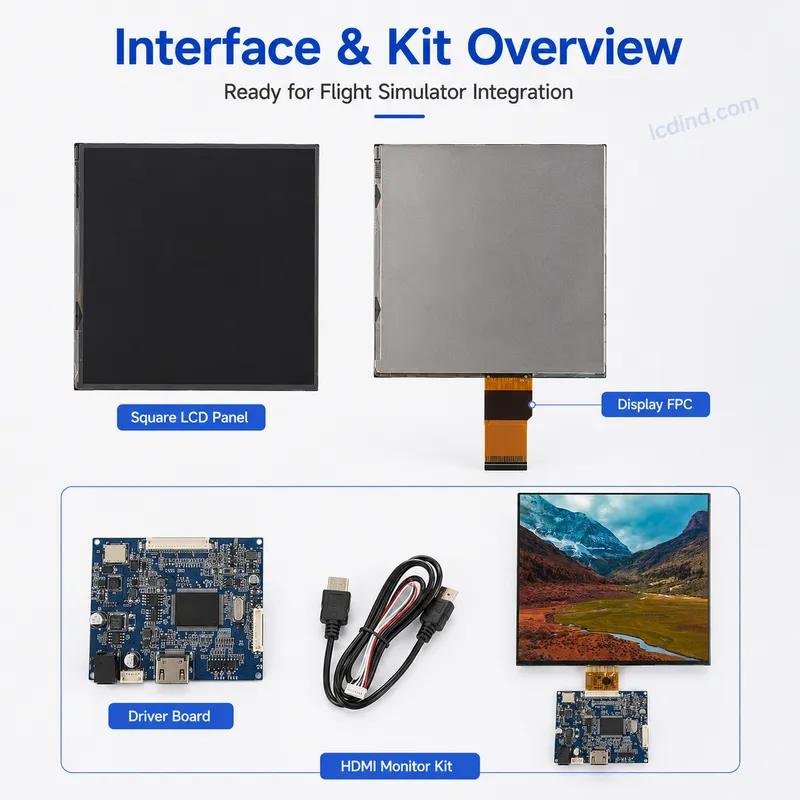

HDMI Kit Versus Bare Panel Scope

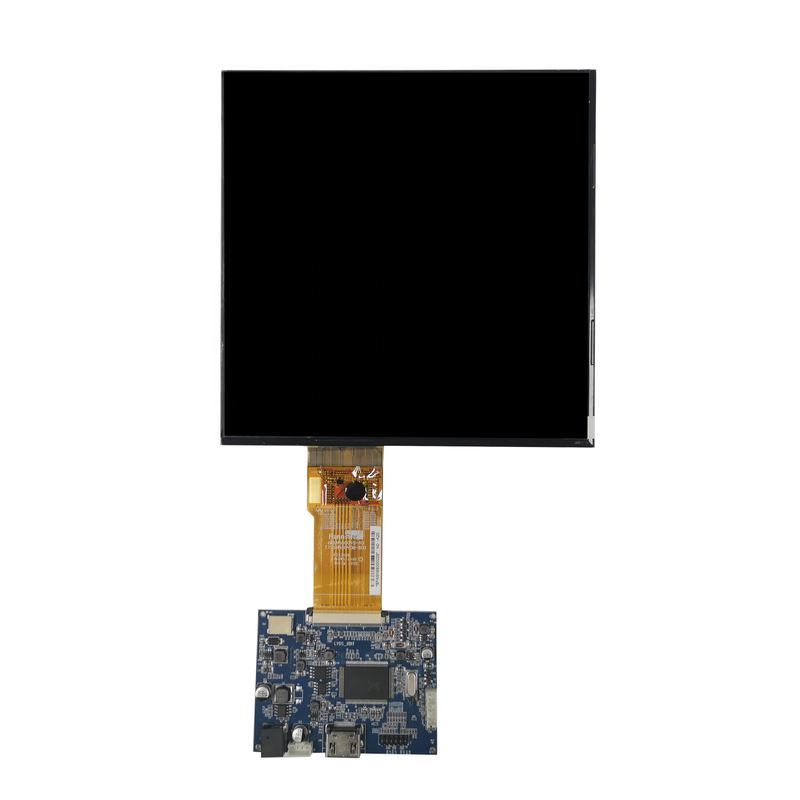

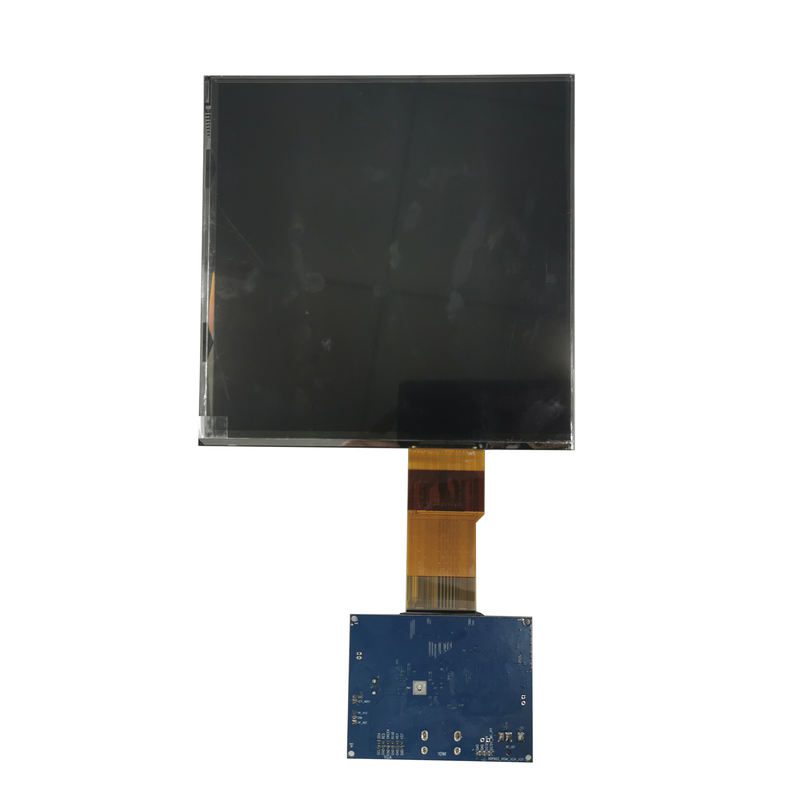

This page describes RGB panel capability and HDMI with board scope. That distinction matters for purchasing. A finished HDMI kit is suitable when the host is a PC, embedded Linux board, simulator computer or controller that outputs HDMI. A bare panel is more appropriate when the customer already has an RGB display controller. The RFQ should state whether LCDind is quoting the panel only, HDMI board, cable set, power accessories, touch option if needed and any enclosure integration. Without that scope, two quotations can describe very different deliverables.

Mechanical and Optical Validation

The active area and outline dimensions make this display practical for a custom square window, but the mechanical stack should be checked carefully. Square displays show bezel misalignment clearly because the border is symmetrical. For 1000-nit use, thermal path, backlight current, dimming control and long operating duty should be discussed before final design. If the application is a flight simulator or instrument replacement, engineers should test refresh behavior, viewing angle, color readability, black level and mounting pressure with the final UI rather than judging from resolution only.

RFQ Checklist

• Panel-only or HDMI kit scope, board revision, cable set, power input and mounting accessory requirement.
• Square or circular front window, enclosure drawing, active-area mask and service access.
• Brightness environment, lens/touch stack, heat path, duty cycle and operating temperature.
• Model LCD088HIX60L01 matching need, sample quantity, forecast, packaging and inspection criteria.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is HDMI native to the panel?

The panel path is RGB 60-pin; HDMI is through the driver board.

What is the active area?

The public table lists 158.4×158.4 mm active area.

Is it sunlight readable?

It is listed as 1000 nits, but final readability depends on lens, reflection and thermal design.
