8.88 Inch Bar Type LCD Display Module 480×1920 IPS MIPI Interface Stretched Bar Screen 600 nits
8.88″ IPS Stretched Bar LCD Module (480×1920). Features MIPI Interface, 600 nits Brightness, and -20°C~70°C Wide Temp. Ideal for Smart Mirrors.
Product Attributes
| Size | 8.8 inch |
|---|---|
| Brand | LCDind |
| Resolution | 480×1920 |
| Interface | MIPI |
| Brightness | High Brightness (500-900 nits) |
| Display Mode | IPS / Normally Black |
| Operating Temp | Industrial (-20 to +70°C) |
| Module Dimensions | 231.3 × 64.3 × 4.8 mm |

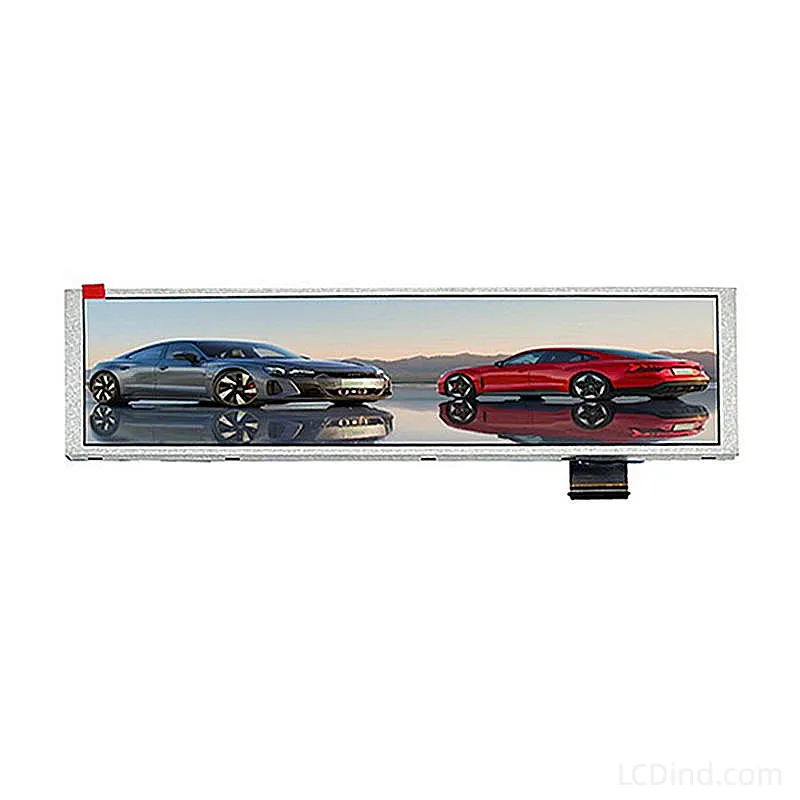

8.88 Inch Bar Type LCD Module: The Smart Mirror Specialist
The 8.88 Inch Bar Type LCD Display Module is a precision-engineered stretched screen designed for applications requiring a distinct 1:4 aspect ratio. Featuring a crisp 480×1920 resolution, this module is the definitive choice for Automotive Smart Rearview Mirrors and ultra-wide digital signage, delivering high-definition visuals in a slim form factor.
Key Features for System Integrators
1. High Resolution & Contrast
With 480×1920 pixels packed into an 8.88-inch diagonal, this display offers exceptional pixel density. The IPS technology ensures vivid color reproduction and superior viewing angles of 85/85/85/85 degrees, ensuring the image is clear whether viewed by the driver or passengers.
2. High-Speed MIPI Interface
Correction: Please note that unlike older 8.8-inch models which use LVDS, this 8.88-inch module utilizes a MIPI interface.
-
Advantage: MIPI provides the necessary bandwidth to drive the 1920-pixel height (or width) at smooth frame rates, ideal for low-latency video feeds from rearview cameras.
3. Enhanced Brightness for Real-World Use
Standard screens often struggle in daylight. This module features a 600 nits LED backlight, providing significantly better readability in bright environments like car interiors or retail storefronts compared to standard 300-nit displays.
Target Applications
-

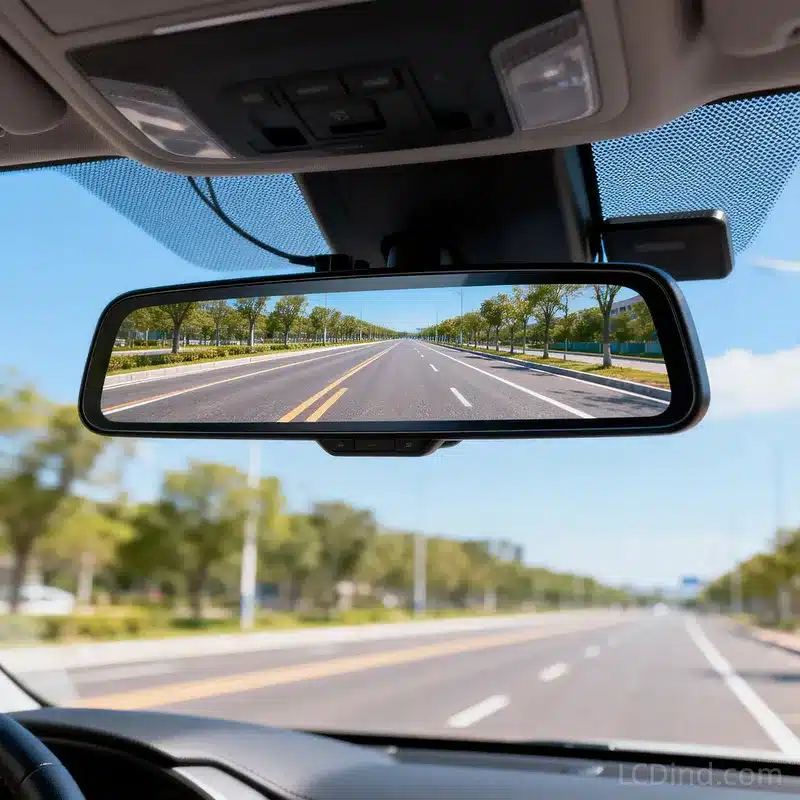

Automotive: Smart e-mirrors (replacing traditional glass), dashboard accent displays.
-

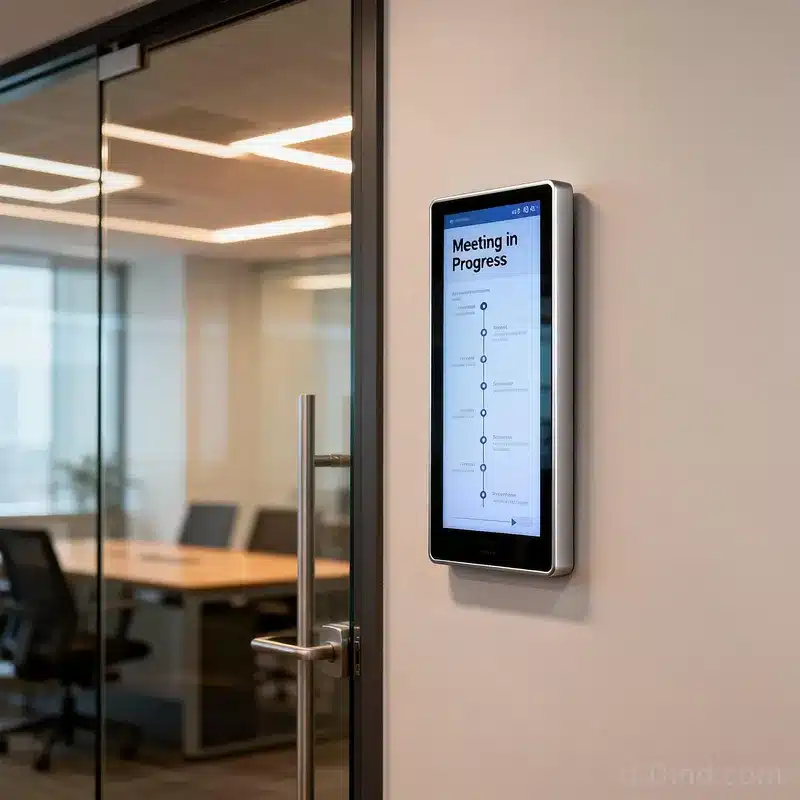

Retail: Shelf-edge pricing strips, long-format advertising banners.
-
Industrial: Status indicators for long machinery, elevator door displays.
Detailed Specifications
| Feature | Specification |
| Model Name | 8.88 Inch Bar Type LCD |
| Resolution | 480 (RGB) × 1920 |
| Interface | MIPI |
| Brightness | 600 cd/m² |

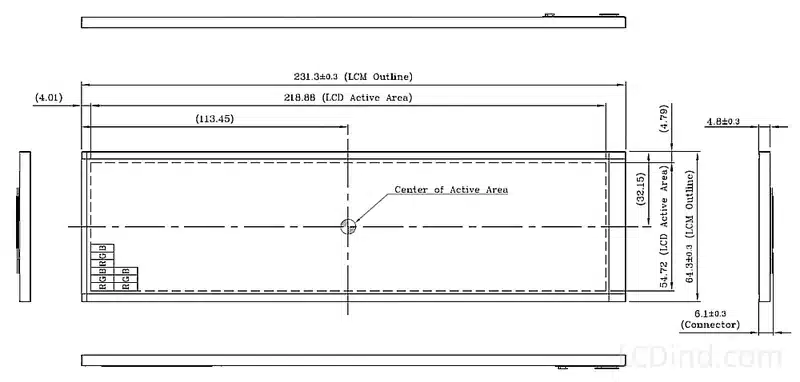

| Active Area | 54.7 × 218.8 mm |
| Module Size | 231.3 × 64.3 × 4.8 mm |
| Display Mode | IPS / Normally Black |
| Operating Temp | -20°C ~ +70°C |
Engineering FAQ
Q: Can this screen be used in Landscape mode (1920×480)?
A: Yes. The native resolution scan is typically 480×1920, but the image data can be rotated via the host processor (GPU) to display as a 1920×480 landscape bar. The IPS panel ensures the viewing angles remain perfect in either orientation.
Q: My mainboard has an LVDS interface, can I use this?
A: Not directly. This module is MIPI. If your board only supports LVDS, you will need a bridge chip or a different driver board. However, most modern automotive and multimedia processors (Rockchip RK3399, etc.) support MIPI natively.
Q: Is the backlight adjustable?
A: Yes, the LED backlight supports PWM dimming, allowing for automatic brightness adjustment (e.g., dimming at night for mirrors).
Secure Your Supply Chain
We offer stable, long-term supply for this automotive-grade form factor.
| Size | 8.8 inch |
|---|---|
| Brand | LCDind |
| Resolution | 480×1920 |
| Interface | MIPI |
| Brightness | High Brightness (500-900 nits) |
| Display Mode | IPS / Normally Black |
| Operating Temp | Industrial (-20 to +70°C) |
| Module Dimensions | 231.3 × 64.3 × 4.8 mm |
