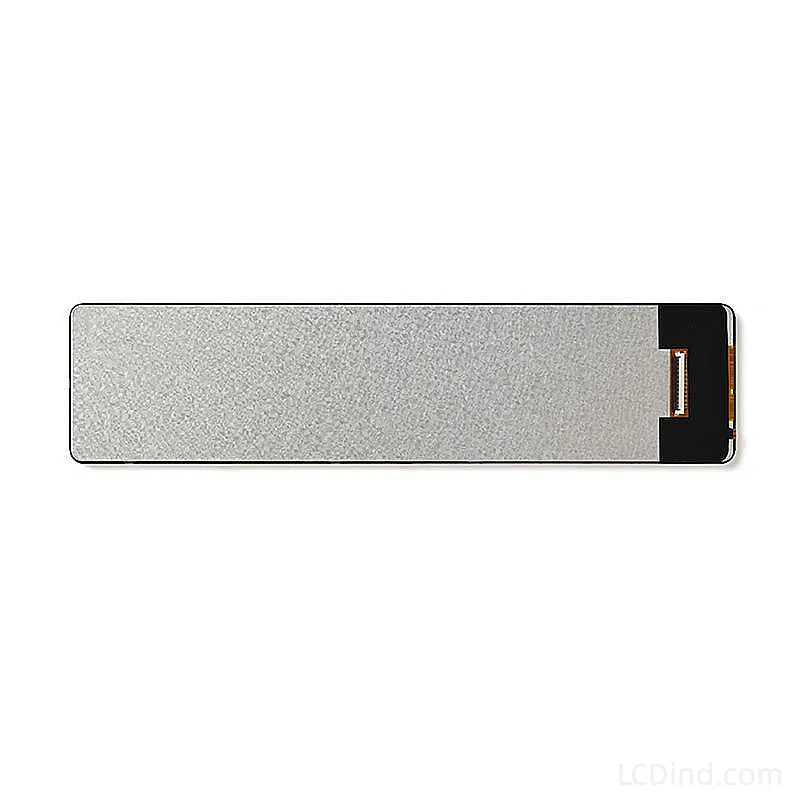

11.26 Inch Bar Type LCD Module 440×1920 IPS MIPI Interface Rectangular Stretched Screen ICNL9707 Driver
11.26″ IPS Stretched Bar LCD Module (440×1920). Features MIPI Interface, ICNL9707 Driver, and -20°C~70°C Wide Temp. Designed for Smart Mirrors & Signage.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 11.2 inch |
| Resolution | |
| Interface | MIPI |
| Driver IC | ICNL9707-AC02 |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 64.98 × 266.44 × 4.6 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
11.26 Inch Bar Type LCD Module: The Benchmark for Smart Mirrors
The 11.26 Inch Bar Type LCD Module represents the industry standard format for streaming media rearview mirrors and advanced automotive dashes. Featuring a rectangular 440×1920 resolution, this stretched display replaces traditional glass mirrors with a high-definition, latency-free digital canvas, providing drivers with a wider, unobstructed field of view.
Technical Highlights
1. Optimized 440×1920 Resolution
This module utilizes a specific 1:4.3 aspect ratio that perfectly matches the form factor of automotive rearview mirrors.
-
Visual Fidelity: The resolution ensures that video feeds from rear cameras are displayed with crisp detail, critical for safety applications.
-
IPS Technology: Equipped with an IPS panel, it delivers consistent image quality with 85/85/85/85 degree viewing angles, preventing color shift when viewed by the driver or co-pilot.
2. High-Performance MIPI Interface
Driven by the ICNL9707-AC02 IC, the module employs a MIPI (Mobile Industry Processor Interface) connection.
-
Bandwidth: MIPI DSI supports the high data throughput required to drive 1920 vertical pixels at 60Hz, ensuring smooth, ghost-free video playback essential for real-time traffic monitoring.
3. Industrial & Automotive Durability
Built to withstand harsh cabin environments, the module operates reliably between -20°C and +70°C. The mechanical design (Outline Dimension: 64.98 x 266.44 mm) allows for seamless integration into slim housings.
Target Applications
-
Automotive: Smart rearview mirrors (Dashcams), panoramic dashboard strips.
-
Digital Signage: Elevator door status displays, supermarket shelf headers.
-
Public Transport: Route map indicators for buses and metro trains.
Detailed Specifications
| Feature | Specification |
| Model Name | 11.26 Inch Bar Type LCD |
| Resolution | 440 (RGB) × 1920 |
| Interface | MIPI |

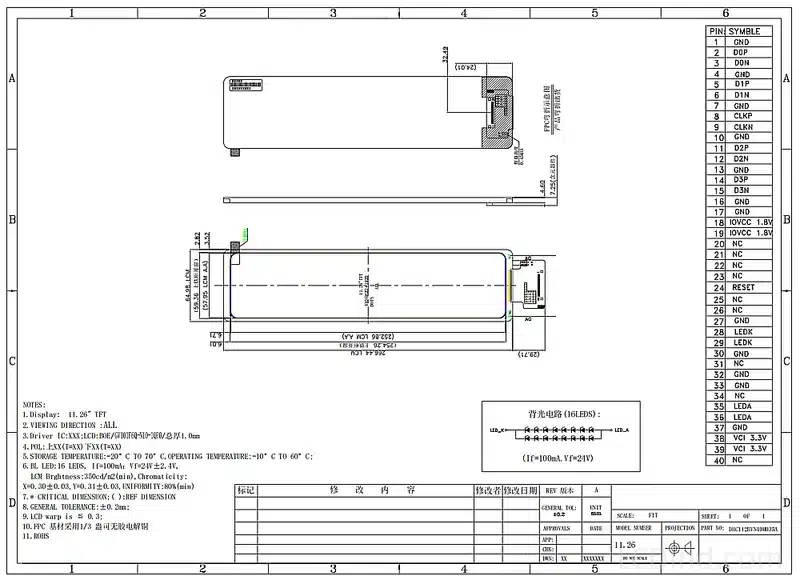

| Active Area | 57.94 × 252.9 mm |
| Outline Dimension | 64.98 × 266.44 × 4.6 mm |
| Driver IC | ICNL9707-AC02 |
| Brightness | 350 cd/m² (Typ.) |
| Display Mode | IPS / Normally Black |
Engineering FAQ
Q: Can this screen work with Raspberry Pi?
A: Yes, but it requires a MIPI-to-HDMI driver board or a custom MIPI driver configuration if connecting directly to the DSI port. Due to the non-standard 440×1920 resolution, specific timing parameters (timings) must be configured in the config.txt or kernel.
Q: What is the pin definition?
A: The module typically uses a high-density FPC connector. Please refer to the full datasheet for the exact pin mapping of the MIPI lanes and power rails.
Q: Is the shape customizable?
A: The glass shape (rectangular) is fixed for this Open Cell. However, we can customize the Touch Panel (CTP) cover glass to have rounded corners or specific shapes to fit your mirror housing.
Integration Support
Contact us for the datasheet, initialization code, and driver board compatibility.
| Brand | LCDind |
|---|---|
| Size | 11.2 inch |
| Resolution | |
| Interface | MIPI |
| Driver IC | ICNL9707-AC02 |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 64.98 × 266.44 × 4.6 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
