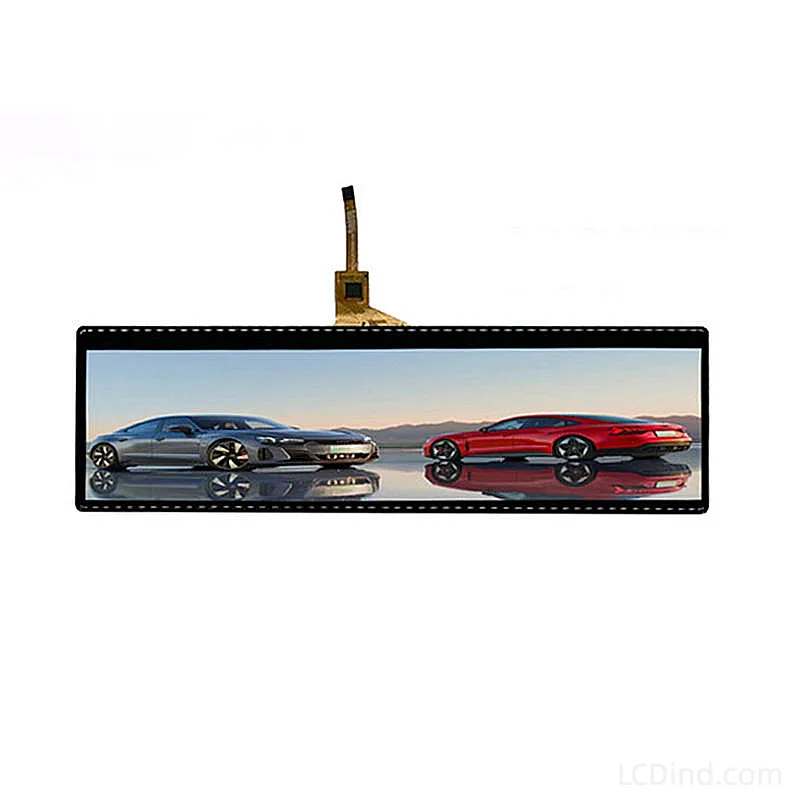

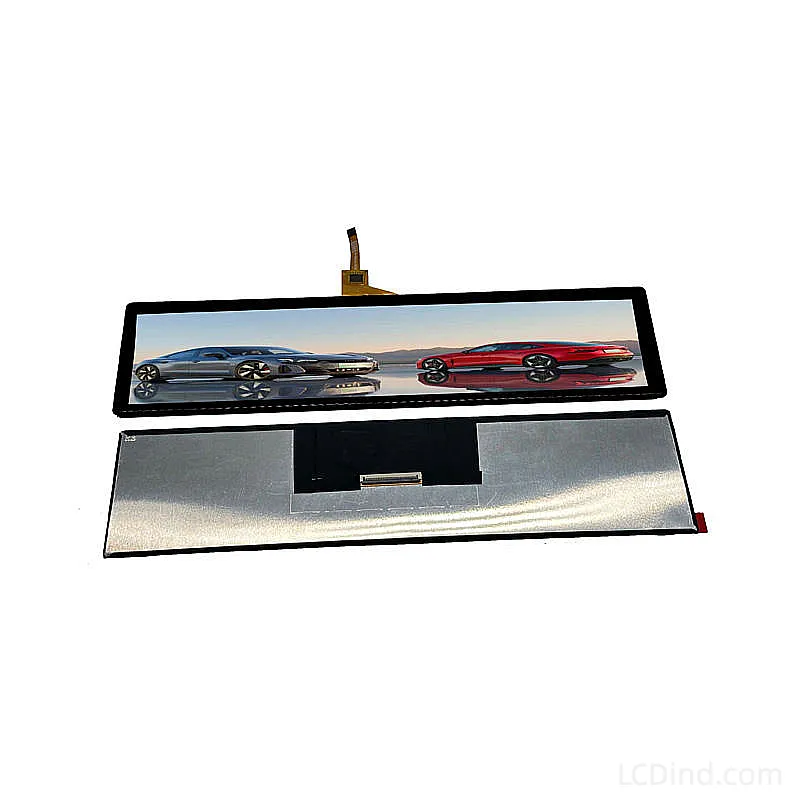

8.8 Inch Bar Type LCD Module 1280×320 IPS
8.8 Inch Bar Type LCD IPS Stretched Bar LCD (1280×320). Features LVDS Interface, EK79202D Driver, and 450 nits. Automotive Grade Size.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 8.8 inch |
| Resolution | |
| Interface | LVDS |
| Outline Dimension | 223.3 × 65 × 4.85 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Brightness | Standard (200-450 nits) |
8.8 Inch Bar Type LCD Module: The Automotive Standard
The 8.8 Inch Bar Type LCD Module is widely recognized as the gold standard size for automotive retrofits and secondary displays. With a 1280×320 resolution, it offers a classic 4:1 aspect ratio that balances information density with readability. This module is engineered for system integrators requiring a robust LVDS interface and stable industrial performance.
Key Technical Specifications
1. Proven 1280×320 Resolution
This module features an active area of 217mm x 54mm. The 1280-pixel width provides ample space for dual-content display (e.g., Navigation + Media), making it the preferred form factor for:
-

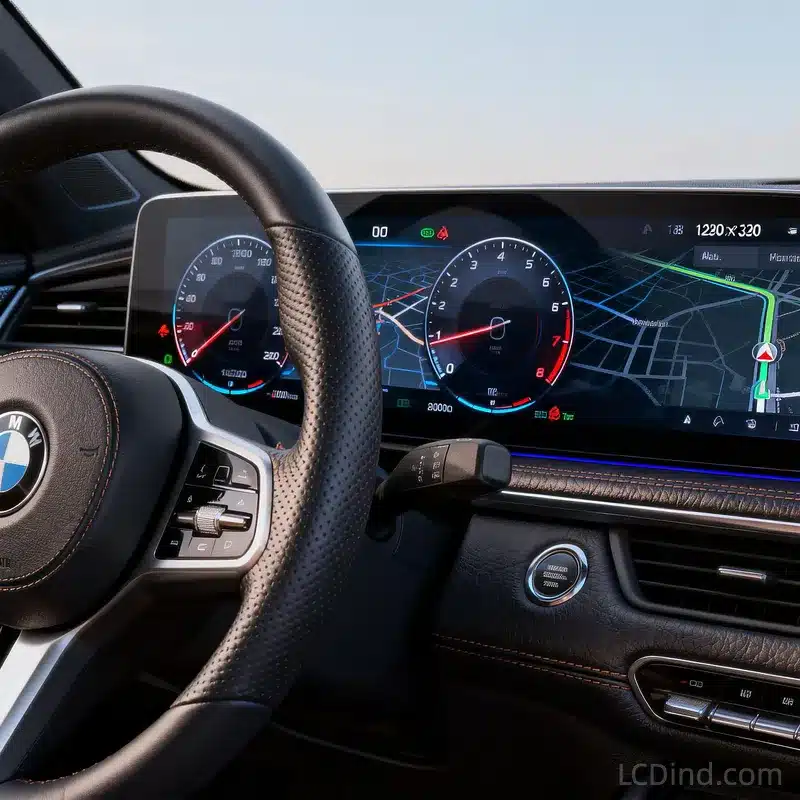

Automotive Dashboards: Digital instrument clusters and passenger displays.
-

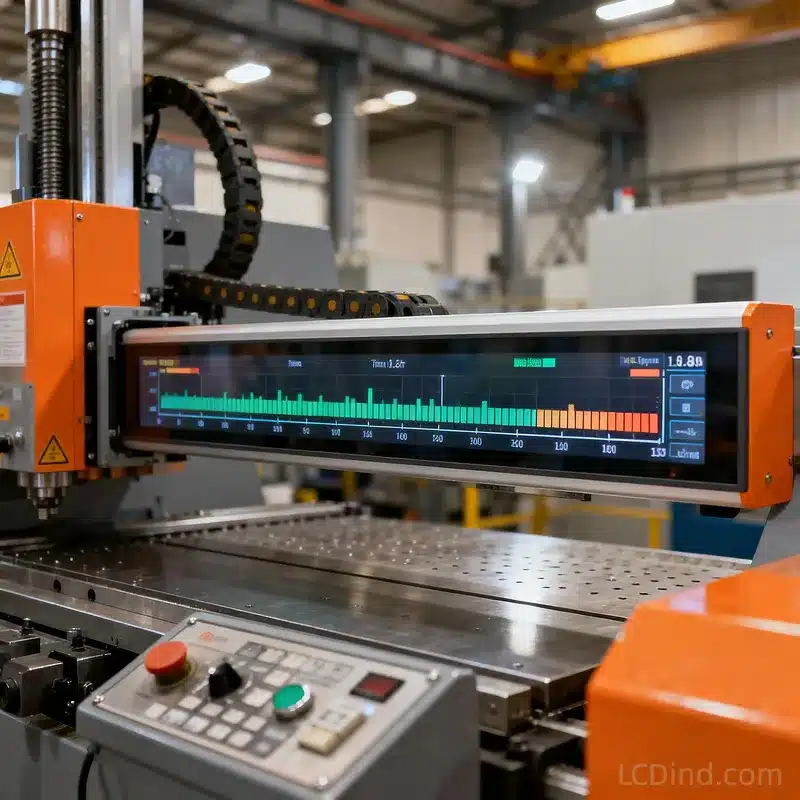

Industrial Controls: Wide timeline visualizations on CNC or injection molding machines.
2. Robust LVDS Interface
Unlike short-distance MIPI or RGB interfaces, this module utilizes LVDS (Low Voltage Differential Signaling).
-
Noise Immunity: LVDS is essential for harsh electromagnetic environments found in vehicles and factories. It supports longer cable runs between the mainboard and the display without signal degradation.
-
Driver IC: Powered by the EK79202D controller, ensuring compatibility with a wide range of industrial motherboards.
3. Enhanced Visibility & Reliability
-
Brightness: With 450 nits luminance, it offers superior visibility compared to standard 250-nit screens, suitable for bright cabin environments.
-
IPS Technology: The Normally Black IPS mode provides wide viewing angles of 80/80/80/80 degrees, ensuring colors remain accurate from the driver’s or operator’s perspective.
-
Wide Temperature: Operates reliably from -20°C to +70°C, meeting industrial and automotive cabin standards.
Target Applications
-
Automotive: Digital cluster upgrades, EV dashboard retrofits, Head-up Display (HUD) sources.
-

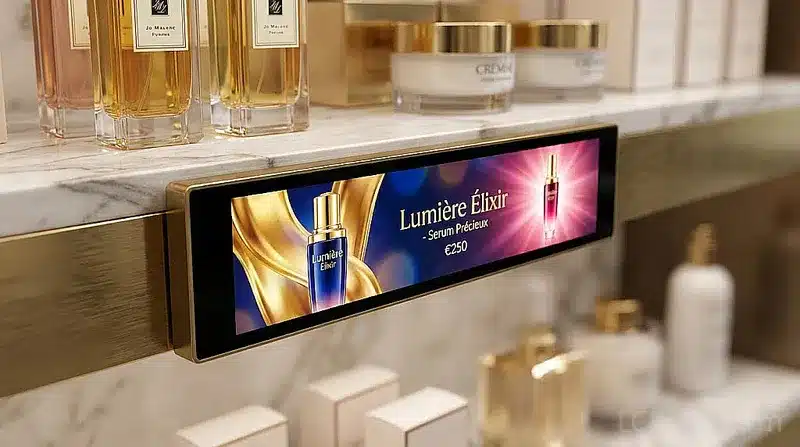

Retail Signage: Shelf-edge pricing strips and promotional banners.
-
Medical: Patient monitoring systems requiring wide-format data display.
-
Flight Simulation: DIY cockpit avionics panels.
Detailed Specifications
| Feature | Specification |
| Model Name | 8.8 Inch Bar Type LCD |
| Resolution | 1280 (RGB) × 320 |
| Interface | LVDS |
| Brightness | 450 cd/m² |
| Active Area | 217 × 54 mm |
| Module Dimensions | 223.3 × 65 × 4.85 mm |
| Pixel Pitch | 0.12 × 0.12 mm |
| Driver IC | EK79202D |
| Operating Temp | -20°C ~ +70°C |
Engineering FAQ
Q: Can I drive this LVDS screen with a Raspberry Pi?
A: Not directly. Raspberry Pi uses HDMI or MIPI DSI. To use this LVDS screen, you will need an HDMI-to-LVDS driver board. We supply compatible controller boards that make this screen Plug-and-Play via HDMI.
Q: Is the 450 nits brightness adjustable?
A: Yes, the LED backlight intensity can be controlled via the backlight driver circuit (typically PWM signal) to adjust for day/night modes in automotive applications.
Q: What is the pin definition for the LVDS connector?
A: The module typically uses a standard 40-pin or 50-pin LVDS connector. Please download the full datasheet below for the exact pinout map.
Supply & Support

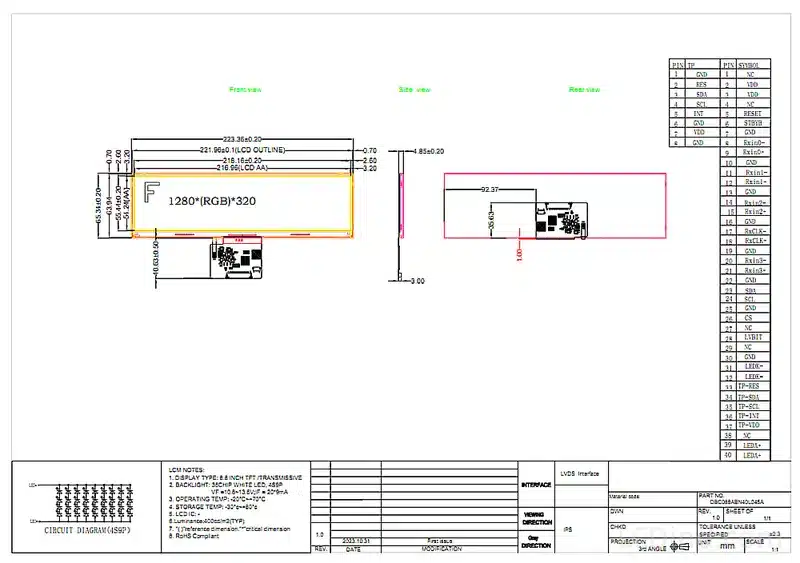

For mechanical drawings (CAD) and bulk pricing, contact our engineering sales team.
| Brand | LCDind |
|---|---|
| Size | 8.8 inch |
| Resolution | |
| Interface | LVDS |
| Outline Dimension | 223.3 × 65 × 4.85 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Brightness | Standard (200-450 nits) |
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
