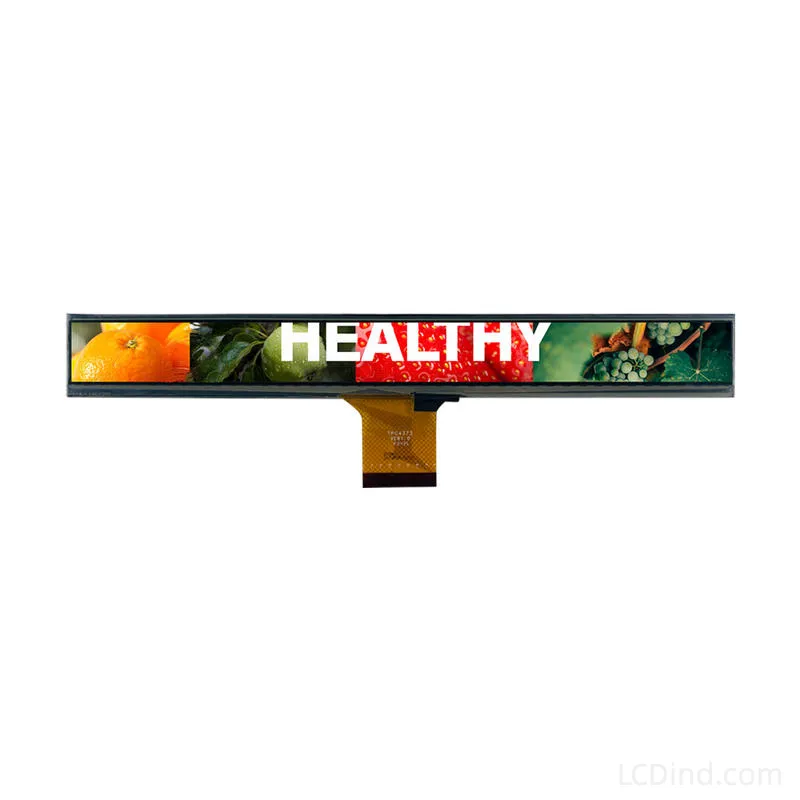

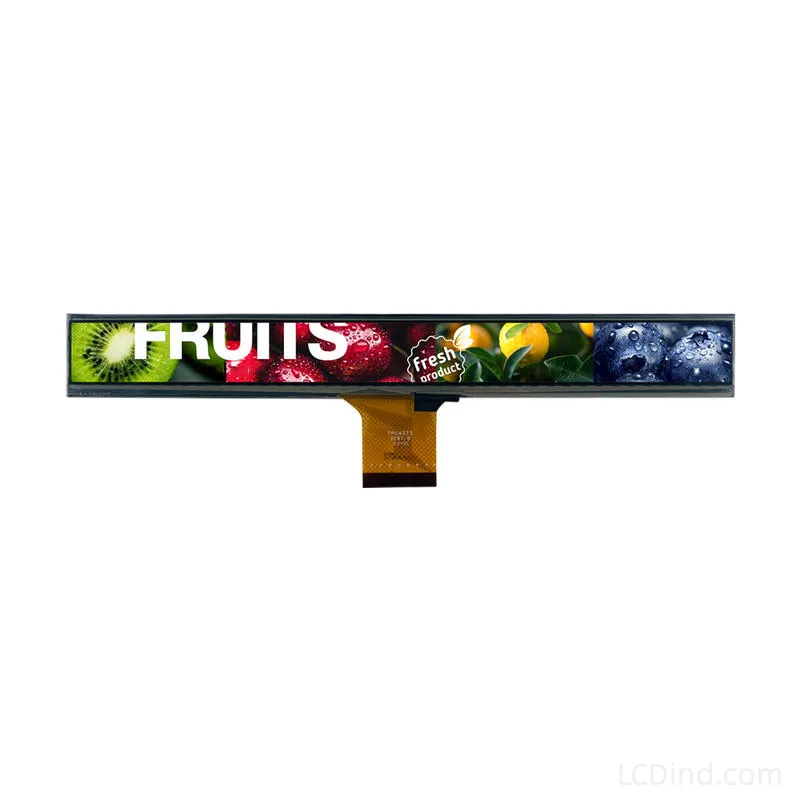

13.6 Inch Bar Type LCD Display Module 1920×168 30PIN eDP Industrial Rackmount Monitor 500nits
13.6″ Industrial Stretched Bar LCD (1920×168). Features 30-Pin eDP Interface and 11:1 Aspect Ratio. Ideal for 1U Rackmount Systems & Machine Status Indicators.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 13.6 inch |
| Resolution | |
| Interface | eDP |
| Brightness | High Brightness (500-900 nits) |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Outline Dimension | 350.7×43.6×9.6mm |
13.6 Inch Bar Type LCD Module: The 1U Rackmount Specialist
The 13.6 Inch Bar Type LCD Display Module is a specialized industrial display engineered for ultra-compact equipment. With its extreme 1920×168 resolution (Approx. 11:1 aspect ratio) and slim profile, it is the definitive display solution for 1U/2U Rackmount Industrial PCs, providing high-density data visualization in spaces where standard 16:9 screens simply cannot fit.
Industrial Engineering Advantages
1. Perfect Fit for 19″ Rack Systems
The 13.6-inch width is optimized to fit within the standard width of a 19-inch rackmount chassis, while the ultra-low vertical height (168 pixels) occupies minimal vertical rack units (U).
-

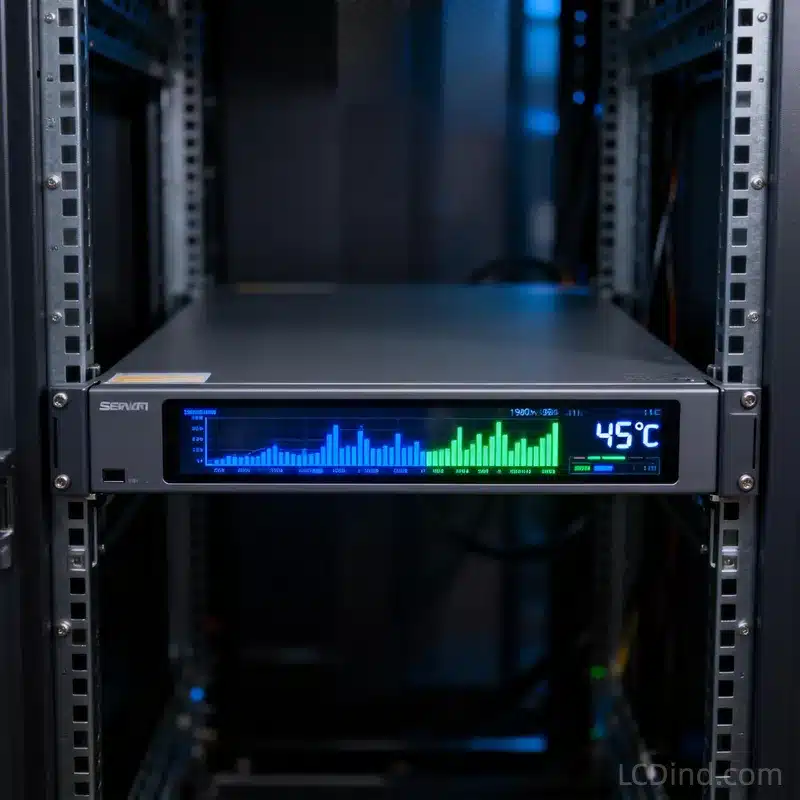

Application: It allows engineers to integrate a high-resolution status monitor directly onto the faceplate of Network Appliances, Industrial Servers, or Power Distribution Units (PDUs) to show real-time load, thermal stats, and IP configurations without needing an external monitor.
2. Direct eDP Connection for IPCs

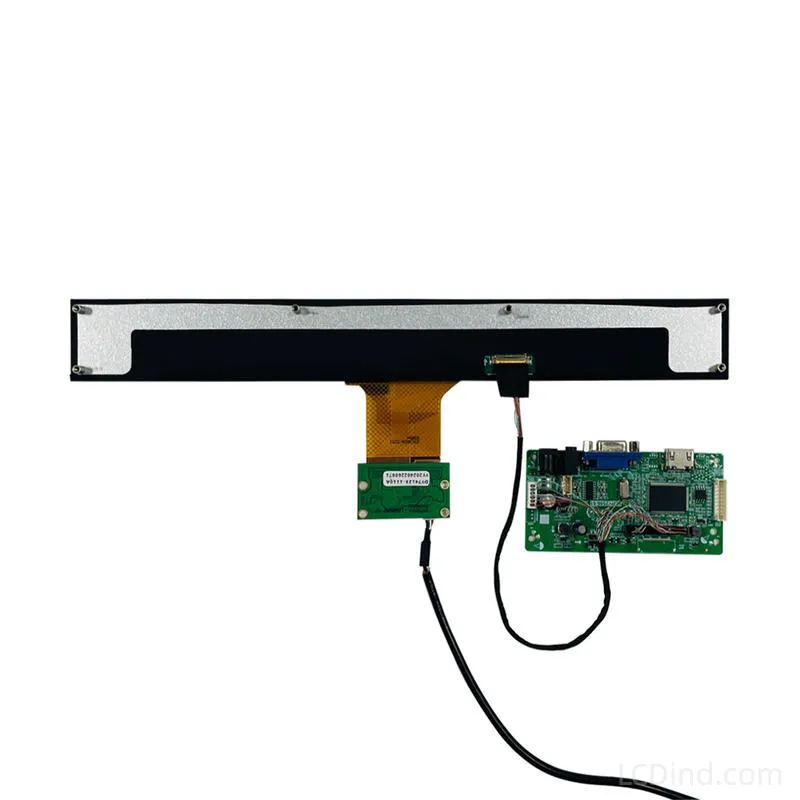

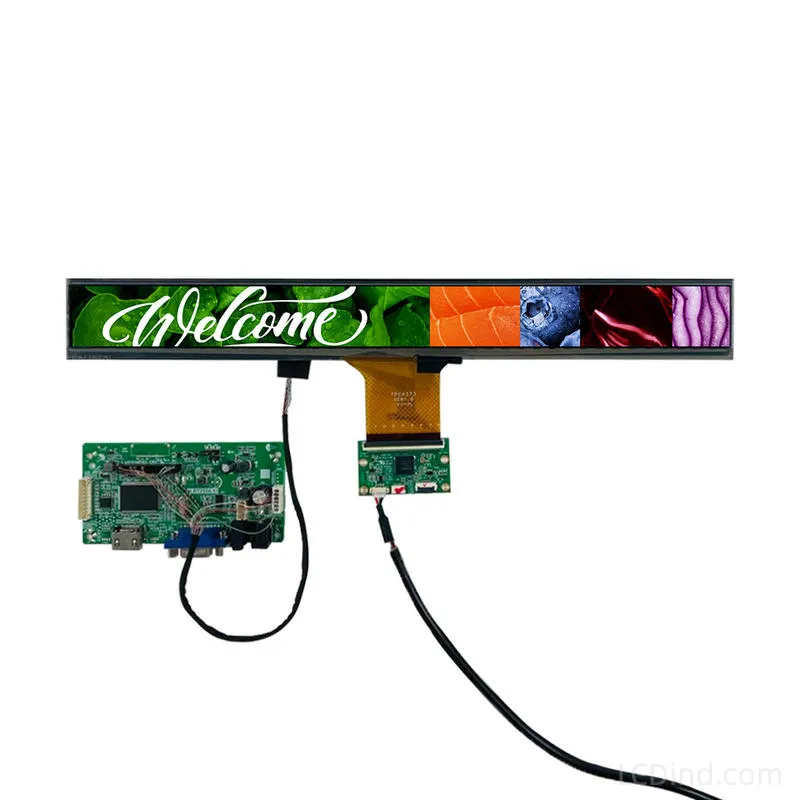

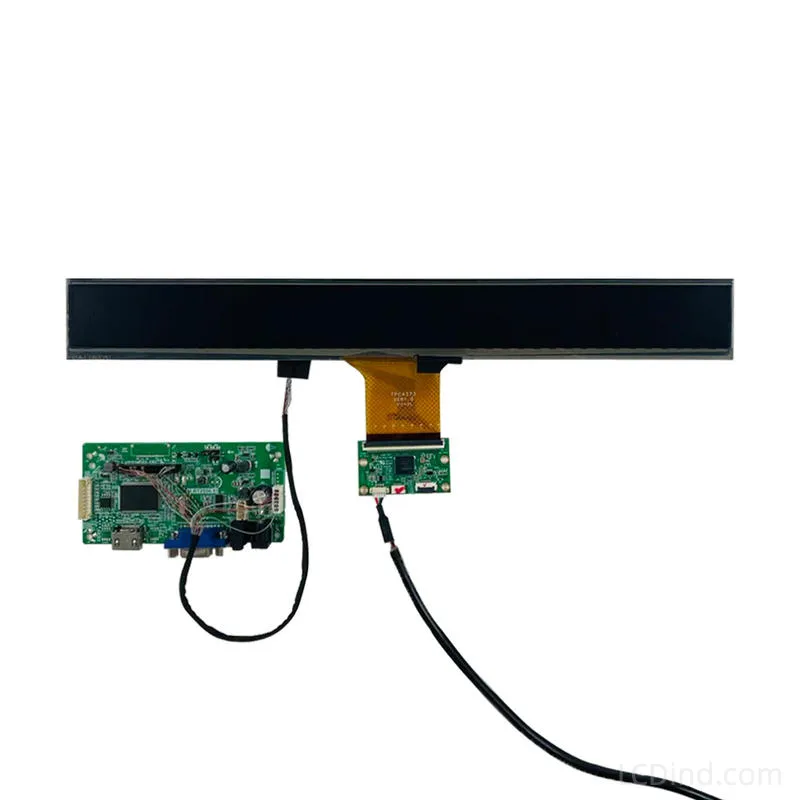

Built for x86 architecture, this module uses a 30-Pin eDP (Embedded DisplayPort) interface.
-
Integration: It connects natively to modern Industrial Motherboards (Mini-ITX, COM Express) and Single Board Computers (SBCs) typically used in factory automation.
-
Performance: The eDP interface ensures reliable, high-bandwidth transmission of the 1920-pixel wide signal, resistant to interference common in cabinet environments.
3. Efficient “Status Bar” Form Factor
In industrial machinery, vertical space is often reserved for physical buttons or emergency stops.
-
Machine Tooling: This 13.6-inch strip can be mounted horizontally on CNC machines or Injection Molding equipment to act as a digital “Andon” light—displaying progress bars, error codes, or operator instructions in a clear, text-based format.
Target Industrial Applications
-
Rackmount Equipment: 1U/2U Industrial PCs, Network Security Appliances, Broadcast Servers.
-
Factory Automation: CNC Machine Status Bars, PLC Control Cabinet Displays.
-

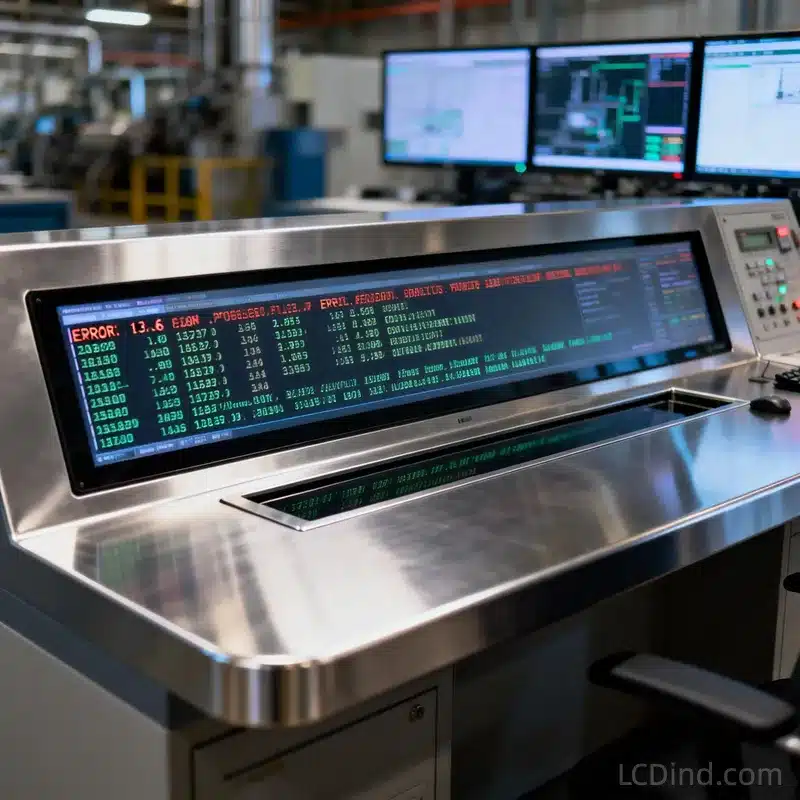

Process Control: Slim auxiliary displays for SCADA control desks (showing alarms/logs).
-
Instrumentation: Wide-format spectrum analyzers or waveform monitors.
Detailed Specifications
| Feature | Specification |
| Model Name | 13.6 Inch Bar Type LCD |
| Resolution | 1920 (RGB) × 168 |
| Aspect Ratio | ~11 : 1 |
| Interface | eDP (30-Pin) |
| Brightness | 500 cd/m² |
| Display Mode | IPS/FFS / Normally Black |
| Active Area | Check Datasheet |
| Backlight Life | > 30,000 Hours |
Technical FAQ
Q: Why use eDP instead of LVDS for this size?
A: eDP (Embedded DisplayPort) is the successor to LVDS for higher resolutions. For a width of 1920 pixels, eDP provides better signal integrity with fewer wires (30-pin vs 40/50-pin LVDS), making it easier to route cables inside tight 1U chassis.
Q: Can this screen display standard Windows Desktop?
A: Yes, but due to the 1920×168 resolution, standard desktop icons will look very large relative to the height. This screen is best used with custom industrial UI software (like LabView, Qt, or C# apps) designed to fit the specific 11:1 layout.
Q: Do you offer a mounting bracket?
A: We provide the open-cell module with the standard metal bezel. For rackmount integration, we can share the CAD files so you can machine the precise cutout on your server chassis faceplate.
Engineering Integration Support
For CAD files, eDP pinout, and signal timing parameters, please contact our technical sales.
| Brand | LCDind |
|---|---|
| Size | 13.6 inch |
| Resolution | |
| Interface | eDP |
| Brightness | High Brightness (500-900 nits) |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Outline Dimension | 350.7×43.6×9.6mm |
Q: Why use eDP instead of LVDS for this size?
A: eDP (Embedded DisplayPort) is the successor to LVDS for higher resolutions. For a width of 1920 pixels, eDP provides better signal integrity with fewer wires (30-pin vs 40/50-pin LVDS), making it easier to route cables inside tight 1U chassis.
Q: Can this screen display standard Windows Desktop?
A: Yes, but due to the 1920x168 resolution, standard desktop icons will look very large relative to the height. This screen is best used with custom industrial UI software (like LabView, Qt, or C# apps) designed to fit the specific 11:1 layout.
Q: Do you offer a mounting bracket?
A: We provide the open-cell module with the standard metal bezel. For rackmount integration, we can share the CAD files so you can machine the precise cutout on your server chassis faceplate.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
