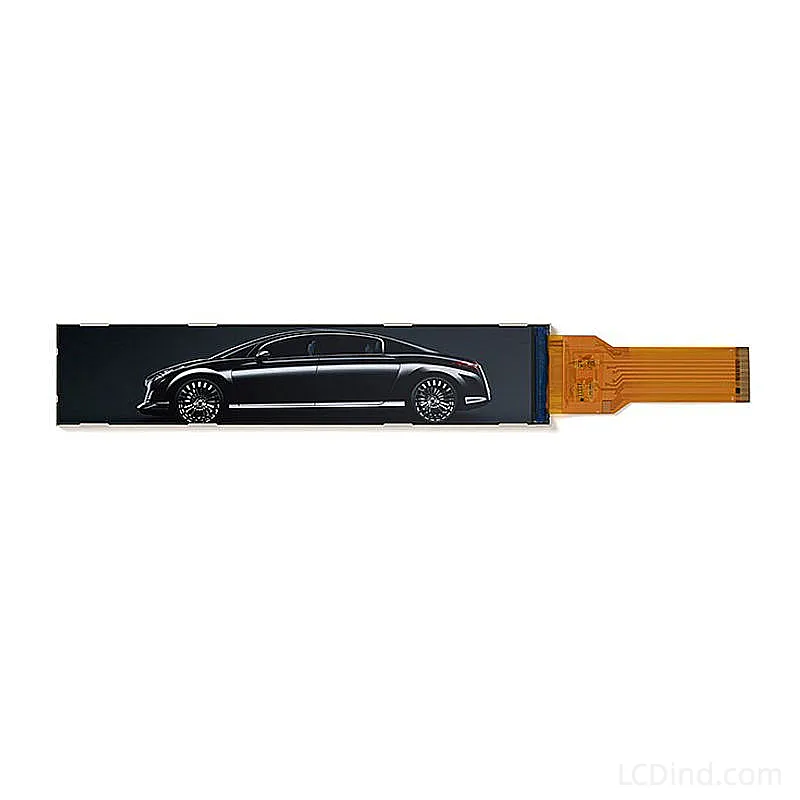

7 Inch Bar Type LCD Module 280×1424 IPS
7 Inch (6.86″) IPS Stretched Bar LCD Module with 280×1424 resolution. Features MIPI Interface and Industrial Grade Reliability. Ideal for 1U Racks & Automotive.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | |
| Interface | MIPI |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 38.2 × 181.47 × 3.5 mm |
| Viewing Angle | 80/80/80/80 (IPS) |
| Operating Temp | Industrial (-20 to +70°C) |
| Pixel Pitch | 0.12 × 0.12 mm |
7 Inch Bar Type LCD Module: Engineered for Streamlined HMI
The 7 Inch Bar Type LCD Module (Model: 6.86-inch active area) is a specialized display solution designed for industrial and automotive applications requiring an ultra-wide aspect ratio. With a resolution of 280×1424 pixels, this module provides a high-density visual interface suitable for space-constrained environments such as 1U server racks, automotive smart mirrors, and slim digital signage.
Technical Specifications & Advantages
1. High-Resolution 1:5 Aspect Ratio
Unlike standard 16:9 displays, this module features a unique 280×1424 resolution.
-
Pixel Density: With a pixel pitch of just 0.12mm, text and graphics are rendered with exceptional sharpness, critical for reading diagnostic data or camera feeds.
-
Form Factor: The 33.6mm height (Active Area) allows for integration into extremely narrow bezels or rack-mounted equipment where vertical space is at a premium.
2. High-Bandwidth MIPI Interface
This module utilizes a MIPI (Mobile Industry Processor Interface).
-
Performance: MIPI DSI provides high-speed serial data transmission, essential for driving the 1424-pixel width at stable frame rates (60Hz) with low EMI.
-
System Compatibility: Optimized for integration with ARM-based embedded processors (e.g., Rockchip, NXP i.MX, STM32 MPUs) running Linux or Android.
3. Industrial Grade IPS Panel
Reliability is paramount in B2B applications.
-
Wide Viewing Angle: The IPS technology ensures clear visibility from 80/80/80/80 degrees, accommodating various operator viewing positions.
-
Operating Range: Designed to withstand -20°C to +70°C, making it suitable for unconditioned industrial environments or automotive cabins.
Target Applications
-

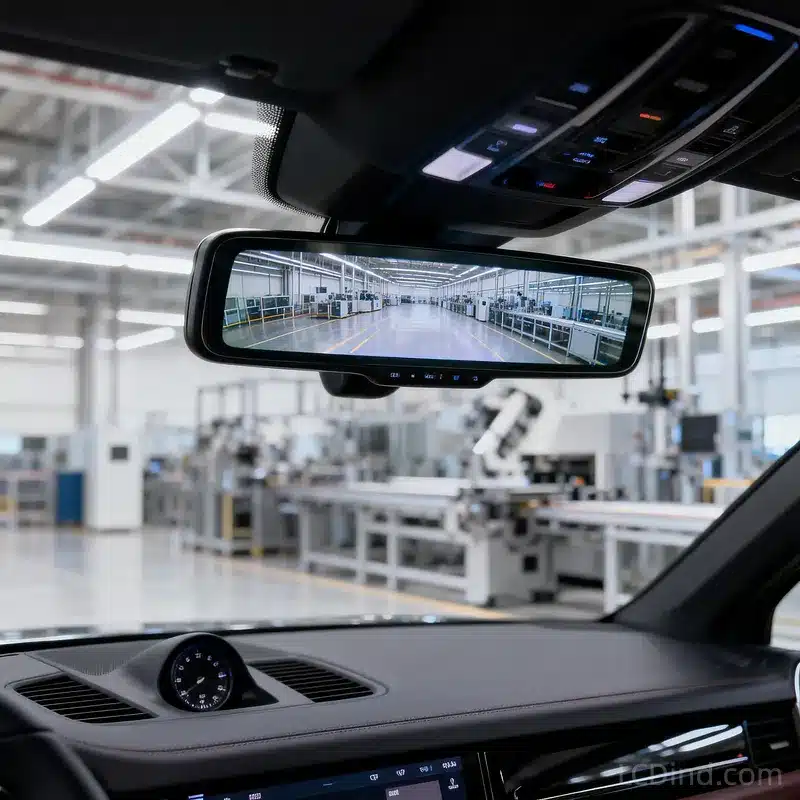

Automotive: Electronic rearview mirrors, side-pillar blind spot displays.
-

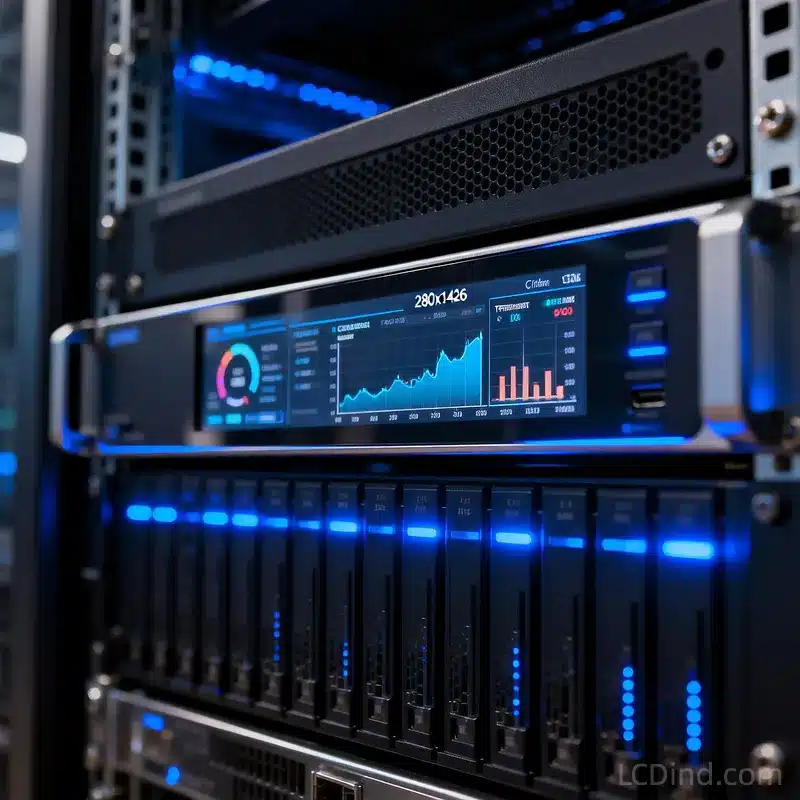

Data Centers: 1U/2U server rack status monitors.
-

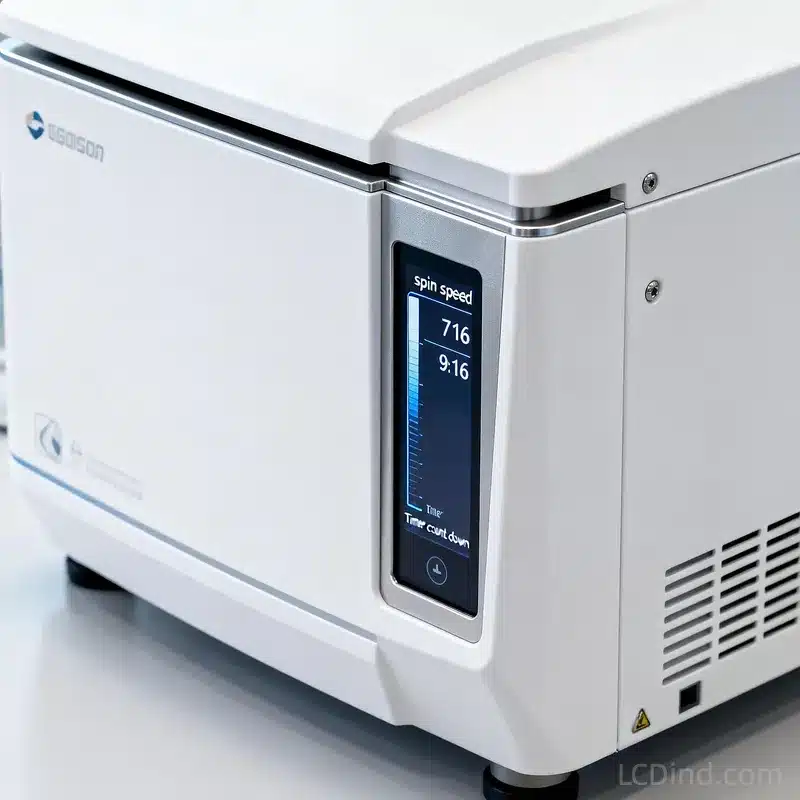

Commercial Appliances: High-end washing machine or refrigerator control strips.
-
Medical: Slim side-panel indicators for diagnostic equipment.
Detailed Specifications
| Feature | Specification |
| Model Type | 7 Inch Bar Type LCD (6.86″) |
| Resolution | 280 (RGB) × 1424 |
| Interface | MIPI |
| Active Area | 33.6 × 170.88 mm |

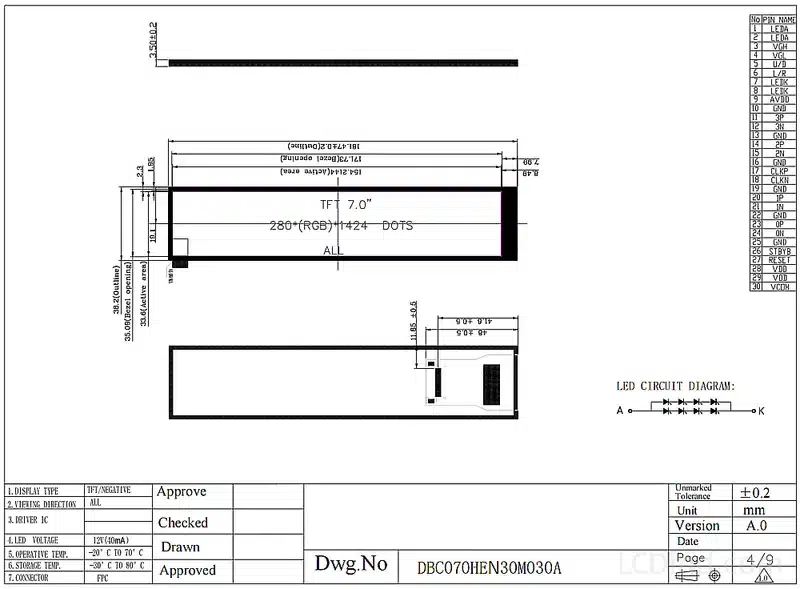

| Module Dimensions | 38.2 × 181.47 × 3.5 mm |
| Brightness | 300 cd/m² (Typ.) |
| Display Mode | IPS / Normally Black |
| Customization | CTP (Capacitive Touch) Bonding Available |
Engineering FAQ
Q: Is the interface compatible with standard HDMI?
A: No, this is a raw MIPI DSI panel. To use it with HDMI sources (like a PC), a signal conversion board (HDMI to MIPI) is required. We offer compatible driver board solutions for prototyping.
Q: What is the availability/lifecycle of this panel?
A: This module is categorized under our Long-Term Supply program, designed for industrial product lifecycles of 3-5+ years.
Q: Can you provide the connector pinout?
A: Yes, the 30-pin (typical) MIPI pinout definition and initialization code are available in the full datasheet. Please contact our engineering team for the document.
Integration Support
For volume pricing, mechanical drawings, and technical documentation, please contact our sales engineering team.
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | |
| Interface | MIPI |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 38.2 × 181.47 × 3.5 mm |
| Viewing Angle | 80/80/80/80 (IPS) |
| Operating Temp | Industrial (-20 to +70°C) |
| Pixel Pitch | 0.12 × 0.12 mm |
