7 Inch Anti-Glare High Brightness LCD Module 1000 nits Wide Temp -30°C~85°C
7 Inch Anti-Glare High Brightness LCD (800×480). Features Anti-Glare (AG) Surface Treatment, 1000 nits Sunlight Readability, and -30°C~+85°C Extreme Temp range. The ultimate reflection-free solution for Outdoor HMI.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | Sunlight Readable (1000+ nits) |
| Surface | Anti-Glare (AG) |
| Interface | |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |

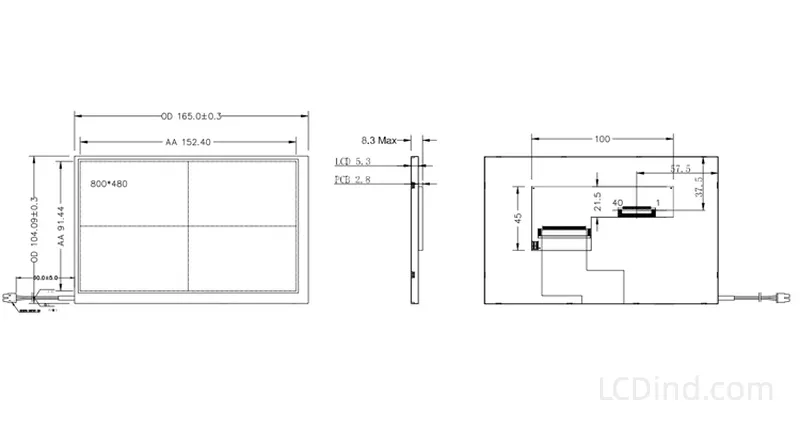

| Outline Dimension: | 165 × 104.09 × 5.3 mm |
7 Inch Anti-Glare High Brightness LCD: Visibility Without Reflections
The 7 Inch Anti-Glare High Brightness LCD Display Module is engineered to solve the two biggest challenges of outdoor visibility: lack of brightness and harsh reflections. Combining a powerful 1000 nits backlight with a professional Anti-Glare (AG) surface treatment, this module ensures your content is legible even when facing the sun directly.
Why Choose This 7 Inch Anti-Glare High Brightness LCD?
1. The “Glare Killer” Surface (AG Coating)
Standard glossy screens act like mirrors outdoors, making them impossible to read despite high brightness. This module features an Anti-Glare coating that diffuses external light.
-

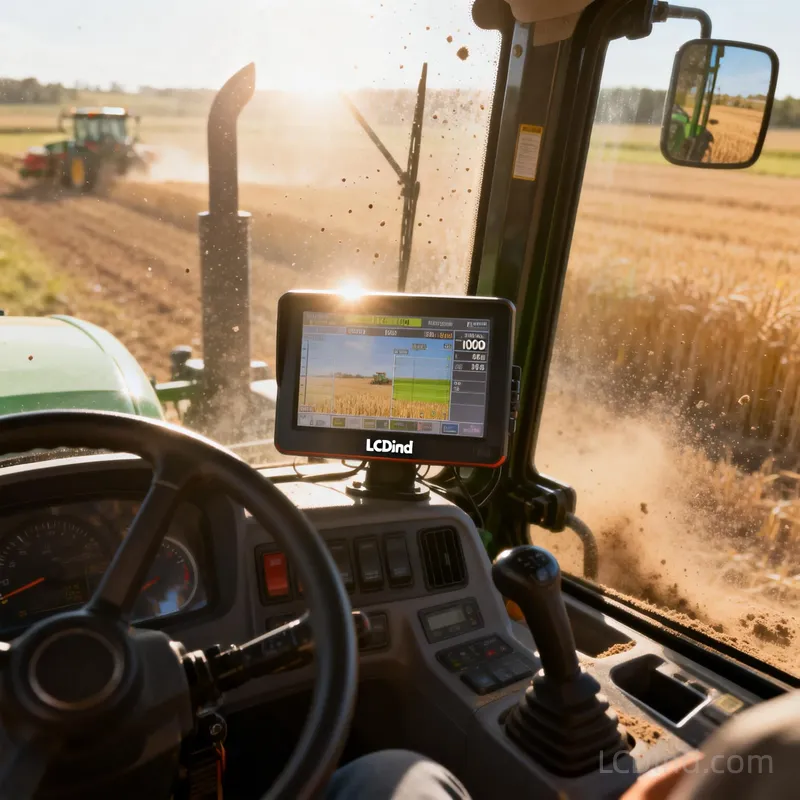

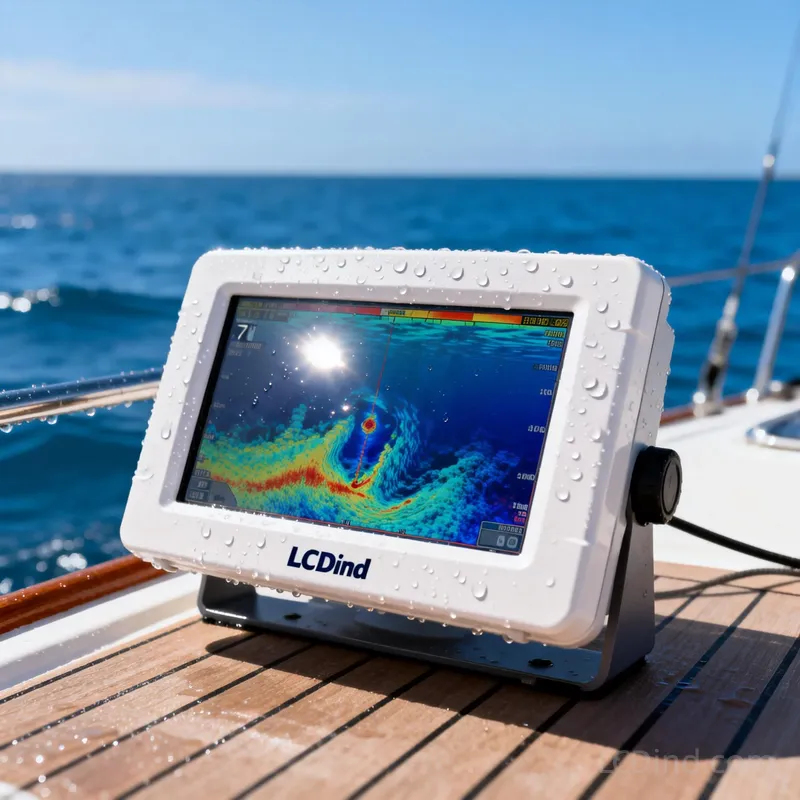

Benefit: It eliminates the “mirror effect,” allowing operators to see the UI data instead of their own reflection, crucial for marine navigation and agricultural machinery.
2. 1000 Nits Sunlight Readability
Visibility requires power. With 1000 cd/m² luminance, the backlight punches through ambient light. When combined with the AG surface, it offers the highest level of outdoor optical performance available in a 7-inch form factor.
3. Extreme Temperature Endurance (-30°C to +85°C)
Designed for freezing winters and scorching summers, this module supports an operating temperature range of -30°C to +85°C.
-
Reliability: The liquid crystal fluid resists freezing and “blackening” (isotropic phase) at high temperatures, ensuring 24/7 uptime in outdoor kiosks and vehicle dashboards.

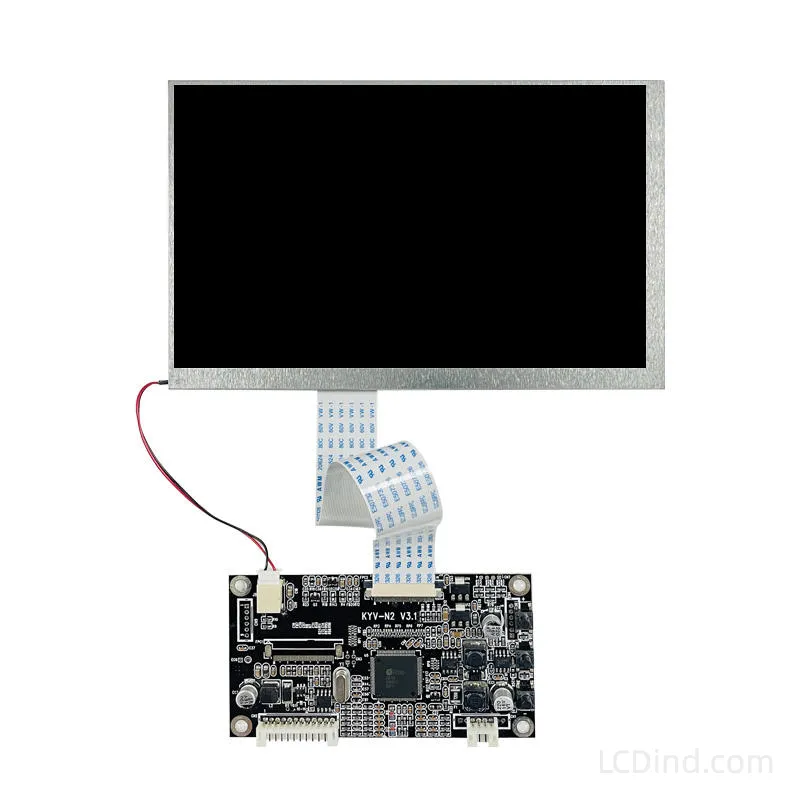

4. Drop-In 40-Pin TTL Interface
Despite its premium optical specs, it maintains the industry-standard 40-Pin TTL RGB interface. This allows engineers to easily upgrade existing standard-brightness products to a premium outdoor version without redesigning the mainboard.
Detailed Specifications
| Feature | Specification |
| Model Name | 7 Inch Anti-Glare High Brightness LCD |
| Resolution | 800 (RGB) × 480 |
| Brightness | 1000 cd/m² (Typ.) |
| Surface Treatment | Anti-Glare (AG) |
| Interface | 40-Pin TTL |
| Viewing Angle | 80/80/80/80 (IPS) |
| Operating Temp | -30°C ~ +85°C |
| Backlight Life | > 50,000 Hours |
Engineering FAQ
Q: Does the Anti-Glare coating make the image fuzzy?
A: Industrial AG coatings have a slight “matte” texture which can soften the image very slightly compared to a glossy screen, but it significantly improves readability in bright environments. For a 800×480 resolution, the text remains sharp and clear.
Q: Can I use this screen with gloves?
A: The LCD module itself doesn’t detect touch. However, we can optical bond a Resistive (RTP) or Capacitive (CTP) touch panel on top. For outdoor use, we recommend a CTP with water rejection firmware.
Q: Does high brightness consume more power?
A: Yes, 1000 nits requires more current than a standard 300 nits screen. We recommend designing your power supply to handle the LED backlight load (typically around 9V-12V for the LED rail, or check datasheet for specific current @ 5V).
Eliminate Glare from Your Design
Request the AG sample for your outdoor prototype.
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | Sunlight Readable (1000+ nits) |
| Surface | Anti-Glare (AG) |
| Interface | |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Outline Dimension: | 165 × 104.09 × 5.3 mm |
Q: Does the Anti-Glare coating make the image fuzzy?
A: Industrial AG coatings have a slight "matte" texture which can soften the image very slightly compared to a glossy screen, but it significantly improves readability in bright environments. For a 800x480 resolution, the text remains sharp and clear.
Q: Can I use this screen with gloves?
A: The LCD module itself doesn't detect touch. However, we can optical bond a Resistive (RTP) or Capacitive (CTP) touch panel on top. For outdoor use, we recommend a CTP with water rejection firmware.
Q: Does high brightness consume more power?
A: Yes, 1000 nits requires more current than a standard 300 nits screen. We recommend designing your power supply to handle the LED backlight load (typically around 9V-12V for the LED rail, or check datasheet for specific current @ 5V).
