10.25 Inch Automotive LCD Display (1920×720) 1000 nits
Experience the Future of HMI with In-Cell Technology.
Unlike traditional bulky displays, this 10.25 Inch Automotive LCD Display utilizes cutting-edge In-Cell Touch technology, integrating the touch sensor directly into the LCD structure. The result is a thinner, lighter, and optically superior screen. Manufactured by AUO, this 10.3-inch Bar Type module delivers 1000 nits of brightness and withstands extreme automotive temperatures (-30°C to +85°C), making it the definitive choice for premium digital cockpits and outdoor instruments.
Product Attributes
| Brand | AUO |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 10.2 inch, 10.3 inch |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touch Tech | In-Cell Capacitive Touch |
| Contrast Ratio | 1400:1 (Superior Black Levels) |
| Active Area | 243.65 × 91.37 mm |
Premium Integration: 10.25 Inch In-Cell Automotive Display
For automotive engineers and high-end system integrators, “visibility” and “sleekness” are paramount. The 10.25 Inch Automotive LCD Display (technically 10.3 inch diagonal) breaks away from traditional assembly methods by using In-Cell Touch Technology. This reduces the module thickness to just 6.7mm, allowing for seamless integration into modern, curved, or floating dashboard designs.
Why In-Cell Touch Matters?
Standard displays use a separate touch glass bonded on top, which adds weight and creates internal reflections. Our In-Cell solution:
-
Better Optics: Eliminates the air gap and extra glass layers, resulting in higher light transmission and reduced glare.
-
Higher Durability: With fewer layers to delaminate, the screen is more resistant to the vibrations and thermal shocks typical in vehicle environments.
1000 Nits & True Automotive Specs
A car dashboard must be legible in direct sunlight and operational in freezing winters.
-
Sunlight Readability: The powerful backlight delivers 1000 cd/m² brightness, ensuring clear visibility even under bright overhead sun.
-
Deep Contrast: With a 1400:1 contrast ratio, the display renders deep, inky blacks—crucial for night driving modes and high-quality UI aesthetics.
-
Wide Temperature: Verified for operation from -30°C to +85°C, exceeding standard industrial requirements.

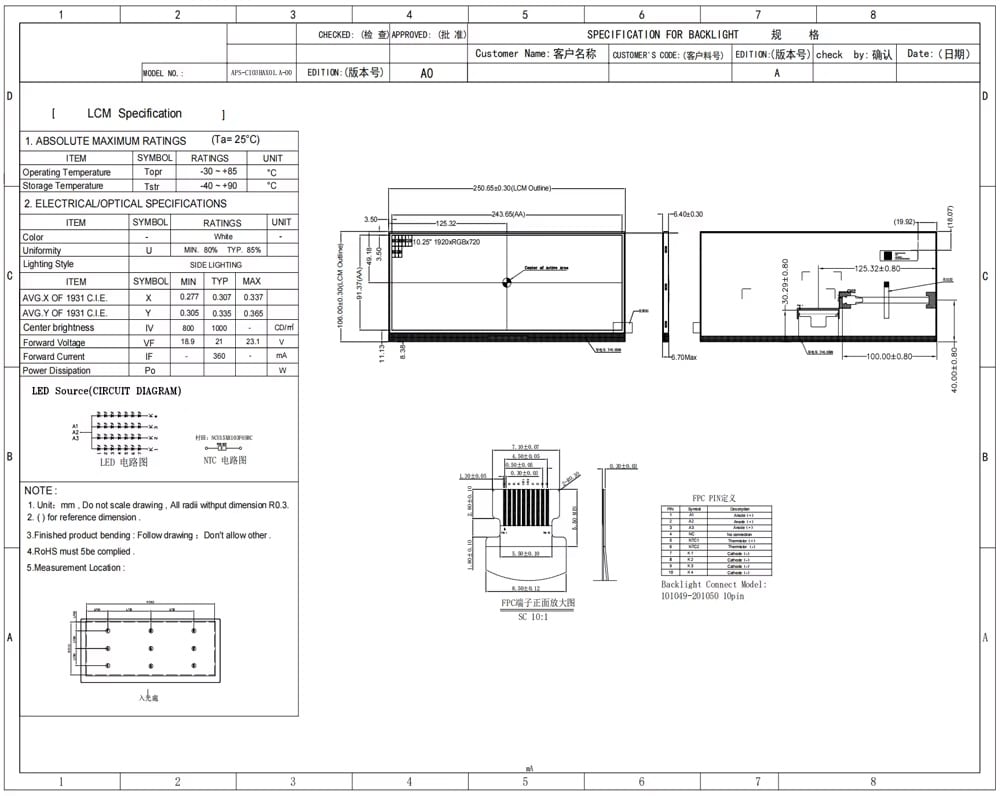

Detailed Specifications
| Feature | Specification |
| Product Name | 10.25 Inch Automotive LCD Display (In-Cell) |
| Panel Brand | AUO (Tier 1 Automotive Supplier) |
| Resolution | 1920 (RGB) × 720 (Bar Type) |
| Touch Technology | In-Cell Capacitive (Integrated) |
| Brightness | 1000 nits (Typ.) |
| Interface | 80-Pin LVDS |
| Contrast Ratio | 1400:1 |
| Dimensions | 250.65 × 106 × 6.7 mm |
| Active Area | 243.648 × 91.368 mm |
Ideal Applications
-
Premium EV Dashboards: Perfect for replacing analog gauges with a wide, floating digital cluster.
-
Luxury Car Retrofits: Fits standard 10.25″ housings for BMW/Mercedes infotainment upgrades.
-
Marine Navigation: The high brightness and wide temp range make it suitable for boat plotters.
Looking for a larger screen? Check our 15.6 Inch FHD In-Cell Display.
Need a larger display area? Upgrade to our 12.3 Inch In-Cell Automotive Display.
| Brand | AUO |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 10.2 inch, 10.3 inch |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touch Tech | In-Cell Capacitive Touch |
| Contrast Ratio | 1400:1 (Superior Black Levels) |
| Active Area | 243.65 × 91.37 mm |
What is the advantage of In-Cell Touch over standard bonding?
In-Cell Touch integrates the touch sensor into the LCD pixels themselves. This makes the 10.25 Inch Automotive LCD Display significantly thinner and lighter than screens with Optical Bonding. More importantly, it improves optical clarity by removing the adhesive layers, making the screen appear more vivid.
Does this display require a specific driver board?
Yes. This module uses an 80-Pin LVDS interface which carries high-bandwidth video data. We recommend using our specialized [link]Automotive Grade Driver Boards[/link] to ensure proper signal timing and power management for the backlight.
Is the 1000 nits brightness dimmable for night driving?
Absolutely. The backlight driver supports PWM dimming, allowing the system to lower the brightness automatically at night to prevent driver distraction, while maintaining the full 1000 nits capability for daytime visibility.
