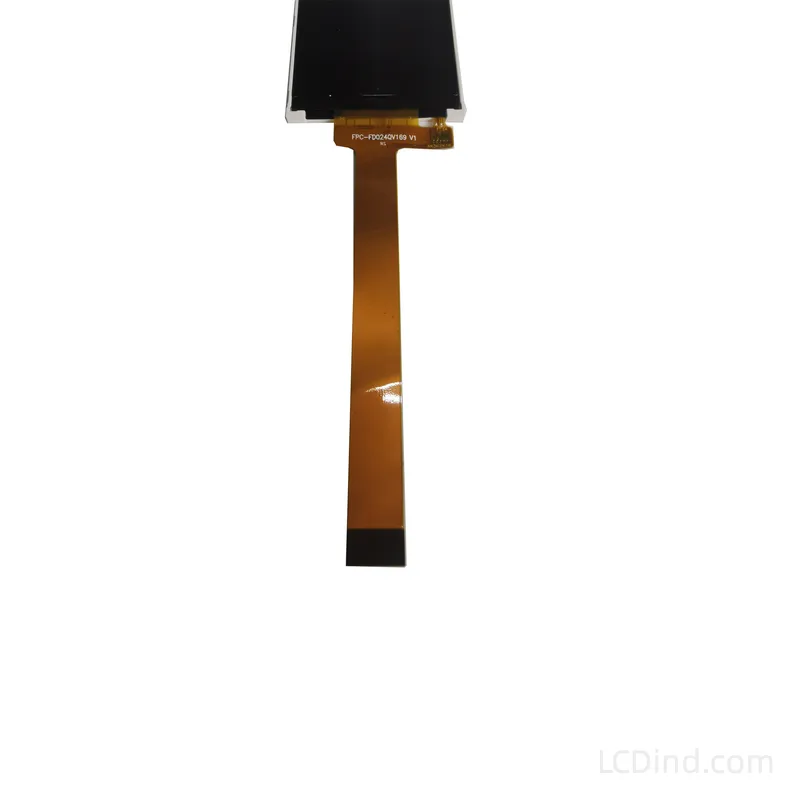

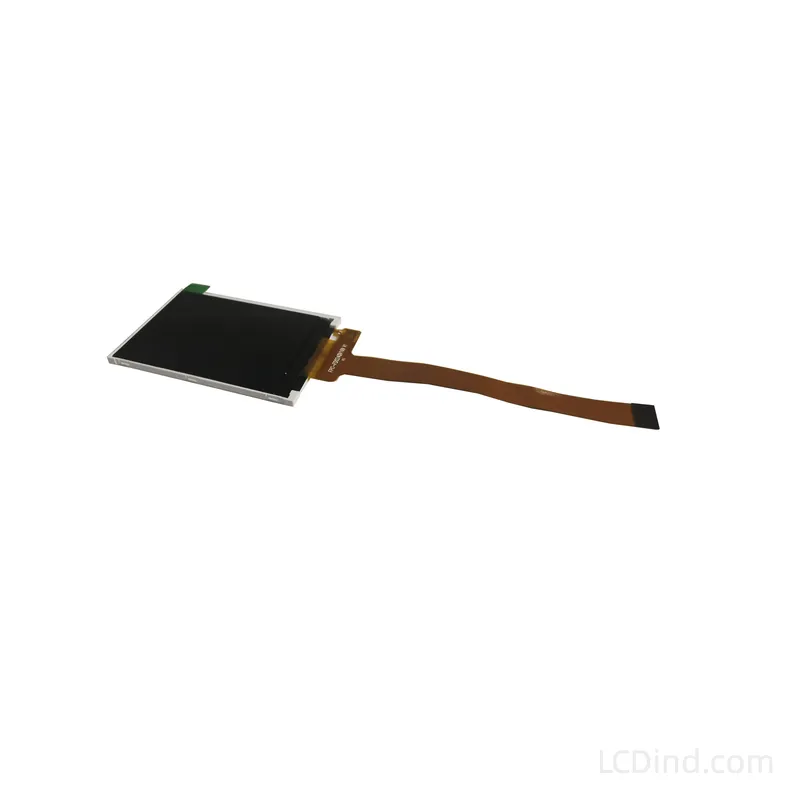

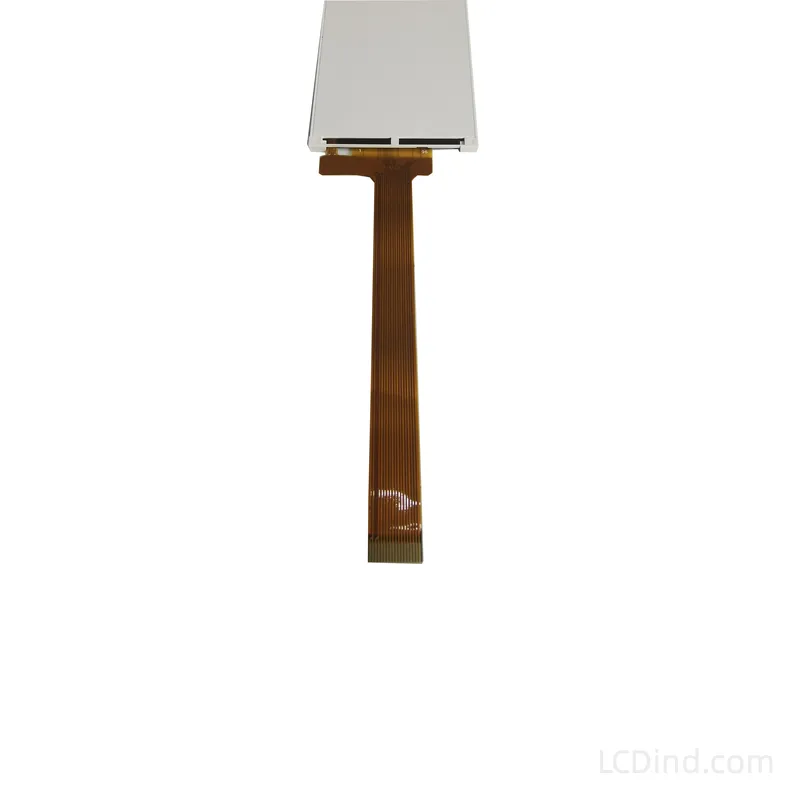

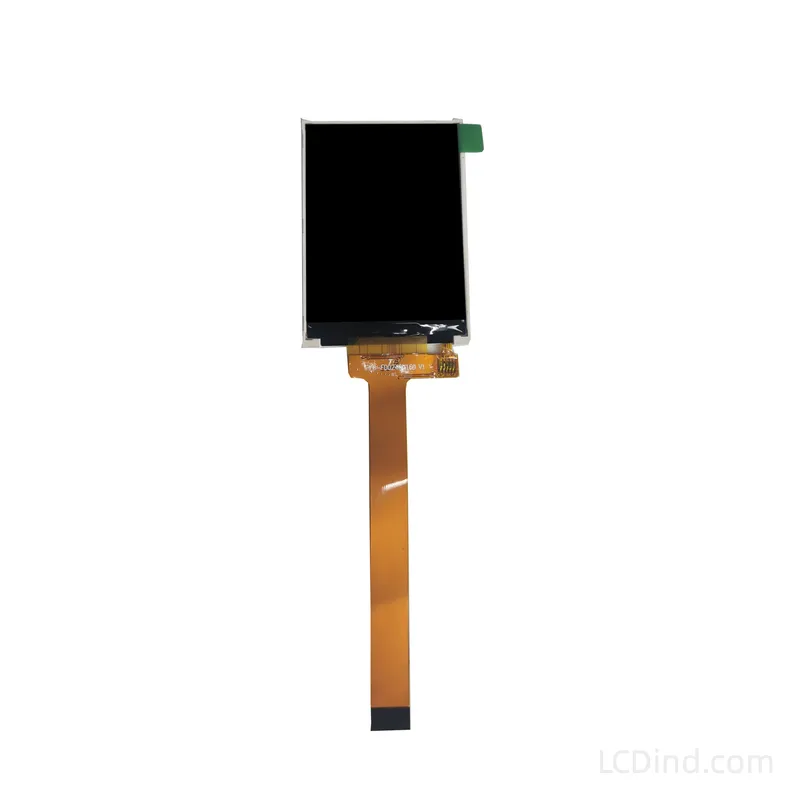

2.4 Inch SPI LCD Module RGB 240×320 Wide Temp Industrial Display
2.4 Inch SPI LCD Module (240×320). Features Wide Temperature (-20°C~70°C), 4-Wire SPI Interface, and vivid RGB Color. Robust display solution for Handhelds & IoT Devices.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 2.4 inch |
| Resolution | 240×320 |
| Interface | SPI |
| Display Mode | Transmissive / Normally White (TN) or Black (IPS) – Check datasheet |
| Operating Temp | Industrial (-20 to +70°C) |
| Driver IC | Commonly ILI9341 or ST7789 (Check Specific Model) |
| Brightness | Standard (200-450 nits) |
2.4 Inch SPI LCD Module: Compact & Rugged Visualization
The 2.4 Inch SPI LCD Module is a versatile display component designed for space-constrained industrial and medical applications. Combining a sharp 240×320 RGB resolution with a robust Wide Temperature range, this module ensures reliable performance in demanding environments where consumer-grade screens would fail.
Why Choose This 2.4 Inch SPI LCD Module?
1. Simple SPI Interface Integration
Unlike complex RGB or MIPI interfaces that require many pins, this 2.4 Inch SPI LCD Module utilizes a Serial Peripheral Interface (SPI).
-
Pin Saving: Requires only 4 to 5 GPIO pins (SCK, SDA, CS, DC, RES), leaving plenty of room on your microcontroller for sensors and other peripherals.
-
Compatibility: Perfectly suited for low-cost MCUs like ESP32, STM32, Arduino, and PIC.
2. Wide Temperature Durability
Built for the real world, this display supports an operating temperature range of -20°C to +70°C.
-
Application: Whether used in a freezing cold storage monitoring device or a handheld meter used under the hot sun, the liquid crystal fluid remains stable, preventing sluggish response or blackening.
3. Vibrant RGB 240×320 Visuals
Despite its compact size, the screen delivers clear text and colorful graphics. The 240×320 pixel resolution (QVGA) provides sufficient density for complex UI elements, charts, and icons, making it superior to monochrome displays for modern HMI designs.
Detailed Specifications
| Feature | Specification |
| Model Name | 2.4 Inch SPI LCD Module |
| Resolution | 240 (RGB) × 320 |
| Interface | 4-Wire SPI |
| Color Depth | 65K / 262K Colors |
| Operating Temp | -20°C ~ +70°C |

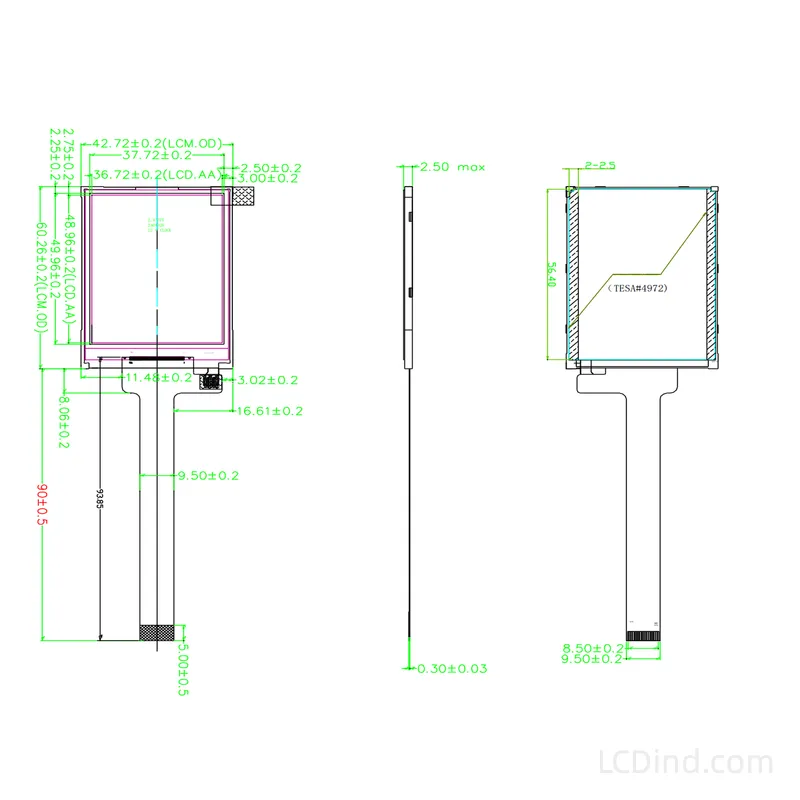

| Active Area | 36.72 × 48.96 mm |
| Backlight | White LED (PWM Dimmable) |
| Touch Panel | Optional (Resistive/Capacitive) |
Engineering FAQ
Q: What driver IC does this module use?
A: 2.4-inch SPI modules typically use industry-standard controllers like ILI9341 or ST7789. These drivers have extensive open-source library support (e.g., Adafruit_ILI9341, TFT_eSPI). Please refer to the specific downloadable datasheet for the exact IC on this batch.
Q: Can I use this screen in landscape mode?
A: Yes. While the physical resolution is 240×320 (Portrait), the driver IC supports hardware rotation commands (Memory Access Control). You can easily configure your software to draw in 320×240 (Landscape) mode.
Q: “RGB” is in the title, does it have an RGB interface?
A: No. “RGB” in the title refers to the color capability (Red-Green-Blue pixels). The communication interface is strictly SPI. If you need a 40-pin TTL RGB interface 2.4″ screen, please check our other listings or contact sales.
Start Your IoT Project
Reliable, bright, and easy to connect.
| Brand | LCDind |
|---|---|
| Size | 2.4 inch |
| Resolution | 240×320 |
| Interface | SPI |
| Display Mode | Transmissive / Normally White (TN) or Black (IPS) – Check datasheet |
| Operating Temp | Industrial (-20 to +70°C) |
| Driver IC | Commonly ILI9341 or ST7789 (Check Specific Model) |
| Brightness | Standard (200-450 nits) |
Q: What driver IC does this module use?
A: 2.4-inch SPI modules typically use industry-standard controllers like ILI9341 or ST7789. These drivers have extensive open-source library support (e.g., Adafruit_ILI9341, TFT_eSPI). Please refer to the specific downloadable datasheet for the exact IC on this batch.
Q: Can I use this screen in landscape mode?
A: Yes. While the physical resolution is 240x320 (Portrait), the driver IC supports hardware rotation commands (Memory Access Control). You can easily configure your software to draw in 320x240 (Landscape) mode.
Q: "RGB" is in the title, does it have an RGB interface?
A: No. "RGB" in the title refers to the color capability (Red-Green-Blue pixels). The communication interface is strictly SPI. If you need a 40-pin TTL RGB interface 2.4" screen, please check our other listings or contact sales.
