7 inch 800×480 IPS TFT-LCD Panel (40-Pin TTL): High-Contrast Custom Display

7 Inch 800×480 IPS TFT LCD Panel with 40-Pin TTL Interface

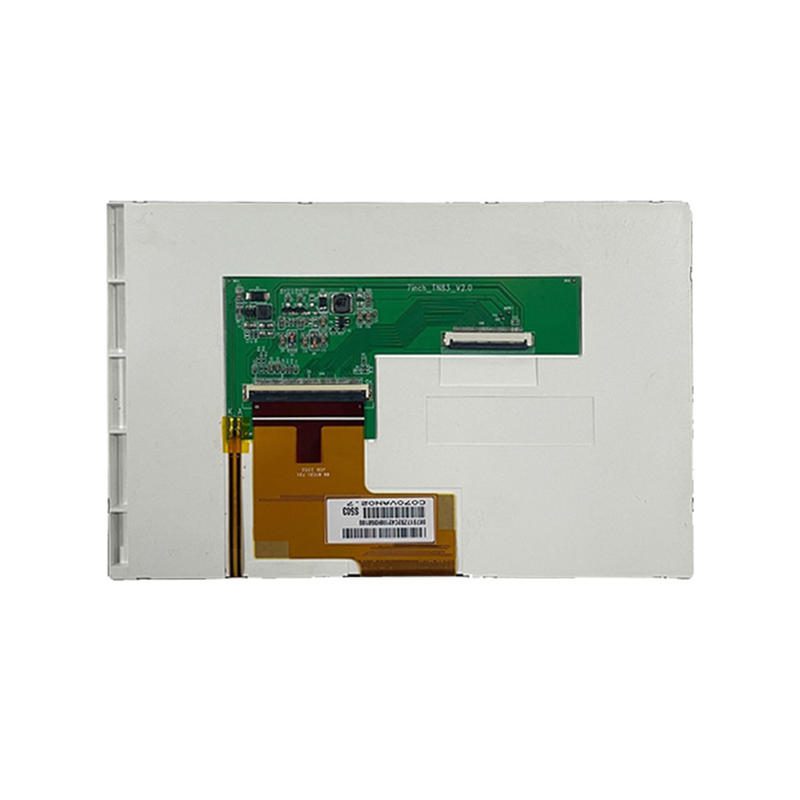

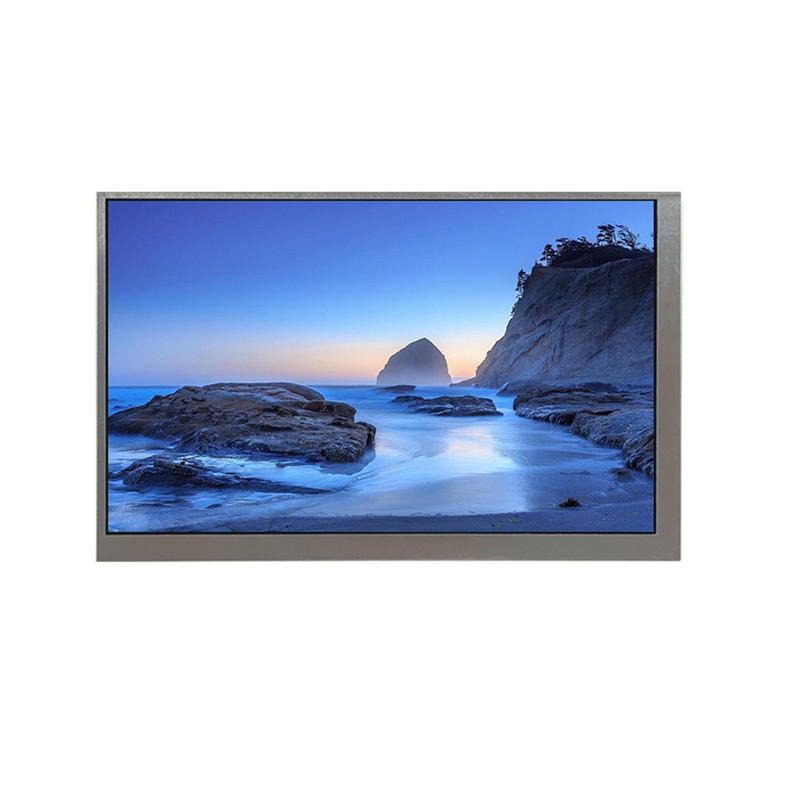

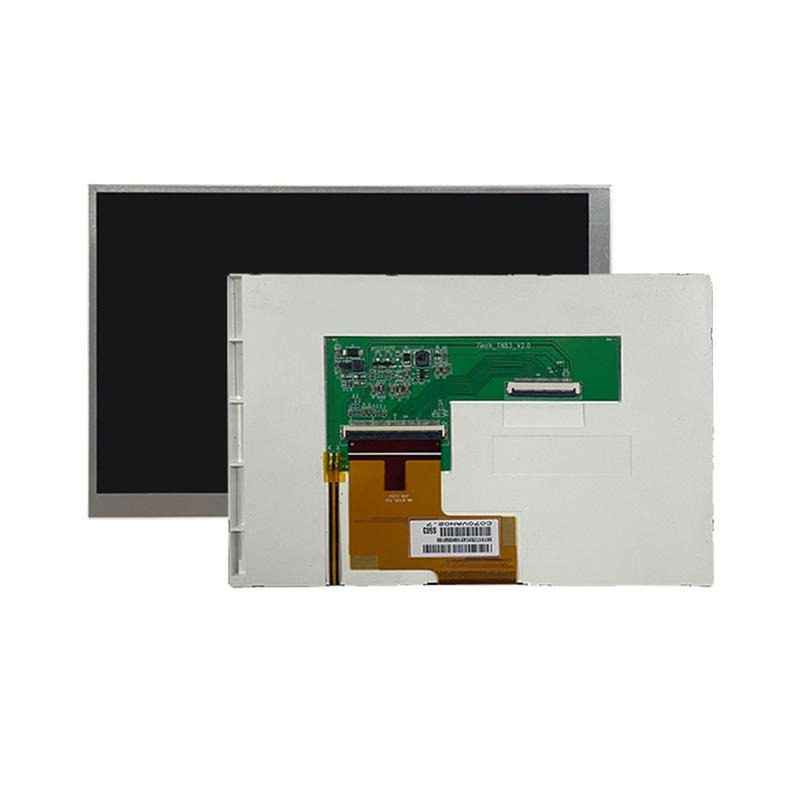

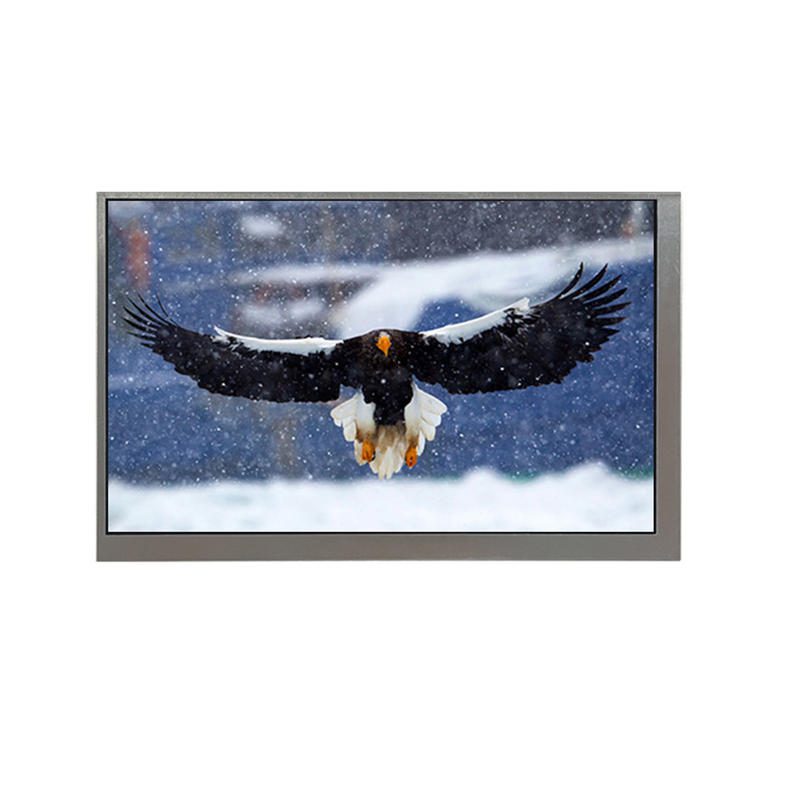

This 7 inch IPS TFT-LCD panel is a 40-pin TTL display candidate for custom embedded HMI projects that need a common 800×480 landscape format. The confirmed public specification lists 7.0 inch diagonal size, 350 cd/m² luminance, 800×480 resolution, 152.4×91.44 mm active area, IPS 80/80/80/80 typical viewing angle, RGB-stripe color arrangement, -20 ℃ to +70 ℃ operating temperature, 165×104.09×5.3 mm outline, anti-glare surface, digital TTL interface, and touch screen without but available. Weight is listed as TBD.

Confirmed Product Specifications

Embedded HMI Fit

This panel fits industrial controllers, service terminals, lab devices, machine settings screens, power equipment, and custom embedded products that already support 40-pin TTL display output. The 800×480 resolution is widely used for practical HMI layouts with menus, status values, alerts and operator prompts. It is a better fit for functional equipment screens than for media or high-density graphics.

40-Pin TTL Interface

The public table confirms digital TTL interface. Engineers should verify pinout, voltage, pixel clock, sync timing, color depth, FPC direction and backlight circuit before PCB lock. TTL panels can be straightforward when the host was designed for them, but they are not plug-and-play with HDMI or LVDS systems unless a controller board is added.

Optical Characteristics

The 350 cd/m² luminance and anti-glare surface support standard indoor or controlled industrial environments. This is not a high-brightness outdoor panel. IPS viewing angles are useful where operators view the panel from the side or below. If the display sits behind protective glass, brightness and reflection should be tested with the real cover stack.

Touch Option

The table says touch screen without but available. Treat this as a no-touch standard configuration with optional touch customization. If touch is required, define resistive or capacitive technology, cover lens, controller interface, bonding, ESD, glove use and UI target sizes. Adding touch changes thickness and optical performance.

Mechanical Fit

The active area is 152.4×91.44 mm and outline is 165×104.09×5.3 mm. These values should be compared with the front window, screw bosses, gasket, FPC bend and service access. 7 inch panels are large enough that uneven frame pressure can create visible defects or touch instability if a touch stack is added.

Replacement Review

If this panel is being considered as a substitute for an existing 7 inch display, compare more than resolution. Interface pinout, FPC position, active area, outline, backlight voltage, touch stack and initialization requirements must match. LCDind should request the existing model and drawing before confirming replacement.

Decision Boundary

Choose this product when the host can use 40-pin TTL and the project needs a standard 7 inch IPS 800×480 panel with anti-glare surface. If the system output is HDMI, LVDS, MIPI or eDP, select or quote the correct driver path instead of forcing a TTL panel into the design.

TTL Replacement Evidence

When this panel is used as a replacement candidate, collect the original panel label, FPC pin count, connector pitch, pinout, backlight circuit, active area and outline drawing. A 7 inch 800×480 panel with the same diagonal can still be incompatible if the TTL mapping, backlight voltage or FPC exit differs.

Controller Board Decision

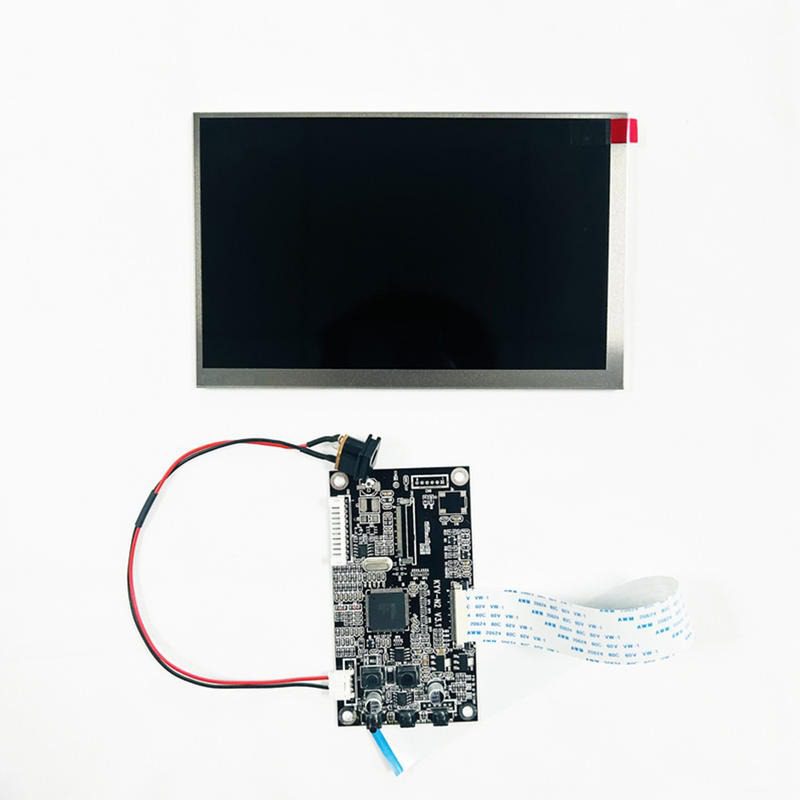

If the buyer's system has HDMI, LVDS or USB-C video output, this TTL panel needs a controller path. Decide before quotation whether LCDind should supply a driver board, cable and power interface. Without that scope decision, the buyer may receive a correct panel that the system cannot directly drive.

Industrial HMI Review

For machine HMIs, check anti-glare performance, readability from side angles, cable strain, long-duration operation and enclosure pressure. The 350 cd/m² brightness is suitable for many indoor panels, but front lens tint and cabinet lighting can reduce readability. Test the real UI with the final housing before batch approval.

Production Decision Point

This panel is a good fit when the buyer wants a stable 7 inch TTL display path and can control the host electronics. It is not the best fit for buyers expecting a finished monitor. If the project needs touch, enclosure glass or a controller board, those items should be quoted as a system-level requirement from the beginning.

RFQ Checklist

• Host interface, 40-pin TTL pinout, voltage, timing, FPC direction, backlight control and existing panel to match.
• Mechanical drawing, active-area window, bezel, gasket, mounting method and cable route.
• Touch or no-touch requirement, cover lens, brightness environment, operating temperature and duty cycle.
• Sample quantity, annual forecast, inspection criteria, packaging and approved substitute rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review interface compatibility, drawing, optical stack, touch requirement, operating environment, controller-board scope, supply quantity and inspection criteria. This keeps the existing product URL intact while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is this an HDMI display?

No. The confirmed interface is digital TTL, so HDMI systems need a driver board or another product.

Is touch included?

The table lists touch screen without but available, so touch should be specified separately.

Is it suitable for outdoor sunlight?

No. The confirmed luminance is 350 cd/m², mainly for indoor or controlled environments.
