7 Inch LVDS LCD Display Module 800×480 IPS 800 nits High Brightness 30-Pin
7.0 Inch High Brightness IPS LCD (800×480). Features 30-Pin LVDS Interface (8-bit), 800 nits Sunlight Readability, and -30°C~+85°C Automotive Grade temp range. Stable signal for Industrial & Vehicle apps.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |

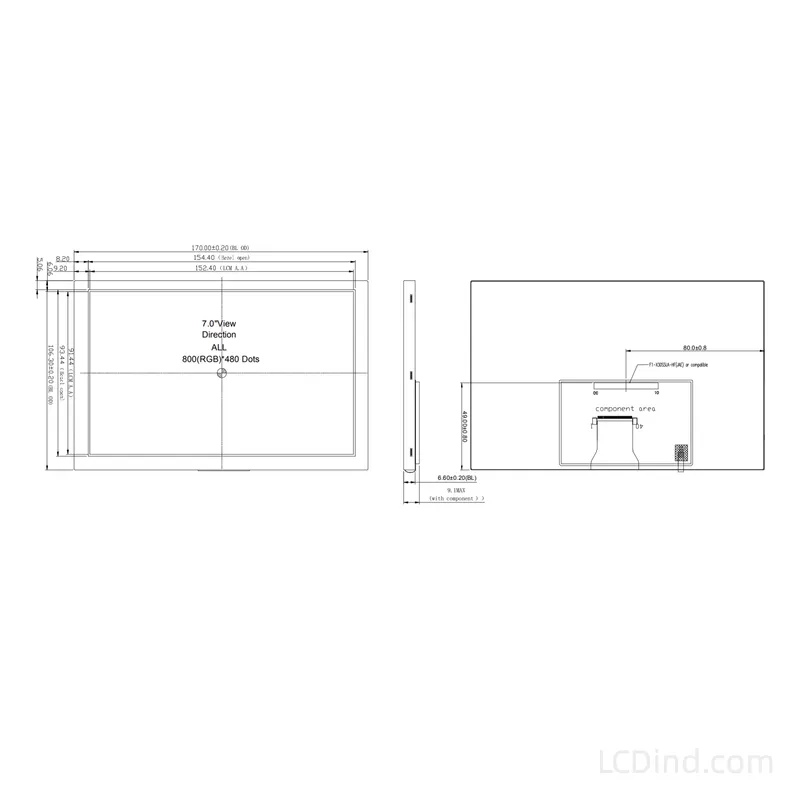

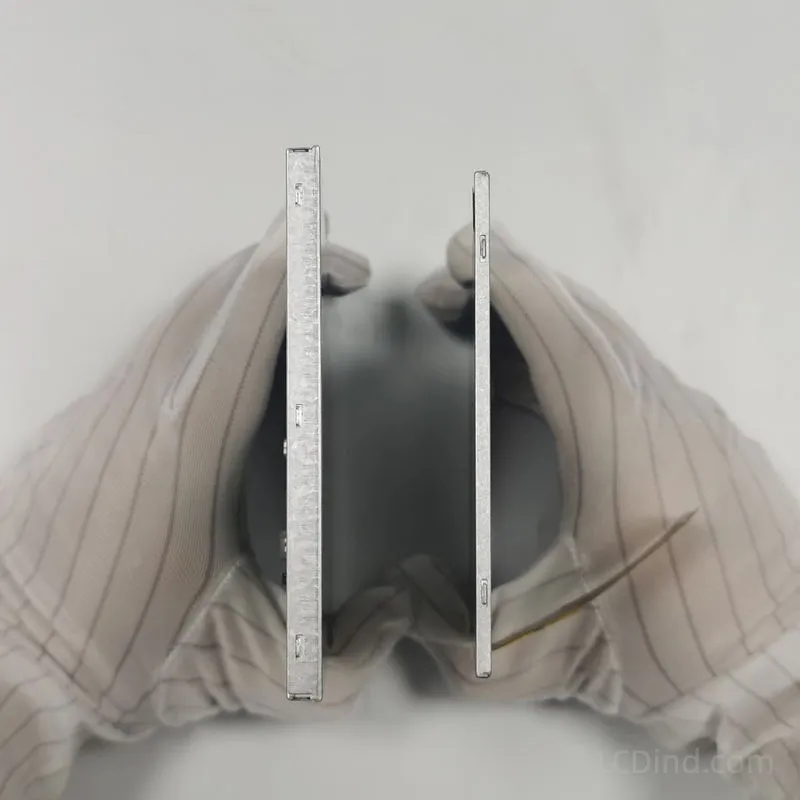

| Outline Dimension | 170.0 × 106.30 × 6.60 mm |
| Surface: | Antiglare, Hard-Coating (3H) |
7 Inch LVDS LCD Module: Robust Connectivity for Harsh Environments

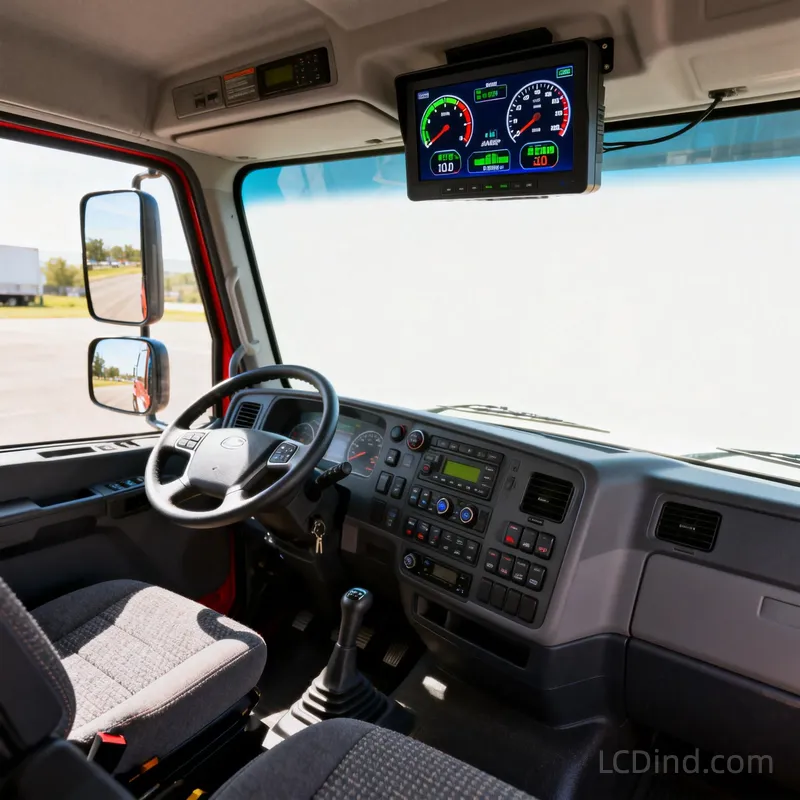

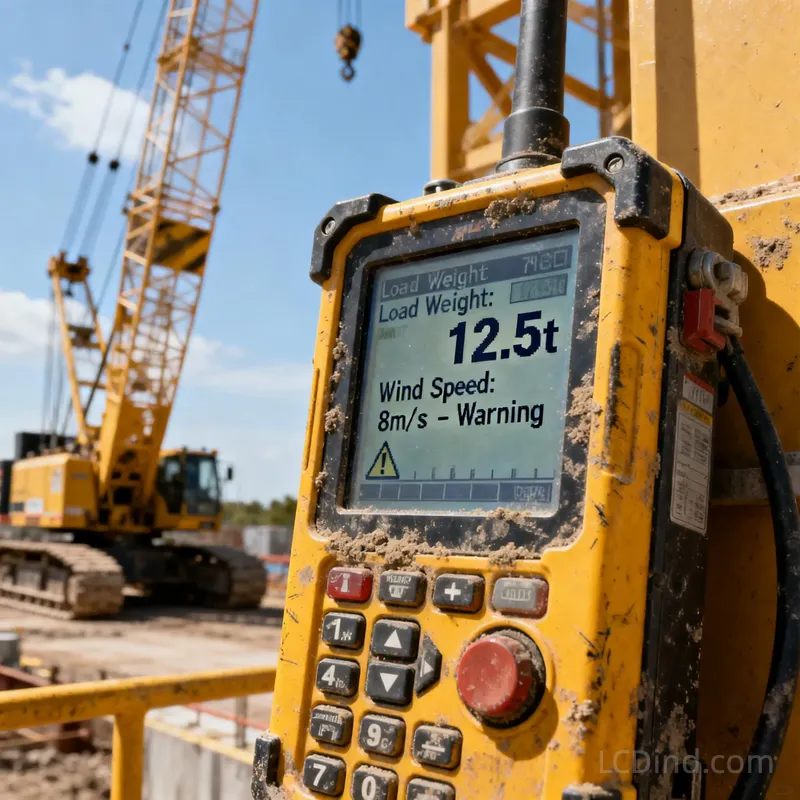

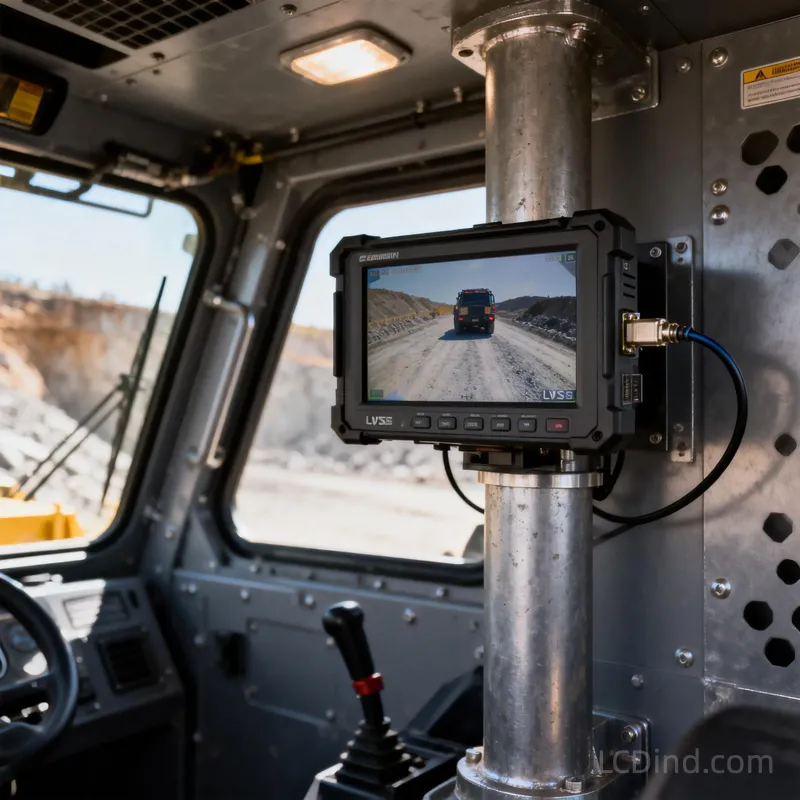

The 7 Inch LVDS LCD Display Module combines superior visual performance with industrial-grade robustness. Unlike standard TTL screens, this module utilizes a 30-Pin LVDS (Low Voltage Differential Signaling) interface and features 800 nits brightness, making it the preferred choice for automotive dashboards, industrial machinery, and outdoor kiosks where signal integrity and visibility are paramount.
Why Choose LVDS Over RGB?
1. Superior Noise Immunity
In environments with high electromagnetic interference (EMI)—such as inside a vehicle or near heavy motors—standard RGB signals can degrade. LVDS technology uses differential signaling to reject noise, allowing for longer cable runs between the mainboard and the display without image corruption.
2. Automotive Grade Durability (-30°C to +85°C)
This screen is built to survive extremes. With a wide operating temperature range of -30°C to +85°C, it functions reliably in frozen winter cold starts or scorching summer cabin heat, meeting strict automotive and outdoor industrial standards.
3. 800 Nits Sunlight Readability
Standard screens (300 nits) look dim outdoors. This module pumps out 800 cd/m² of brightness. Combined with an IPS panel and Antiglare surface, it ensures the User Interface is crisp and readable even under direct sunlight.
Detailed Specifications
| Feature | Specification |
| Model Name | 7 Inch LVDS High Brightness LCD |
| Resolution | 800 (RGB) × 480 |
| Interface | LVDS (30-Pin) |
| Brightness | 800 cd/m² (Typ.) |
| Display Mode | IPS / Normally Black |
| Contrast Ratio | 1000:1 (Typ.) |
| Active Area | 152.40 × 91.44 mm |
| Operating Temp | -30°C ~ +85°C |
| Surface | Antiglare (3H) |
Engineering FAQ
Q: Is the interface RGB or LVDS? The title said RGB.
A: This specific module uses a 30-Pin LVDS interface. “RGB” in the description refers to the color filter arrangement (Red-Green-Blue stripes), but the signal transmission protocol is strictly LVDS. It is not compatible with a standard 40-Pin TTL RGB connector.
Q: What does “8-bit LVDS” mean?
A: It means the display supports 16.7 million colors (24-bit color depth) transmitted via the LVDS interface. You will need to configure your LVDS clock and data mapping (usually VESA or JEIDA format) in your driver software.
Q: Can I use this for a Raspberry Pi?
A: Not directly. Raspberry Pi usually outputs HDMI or MIPI DSI. To use this LVDS screen, you would need a specialized HDMI-to-LVDS converter board. We can supply these driver boards if needed for prototyping.
Upgrade to Industrial Reliability
Secure your supply of high-performance LVDS displays.
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Viewing Angle | All View / IPS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Outline Dimension | 170.0 × 106.30 × 6.60 mm |
| Surface: | Antiglare, Hard-Coating (3H) |
Q: Is the interface RGB or LVDS? The title said RGB.
A: This specific module uses a 30-Pin LVDS interface. "RGB" in the description refers to the color filter arrangement (Red-Green-Blue stripes), but the signal transmission protocol is strictly LVDS. It is not compatible with a standard 40-Pin TTL RGB connector.
Q: What does "8-bit LVDS" mean?
A: It means the display supports 16.7 million colors (24-bit color depth) transmitted via the LVDS interface. You will need to configure your LVDS clock and data mapping (usually VESA or JEIDA format) in your driver software.
Q: Can I use this for a Raspberry Pi?
A: Not directly. Raspberry Pi usually outputs HDMI or MIPI DSI. To use this LVDS screen, you would need a specialized HDMI-to-LVDS converter board. We can supply these driver boards if needed for prototyping.
