2 Inch IPS LCD Screen Module 240×320 12-Pin MCU 8-Bit Interface
2 Inch IPS LCD Screen Module (240×320). Features 8-Bit MCU Interface (12-Pin), ST7789V Driver IC, and IPS Full Viewing Angle. Compact display for Medical & Handheld Devices.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 2.0 inch |
| Resolution | 240×320 |
| Panel Type | IPS |
| Interface | MCU |
| Driver IC | ST7789V |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Outline Dimension | 36.2 × 51.8 × 2.45 mm |
| Connection | Soldering FPC |
2 Inch IPS LCD Screen: Compact Clarity for Handhelds
The 2 Inch IPS LCD Screen Module is a high-performance visual solution designed for compact portable devices. With a resolution of 240×320 pixels and IPS technology, it delivers superior color reproduction and wider viewing angles compared to traditional TN panels, making it the perfect choice for medical instruments, industrial detectors, and smart wearables.
Why Choose This 2 Inch IPS LCD Screen?
1. IPS Full Viewing Angles
Unlike budget screens that invert colors when tilted, this 2 Inch IPS LCD Screen maintains color accuracy from all directions (80/80/80/80 degrees). This is critical for handheld devices that are often viewed from various angles by the user.
2. Efficient 8-Bit MCU Interface
Powered by the robust ST7789V driver IC, this module uses a 12-Pin 8-Bit MCU (Parallel) interface.
-
Speed: Parallel data transfer is faster than SPI, allowing for smoother UI refreshes and video playback on low-power microcontrollers.
-
Integration: Ideally suited for STM32, ESP32, and other standard MCUs with parallel display support.
3. Durable Soldering Connection
The FPC (Flexible Printed Circuit) is designed for soldering directly to the mainboard. This ensures a vibration-resistant, permanent connection, superior to connector-based solutions for rugged handheld equipment.
Detailed Specifications
| Feature | Specification |
| Model Name | 2 Inch IPS LCD Screen |
| Resolution | 240 (RGB) × 320 |
| Display Mode | IPS / Transmissive |
| Interface | MCU 8-Bit (12-Pin) |
| Driver IC | ST7789V |
| Brightness | 180 cd/m² (Indoor) |

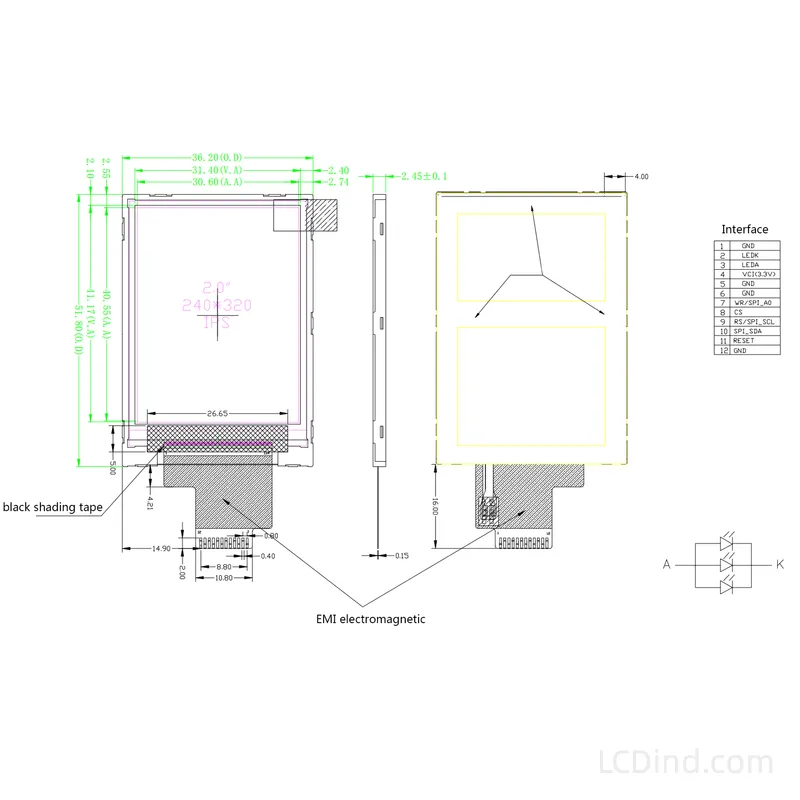

| Active Area | 30.6(W) × 40.55(H) mm |
| Module Size | 36.2(W) × 51.8(H) × 2.45(T) mm |
| Operating Temp | -20°C ~ +70°C |
Engineering FAQ
Q: Is this an SPI interface?
A: No. Although the ST7789V supports SPI, this specific module is pinned out for 8-Bit MCU Parallel interface (Data pins D0-D7) via a 12-pin FPC. It requires more GPIO pins than SPI but offers higher speed.
Q: Can I use this for outdoor devices?
A: The brightness is 180 nits, which is designed for indoor environments (medical labs, factories, homes). For direct sunlight readability, please contact us for a high-brightness customization.

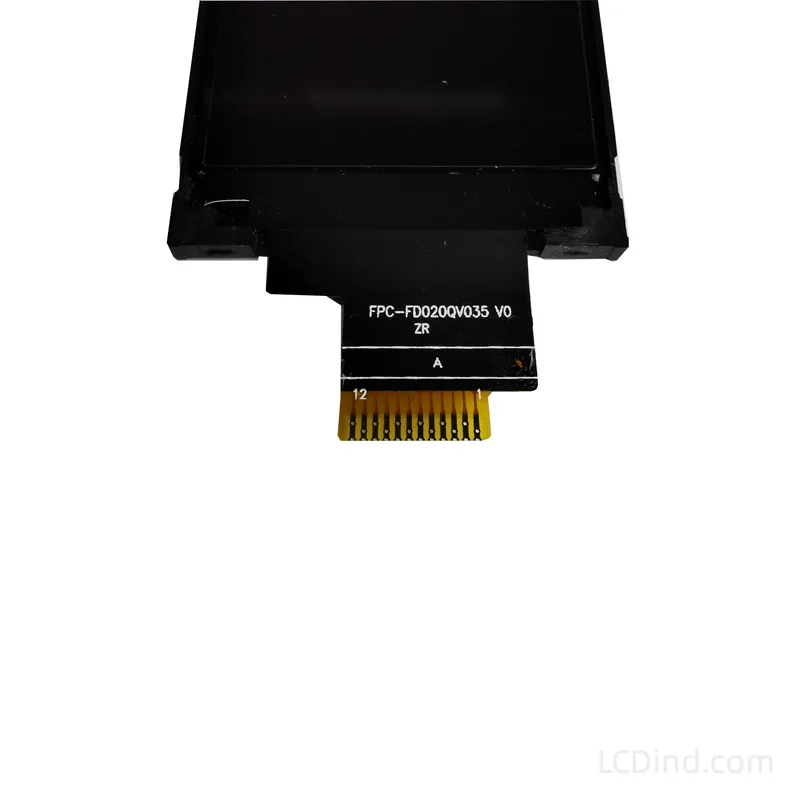

Q: How do I connect the FPC?
A: This module features a soldering-type FPC. You need to design pads on your PCB to solder the FPC directly (Hot Bar soldering or manual soldering). This provides a more reliable connection than a ZIF connector in drop-prone handheld devices.
Upgrade Your Handheld Device
Get the full pin definition and driver code.
| Brand | LCDind |
|---|---|
| Size | 2.0 inch |
| Resolution | 240×320 |
| Panel Type | IPS |
| Interface | MCU |
| Driver IC | ST7789V |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
| Outline Dimension | 36.2 × 51.8 × 2.45 mm |
| Connection | Soldering FPC |
Q: Is this an SPI interface?
A: No. Although the ST7789V supports SPI, this specific module is pinned out for 8-Bit MCU Parallel interface (Data pins D0-D7) via a 12-pin FPC. It requires more GPIO pins than SPI but offers higher speed.
Q: Can I use this for outdoor devices?
A: The brightness is 180 nits, which is designed for indoor environments (medical labs, factories, homes). For direct sunlight readability, please contact us for a high-brightness customization.
Q: How do I connect the FPC?
A: This module features a soldering-type FPC. You need to design pads on your PCB to solder the FPC directly (Hot Bar soldering or manual soldering). This provides a more reliable connection than a ZIF connector in drop-prone handheld devices.
