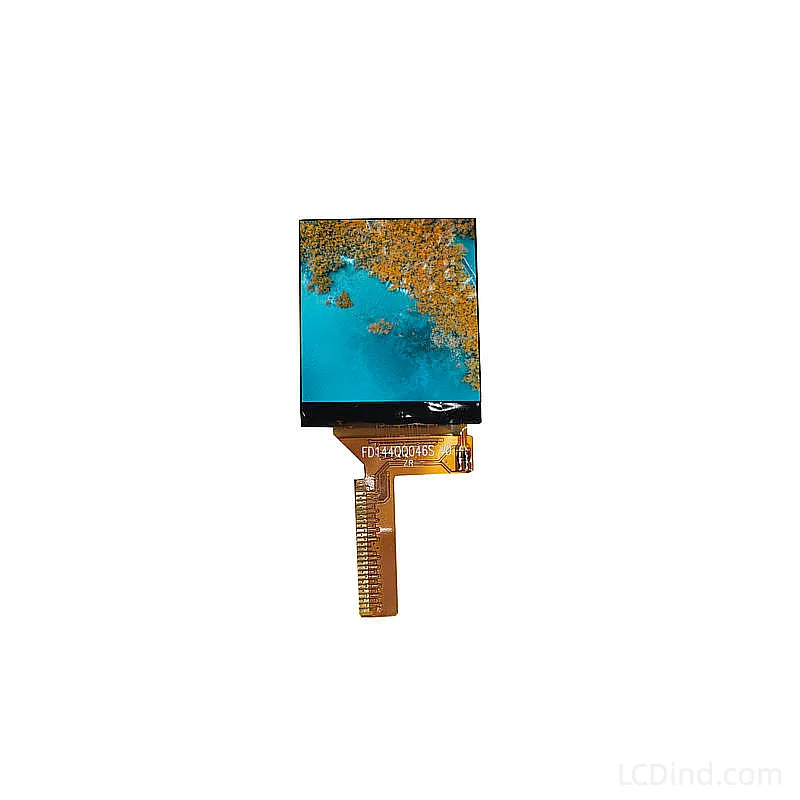

1.44 Inch Square LCD Module 128×128 TN 4-Line Serial SPI ST7735

1.44-Inch 128×128 TN SPI LCD Module for Instrument Panels

This 1.44 inch square LCD module is a compact TFT option for OEM instrument panels, metering devices, handheld service tools, and embedded control products that need a small color display with a proven SPI command structure. The confirmed product data includes 128 (RGB) x 128 resolution, TN / Normally White display mode, 4-Line Serial (SPI) interface, ST7735 driver IC, 200 cd/m² brightness, 25.49 x 26.49 mm active area, and 2.8V ~ 3.3V input voltage. The product attributes also list industrial temperature class, SPI interface, 128×128 resolution, and 27.9 × 32.64 × 2.25 mm outline dimension. This rewrite removes prototype hobby wording and positions the module for B2B equipment programs where drawing fit, firmware readiness, and repeat supply matter.

Technical Specifications

Engineering Positioning

This display is best considered as a small status and control screen rather than a general-purpose consumer development part. The 128×128 pixel format gives enough room for a primary value, a small icon set, a short status label, and simple alarm indication. It is suitable when the operator reads the screen at close range and the product enclosure cannot support a larger panel. For purchasing teams, the practical value is the combination of compact size, ST7735 controller familiarity, and low pin-count SPI connection in a repeatable OEM supply chain.

Panel Fit and Mechanical Review

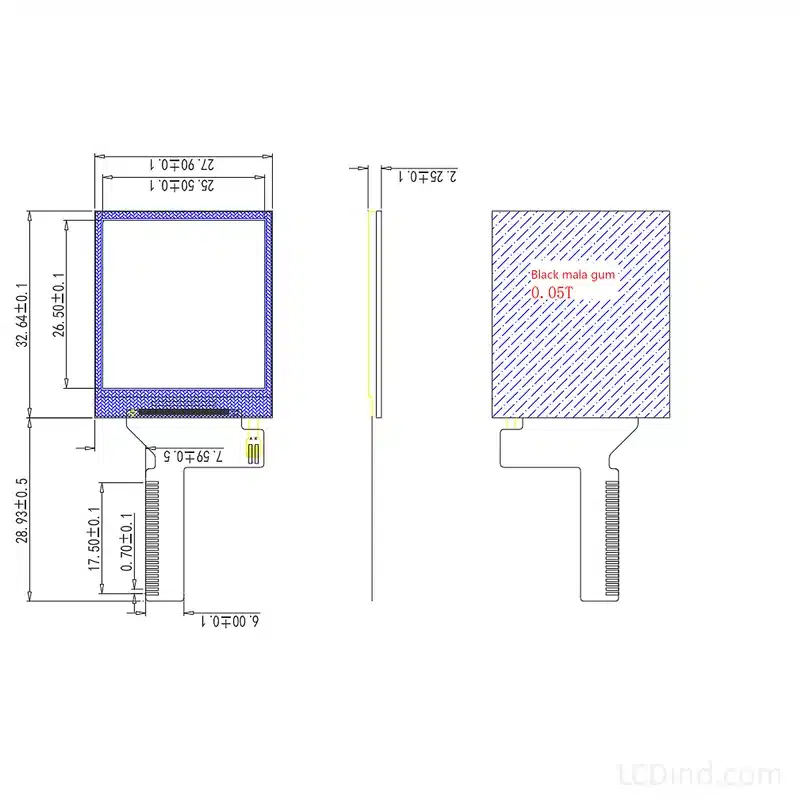

The active area of 25.49 x 26.49 mm should be used as the UI artwork reference, while the outline dimension from the product attributes should be checked against the bezel, PCB keep-out, enclosure ribs, and connector location. Small square displays can look misaligned if the visible window is based on the outside glass or board instead of the true active area. Before tooling, share the front-panel drawing, overlay thickness, and intended viewing window so LCDind can review whether the standard module can be used directly.

SPI and ST7735 Firmware Planning

The ST7735 driver IC is widely supported, but production approval still requires controlled firmware validation. Engineers should confirm initialization sequence, color format, display rotation, reset timing, SPI clock margin, and behavior after brownout or sleep recovery. If the product uses a 5V MCU or long harness, logic-level protection and signal integrity should be reviewed because the listed input voltage is 2.8V ~ 3.3V.

Best-Fit Industrial Uses

Typical applications include compact digital meters, small power controllers, sensor readouts, maintenance tools, handheld test instruments, laboratory accessories, and panel modules where a fixed-position operator needs clear local feedback. The TN / Normally White display mode can be cost-effective when the screen is viewed from a predictable angle. If the product requires wide off-axis viewing, the buyer should request viewing-angle confirmation or compare an IPS alternative before final approval.

Procurement Notes

For sourcing, use SKU LCD144QQ046S together with the confirmed controller, voltage, active area, brightness, and interface. Avoid specifying this product only as a generic 1.44 inch Arduino-style module because that wording does not capture production requirements. Procurement should request sample approval conditions, packaging standard, revision-control expectations, and whether LCDind can support a compatible replacement if the project has a long service life.

Customization Review

LCDind can review FPC direction, connector format, cover lens, printed overlay, brightness adjustment, packaging, and inspection criteria. If the screen is installed behind a membrane or tinted window, brightness and readability must be tested through the final front material. For close-viewing instruments, define acceptable cosmetic level for dust, pixel defects, polarizer marks, and backlight uniformity before ordering production quantities.

When This 1.44-Inch Square Module Is the Right Choice

This module is a strong candidate when the product needs a small color display with simple status communication and predictable close-range viewing. It is not the best fit for dense graphics, wide viewing-angle dashboards, or direct sunlight equipment. The commercial decision should be based on whether the 128 (RGB) x 128 resolution, 25.49 x 26.49 mm active area, and 200 cd/m² brightness match the real operator task. If the display will show only one measured value, an alarm icon, a unit label, and a simple menu state, this format can reduce enclosure size and simplify the electronics. If the operator must compare multiple values at once, a larger display should be reviewed before enclosure design is frozen.

Approval Tests Before Production Release

For a production program, LCDind recommends validating at least three practical conditions: readability behind the final cover, firmware recovery after power interruption, and mechanical fit after the display is assembled into the actual enclosure. The small active area means the visible window tolerance should be controlled carefully. Engineers should also verify whether the TN viewing characteristics are acceptable from the expected operator position. If the product has multiple mounting orientations, test the display in each orientation rather than assuming one sample position represents all field use.

Documentation to Send With the RFQ

A complete RFQ should include the product URL, SKU LCD144QQ046S, drawing or enclosure opening, expected user distance, host MCU voltage, SPI timing expectation, annual volume, and any cosmetic acceptance standard. If the existing product is being replaced, provide photos of the old display, connector details, and boot behavior. These details help avoid a common purchasing problem: selecting a small TFT by diagonal size while missing active-area, voltage, or driver-controller differences that affect integration.

RFQ Checklist

• Target quantity, annual forecast, and sample schedule.
• Mechanical drawing with active area, outline, mounting, and cable route.
• Host board, interface timing, voltage rails, and controller-board requirement.
• Brightness, lens, bonding, touch, and operating-environment requirements.
• Inspection standard, packaging requirement, and revision-control expectation.

Engineering FAQ

Is this module appropriate for industrial equipment?

Yes, provided the viewing angle, voltage, temperature requirement, enclosure fit, and firmware behavior are validated with samples. It should be treated as an OEM display component, not as a retail development accessory.

What should engineers confirm for the ST7735 interface?

Confirm SPI timing, command initialization, display rotation, reset behavior, voltage compatibility, and color format on the final host board.

Does the 200 cd/m² brightness fit every application?

No. It is a confirmed brightness value, but final readability depends on lens tint, ambient light, viewing distance, and enclosure design.

What is the right RFQ reference?

Use SKU LCD144QQ046S, 128 (RGB) x 128 resolution, ST7735 driver IC, 4-Line Serial (SPI), and the mechanical drawing for the target product.

Engineering Review Note

For quotation, send the product URL, target application, required quantity, and any existing drawing or replacement panel details. LCDind will review whether the standard configuration fits or whether interface, backlight, FPC, cover glass, touch, bonding, or controller-board customization should be quoted.
