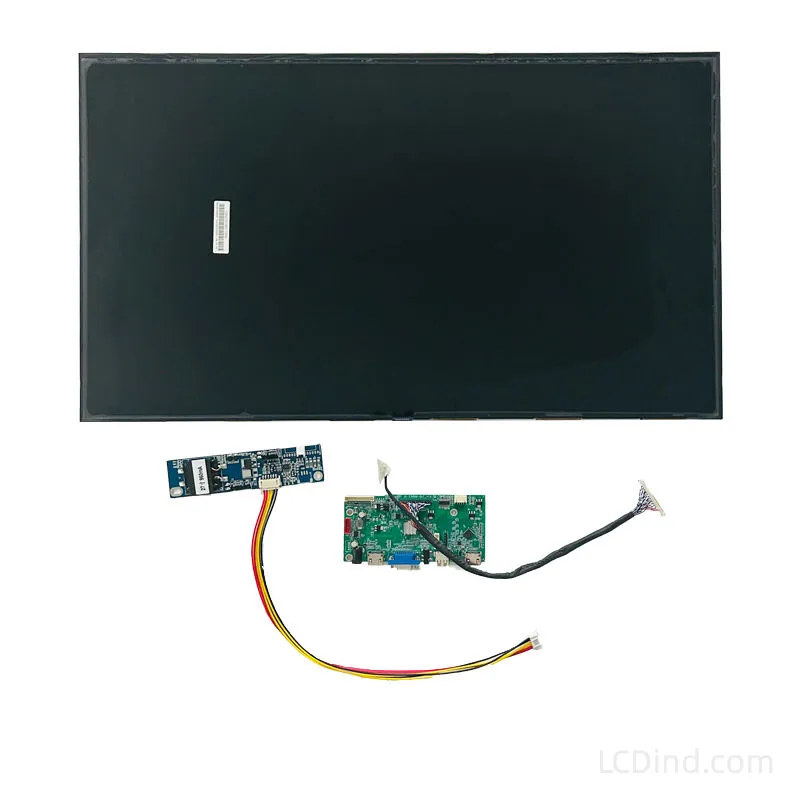

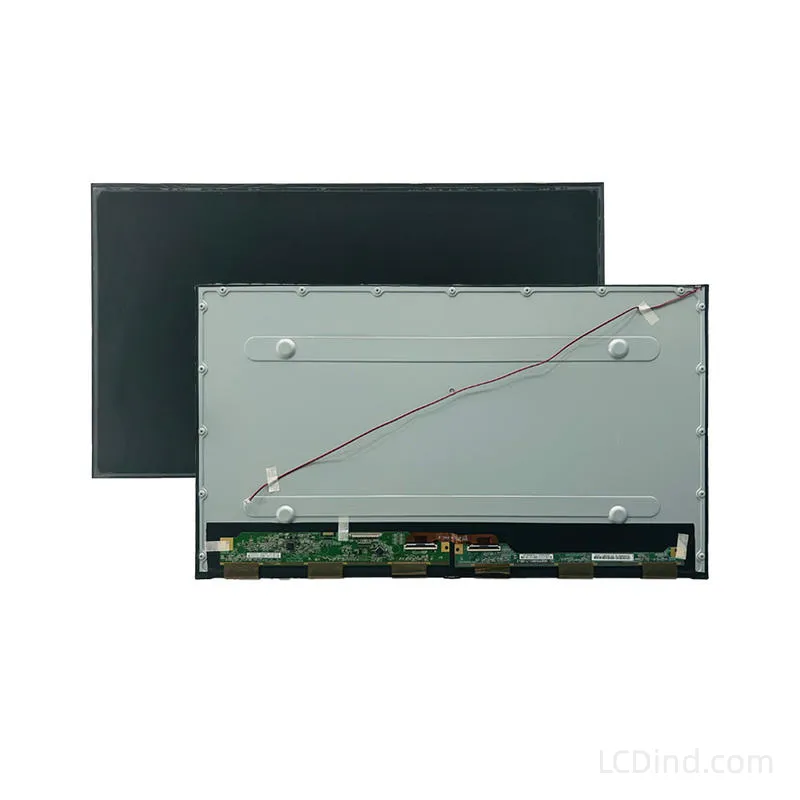

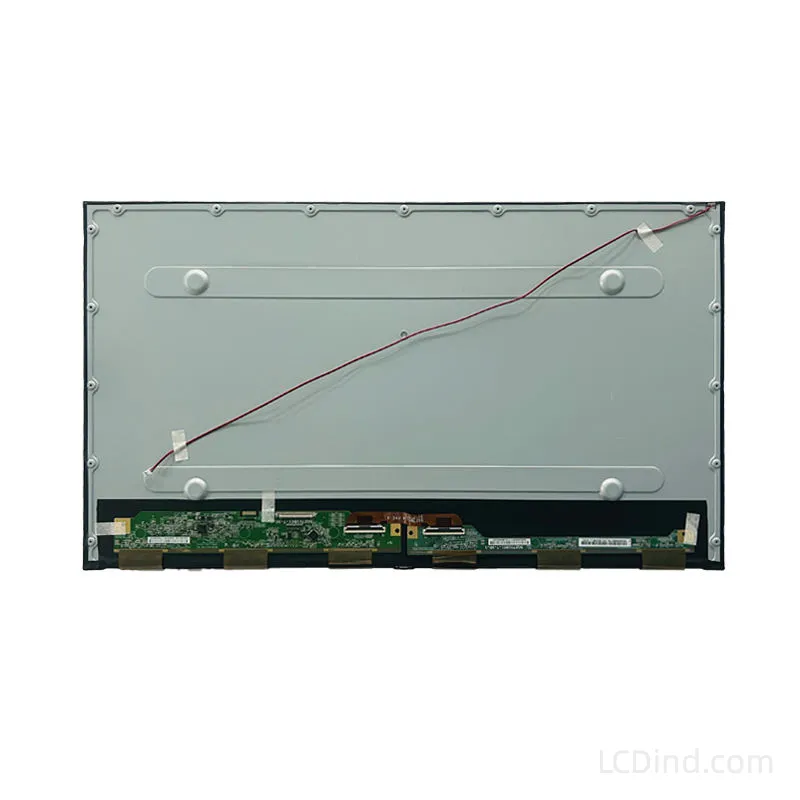

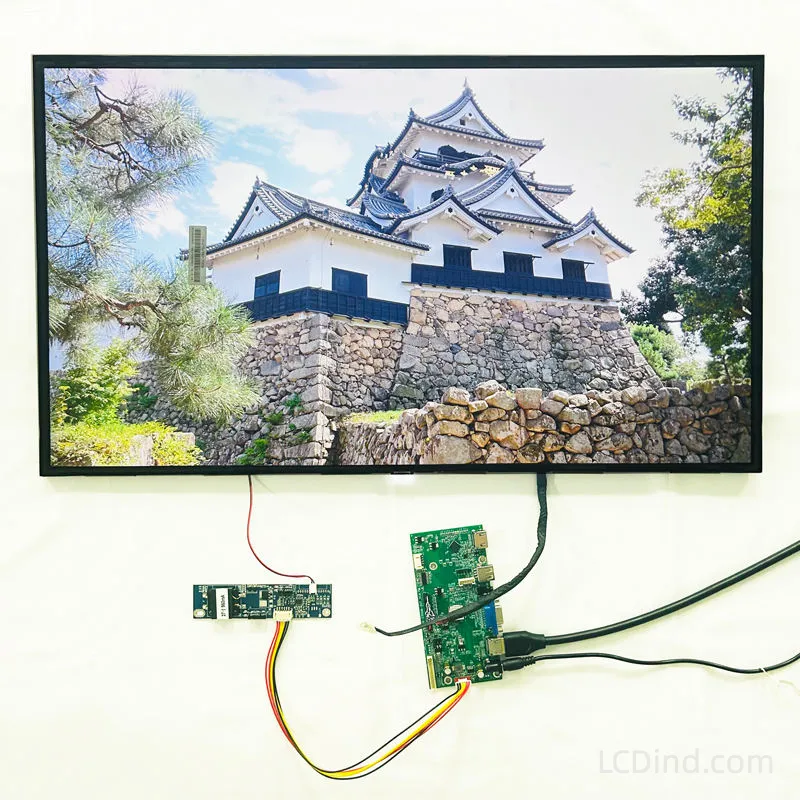

27 Inch 1500 nits LCD Module – High TNI 105℃ Sunlight Readable
Engineered for the most demanding outdoor digital signage, this 27 inch 1500 nits LCD module combines ultra-high brightness with advanced High TNI (105℃) liquid crystal technology to prevent blackening under direct solar load. It features a Full HD 1920×1080 IPS panel with a low-reflection surface and standard LVDS interface.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 27.0 inch |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Operating Temp | Wide Temp (High TNI 105℃) |
| Feature | High TNI 105℃ (Anti-Blackening) |
The Ultimate Outdoor Signage Solution: 27″ 1500 nits High TNI Panel

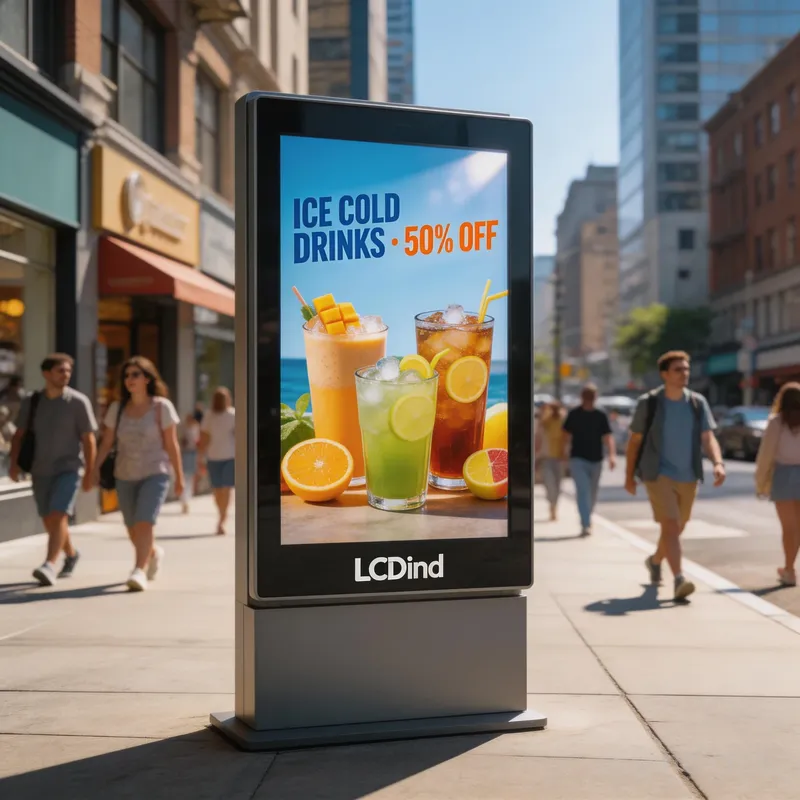

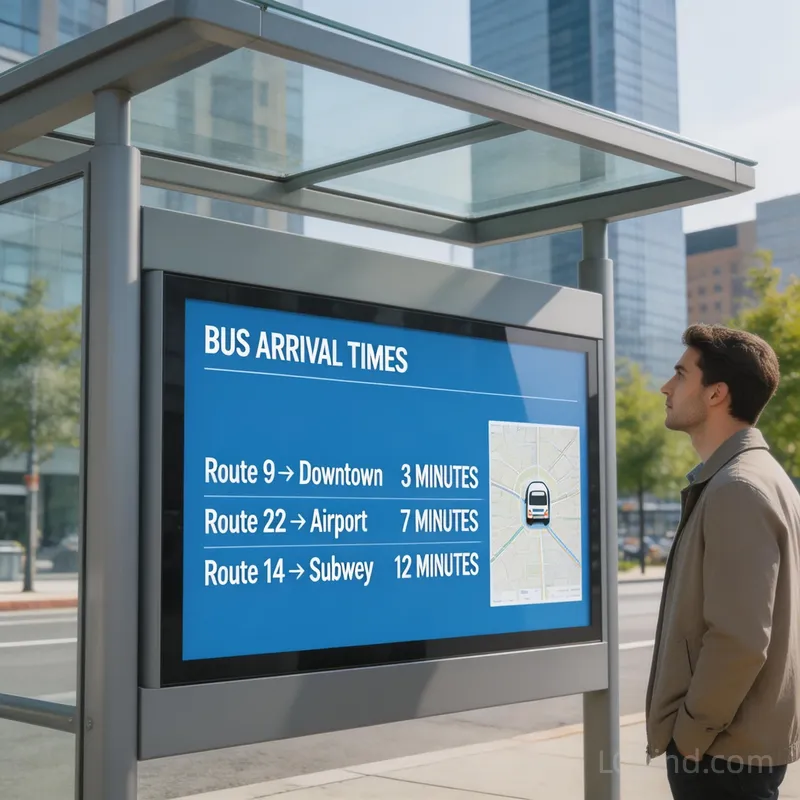

Standard LCD screens fail outdoors. They wash out in the sun and turn black when overheated. The LCDind 27 inch 1500 nits LCD module is engineered to solve these exact problems. By combining extreme brightness with specialized high-temperature liquid crystals, it is the ideal core component for outdoor kiosks, bus shelters, and digital advertising totems.
1. 1500 nits Ultra-High Brightness
With a luminance of 1500 cd/m², this panel is 5-6 times brighter than a standard desktop monitor.
- Sunlight Readability: Ensures content remains vivid and eye-catching even under direct sunlight.
- Low Reflection: The panel surface is adapted for low reflection, further enhancing contrast in bright environments.
2. High TNI 105℃ Technology (Anti-Blackening)
This is the defining feature for outdoor reliability. Standard liquid crystals lose their nematic state (turn black) around 60-75℃. Outdoor enclosures under the sun easily exceed this range.
- How it works: This module uses **High TNI (Clearing Point Temperature) liquid crystal material**, which withstands panel temperatures up to **105℃** without turning black. This ensures continuous operation even during peak summer heat loads.
3. FHD IPS Visual Performance
The 27.0-inch active matrix TFT LCD features a 1920×1080 Full HD resolution.
- IPS Technology: Provides an “All Viewing Angles” experience, ensuring the image color and contrast are stable from any direction.
- Color Depth: Supports 8-bit color depth, displaying 16.7 million colors for rich, accurate imagery.
4. Industrial Integration
Designed for professional integration:
- Interface: Utilizes a standard LVDS interface (2 pixel/clock) for high-speed response and reliable data transmission.
- Backlight: Incorporated edge-type LED backlight for a slim profile and high efficiency.
- Compliance: RoHS and Halogen Free compliant.
| Technical Specifications | |
|---|---|
| Module Type | a-Si TFT-LCD, IPS Mode |
| Panel Size | 27.0 Inch Diagonal |
| Resolution | 1920(H) x 1080(V) FHD |
| Brightness | 1500 cd/m² (Typ.) |
| Special Feature | High TNI 105℃ (Anti-Blackening LC) |
| Viewing Angle | All Viewing Angles (IPS) |
| Color Depth | 16.7M Colors (8-bit) |
| Interface | LVDS (2 pixel/clock) |
| Pixel Arrangement | RGB Vertical Stripe |
| Backlight | Edge type LED |
| Surface Treatment | Low Reflection Type |
| Features | DE Only Mode, High Contrast, RoHS/Halogen Free |
Q: What is “High TNI 105℃” and why do I need it?
TNI stands for “Temperature of Nematic-Isotropic transition” (Clearing Point). When an LCD panel is exposed to direct sunlight, its surface temperature can easily rise above 70℃. Standard liquid crystals turn black (isotropic state) at these temperatures. A High TNI 105℃ panel ensures the liquid crystal remains stable up to 105℃, preventing the “black screen defect” in outdoor applications.
Q: Is 1500 nits bright enough for direct sunlight?
Yes. Generally, 1000 nits is considered the minimum for outdoor readability. 1500 nits provides excellent visibility and contrast even on very sunny days, making it ideal for advertising where visual impact is key.
Q: What type of LVDS interface does it use?
It uses a Dual-Channel LVDS interface (specified as “LVDS with 2 pixel / clock”). This is necessary to transmit the 1920×1080@60Hz bandwidth effectively. You will need an LVDS cable and driver board that supports dual-channel 8-bit FHD output.
Q: Does it require active cooling?
While the High TNI panel itself withstands high heat, the 1500 nits LED backlight generates significant heat. For enclosed outdoor chassis, we highly recommend using fans or active thermal management to keep the ambient temperature inside the enclosure within reasonable limits to prolong backlight life.
| Brand | OEM / ODM |
|---|---|
| Size | 27.0 inch |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Operating Temp | Wide Temp (High TNI 105℃) |
| Feature | High TNI 105℃ (Anti-Blackening) |
Q: What is "High TNI 105℃" and why do I need it?
TNI stands for "Temperature of Nematic-Isotropic transition" (Clearing Point). When an LCD panel is exposed to direct sunlight, its surface temperature can easily rise above 70℃. Standard liquid crystals turn black (isotropic state) at these temperatures. A High TNI 105℃ panel ensures the liquid crystal remains stable up to 105℃, preventing the "black screen defect" in outdoor applications.
Q: Is 1500 nits bright enough for direct sunlight?
Yes. Generally, 1000 nits is considered the minimum for outdoor readability. 1500 nits provides excellent visibility and contrast even on very sunny days, making it ideal for advertising where visual impact is key.
Q: What type of LVDS interface does it use?
It uses a Dual-Channel LVDS interface (specified as "LVDS with 2 pixel / clock"). This is necessary to transmit the 1920x1080@60Hz bandwidth effectively. You will need an LVDS cable and driver board that supports dual-channel 8-bit FHD output.
Q: Does it require active cooling?
While the High TNI panel itself withstands high heat, the 1500 nits LED backlight generates significant heat. For enclosed outdoor chassis, we highly recommend using fans or active thermal management to keep the ambient temperature inside the enclosure within reasonable limits to prolong backlight life.
