10.4 Inch 1024×768 LCD Display Module Custom Backlight Industrial XGA Panel
10.4 Inch 1024×768 LCD Module (XGA). Features 4:3 Aspect Ratio, Customizable LED Backlight (High Brightness optional), and Industrial LVDS Interface. Ideal for ATM and CNC Retrofits.
Product Attributes
| Size | 10.4 inch |
|---|---|
| Brand | LCDind |
| Resolution | 1024×768 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Backlight Life | 50,000 Hours (Long Life Option) |

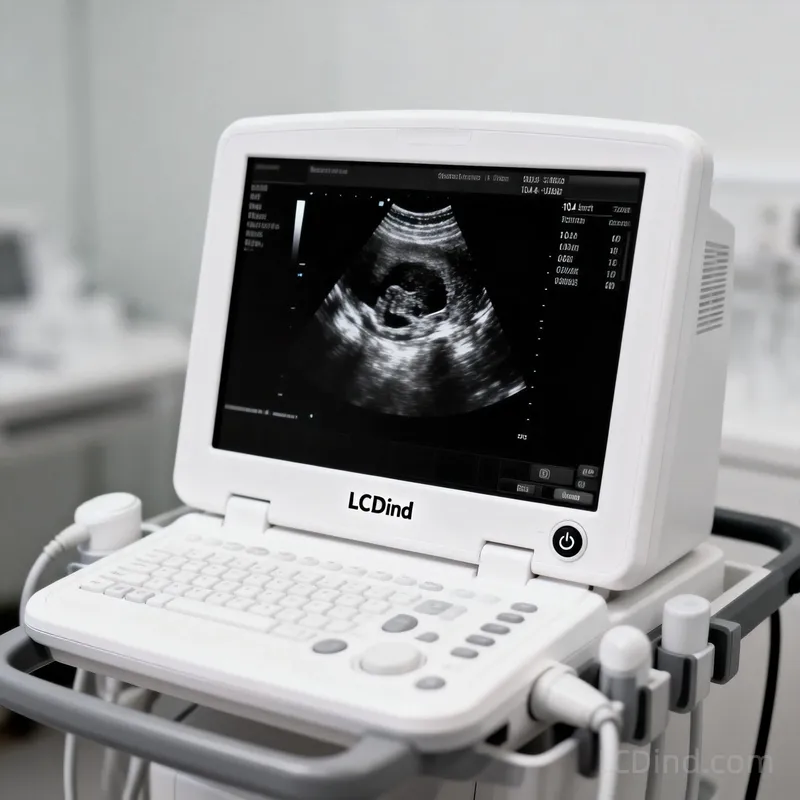

| Application | ATM, POS, Industrial Control, Medical |

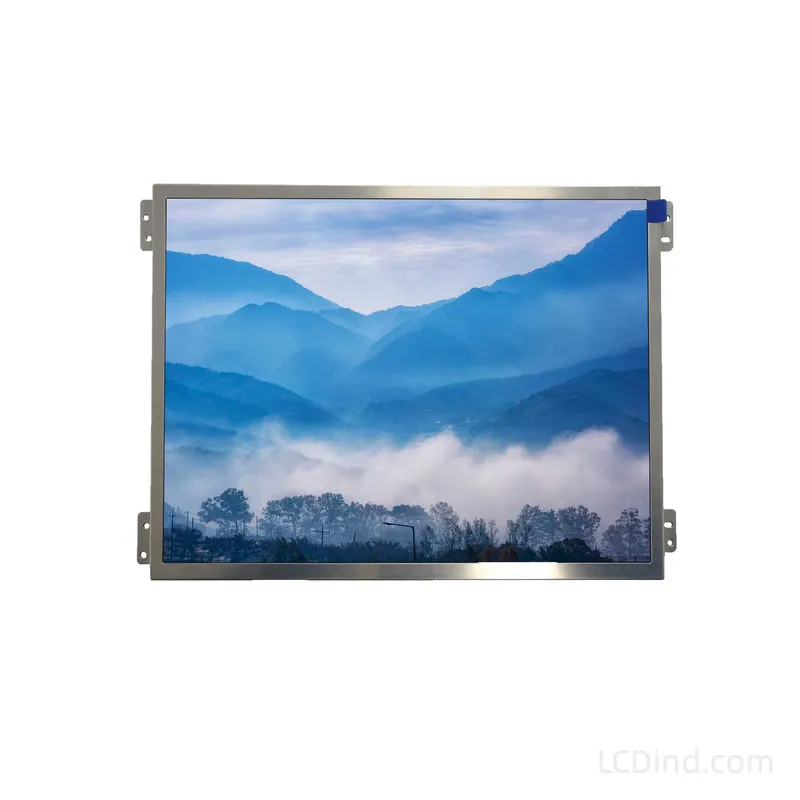

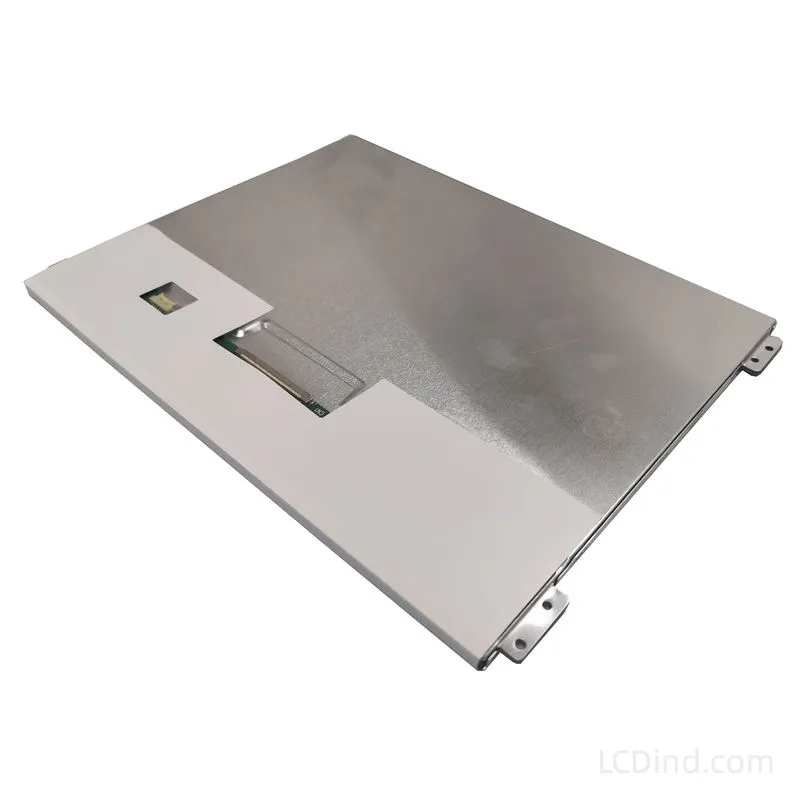

10.4 Inch 1024×768 LCD Module: The Industrial Standard

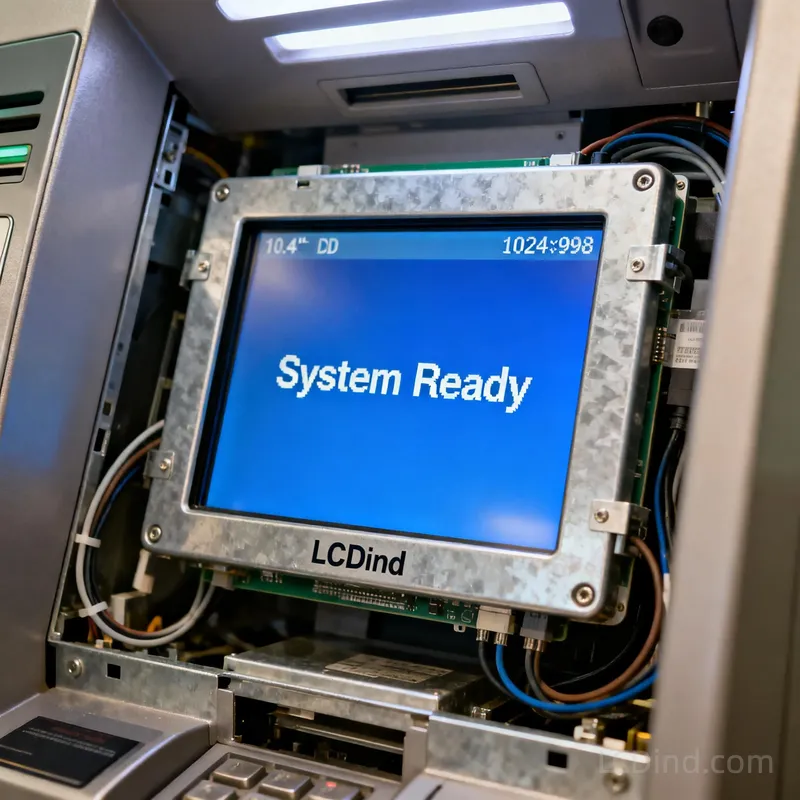

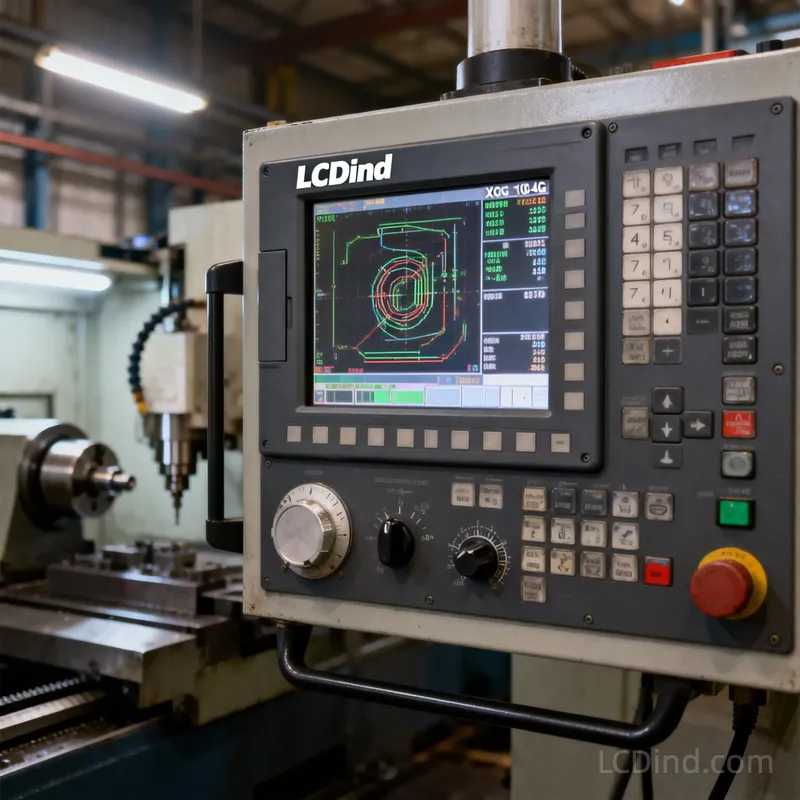

The 10.4 Inch 1024×768 LCD Display Module is the workhorse of the industrial world. Featuring the classic 4:3 aspect ratio and a sharp XGA resolution, this module is designed to replace legacy screens in ATMs, CNC machines, and factory automation controllers, while offering modern enhancements like customizable high-brightness backlights.
Why Choose This 10.4 Inch 1024×768 LCD?
1. Customizable Backlight Solution
Standard screens often dim over time. Our 10.4 Inch 1024×768 LCD allows for Custom Panel Backlight configuration.
-
High Brightness: We can upgrade the backlight rail to 1000 nits for outdoor ATMs or kiosks.
-
Long Life: We offer industrial-grade LEDs with a 50,000-hour half-life, reducing maintenance costs for 24/7 machinery.
2. Classic 4:3 Ratio for Industry
Most industrial software interfaces (SCADA, HMI) are designed for a 4:3 layout. This 10.4-inch module perfectly fits these applications without stretching or distorting the UI, making it a drop-in replacement for older CSTN or low-res TFT panels.
3. Robust Visual Performance
With 1024×768 resolution, this screen offers dense, sharp visuals. Text is crisp, and schematic lines are distinct. Options for IPS technology ensure that the screen remains readable from extreme angles, crucial for operators standing off-center from a control panel.
Detailed Specifications
| Feature | Specification |
| Model Name | 10.4 Inch Industrial LCD |
| Resolution | 1024 (RGB) × 768 |
| Aspect Ratio | 4:3 |
| Interface | LVDS (1ch, 6/8-bit) |
| Brightness | Customizable (350~1200 nits) |

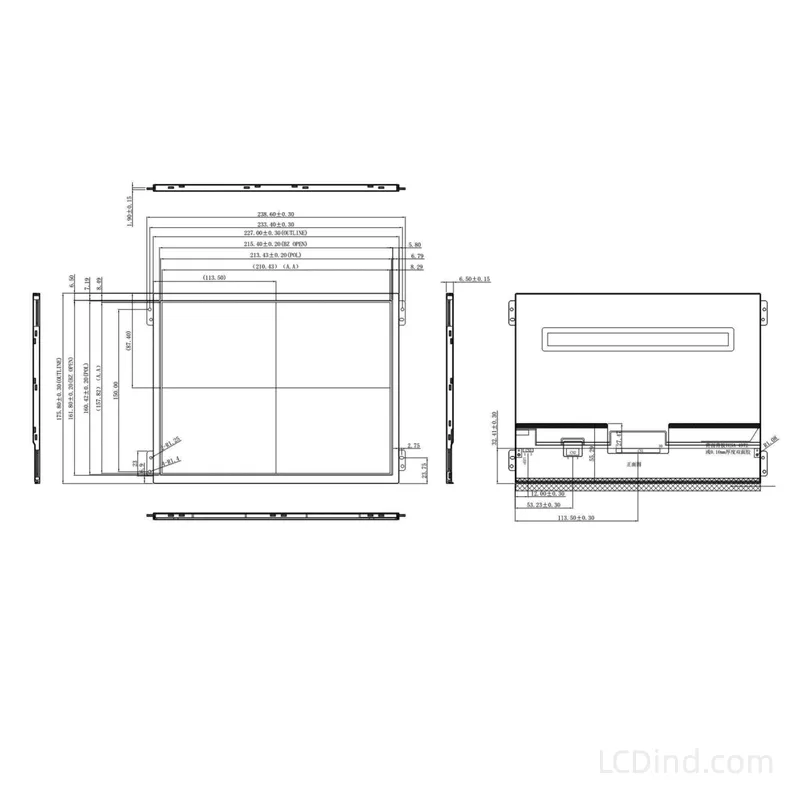

| Active Area | 211.2 × 158.4 mm |
| Backlight Type | WLED (Replaceable/Customizable) |
| Operating Temp | -20°C ~ +70°C (Standard) |
Engineering FAQ
Q: Can I use this to replace a Mitsubishi/Sharp 10.4″ screen?

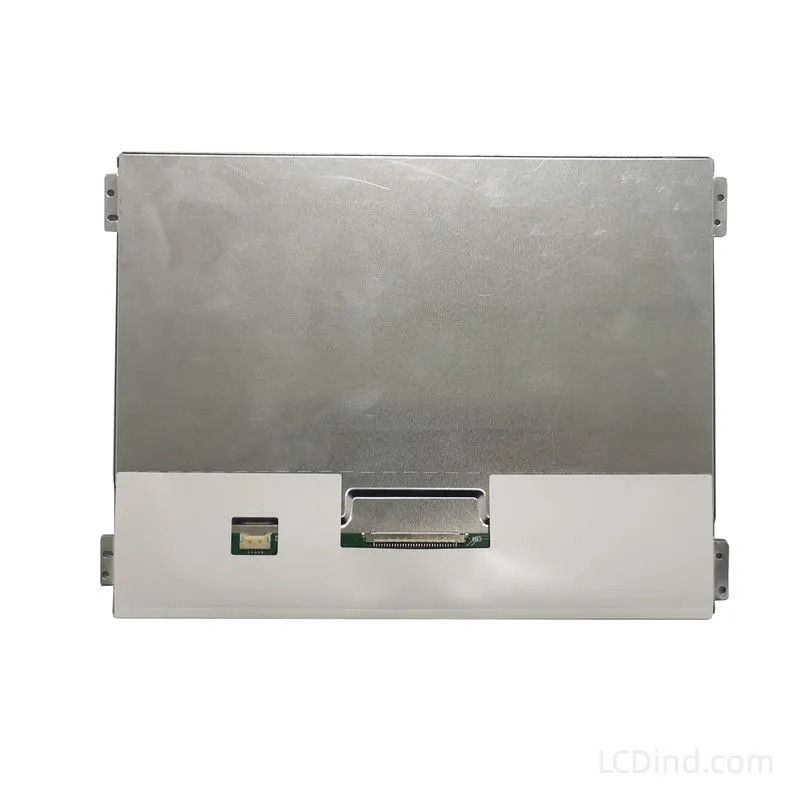

A: Likely yes. The 10.4 Inch 1024×768 LCD form factor is highly standardized across manufacturers (Mitsubishi, Kyocera, AUO). However, the LVDS pinout or backlight connector might vary slightly. Please send us your original screen model number, and our engineers will verify compatibility or provide a transfer cable.
Q: What does “Custom Screen Panel Backlight” mean?
A: It means we don’t just sell the stock panel. We can modify the backlight assembly to meet your specific needs. If your device is used outdoors, we install high-efficiency bright LEDs. If it’s used in hot environments, we improve the heat dissipation structure of the backlight.
Q: Is this screen touch-compatible?
A: The module itself is a display. However, the 10.4-inch size is standard for 4-Wire/5-Wire Resistive Touch Panels (common in industry). We can provide air-bonding services to attach a resistive or capacitive touch sensor to this module.
Revitalize Your Industrial Equipment
Don’t let a dim screen slow down production.
| Size | 10.4 inch |
|---|---|
| Brand | LCDind |
| Resolution | 1024×768 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Backlight Life | 50,000 Hours (Long Life Option) |
| Application | ATM, POS, Industrial Control, Medical |
Q: Can I use this to replace a Mitsubishi/Sharp 10.4" screen?
A: Likely yes. The 10.4 Inch 1024x768 LCD form factor is highly standardized across manufacturers (Mitsubishi, Kyocera, AUO). However, the LVDS pinout or backlight connector might vary slightly. Please send us your original screen model number, and our engineers will verify compatibility or provide a transfer cable.
Q: What does "Custom Screen Panel Backlight" mean?
A: It means we don't just sell the stock panel. We can modify the backlight assembly to meet your specific needs. If your device is used outdoors, we install high-efficiency bright LEDs. If it's used in hot environments, we improve the heat dissipation structure of the backlight.
Q: Is this screen touch-compatible?
A: The module itself is a display. However, the 10.4-inch size is standard for 4-Wire/5-Wire Resistive Touch Panels (common in industry). We can provide air-bonding services to attach a resistive or capacitive touch sensor to this module.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
