15.6 Inch LVDS LCD Module FHD 1920×1080 Wide Temp -40C~85C

15.6 Inch Wide-Temperature FHD LVDS LCD for Rugged Industrial Equipment

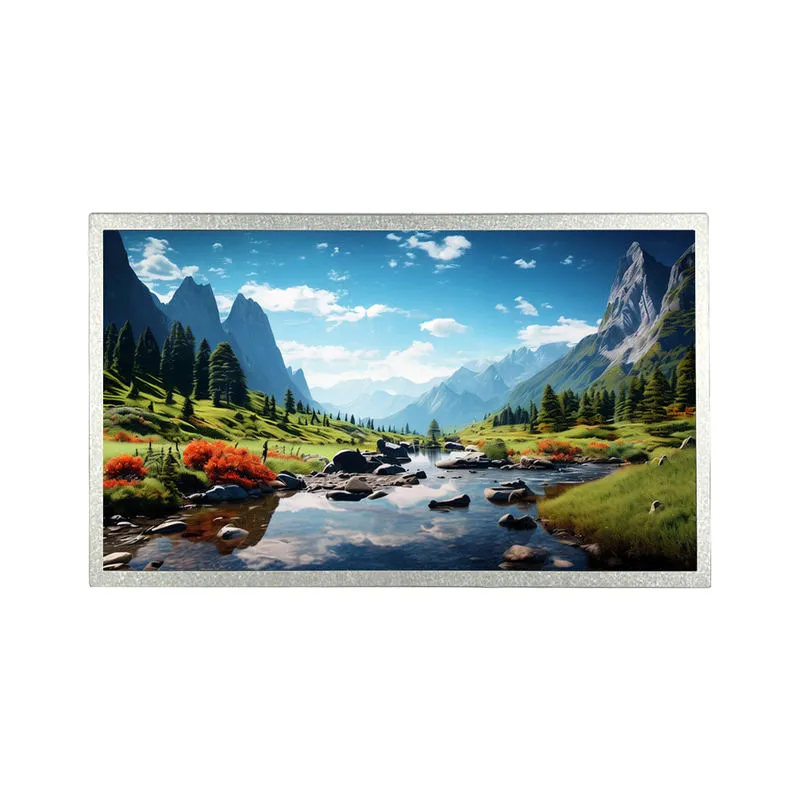

This 15.6 inch LVDS LCD module is positioned for rugged industrial and vehicle-adjacent equipment that needs FHD resolution and wide-temperature operation. The live specification lists 1920(RGB) x 1080 resolution, IPS normally black display mode, 30-pin LVDS interface, AG anti-glare plus 3H surface treatment, -40°C to +85°C operating temperature, 344.16 x 193.59 mm active area, 363.8 x 215.9 x 11.9 mm outline dimension, 0.17925 mm pixel pitch, white LED backlight, and LCDind branding. This is a better fit for controlled industrial integration than for consumer monitor replacement.

Rugged Equipment Fit

The wide temperature range and anti-glare surface make this module relevant for factory equipment, outdoor-protected terminals, marine controls, vehicle-mounted systems, industrial PCs, and diagnostic platforms. The FHD resolution supports complex user interfaces, camera feeds, waveform data, maps, and control dashboards. The buyer should define whether the display will be used indoors, in a vehicle cabin, behind cover glass, or in a sealed outdoor enclosure.

LVDS Integration

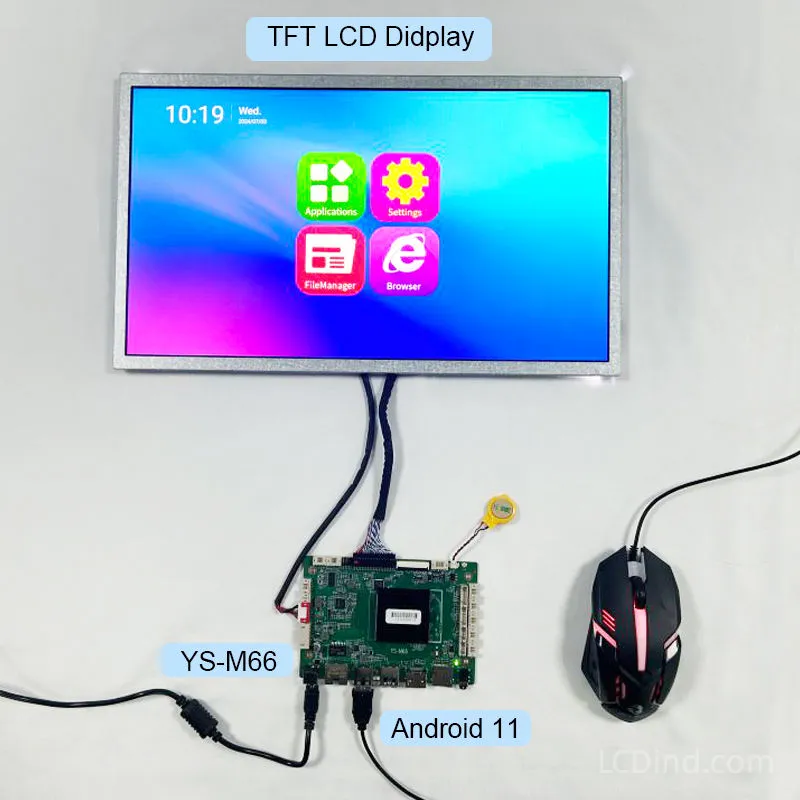

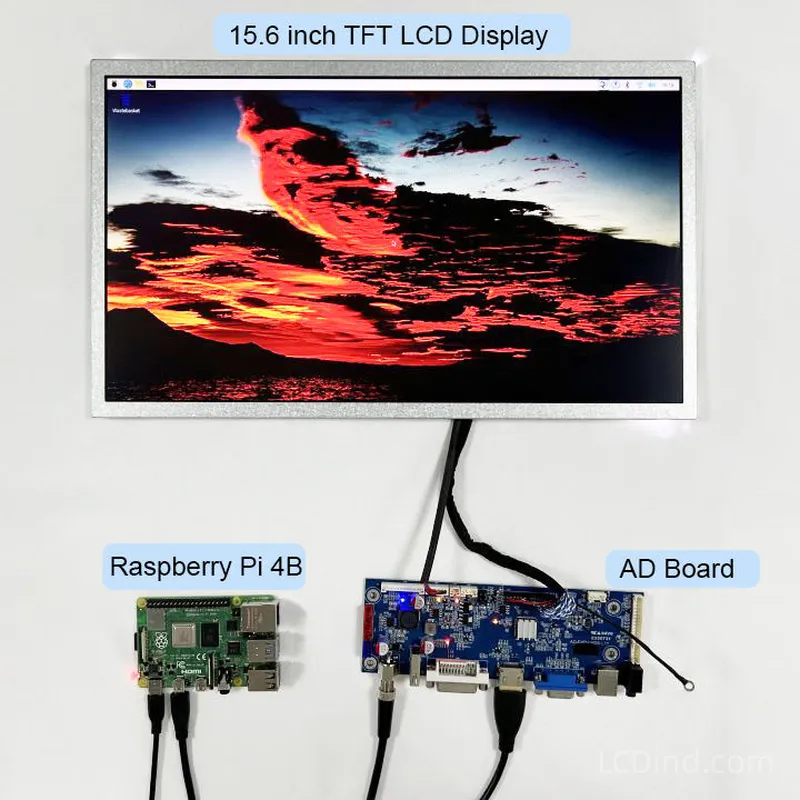

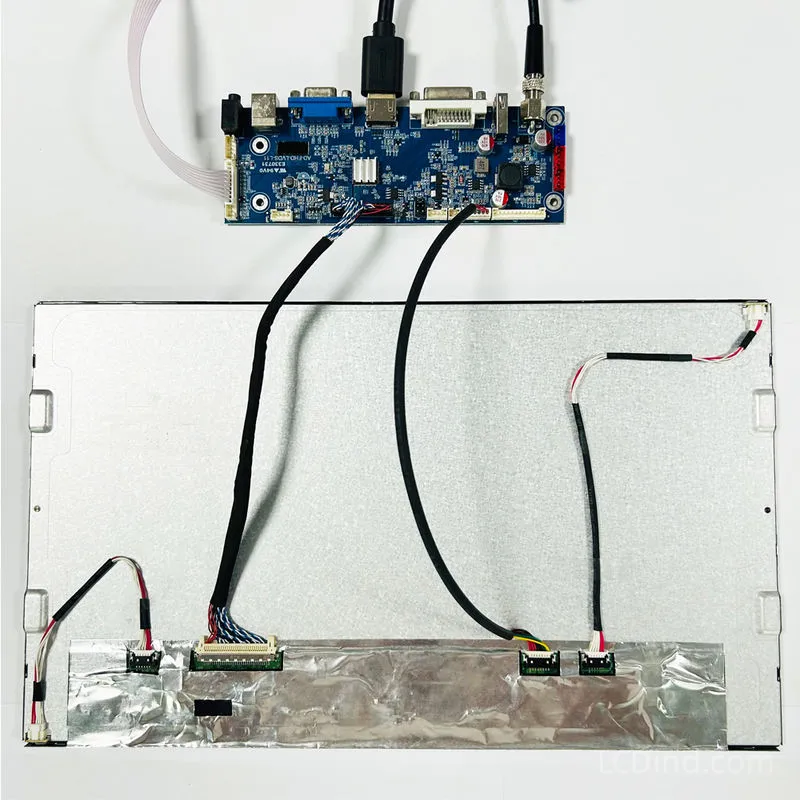

The 30-pin LVDS interface should be matched to the mainboard for timing, voltage, mapping, backlight drive, cable length, and connector orientation. FHD LVDS modules can be sensitive to cable quality and grounding, especially in industrial equipment with motors, relays, or long harnesses nearby. A production design should include the approved cable and backlight configuration, not only the display part number.

Surface and Optical Review

The AG plus 3H surface is useful for reducing reflection and improving front-surface durability. If the display is installed behind PCAP touch or cover glass, the optical stack may reduce brightness and change reflection behavior. For outdoor-protected or vehicle-mounted products, test readability with the final front material, expected viewing angle, and dimming settings.

Mechanical Planning

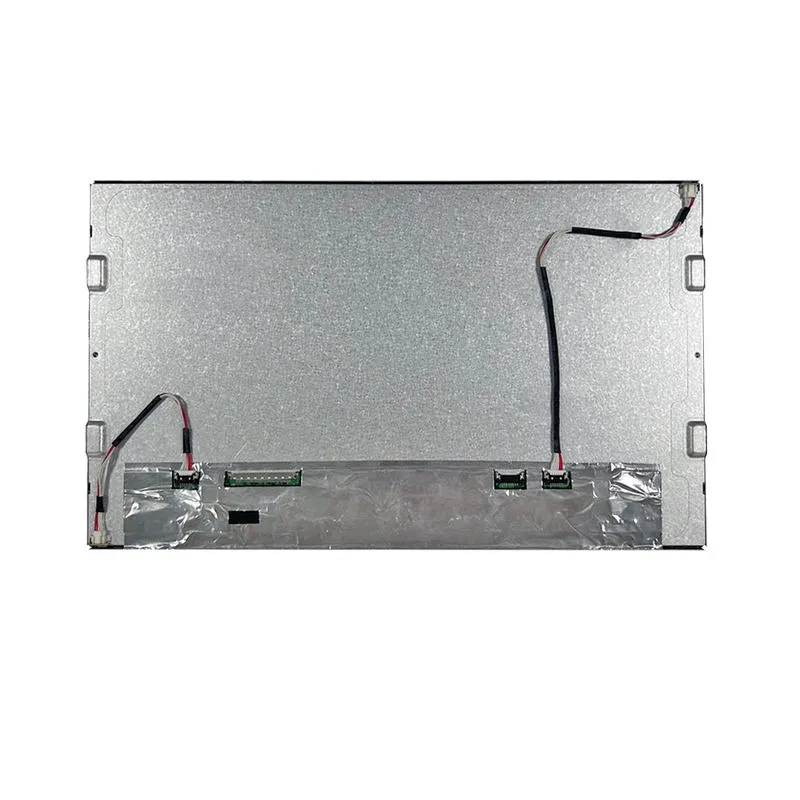

The 363.8 x 215.9 x 11.9 mm outline must be checked against enclosure depth, bracket position, cable exit, ventilation, and serviceability. Larger FHD modules require stable support to avoid frame pressure and backlight mura. If the final assembly includes touch or bonding, define whether LCDind should supply a bare LCD, touch LCD, bonded module, or harnessed subassembly.

Lifecycle Control

Wide-temperature displays are often used in long-life equipment. The procurement plan should define approved alternates, revision notice, packaging, and sample-retention requirements. If the product is installed in harsh locations, ask LCDind to review vibration, humidity, and operating duty cycle before the display is locked into the design.

Wide-Temperature Deployment Planning

The -40°C to +85°C operating range makes this display relevant for difficult environments, but the complete system must also survive those conditions. Review the LCD, backlight, cable, adhesive, touch overlay, cover glass, power supply, and enclosure together. A wide-temperature panel can still fail system validation if the cable stiffens, cover adhesive changes, or the enclosure traps heat around the backlight.

Ordering Notes for Rugged HMI

For rugged HMI projects, provide vibration, humidity, condensation, sunlight exposure, and operating duty cycle expectations. If the display is used in sealed equipment, include thermal simulation or enclosure drawings. LCDind can then review whether a bare module is sufficient or whether a bonded, harnessed, or mechanically reinforced assembly should be quoted.

Cold-Start and Heat-Soak Checks

During sample approval, test cold start, warm restart, full-white backlight load, dimming stability, and image uniformity after temperature cycling. These checks are especially relevant for mobile machinery, outdoor cabinets, and industrial PCs that may sit unused in cold conditions and then run continuously at high brightness.

Project Validation Plan

Before mass production, validate the display with the real host board, cable, enclosure, front lens, power supply, thermal path, and software build. Record the approved sample configuration and keep photos or drawings for later repeat orders. This avoids the common problem where a display passes a bench test but fails after the final cover glass, harness, or firmware is introduced.

Production Risk Control

For a B2B display project, the main risks are usually interface mismatch, optical loss, cable change, uncontrolled substitutions, and unclear acceptance criteria. Define the approved panel model, electrical interface, mechanical drawing, cosmetic standard, packaging method, and revision notice process before the first production order. If alternatives are acceptable, qualify them before supply pressure occurs.

Confirmed Product Specifications

These values are preserved from the live product specification table. Any missing drawing, connector, firmware, optical, touch, or compliance item should be confirmed through LCDind engineering review before production use.

RFQ Checklist

• Target equipment, installation environment, and display duty cycle.
• Host board, interface mapping, connector, cable length, and voltage requirements.
• Mechanical drawing, active-area opening, cover lens, touch structure, and bonding requirement.
• Brightness, viewing angle, operating temperature, vibration, and sunlight-readability expectations.
• Sample quantity, annual forecast, customization scope, lifecycle plan, and approved alternative policy.

Engineering FAQ

What is the operating temperature range?

The live table lists -40°C to +85°C operating temperature.

Does it include touch?

The page focuses on the LCD module. Touch or cover glass should be treated as a project-specific option.

Why is the cable important?

FHD LVDS performance depends on mapping, cable quality, shielding, grounding, and backlight wiring.
