15.6 Inch Industrial IPS Display Kit (1920×1080) with Raspberry Pi 4B & Driver Board
- Panel Type: 15.6″ FHD IPS TFT LCD (1920×1080)
- Extreme Durability: -40°C to 85°C Operating Temperature
- Complete Kit: Includes AD-FHD-LVDS-L11 Board & Raspberry Pi 4B (2GB)
- Interfaces: HDMI, VGA, DVI Input (Board), LVDS (Panel)
- Application: Industrial HMI, Kiosks, Outdoor Terminals, Rapid Prototyping

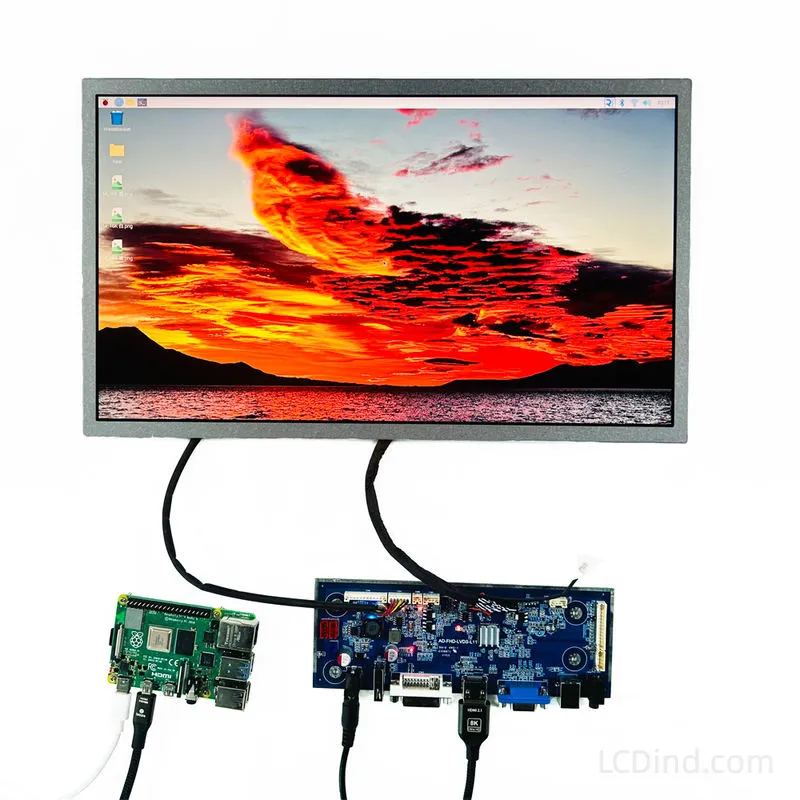

All-in-One 15.6″ Industrial HMI Development Solution
Accelerate your project timeline with the LCDind 15.6 Inch Industrial IPS Display Kit. Unlike standard standalone panels, this comprehensive package combines a ruggedized OEM automotive-grade panel with a versatile HDMI/VGA/DVI controller board and a powerful Raspberry Pi 4B (2GB RAM). It is engineered for engineers who need a “plug-and-play” visual interface for harsh environments.
1. Extreme Environment Reliability (-40°C to 85°C)
Standard commercial screens fail when temperatures drop or spike. This 15.6-inch module features an Automotive-Grade operating temperature range of -40°C to 85°C. Whether deployed in freezing outdoor kiosks or high-heat factory floors, the liquid crystal fluid remains stable, preventing “blackening” or sluggish response times common in consumer displays.
2. Superior IPS Visual Performance
Equipped with IPS (In-Plane Switching) technology, this 1920×1080 FHD panel delivers consistent color accuracy and contrast from any viewing angle.
- Resolution: 1920×1080 (16:9 Aspect Ratio) for crisp UI and text.
- Pixel Pitch: 0.17925 x 0.17925 mm ensures high pixel density.
- Surface: Anti-Glare (AG+3H) hard coating reduces reflections under overhead factory lighting.
3. Versatile Connectivity & Raspberry Pi Integration

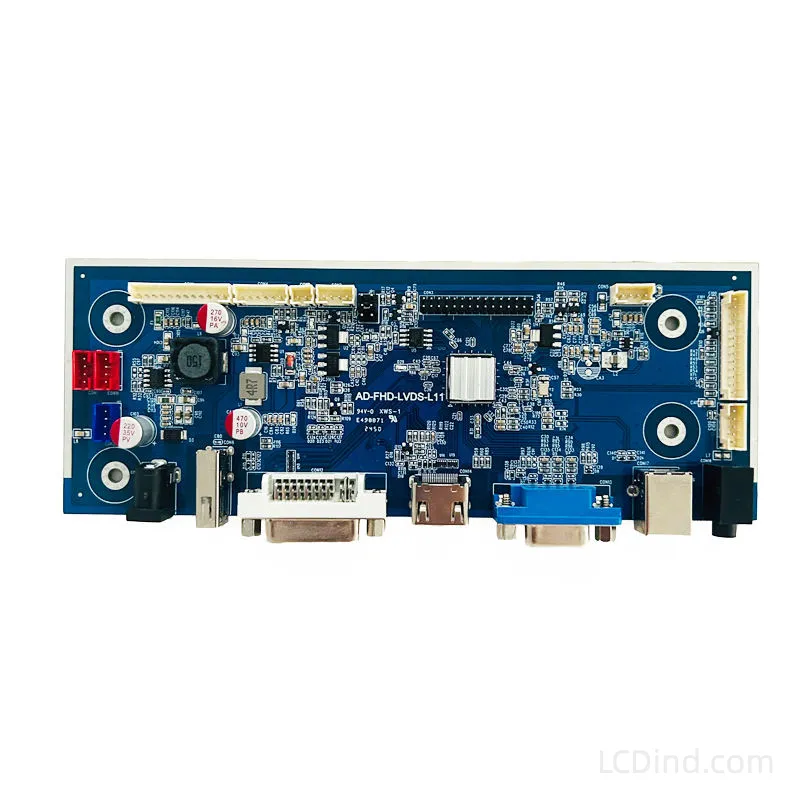

The included AD-FHD-LVDS-L11 Controller Board transforms the raw LVDS panel into a versatile monitor compatible with any PC or embedded system.
- Input Ports: HDMI 1.4, VGA, and DVI.

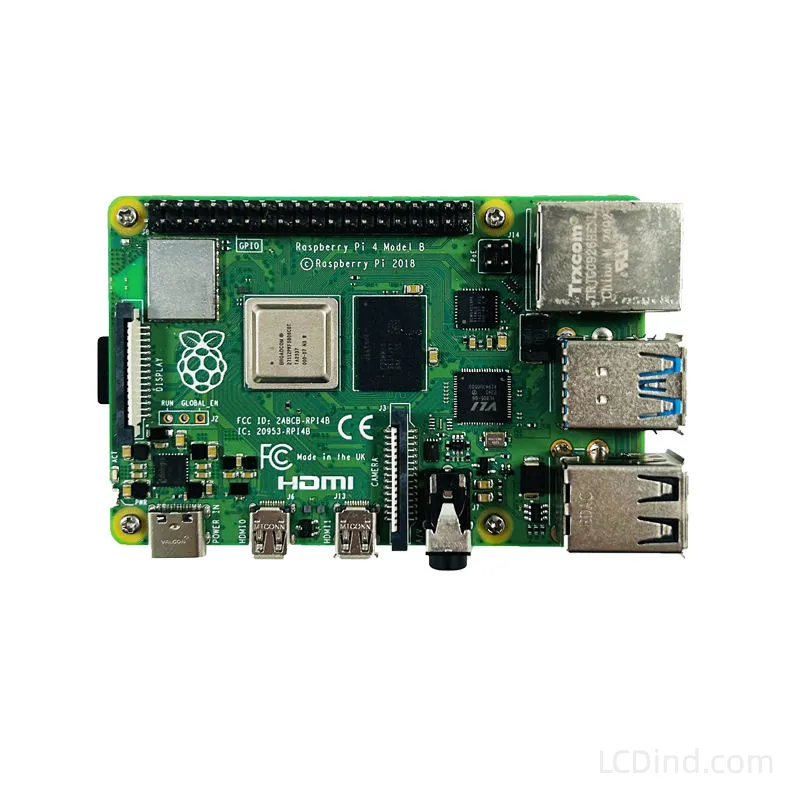

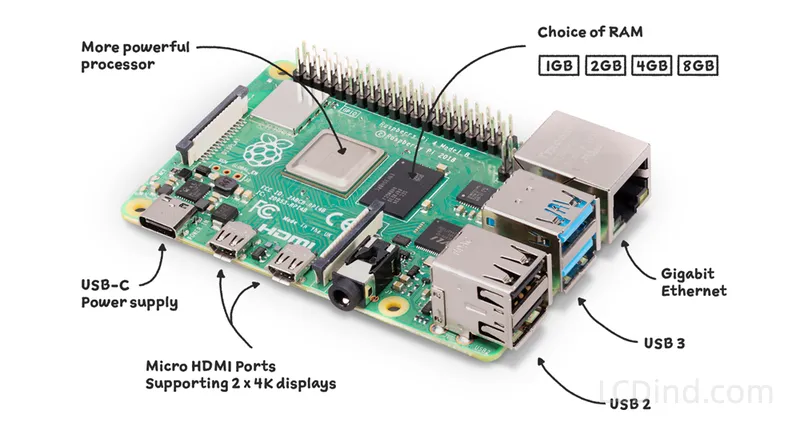

- Powered by Pi: The kit includes a Raspberry Pi 4 Model B (2GB RAM), making it an instant computer. Perfect for running Linux-based industrial control systems, Python GUIs, or digital signage software immediately out of the box.
- Audio Support: Includes audio input/output interfaces for multimedia applications.
| Panel Brand | LCDind / OEM |
|---|---|
| Display Size | 15.6 Inch (Diagonal) |
| Resolution | 1920 x 1080 (FHD) |
| Display Mode | IPS, Normally Black, Transmissive |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 344.16 (H) x 193.59 (V) mm |
| Outline Dimensions | 363.80 x 215.90 x 11.9 mm |
| Operating Temperature | -40°C ~ +85°C (Automotive Grade) |
| Storage Temperature | -40°C ~ +85°C |
| Controller Board Inputs | HDMI, VGA, DVI, Audio |
| Included Computer | Raspberry Pi 4 Model B (2GB RAM) |

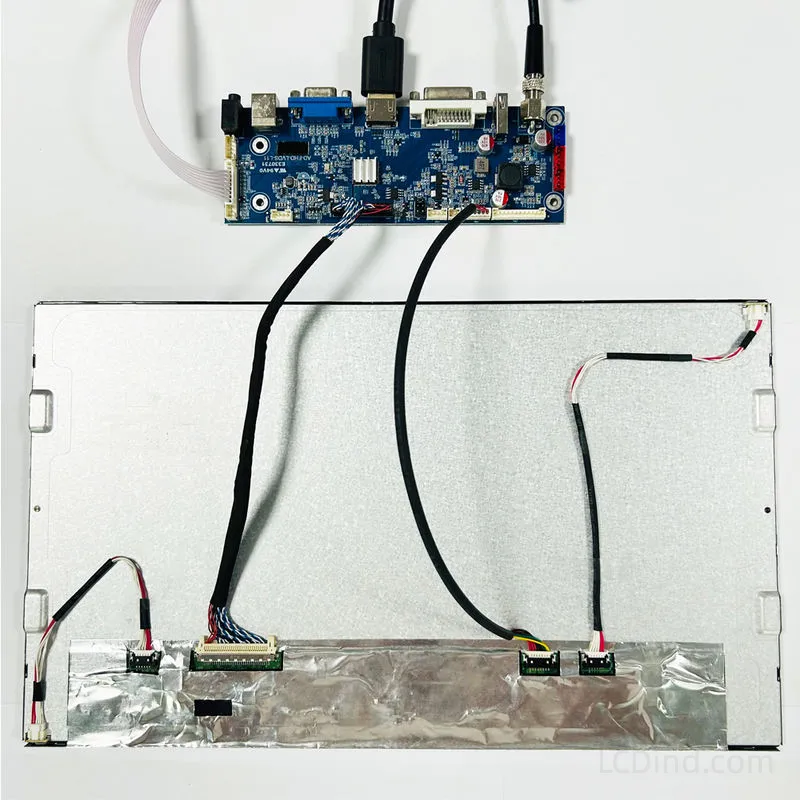

| Panel Interface | LVDS (30-pin) connected via Controller Board |
Q: Can I use this display without the Raspberry Pi?
Yes. The included AD-FHD-LVDS-L11 driver board features standard HDMI, VGA, and DVI inputs. You can connect it to any Windows PC, Linux machine, or industrial embedded box PC, and it will function as a standard monitor.
Q: Does the board support backlight adjustment?

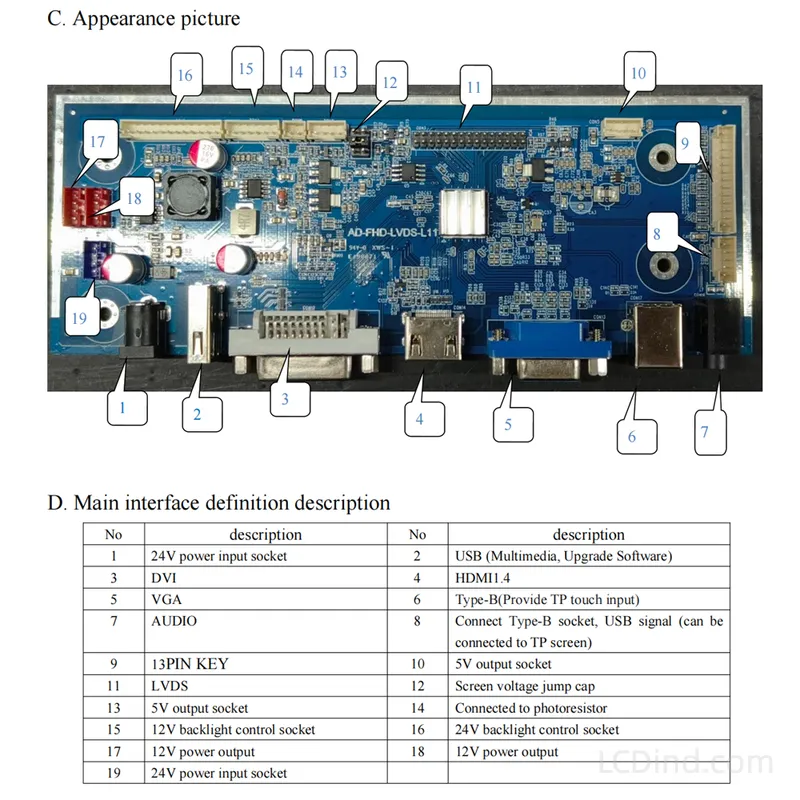

Yes. The driver board interface (Pin 15/16 as shown in the diagram) supports 12V/24V backlight control. While the kit comes pre-configured, advanced users can modify the PWM signal inputs for custom brightness control integration.
Q: Is the screen touch-enabled?
The standard kit includes a non-touch display. However, the controller board has a USB Type-B interface (Port 6/8) reserved for touch signal passthrough. If you require a capacitive touch overlay (PCAP) for this specific 15.6" panel, please contact our sales team for a custom bonding solution.
Q: What is the power requirement for the driver board?
The board requires a 12V DC power input (Port 17/18). Please ensure your power supply provides sufficient amperage (typically 3A+) to drive both the high-definition backlight and the logic board stably.
Q: Why is the -40~85°C temperature range important?
Standard laptop screens typically operate between 0~50°C. In outdoor environments or unheated warehouses, standard liquid crystals can freeze or become sluggish. This wide-temperature panel uses specialized fluid and polarizers designed to maintain optical performance in extreme cold and heat, ensuring reliability in critical industrial applications.
