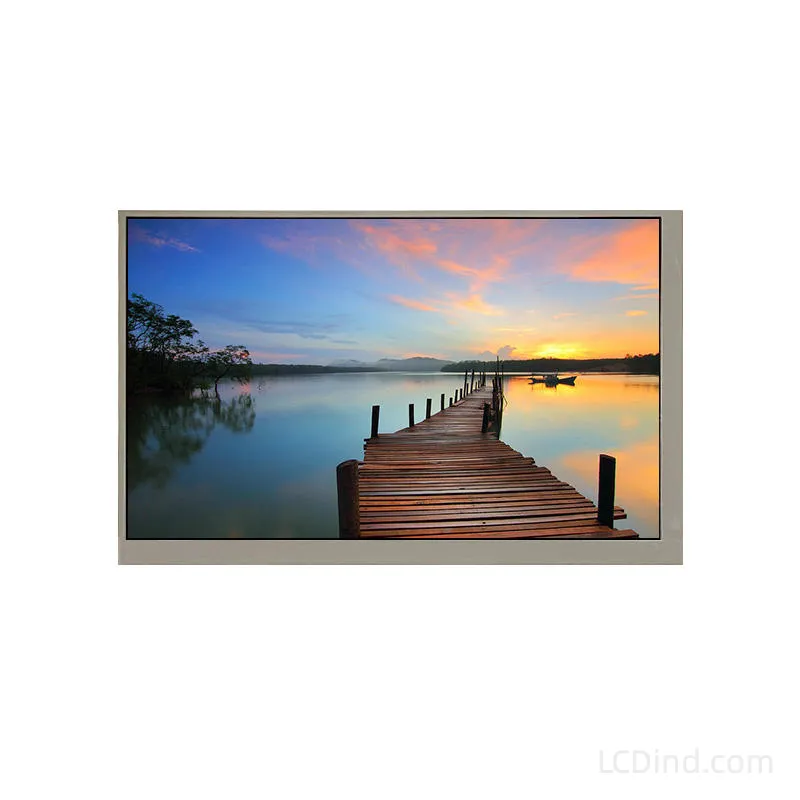

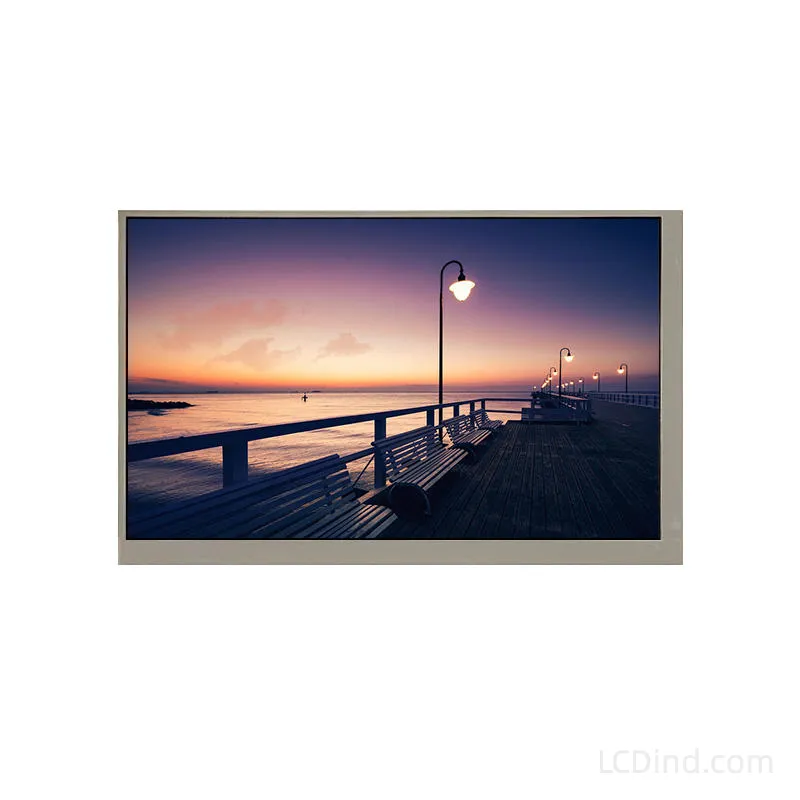

7 Inch RGB LCD Module 800×480 Replacement 40-Pin TTL Standard Screen
7 Inch RGB LCD Module (800×480). Features standard 40-Pin TTL Interface, 350 nits Brightness, and IPS Viewing Angles. A cost-effective drop-in replacement for legacy AT070TN92 screens.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 800×480 |
| Interface | |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | All View / IPS |

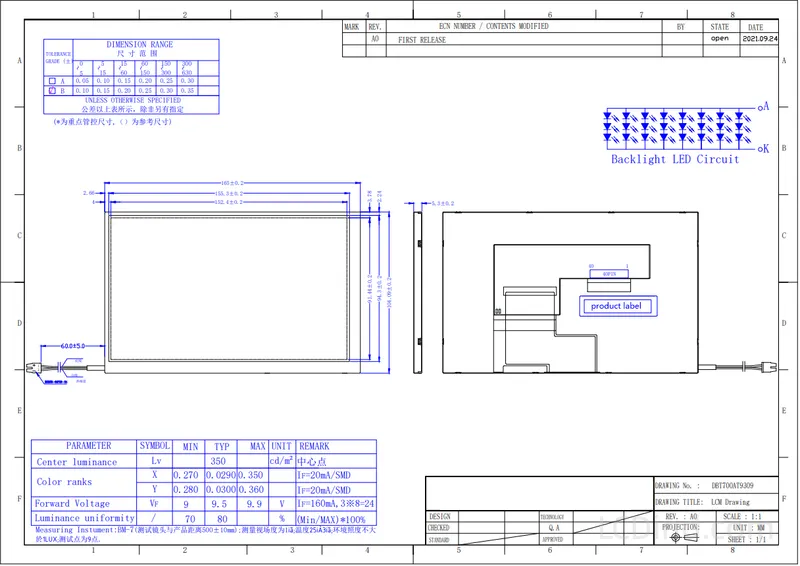

| Outline Dimension | 165 × 104.44 × 5.7 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Touch | Optional (Resistive/Capacitive available on request) |
7 Inch RGB LCD Module: The Standard for Reliability
The 7 Inch RGB LCD Module is the industry’s workhorse display. Designed as a universal solution for industrial controls, embedded systems, and device repairs, this module combines a standard 800×480 resolution with the widely adopted 40-Pin TTL interface. It offers a perfect balance of performance and cost-efficiency for budget-conscious projects.
Why Choose This 7 Inch RGB LCD Module?
1. Universal 40-Pin Compatibility

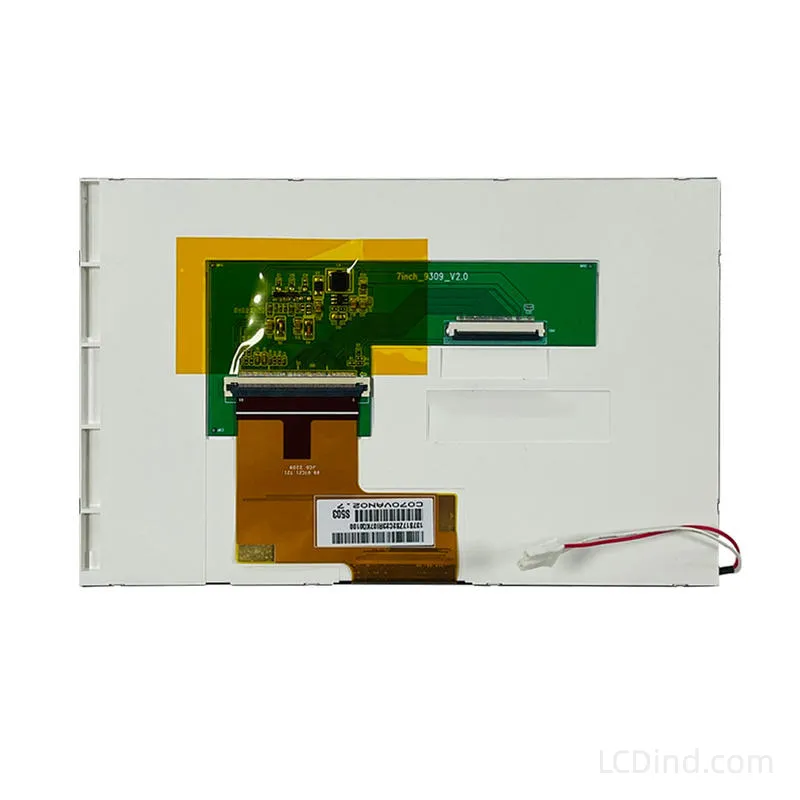

This screen utilizes the standard 40-Pin RGB (TTL) interface, making it pin-to-pin compatible with thousands of existing driver boards and legacy screens (such as the classic AT070TN92 series). It is the safest choice for:
-

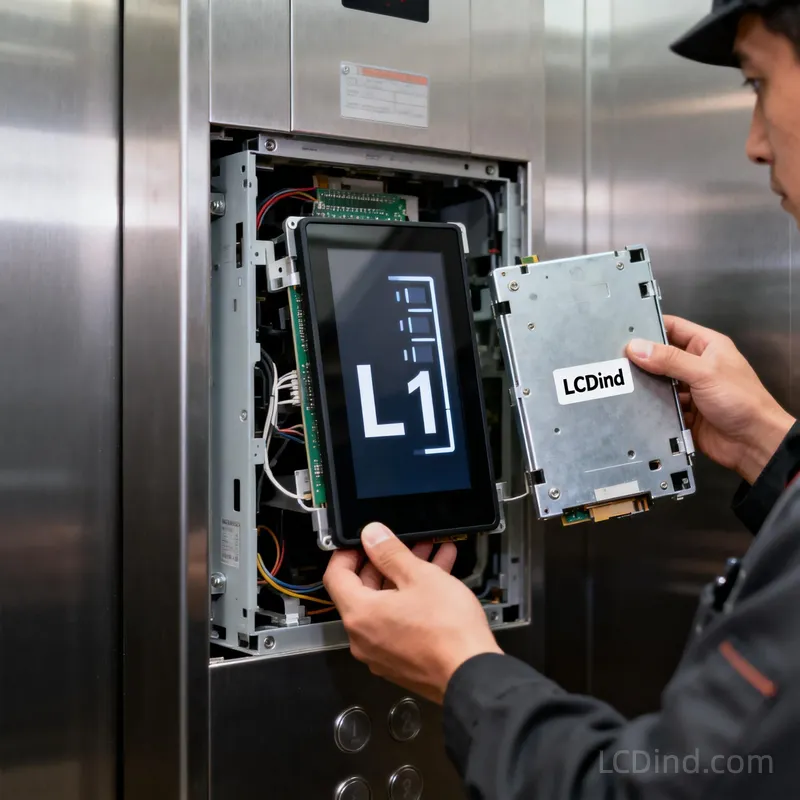

Repair & Maintenance: Bringing old equipment back to life.
-

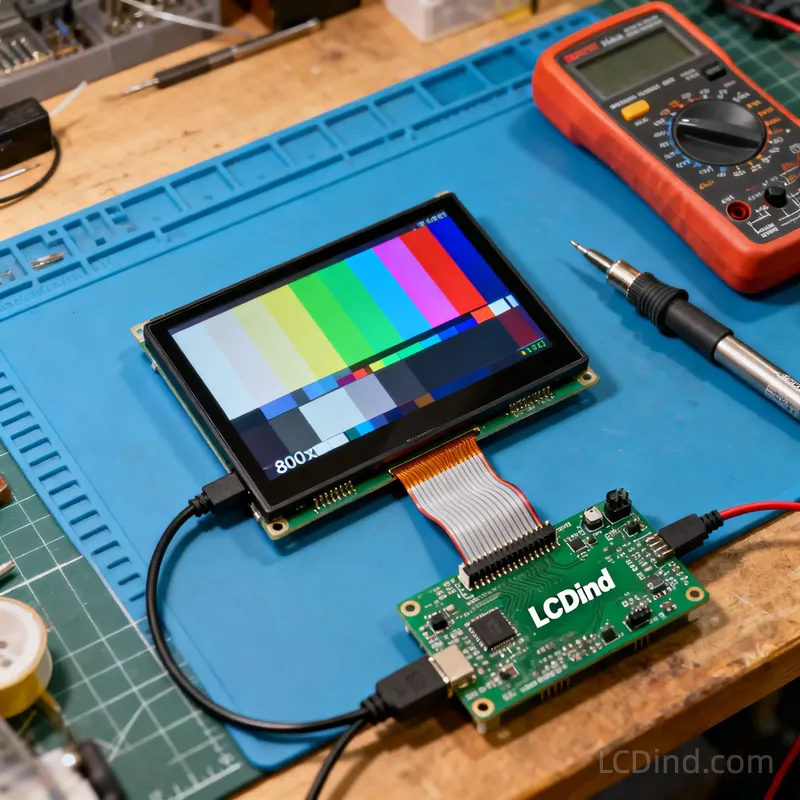

Prototyping: Working seamlessly with STM32, FPGA, and Raspberry Pi (with DPI adapter) kits.
2. Improved IPS Viewing Angles
Unlike older TN panels that invert colors when viewed from below, this upgraded module features IPS technology with viewing angles of 80/80/80/80 degrees. This ensures the UI is readable from multiple directions, a significant upgrade over stock TN screens.
3. Standard Industrial Specs
With a brightness of 350 nits and an operating temperature range of -20°C to +70°C, this display is built to withstand typical indoor industrial environments without failure. The Anti-glare surface treatment further enhances readability under overhead lighting.
Detailed Specifications
| Feature | Specification |
| Model Name | 7 Inch RGB LCD Module (Standard) |
| Resolution | 800 (RGB) × 480 |
| Interface | 40-Pin TTL (RGB) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 400:1 (Typ.) |
| Display Mode | IPS / Normally Black |
| Active Area | 152.4 × 91.44 mm |
| Outline Dimensions | 165 × 104.44 × 5.7 mm |
| Backlight | White LED |
Engineering FAQ
Q: Is this the same as the “High Contrast” version?
A: No. This is the Standard version with a contrast ratio of 400:1. If you require deep blacks and punchier colors for high-end medical or marine applications, please check our “High Contrast 1000:1” model. For general industrial use, this standard model is more cost-effective.
Q: What is the pin definition?
A: It follows the standard 40-Pin RGB pinout:
-
Pins 1-4: VLED/Backlight
-
Pins 5-28: RGB Data (R0-R7, G0-G7, B0-B7)
-
Pins 30-34: Clock and Sync (DCLK, HSYNC, VSYNC, DE)
Please download the datasheet for the exact map.
Q: Can I replace a broken car GPS screen with this?
A: In many cases, yes. If your old screen is 7-inch, 800×480, and has a 40-pin ribbon cable, this 7 Inch RGB LCD Module is a strong candidate. However, checking the physical dimensions (165x104mm) inside your dashboard is crucial.
