21.5 Inch 1000 nits LCD OEM Module – Outdoor Sunlight Readable Kit
Build your outdoor project faster with this 21.5 inch 1000 nits LCD OEM kit. Designed for direct sunlight visibility, this package goes beyond a simple panel by including a fully compatible HDMI/VGA driver board and a dual-fan active cooling system to ensure reliability in high-temperature environments (-20°C to +80°C).
Need custom cable lengths or touch integration? Use the Request Quote button below for OEM services.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 21.5 inchHigh-performance 21.5 inch industrial displays. Full HD 1080p, 1000+ nits sunlight readable, and open frame designs perfect for outdoor kiosks and signage. |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
OEM Grade 21.5″ Outdoor Display Solution
Standard indoor screens turn black and fail under the sun. Our 21.5 inch 1000 nits LCD module is engineered specifically for the challenges of outdoor digital signage and industrial HMIs. We don’t just supply the screen; we provide a customizable OEM ecosystem including thermal management and connectivity solutions.
1. 1000 nits Sunlight Readability & IPS Technology
With a high luminance of 1000 cd/m², this FHD (1920×1080) panel ensures content remains vivid even in direct daylight.
- Wide Viewing Angle: 89/89/89/89 degrees (IPS-like performance) allows clear viewing from extreme side angles.
- High Contrast: 1000:1 contrast ratio delivers deep blacks and sharp text.
2. Active Thermal Management (OEM Feature)
High brightness generates heat. Unlike standard sellers, our kit includes dual active cooling fans connected directly to the driver board.
- Why it matters: This prevents the “blackening effect” (isotropic phase) that occurs when LCD crystals overheat in outdoor enclosures.
- Wide Temp Range: The panel itself is rated for operation from -20°C up to +80°C.

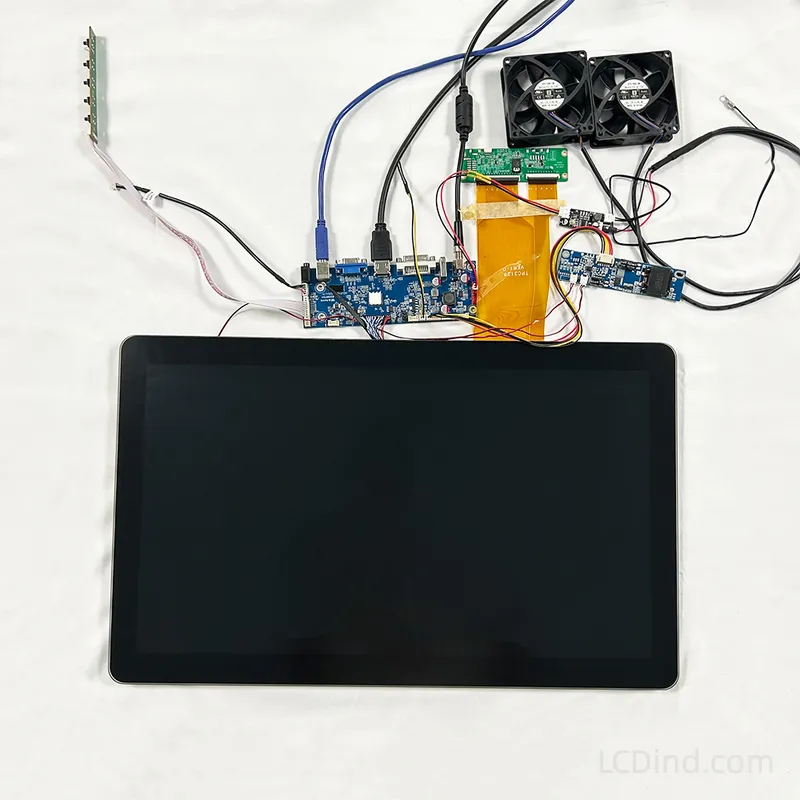

3. Complete “Plug & Play” Development Kit

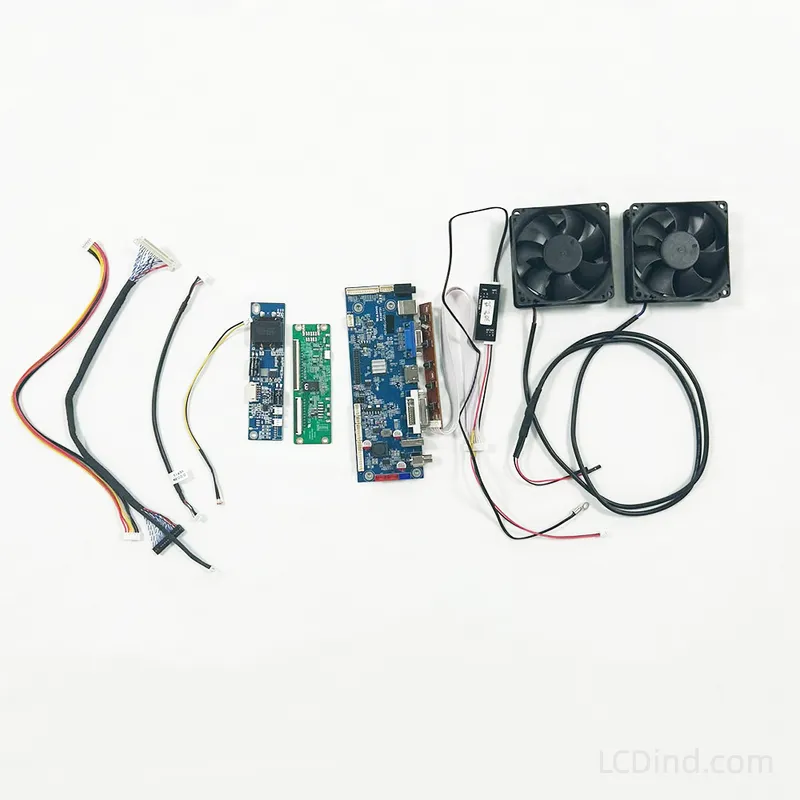

Accelerate your prototyping with a complete set of accessories included in the box:
- Controller Board: Supports HDMI, VGA, and USB interfaces.

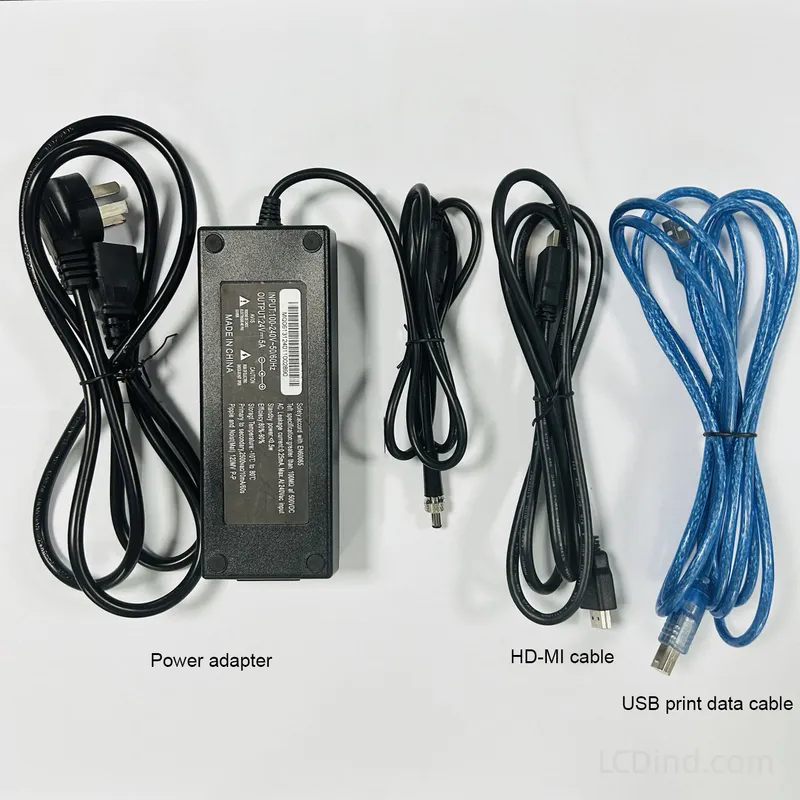

- Cables: Includes high-quality HDMI cable, USB print data cable, and LVDS cables.
- Power: 12V/24V Power Adapter included.
4. Customization Services (OEM/ODM)
We understand that every industrial project is unique.
- Custom Cables: We can modify LVDS and backlight cable lengths to fit your chassis.
- Touch Integration: We can bond Capacitive (PCAP) or Resistive touch screens to this high-brightness panel.
- Firmware: Custom boot logos and signal timing adjustments available upon request.
| Display Specifications | |
|---|---|
| Panel Brand | OEM / LCDind |
| Panel Size | 21.5 Inch |
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 1000 cd/m² (Sunlight Readable) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (CR≥10) |

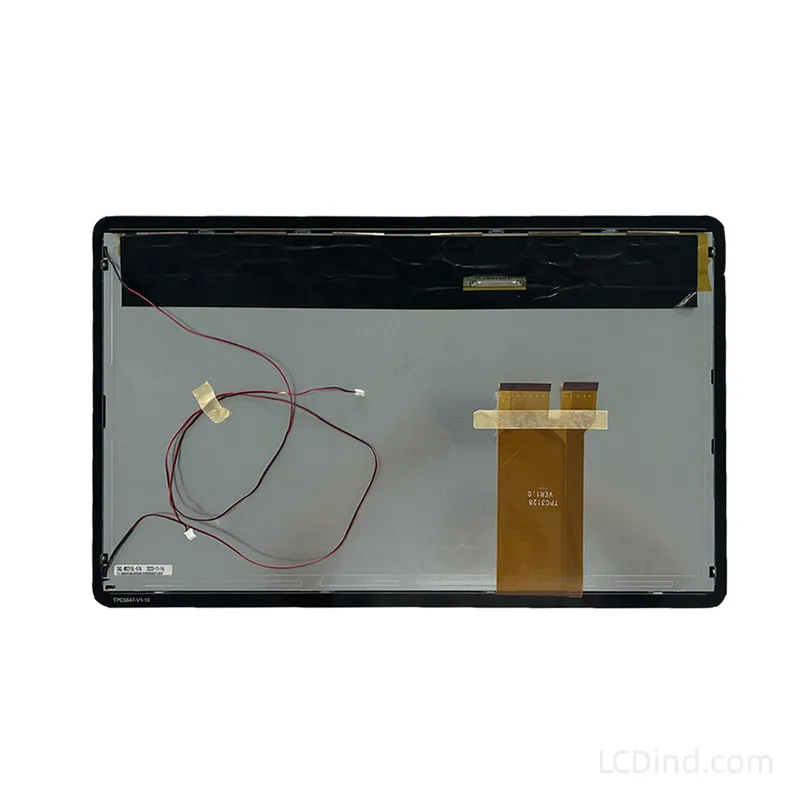

| Native Interface | LVDS (2ch, 8-bit), 30 Pins |
| Active Area | 476.64(H) x 268.11(V) mm |
| Outline Dimension | 495.6(H) x 292.2(V) x 8.04(D) mm |
| Operating Temperature | -20°C ~ +80°C |
| Included Accessories | HDMI Driver Board, 2x Cooling Fans, HDMI Cable, Power Adapter |
| Brand | OEM / ODM |
|---|---|
| Size | 21.5 inchHigh-performance 21.5 inch industrial displays. Full HD 1080p, 1000+ nits sunlight readable, and open frame designs perfect for outdoor kiosks and signage. |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
Q: Why does the kit include fans?
High brightness displays (1000 nits) generate more heat than standard screens. Additionally, outdoor enclosures often trap solar heat. The included cooling fans help dissipate this heat, ensuring the liquid crystals stay within the -20~80°C operating range and extending the backlight's lifespan.
Q: Can I customize the cable length for the fans or LVDS?
Yes. As an OEM provider, we can customize wire lengths, connector types, and even the layout of the driver board for bulk orders. Please specify your mechanical constraints in the inquiry.
Q: Is the screen readable in portrait mode?
Yes. The panel supports both Landscape and Portrait modes enabled. The IPS-like technology ensures colors remain accurate even when the screen is rotated 90 degrees.
Q: What is the native interface of the panel?
The raw panel uses a 30-pin LVDS interface. However, the kit comes with a driver board that converts HDMI/VGA signals to LVDS, making it easy to connect to a PC, Raspberry Pi, or media player.
Q: Does it support 24/7 operation?
Yes, this industrial module is designed for continuous operation. The LED backlight has a long half-life, provided that the thermal management (fans) is properly utilized.
