10.1 Inch LVDS LCD Display Module 1920×1080 IPS 40-Pin Anti-Glare
10.1 Inch LVDS LCD Module (1920×1080). Features Anti-Glare Surface, 40-Pin Interface, and IPS Wide Viewing. Industrial Grade for Medical & HMI.
Product Attributes
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
|---|---|
| Brand | LCDind |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Surface | Anti-Glare (AG), Hard Coating (HC) |
| Interface | LVDS |
| Panel Type | IPS |
| Viewing Angle | All View / IPS |
| Outline Dimension | 229.91 × 135.74 × 2.8 mm |
| Contrast Ratio | 1000:1 |
| Operating Temp | Industrial (-20 to +70°C) |

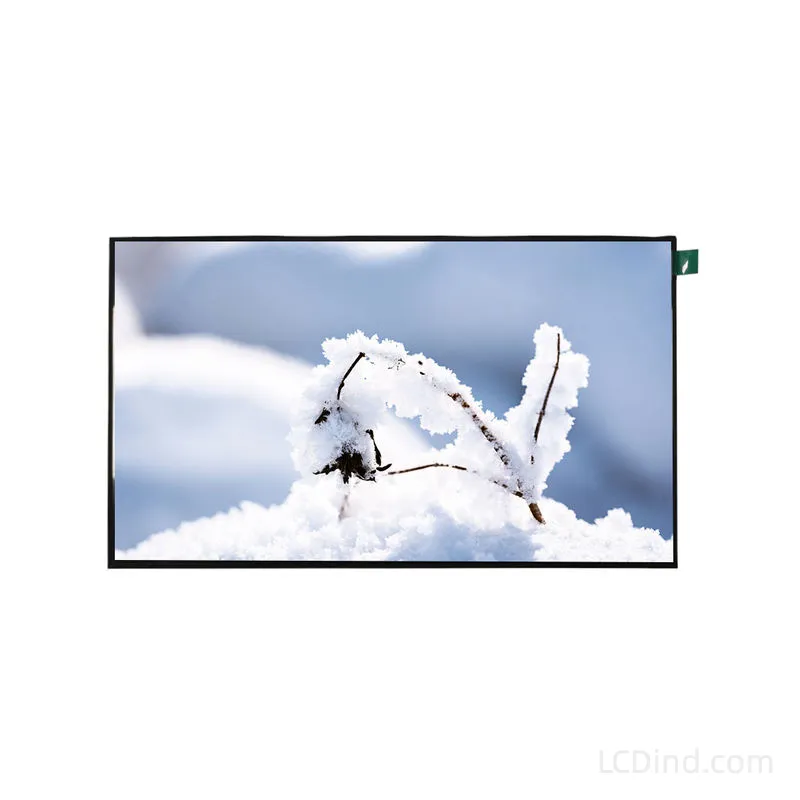

10.1 Inch LVDS LCD Module: Precision for Professional Equipment
The 10.1 Inch LVDS LCD Display Module brings Full HD clarity to the industrial sector. With a resolution of 1920×1080 pixels and a professional Anti-Glare (AG) coating, this module is designed for environments where visual accuracy is non-negotiable.
Why Choose This 10.1 Inch LVDS LCD?

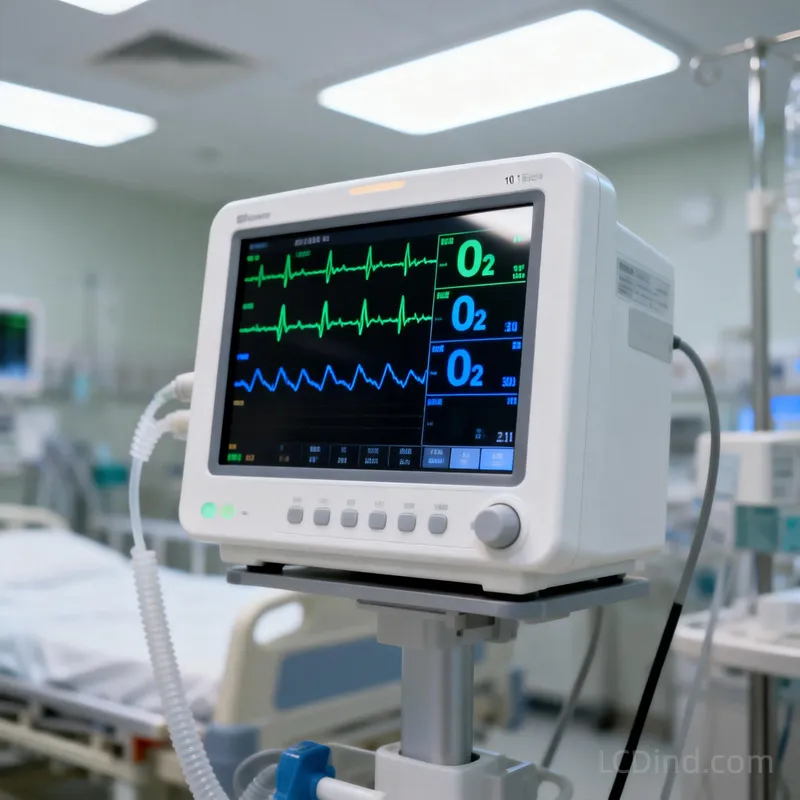

1. Crystal Clear FHD Resolution Upgrade your user interface with this 10.1 Inch LVDS LCD. Compared to standard 1024×600 screens, this FHD panel delivers significantly sharper text, essential for medical waveforms and CAD drawings.
2. Anti-Glare (AG) Surface Treatment
Unlike consumer tablets that reflect everything like a mirror, this module features a hard-coated Anti-Glare surface.
-
Benefit: It diffuses reflections from strong overhead factory lights or surgical lamps, reducing operator eye strain and ensuring the content is always visible.
3. Robust 40-Pin LVDS Interface
The module utilizes a standard 40-Pin LVDS interface, widely compatible with industrial motherboards (single boards computers, SOMs).
-
Signal Integrity: LVDS provides excellent noise immunity, allowing for stable high-definition signal transmission even in electrically noisy industrial cabinets.
4. Industrial & Wide Temp Reliability
Built for longevity, this display uses an IPS panel with 1000:1 contrast ratio and 80/80/80/80 viewing angles. It operates reliably in temperatures ranging from -20°C to +70°C, making it suitable for unconditioned warehouses or outdoor kiosks.
Detailed Specifications
| Feature | Specification |
| Model Name | 10.1 Inch FHD LVDS LCD Module |
| Resolution | 1920 (RGB) × 1080 |
| Interface | 40-Pin LVDS |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |

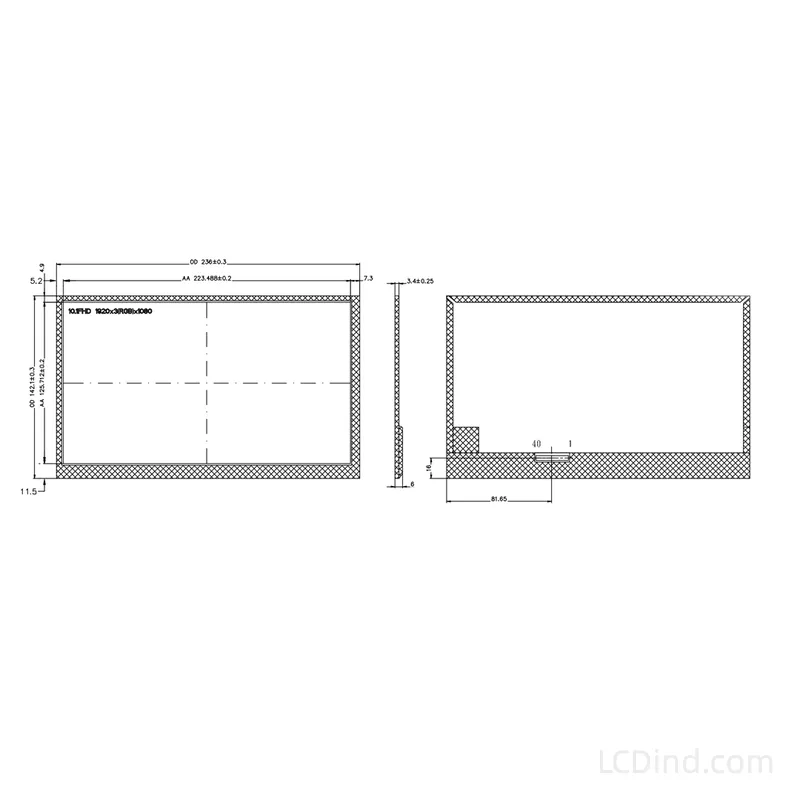

| Active Area | 223.49 × 125.71 mm |
| Module Size | 229.91 × 135.74 × 2.8 mm |
| Display Mode | IPS / Normally Black |
| Surface | Anti-Glare (AG), Hard Coating |
Engineering FAQ
Q: Is the 40-Pin LVDS pinout standard?
A: “Standard” can vary. This module typically uses a standard channel LVDS pinout (often 2-channel for 1080p). However, pin definitions (VCC position, ground pins) can differ between manufacturers. We strongly recommend downloading the datasheet to verify the pinout against your mainboard before connecting power.
Q: Can I use this with a Raspberry Pi?

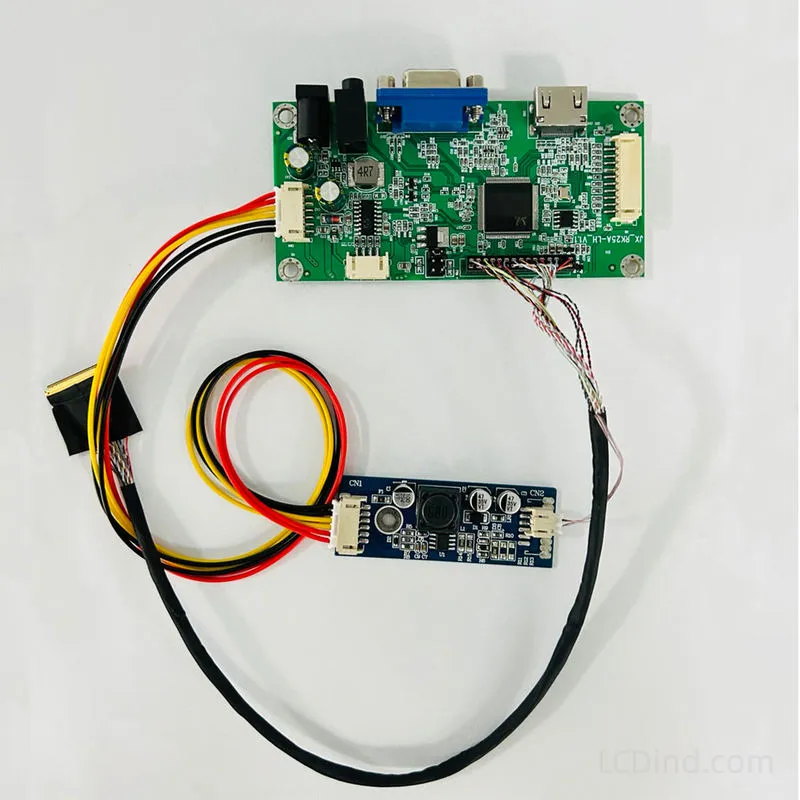

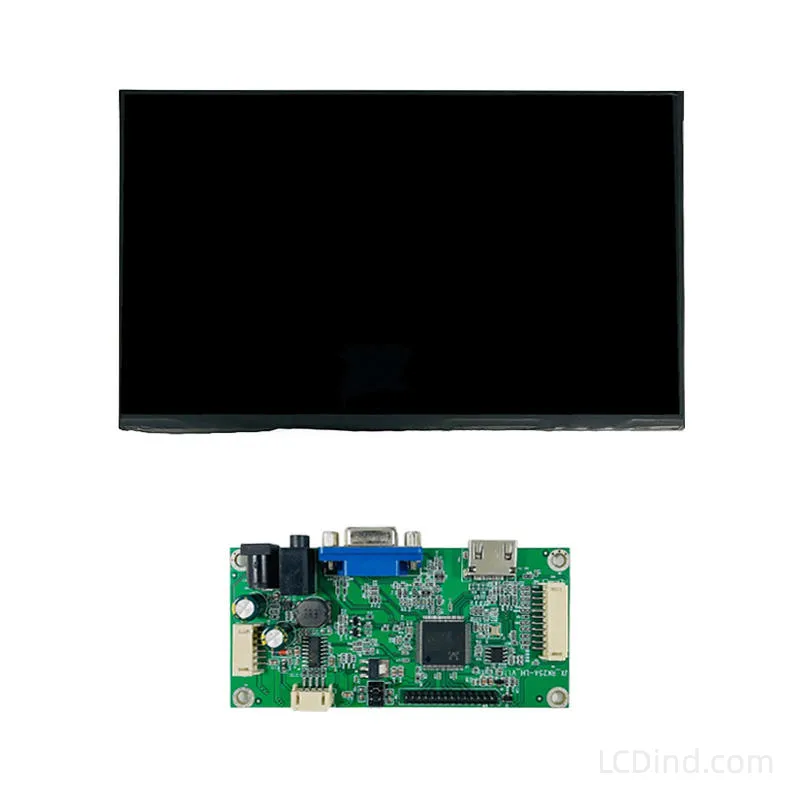

A: Not directly. Raspberry Pi uses HDMI or MIPI DSI. To use this LVDS screen, you would need an HDMI-to-LVDS controller board. We offer compatible driver board kits that include the HDMI board, backlight driver, and cables for a plug-and-play experience.
Q: Does “Anti-Glare” mean it reduces brightness?
A: The AG coating slightly diffuses light to prevent mirror-like reflections, but the high transmissivity of the panel ensures the 400 nits brightness remains effective. The perceived readability is actually higher in bright rooms because you aren’t fighting against glare.
Enhance Your User Interface
Get the full specification sheet and driver board recommendations.
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
|---|---|
| Brand | LCDind |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Surface | Anti-Glare (AG), Hard Coating (HC) |
| Interface | LVDS |
| Panel Type | IPS |
| Viewing Angle | All View / IPS |
| Outline Dimension | 229.91 × 135.74 × 2.8 mm |
| Contrast Ratio | 1000:1 |
| Operating Temp | Industrial (-20 to +70°C) |
Q: Is the 40-Pin LVDS pinout standard?
A: "Standard" can vary. This module typically uses a standard channel LVDS pinout (often 2-channel for 1080p). However, pin definitions (VCC position, ground pins) can differ between manufacturers. We strongly recommend downloading the datasheet to verify the pinout against your mainboard before connecting power.
Q: Can I use this with a Raspberry Pi?
A: Not directly. Raspberry Pi uses HDMI or MIPI DSI. To use this LVDS screen, you would need an HDMI-to-LVDS controller board. We offer compatible driver board kits that include the HDMI board, backlight driver, and cables for a plug-and-play experience.
Q: Does "Anti-Glare" mean it reduces brightness?
A: The AG coating slightly diffuses light to prevent mirror-like reflections, but the high transmissivity of the panel ensures the 400 nits brightness remains effective. The perceived readability is actually higher in bright rooms because you aren't fighting against glare.
