21.5 Inch 1000 Nits Touch Monitor | FHD Outdoor Industrial Display
21.5 Inch 1000 Nits Touch Monitor is an industrial-grade display solution engineered specifically for high-ambient light and severe outdoor environments. Driven by an amorphous silicon TFT active matrix, it delivers a flawless 1920×1080 FHD resolution across a massive 476.64 x 268.11 mm active area. To combat direct sunlight, it boasts a blazing 1000 nits of brightness paired with an advanced AG:80 (Anti-Glare) surface treatment. The robust capacitive touch panel (CTP) is seamlessly integrated using LOCA optical bonding, eliminating internal reflections and preventing condensation. Designed for extreme reliability, it operates safely between -20°C to 80°C and features an active cooling back enclosure with dual fans. Build kiosks that survive the elements. Click “Inquire Now” for technical datasheets and bulk orders.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 21.5 inchHigh-performance 21.5 inch industrial displays. Full HD 1080p, 1000+ nits sunlight readable, and open frame designs perfect for outdoor kiosks and signage. |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |

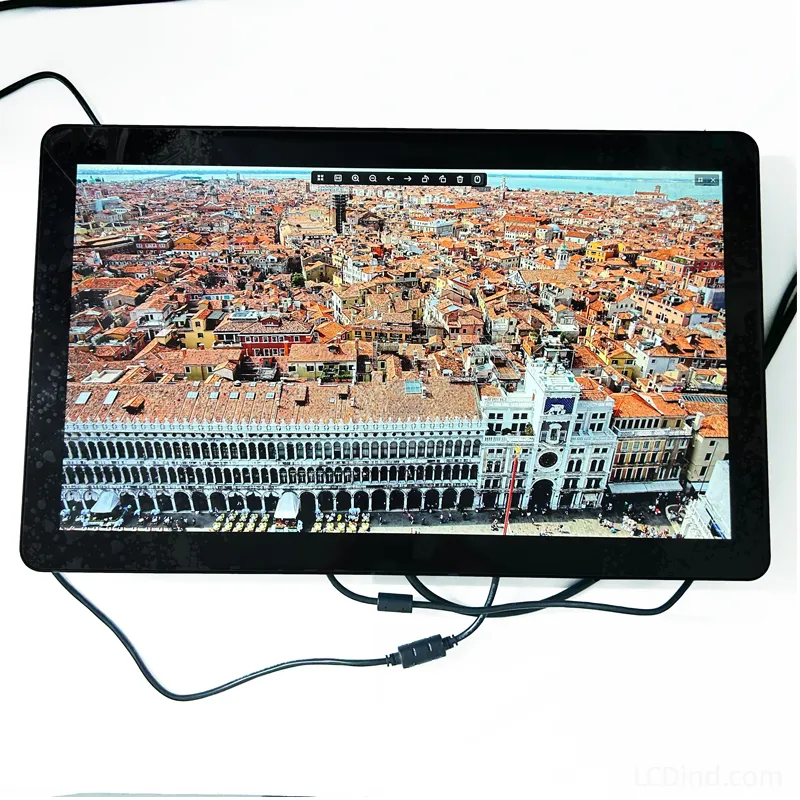

Sunlight Readable: 21.5 Inch 1000 Nits Touch Monitor
Standard consumer displays become completely invisible when exposed to direct sunlight. The 21.5 Inch 1000 Nits Touch Monitor resolves this critical engineering pain point. By utilizing an ultra-high-efficiency backlight system, it projects 1000 nits of luminance. This raw optical power is enhanced by an AG:80 Anti-Glare surface treatment, which physically diffuses harsh external light sources. Combined with an exceptional 1000:1 contrast ratio, this Normally Black panel ensures that digital signage and process control interfaces remain vibrant and legible in the brightest outdoor environments.
LOCA Optical Bonding Architecture
In outdoor storage cabinets and standalone terminals, a microscopic air gap between the touch glass and the LCD panel leads to devastating internal condensation during temperature shifts. We eliminate this failure point through LOCA (Liquid Optically Clear Adhesive) optical bonding. This process fully attaches the 6mm thick protective cover glass directly to the TFT array. Not only does this drastically increase physical impact resistance, but it also removes the internal refraction index, resulting in a deeper, more accurate 16.7M (6-bit Hi-FRC) color representation from any 89/89/89/89 viewing angle.
Thermal Resilience & Industrial Connectivity

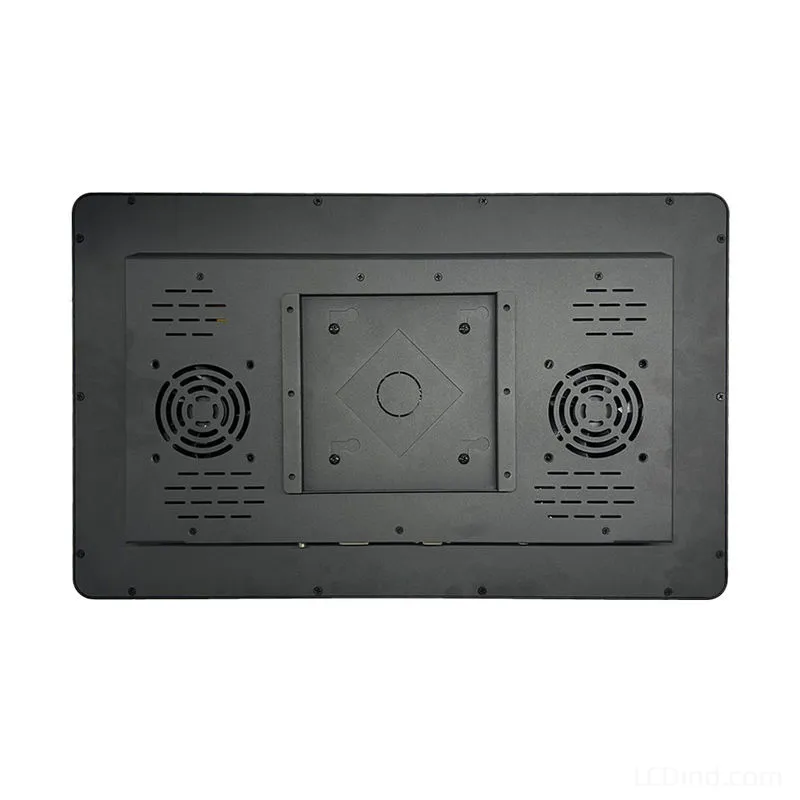

Hardware deployed in unshaded environments faces extreme thermal loads. This monitor is rated for a punishing operating temperature range of -20°C to 80°C. To actively manage heat dissipation, the ruggedized metal back enclosure is outfitted with dual integrated cooling fans.

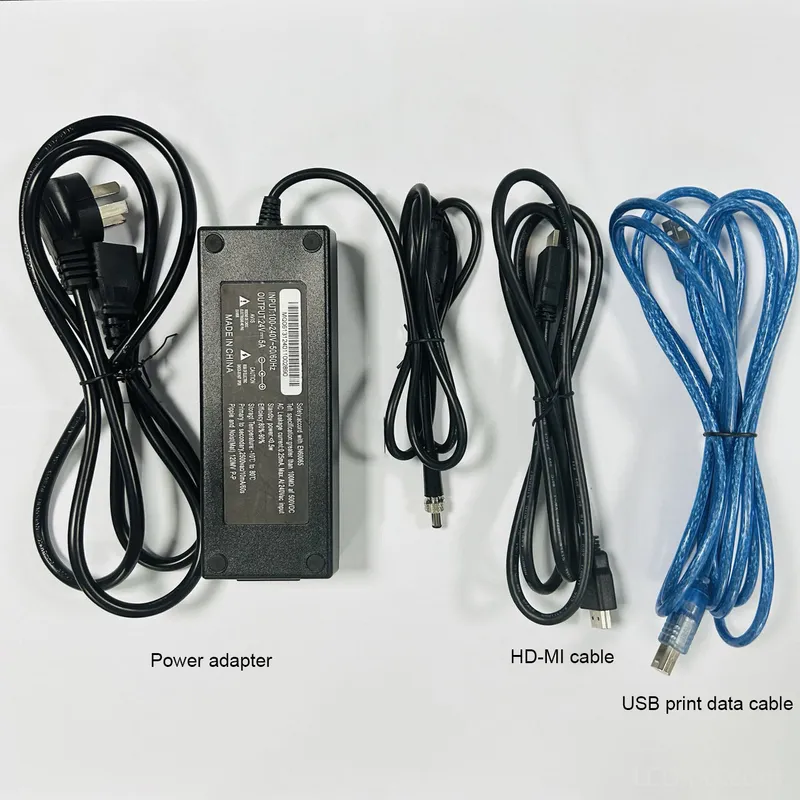

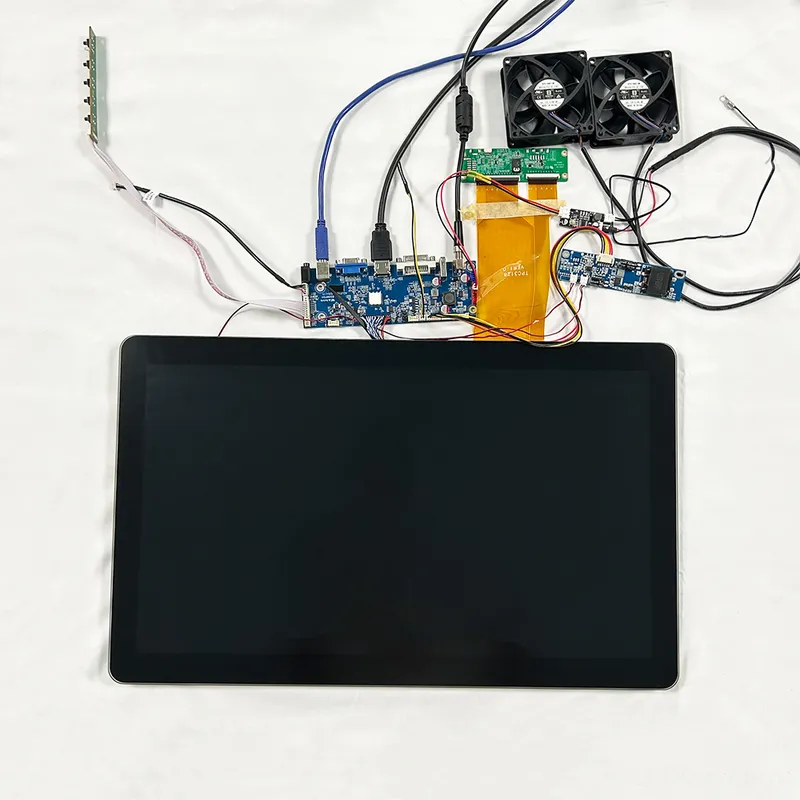

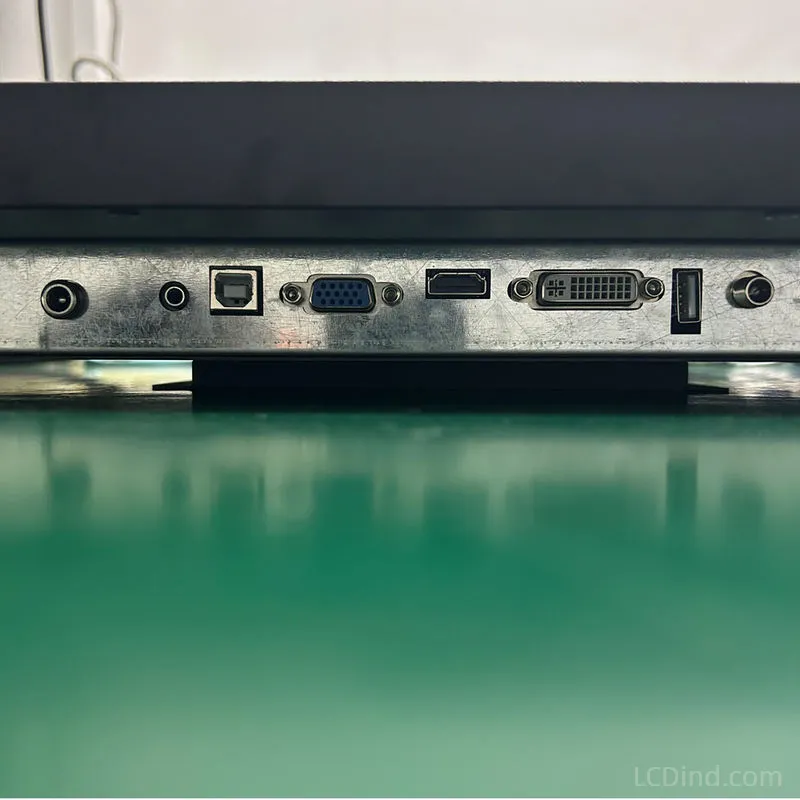

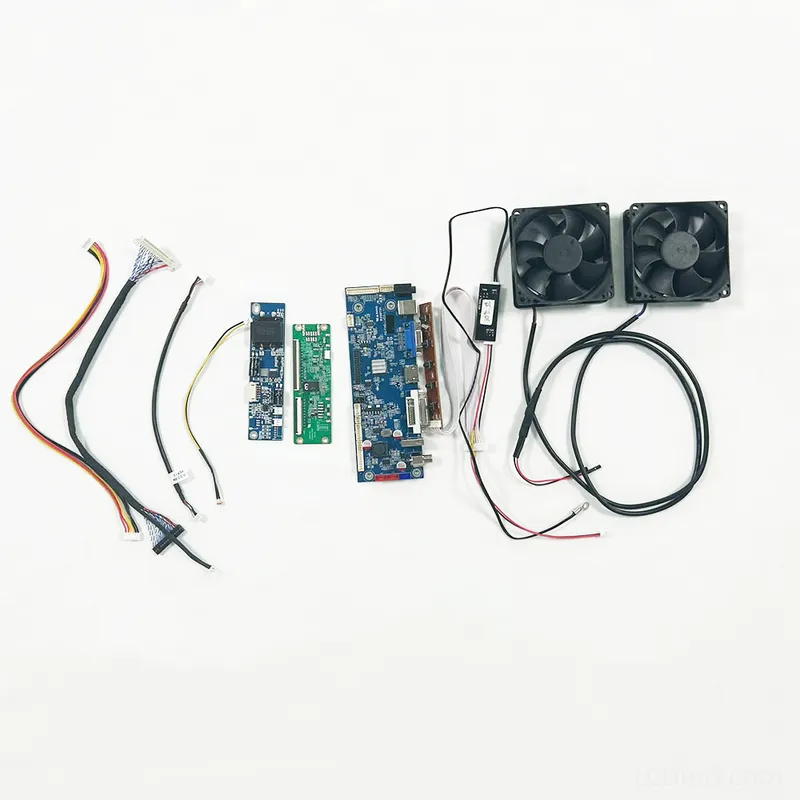

For system integration, the raw panel utilizes a high-speed 30-Pin LVDS interface (2 pixel/clock). The complete hardware kit simplifies deployment by including a dedicated driver board (supporting VGA, HDMI, and DVI inputs), a heavy-duty 24V power adapter, and a standard USB print data cable to instantly transmit capacitive touch data to your host PC or Raspberry Pi.
Technical Specifications
| Product Model | DBT215BHC30L100A |
| Display Size / Active Area | 21.5 Inch / 476.64(H) x 268.11(V) mm |
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 1000 nits (Sunlight Readable) |
| Touch Panel Technology | Capacitive Touch Panel (CTP), Fully Attached (LOCA) |
| Surface Treatment | AG:80 (Anti-Glare) |
| Panel Interface | LVDS (30 Pins, 2 pixel/clock) |
| Touch Interface | USB (via included USB Print Data Cable) |
| Display Colors / Mode | 16.7M (6-bit Hi-FRC) / Normally Black |
| Viewing Angle / Contrast | 89/89/89/89 (All Viewing) / 1000:1 |
| Operating Temperature | -20°C ~ 80°C |
| Cooling System | Dual Active Fans built into the back enclosure |
Engineering FAQ
Q: Why is LOCA optical bonding necessary for an outdoor touch screen?
A: Standard touch screens have a thin air gap between the outer glass and the LCD. In outdoor environments, temperature swings cause moisture in this air gap to condense, fogging the screen from the inside. LOCA (Liquid Optically Clear Adhesive) bonding completely fills this gap with solid resin. This prevents condensation, increases the physical strength of the thick cover glass against vandalism, and stops internal light reflection, vastly improving sunlight readability.
Q: How do I power and connect the touch interface for this monitor?
A: The display kit is designed for industrial plug-and-play. The monitor is powered by the included heavy-duty 24V DC power adapter. For the capacitive touch layer, simply connect the provided blue USB print data cable from the monitor directly into a standard USB port on your Windows PC, Linux machine, or Raspberry Pi. It relies on standard HID protocols.
Q: Can this monitor be mounted in a portrait (vertical) orientation?
A: Yes. The underlying TFT matrix is engineered to support both Landscape and Portrait orientations. Combined with its symmetrical 89/89/89/89 viewing angle, it will not suffer from color shifting or contrast loss when rotated vertically for applications like digital wayfinding kiosks or outdoor menu boards.
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 21.5 inchHigh-performance 21.5 inch industrial displays. Full HD 1080p, 1000+ nits sunlight readable, and open frame designs perfect for outdoor kiosks and signage. |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |
Q: Why is LOCA optical bonding necessary for an outdoor touch screen?
A: Standard touch screens have a thin air gap between the outer glass and the LCD. In outdoor environments, temperature swings cause moisture in this air gap to condense, fogging the screen from the inside. LOCA (Liquid Optically Clear Adhesive) bonding completely fills this gap with solid resin. This prevents condensation, increases the physical strength of the thick cover glass against vandalism, and stops internal light reflection, vastly improving sunlight readability.
Q: How do I power and connect the touch interface for this monitor?
A: The display kit is designed for industrial plug-and-play. The monitor is powered by the included heavy-duty 24V DC power adapter. For the capacitive touch layer, simply connect the provided blue USB print data cable from the monitor directly into a standard USB port on your Windows PC, Linux machine, or Raspberry Pi. It relies on standard HID protocols.
Q: Can this monitor be mounted in a portrait (vertical) orientation?
A: Yes. The underlying TFT matrix is engineered to support both Landscape and Portrait orientations. Combined with its symmetrical 89/89/89/89 viewing angle, it will not suffer from color shifting or contrast loss when rotated vertically for applications like digital wayfinding kiosks or outdoor menu boards.
