10.1 Inch 1920×1200 Touch Screen (850 nits) with GG5 Glass
Engineered for extreme durability and outdoor visibility, this 10.1 inch 1920×1200 touch screen module sets a new standard for rugged HMIs. It combines a sunlight-readable 850 nits IPS panel with Corning Gorilla Glass 5 (GG5), offering superior impact resistance compared to standard screens. Ideal for handheld medical devices, outdoor kiosks, and heavy machinery. Contact our engineering team below to get the full datasheet and integration support.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Panel Type | IPS |
| Resolution | 1920×1200 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
Rugged Clarity: 10.1″ WUXGA High Brightness Touch Module
The LCDind OEM Aptus series presents a premium 10.1 inch 1920×1200 touch screen designed for applications where failure is not an option. Unlike standard consumer tablets, this module integrates industrial-grade LVDS connectivity with a chemically strengthened front panel, ensuring reliable operation in harsh physical and lighting conditions.
1. Corning Gorilla Glass 5 (GG5) Protection
The defining feature of this display is its cover lens. Utilizing Corning Gorilla Glass 5, it withstands drops and impacts significantly better than standard soda-lime glass.
- Hardness: Surface hardness up to 6H-7H, resistant to keys, tools, and debris scratches.
- Impact Resistance: Designed to survive drops from 1.6 meters onto rough surfaces.
- Touch Tech: Uses a G+F+F structure with the ILI2511 IC for precise capacitive touch response, even with gloves.
2. Sunlight Readable 850 nits Brightness
Standard indoor screens average 250-300 nits, washing out under the sun. This module pumps out 850 cd/m² (Typ.), classifying it as a sunlight-readable display. Combined with IPS technology and an 80/80/80/80 viewing angle, operators can read critical data clearly from any position, even in direct daylight.
3. WUXGA Resolution (1920×1200)
Gain 11% more vertical screen real estate compared to standard 1080p screens. The 1920×1200 resolution (16:10 aspect ratio) provides sharper text and more room for complex UI controls, making it perfect for medical charts, navigation maps, and complex industrial dashboards.
4. Industrial Integration Ready
- Interface: 45-Pin LVDS ensures high-speed, low-noise data transmission suitable for industrial environments.
- Wide Temp: Operates reliably from -20°C to +70°C.
- Bonding: Comes with optical bonding (OCA) to reduce reflection and prevent condensation between layers.

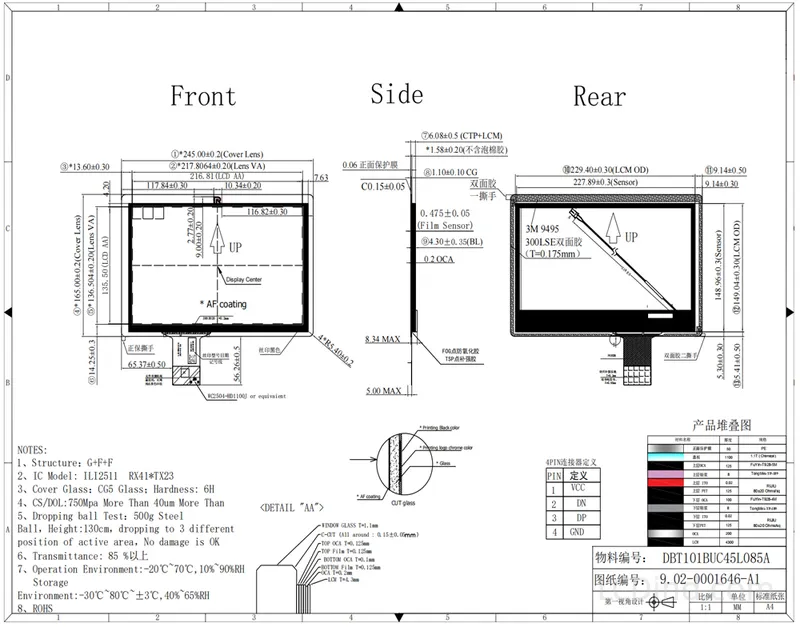

| Module Type | TFT LCD with Capacitive Touch (CTP) |
|---|---|
| Diagonal Size | 10.1 Inch |
| Resolution | 1920 x 1200 (WUXGA) |
| Pixel Pitch | 0.0376(W) x 0.1128(V) mm |
| Active Area | 216.8064(H) x 135.504(V) mm |
| Outline Dimension | 245.0 x 165.0 x 8.34 mm |
| Brightness | 850 cd/m² (High Brightness) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (IPS Free Angle) |
| Interface | LVDS (45 Pins) |
| Touch Panel Type | Capacitive (G+F+F), ILI2511 IC |
| Cover Glass | Corning Gorilla Glass 5 (GG5) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
Engineered for extreme durability, this 10.1 inch 1920×1200 touch screen module features a sunlight-readable 850 nits IPS panel protected by Corning Gorilla Glass 5 (GG5). Its high impact resistance and wide operating temperature range (-20°C to +70°C) make it the ideal choice for handheld medical devices, outdoor kiosks, and rugged industrial HMIs.
| Brand | LCDind |
|---|---|
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Panel Type | IPS |
| Resolution | 1920×1200 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
Q: What is the advantage of the 45-pin LVDS interface?
The 45-pin LVDS (Low-Voltage Differential Signaling) interface is standard for high-resolution industrial panels. It allows for high-speed data transmission of the 1920x1200 video signal with minimal electromagnetic interference (EMI), which is crucial for medical and industrial environments.
Q: Does the touch screen support multi-touch?
Yes, the Capacitive Touch Panel (CTP) utilizes the ILI2511 touch controller IC, which supports multi-touch gestures (zoom, pinch, rotate) and offers excellent compatibility with Windows, Android, and Linux systems via USB or I2C interfaces.
Q: Is this screen suitable for outdoor use?
Absolutely. With a brightness of 850 nits, it is readable in partial sunlight. Furthermore, the operating temperature range of -20°C to 70°C ensures it functions in cold winters and hot summers without the liquid crystals freezing or blackening.
Q: What is "GG5" mentioned in the specs?
GG5 stands for Corning Gorilla Glass 5. It is a chemically strengthened glass that offers up to 4x better drop performance than competitive glasses. This makes the module extremely resistant to accidental drops and heavy impacts, reducing field failure rates.
Q: Do I need a specific driver board?

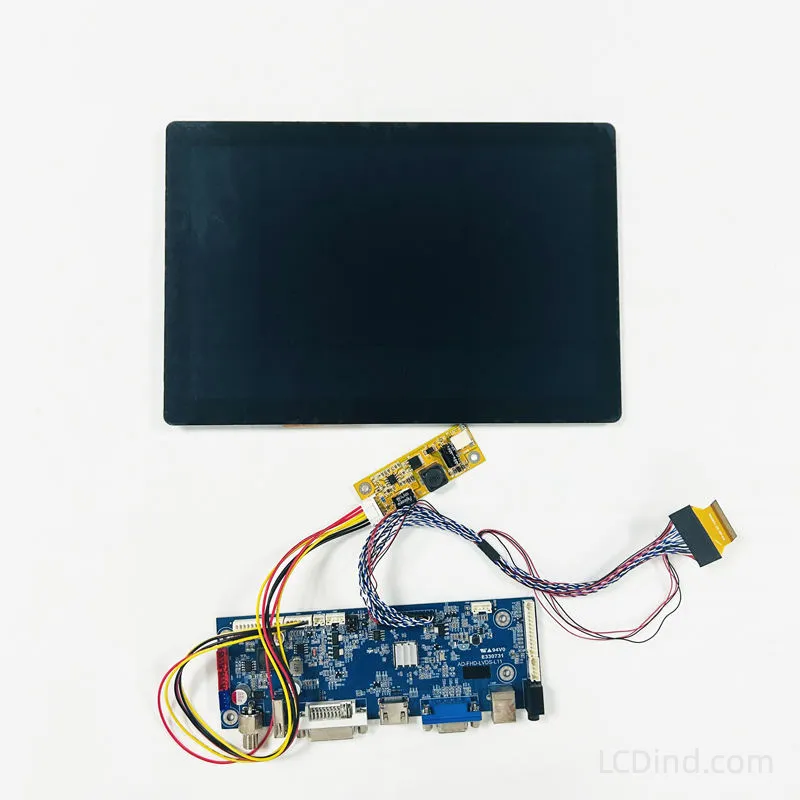

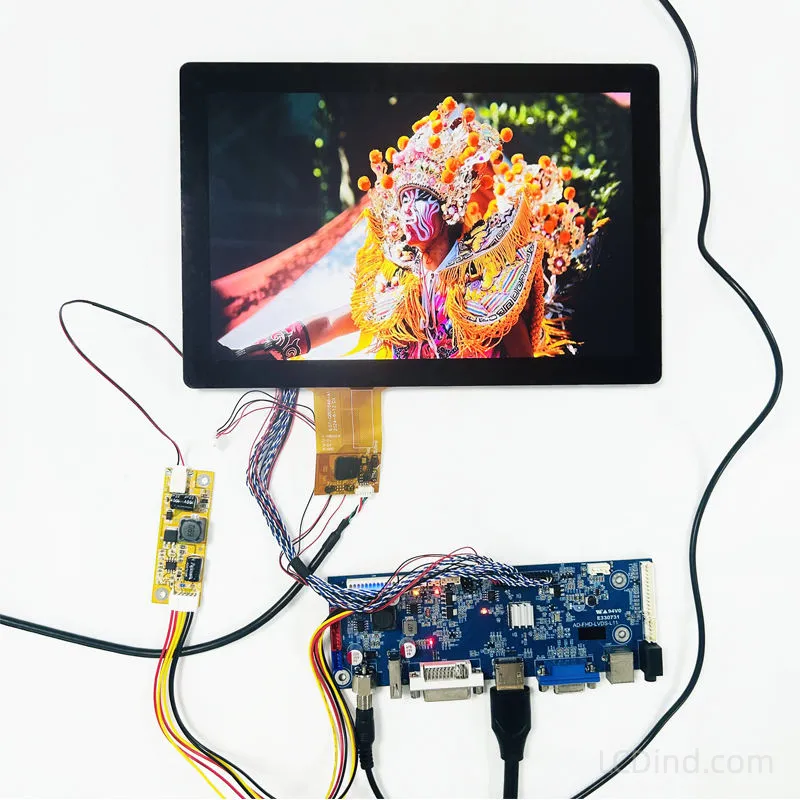

Yes. Since this is a raw panel module with an LVDS interface, you will need an LVDS driver board (like the one shown in the product photos) to connect it to HDMI or USB-C sources. We offer compatible controller boards; please ask our sales team for the "10.1 WUXGA Kit".
