32 Inch High Brightness LCD Module (1920×1080 FHD) 1500 Nits 51-Pin LVDS Interface
32 Inch High Brightness LCD Module (1920×1080 FHD). Engineered for outdoor visibility with 1500 Nits Ultra-High Brightness. Features 51-Pin LVDS Interface, 8-Bit Color, and Industrial Wide Temp support. The ultimate solution for Outdoor Kiosks and Digital Signage.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Panel Type | IPS |
| Interface | LVDS |
| Color Depth | 16.7M (8-bit) |
| Operating Temp | Industrial (-20 to +70°C) |
| Backlight | WLED (High Power) |
| Viewing Angle | All View / IPS |
32 Inch High Brightness LCD: Visibility Under the Sun
The 32 Inch High Brightness LCD Display Module is designed to overcome the challenge of direct sunlight. While standard screens wash out and become unreadable outdoors, this industrial-grade module delivers a powerful 1500 nits (cd/m²) of brightness, ensuring your digital signage, kiosk, or advertising content remains vibrant and legible in any lighting condition.
Why Choose This 32 Inch 1500 Nits LCD?
1. 1500 Nits Sunlight Readability Visibility is the #1 requirement for outdoor displays. With 1500 nits brightness, this screen is 5 times brighter than a standard desktop monitor.
-

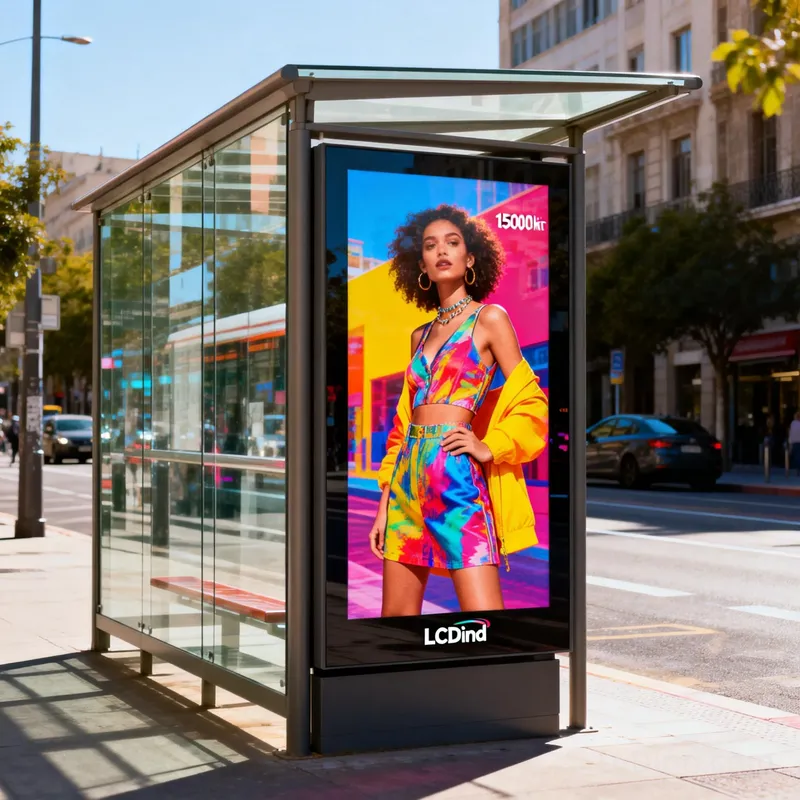

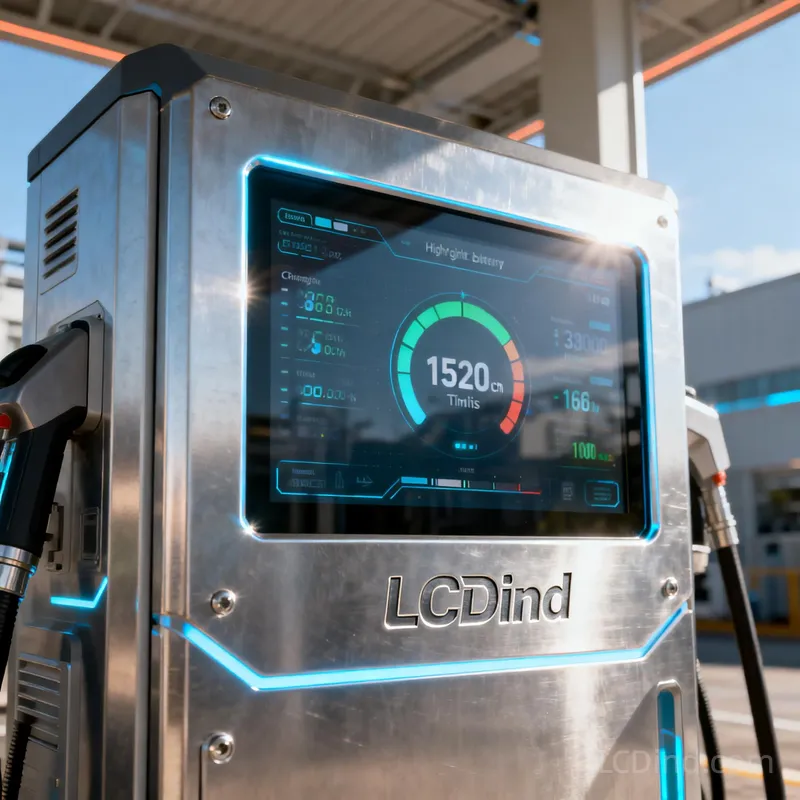

Benefit: It cuts through ambient light reflections, making it the perfect choice for outdoor menu boards, bus stop signage, and EV charging stations.
2. Standard 51-Pin LVDS Interface Built for industrial integration, the module utilizes the industry-standard 51-Pin LVDS interface.
-
Compatibility: It supports Dual Channel 8-bit data transmission, ensuring smooth 1080p video playback and broad compatibility with universal LCD driver boards and Android/Windows media players.
3. Industrial Reliability (-20°C to +70°C) Outdoor environments are harsh. This module features a wide operating temperature range of -20°C to +70°C.
-
TNI Technology: (Optional mention) High-brightness panels often use Hi-TNI liquid crystals to prevent the screen from turning black under direct solar heating.
4. 1080p FHD Resolution & IPS Angles The 1920×1080 Full HD resolution combined with IPS wide viewing angle technology ensures that your content looks sharp and colorful, regardless of whether the viewer is standing directly in front or to the side of the kiosk.
Detailed Specifications
| Model Name | 32 Inch High Brightness LCD |
|---|---|
| Display Size | 32.0 inch (Diagonal) |
| Resolution | 1920 (RGB) × 1080 (FHD) |
| Display Mode | IPS / Normally Black / Transmissive |
| Brightness | 1500 cd/m² (High Brightness) |
| Contrast Ratio | 1200:1 (Typ.) |
| Interface | LVDS (51 Pins) |
| Display Colors | 16.7M (8-bit) |
| Viewing Angle | 89/89/89/89 (IPS Full View) |
| Active Area | 698.4(H) × 392.85(V) mm |
| Surface Treatment | Anti-Glare (AG) |
| Operating Temp | -20°C ~ +70°C |
Build Your Outdoor Signage
Get the visibility your project deserves.
| Brand | LCDind |
|---|---|
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Resolution | 1920×1080 |
| Brightness | Sunlight Readable (1000+ nits) |
| Panel Type | IPS |
| Interface | LVDS |
| Color Depth | 16.7M (8-bit) |
| Operating Temp | Industrial (-20 to +70°C) |
| Backlight | WLED (High Power) |
| Viewing Angle | All View / IPS |
Why is 1500 nits necessary for outdoor displays?
Standard indoor screens usually have 300-400 nits brightness. When placed outdoors under direct sunlight (which can be 10,000+ lux), these screens look black or washed out. A 1500 nits high brightness display provides enough luminance to overpower the ambient light, ensuring your content remains readable and vibrant even on sunny days.
Does this module support automatic brightness dimming?
The LCD module itself has a fixed backlight structure, but the LED driver board (which we can supply) typically supports PWM or Analog dimming. We strongly recommend using an ambient light sensor with your controller to automatically lower the brightness at night. This prevents "light pollution" glare and significantly extends the lifespan of the LED backlight.
How should I manage the heat generated by the backlight?

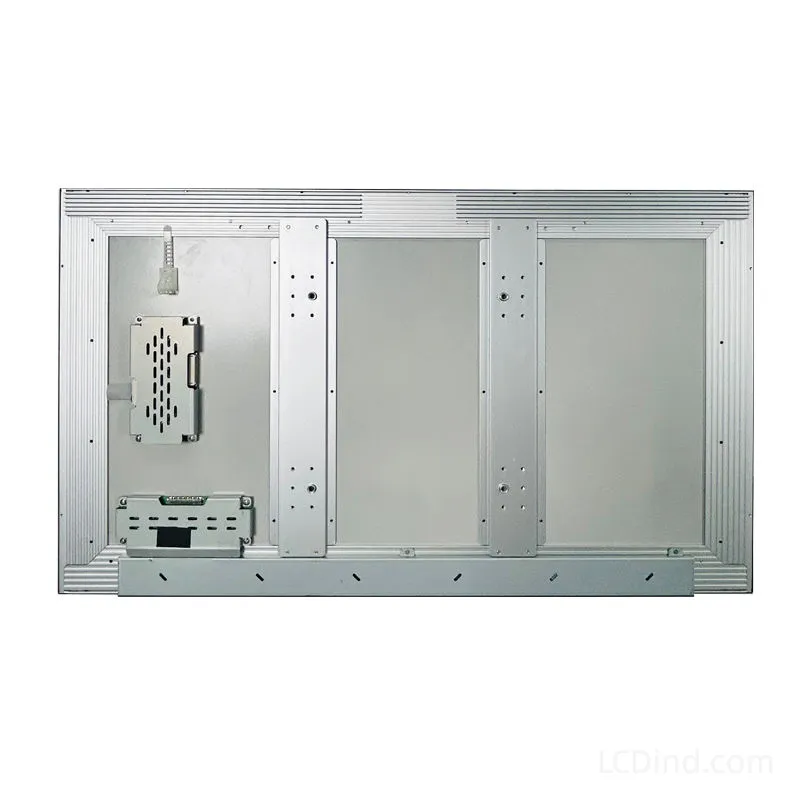

High brightness LEDs generate significant heat. While our 32-inch module uses an aluminum back chassis for efficient heat dissipation, for the final enclosure (kiosk), we recommend incorporating active cooling (fans) or ensuring adequate airflow design to keep the internal temperature within the operating range (-20°C to +70°C).
What implies the "51 Pin LVDS" interface?
The 51-Pin LVDS connector is an industry standard for 32-inch FHD panels. It transmits 2-channel 8-bit LVDS signals along with power for the logic board. Note that the high-power LED backlight usually requires a separate connector (from the constant current driver) to handle the higher voltage/current needed for 1500 nits.
Can I install this screen in portrait (vertical) mode?
Yes. The panel uses IPS technology which allows for wide viewing angles (89/89/89/89). It can be mounted in both Landscape (horizontal) and Portrait (vertical) orientations without color inversion, making it perfect for totem kiosks and vertical advertising players.
