22 Inch Bar Type LCD (2560×1024) – 1000 nits Stretched Display

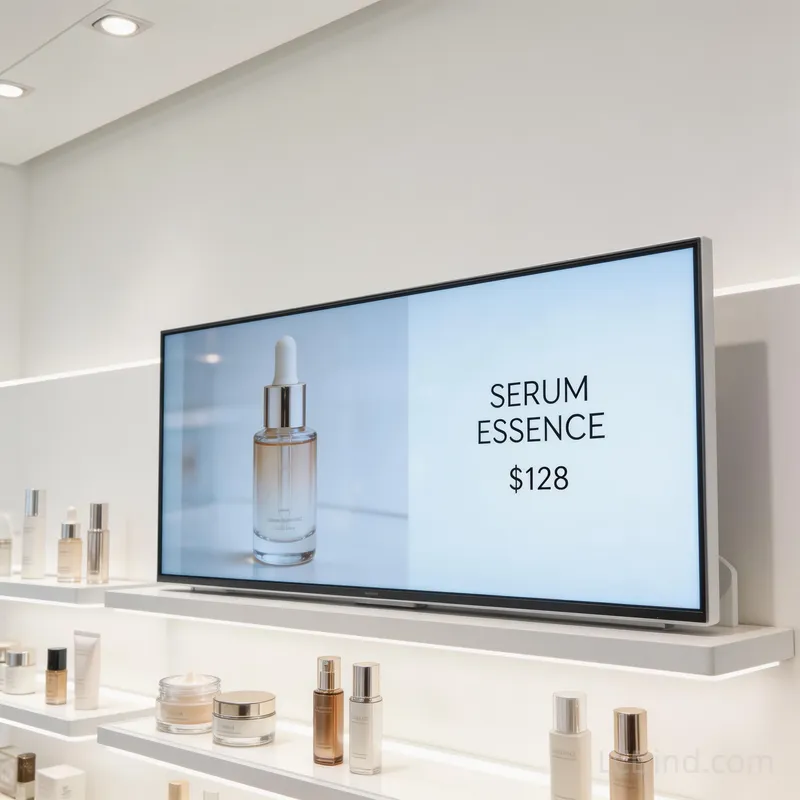

Capture attention with this 22 inch Bar Type LCD. Featuring a unique stretched aspect ratio and a crisp 2560×1024 QHD resolution, this module is engineered for casino gaming headers, shelf-edge digital signage, and industrial ultra-wide dashboards. With 1000 nits brightness, it delivers vivid visuals even in brightly lit environments.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 2560×1024 |
| Size | 22.0 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
Ultra-Wide Visual Impact: 22″ QHD Stretched Display
Standard aspect ratios don’t fit every application. The LCDind 22 inch Bar Type LCD (Model DBC220AZN40) offers a specialized ultra-wide form factor without compromising on quality. Boasting a 2560×1024 resolution, it provides a pixel density that ensures text and graphics are razor-sharp, making it the preferred choice for slot machine headers and retail shelf strips.
1. High Brightness & IPS Technology
Designed for visual dominance, this panel features:
- 1000 nits Luminance: High brightness backlight ensures visibility in brightly lit casinos or shopping malls.
- IPS All Viewing Angles: With 89/89/89/89 viewing angles, the color remains accurate whether viewed from above, below, or the sides.
2. QHD Resolution (2560×1024)
Unlike standard lower-resolution bar screens, this module supports 2560 RGB x 1024 pixels.
- 16.7M Colors: Supports 8-bit color depth (RGB 6-bits + Hi-FRC) for smooth gradients.
- Detail: Perfect for displaying complex gaming graphics or detailed product information.
3. Industrial Interface & Integration
- Interface: Uses a 4-Channel LVDS interface to handle the high-bandwidth QHD data transmission.

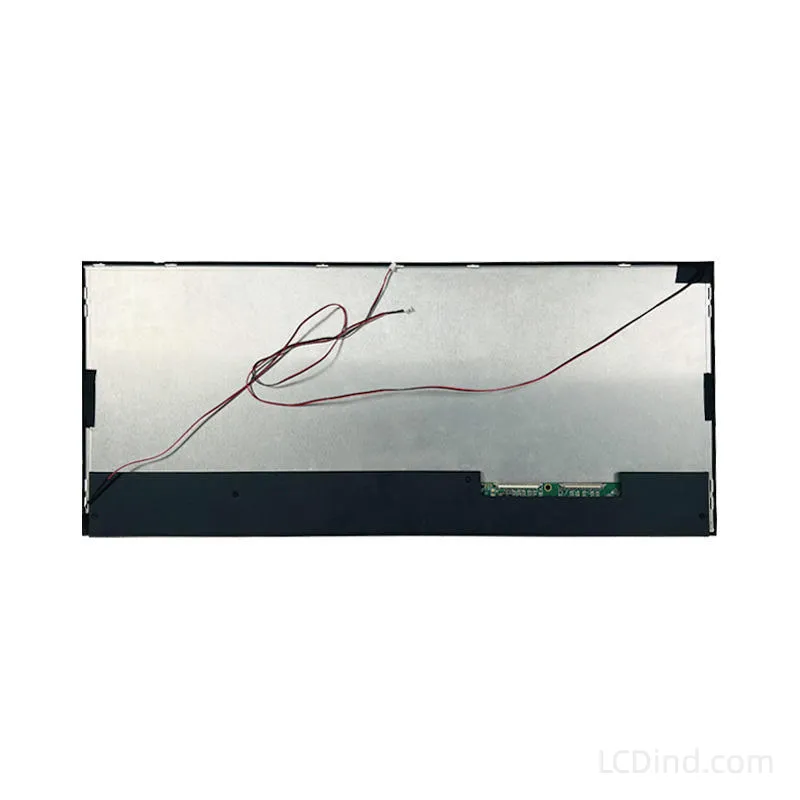

- Dimensions: Outline dimension of 550.00 x 236.00 x 14.00 mm with an active area of 526.85 x 210.74 mm.

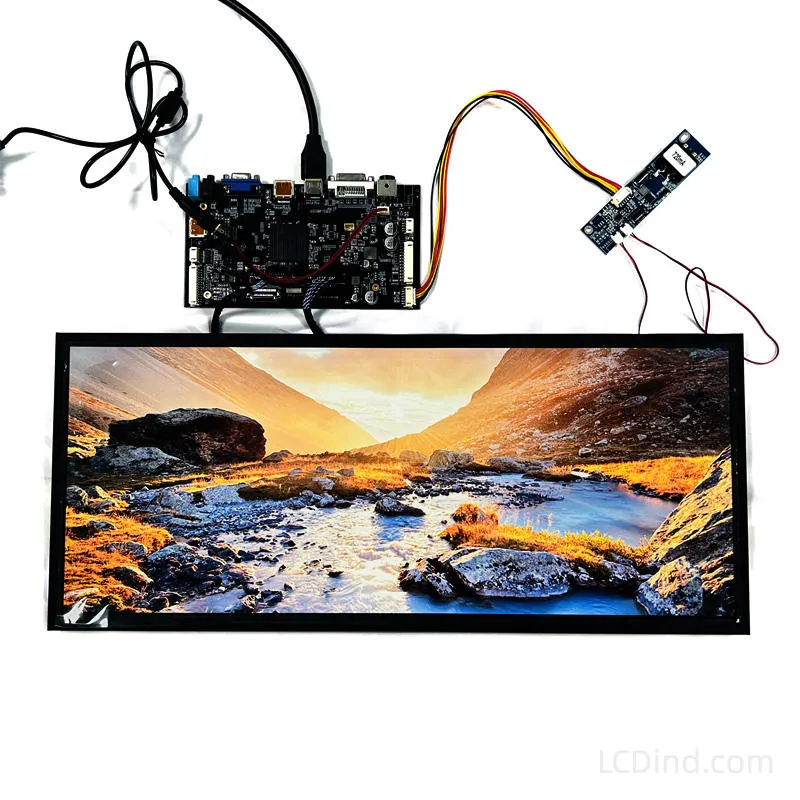

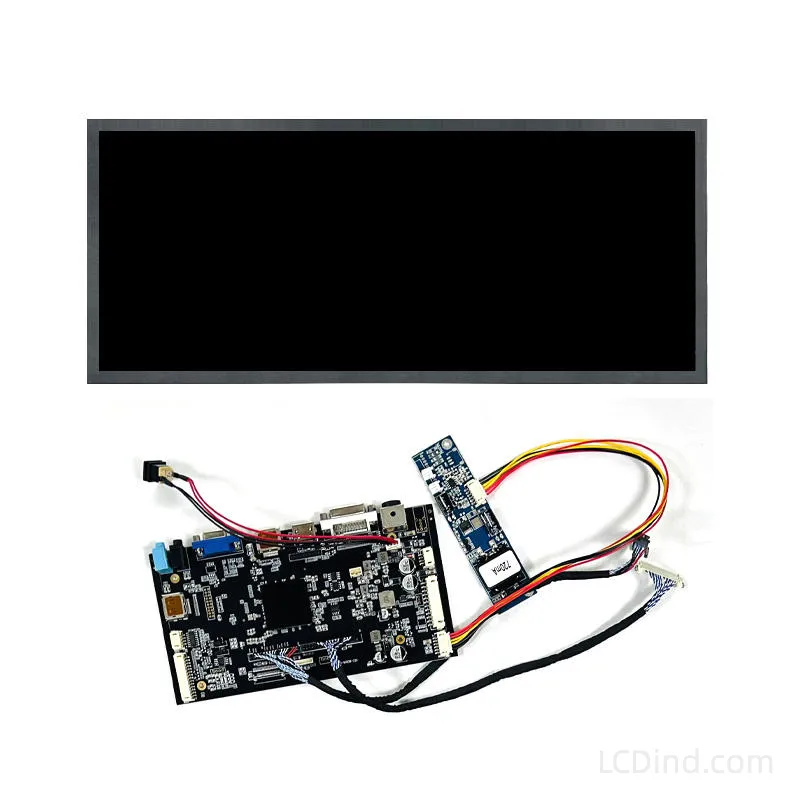

- Plug & Play Kit: We offer a compatible HDMI driver board (shown in images) to make prototyping easy.
| Display Specifications | |
|---|---|
| Panel Brand | LCDind / OEM |
| Panel Model | DBC220AZN40-30L100A |
| Panel Size | 22.0 Inch (Bar Type) |
| Resolution | 2560(RGB) x 1024 (QHD) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (IPS) |
| Display Colors | 16.7M (RGB 6-bit + Hi-FRC) |
| Interface | LVDS (4 ch, 8-bit) |
| Response Time | 14 ms (Typ.) |
| Active Area | 526.85(H) x 210.74(V) mm |
| Outline Dimension | 550.00 x 236.00 x 14.00 mm |
| Operating Temp | 0°C ~ +50°C |
Q: What is a “Bar Type” or “Stretched” LCD?
A bar type LCD is a screen with a non-standard ultra-wide aspect ratio (like a strip). It is cut or manufactured specifically to fit into narrow spaces like shelves or machine headers where a standard 16:9 screen wouldn’t fit.
Q: Does this screen require a special driver board?
Because it uses a 4-Channel LVDS interface and has a unique 2560×1024 resolution, it requires a driver board capable of handling this specific timing (EDID). We highly recommend purchasing our matched HDMI driver board kit to ensure compatibility.
Q: Can I use this in portrait mode?
Yes, IPS technology allows the screen to be mounted in either landscape (horizontal) or portrait (vertical) orientation without color distortion.
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 2560×1024 |
| Size | 22.0 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
Q: What is a "Bar Type" or "Stretched" LCD?
A bar type LCD is a screen with a non-standard ultra-wide aspect ratio (like a strip). It is cut or manufactured specifically to fit into narrow spaces like shelves or machine headers where a standard 16:9 screen wouldn't fit.
Q: Does this screen require a special driver board?
Because it uses a 4-Channel LVDS interface and has a unique 2560x1024 resolution, it requires a driver board capable of handling this specific timing (EDID). We highly recommend purchasing our matched HDMI driver board kit to ensure compatibility.
Q: Can I use this in portrait mode?
Yes, IPS technology allows the screen to be mounted in either landscape (horizontal) or portrait (vertical) orientation without color distortion.
