12.3 Inch Automotive Grade LCD Display (1920×720) IPS | FPD-Link Touch Screen Solution for Car Dashboard
Engineered for the rigorous demands of the automotive industry, this 12.3 Inch Automotive Grade LCD Display delivers the reliability your vehicle needs. Featuring an ultra-wide -30°C to +85°C operating temperature range and a panoramic 1920×720 resolution, it is the ideal replacement for modern Car Dashboard Clusters and Infotainment systems. This complete solution includes a bonded Capacitive Touch Panel (CTP) and supports the robust FPD-Link interface, ensuring interference-free video transmission even in complex vehicle electronics environments.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
Redefining the Drive: 12.3 Inch Automotive Grade LCD Display
In the automotive world, failure is not an option. That’s why our 12.3 Inch Automotive Grade LCD Display is built to withstand extreme environments while delivering the sleek, high-definition visuals drivers expect. With a 1920×720 resolution and a 1100:1 contrast ratio, this IPS module offers deep blacks and vibrant colors, making it perfect for both Digital Instrument Clusters and passenger entertainment screens.
True Automotive Reliability (-30°C to 85°C)
Consumer tablets cannot survive in a car. This module features a Wide Temperature Range of -30°C to +85°C.
-
Winter Ready: Instant start-up and fast response times even in freezing sub-zero conditions.
-
Summer Proof: Resistant to the extreme heat buildup on dashboards under direct sunlight.

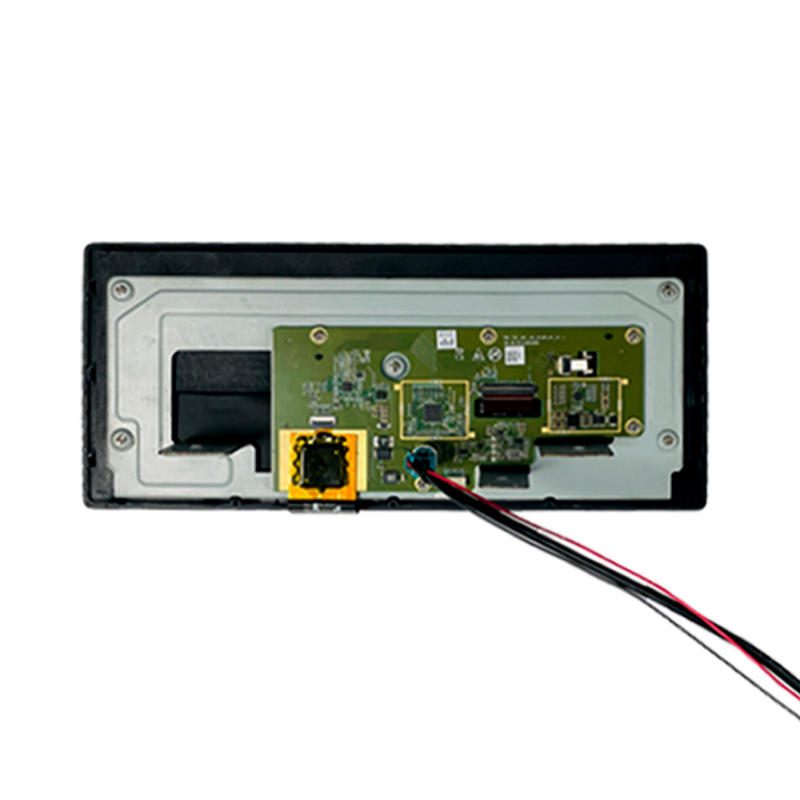

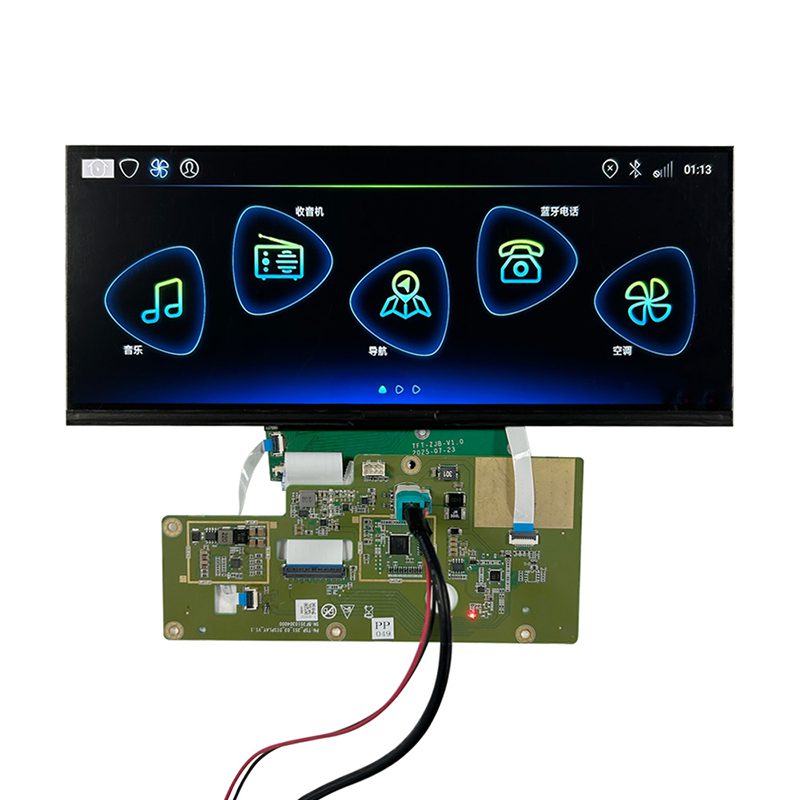

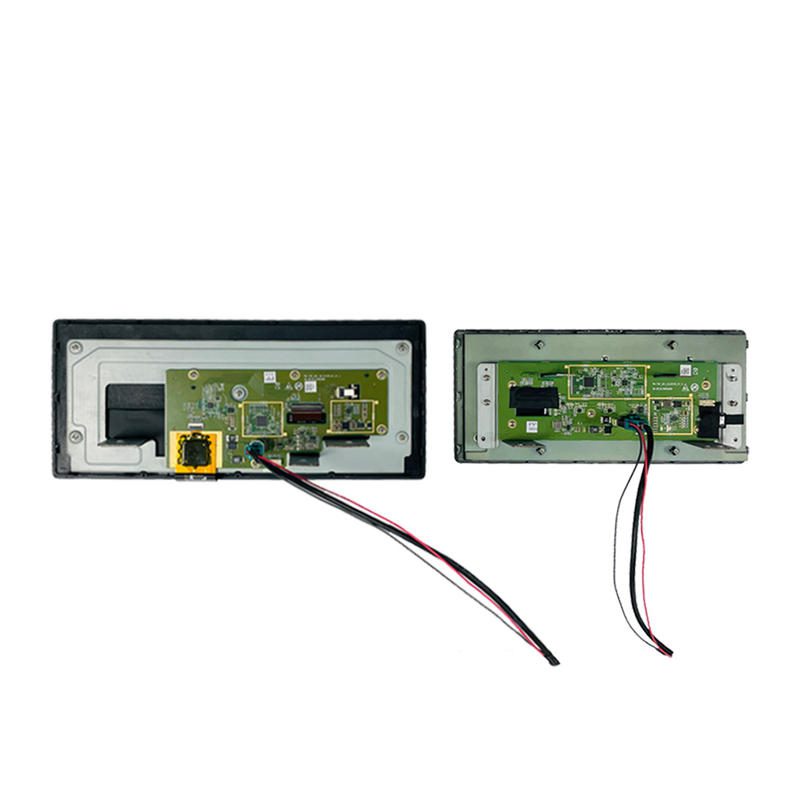

FPD-Link & Touch Solution
We provide more than just a panel. This is a turnkey HMI Solution featuring:
-

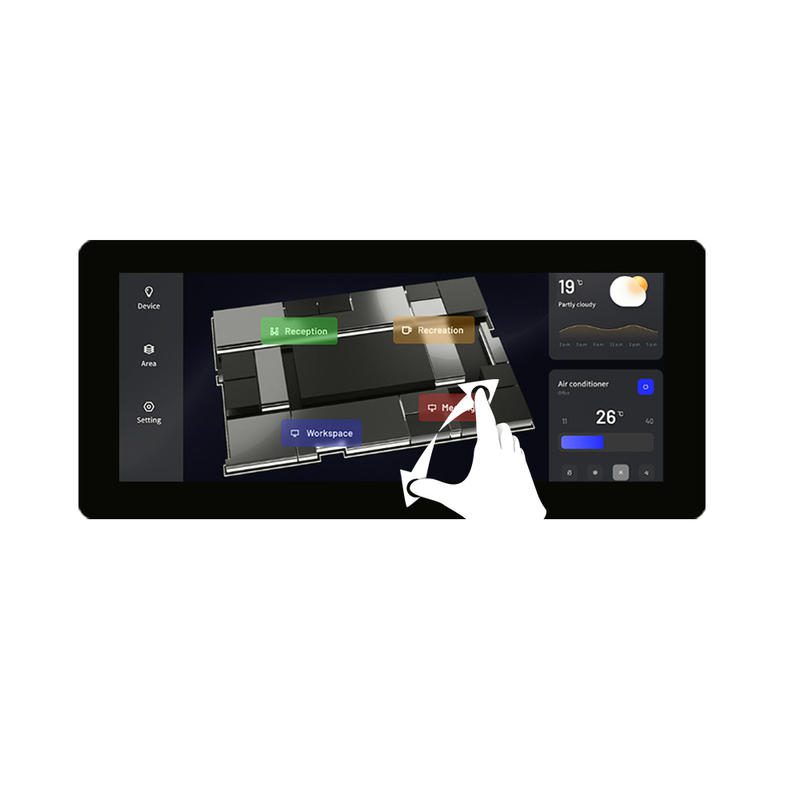

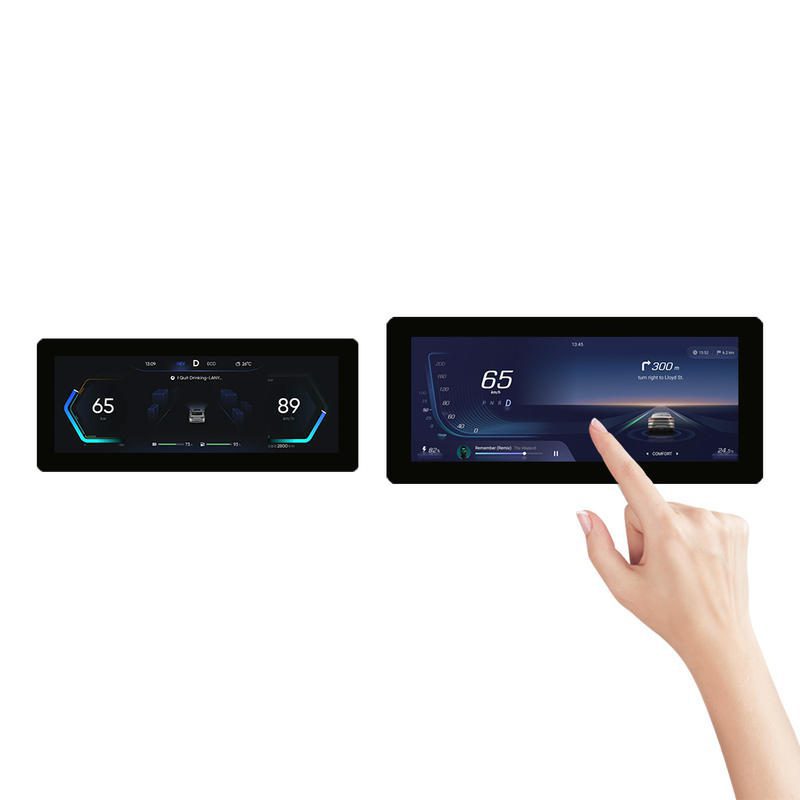

Projected Capacitive Touch (CTP): Optical bonded for minimal reflection and responsive multi-touch control, essential for modern navigation and climate control interfaces.
-
FPD-Link Interface: Unlike standard LVDS which degrades over long cables, our solution supports FPD-Link (Flat Panel Display Link). This automotive-standard protocol allows for high-speed video transmission over robust coaxial cables, ensuring zero signal loss between your ECU and the dashboard.
Detailed Specifications
| Feature | Specification |
| Product Name | 12.3 Inch Automotive Grade LCD Display |
| Resolution | 1920 (RGB) × 720 |

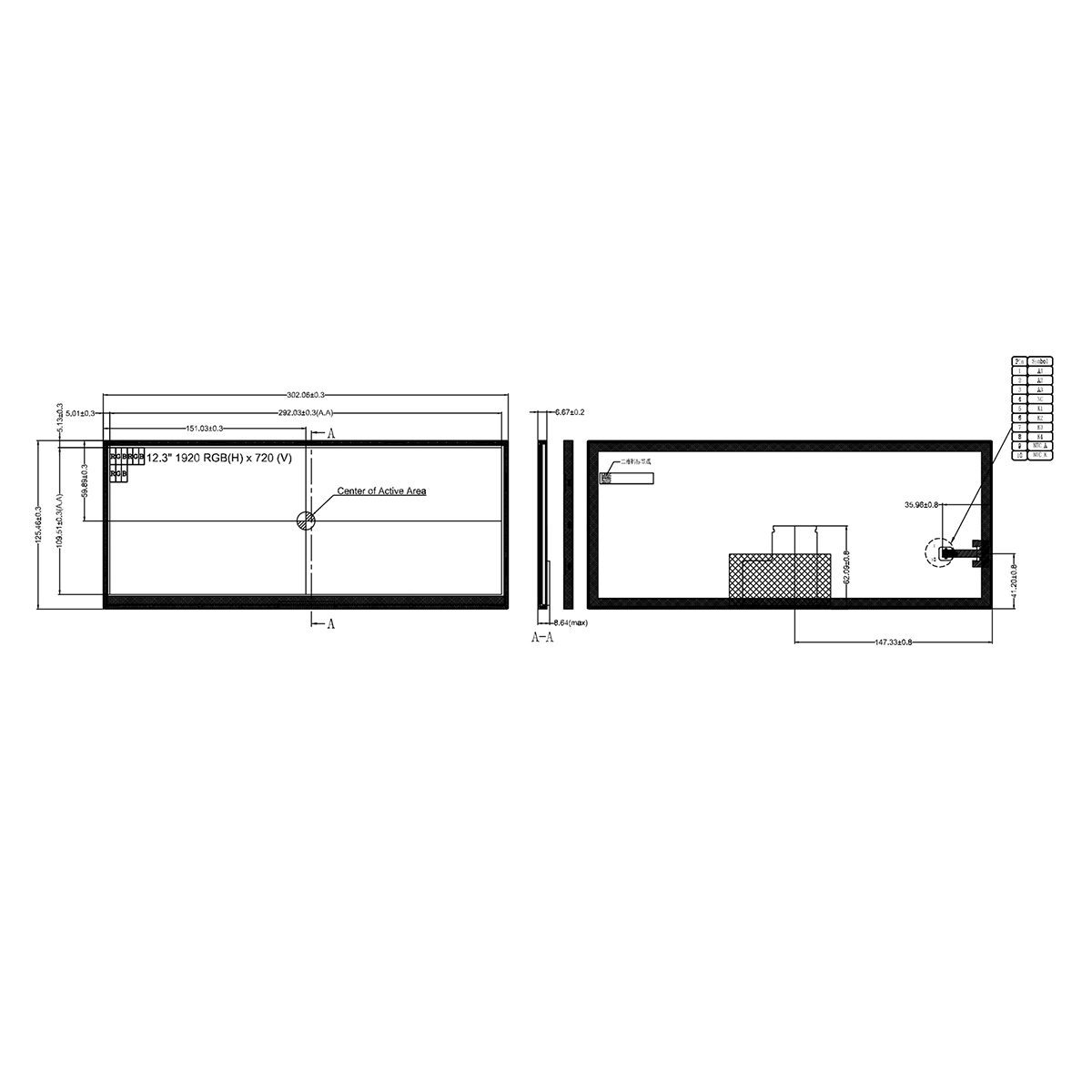

| Active Area | 292.03 × 109.51 mm |
| Aspect Ratio | 8:3 (Bar Type) |
| Brightness | Standard / High Brightness Options |
| Contrast Ratio | 1100:1 (Typ.) |

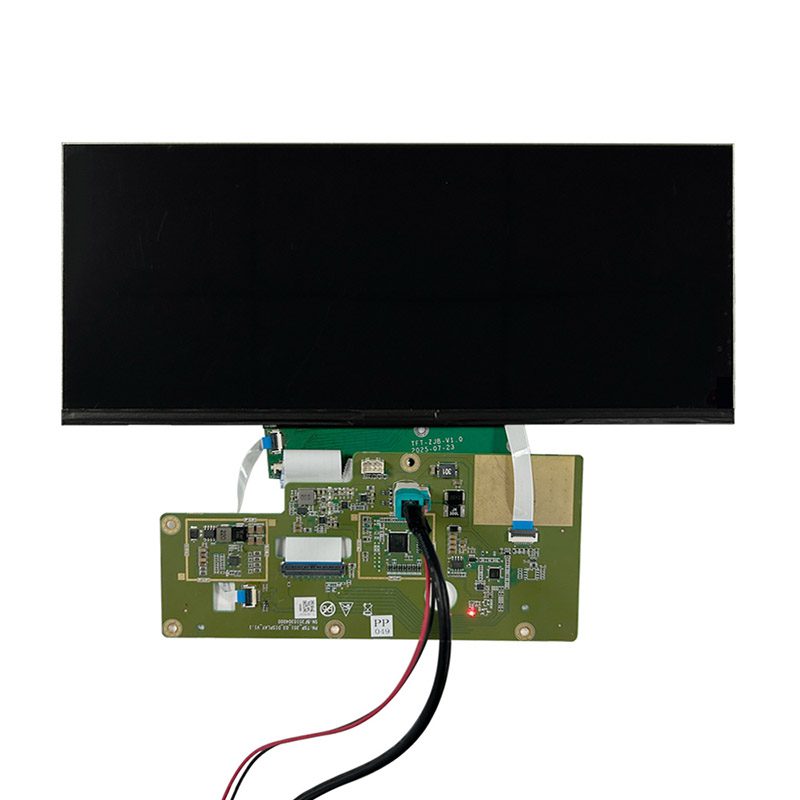

| Interface | 60-Pin LVDS / FPD-Link Board |
| Touch Panel | CTP (Capacitive) Included |
| Operating Temp | -30°C ~ +85°C |
Ideal Applications
-

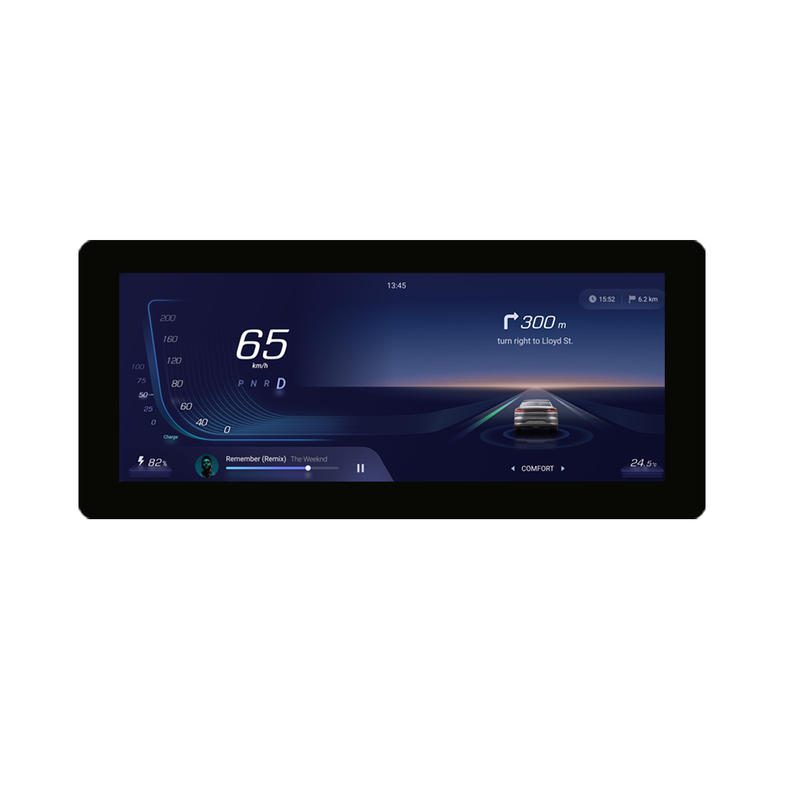

Car Dashboard Replacement: Upgrade vintage analog gauges to a modern “Virtual Cockpit”.
-
EV Infotainment: Central control screens for electric vehicles.
-
Heavy Machinery: Rugged displays for excavators and agricultural equipment.
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
Can I use this screen for a DIY Car Dashboard project?
Yes! This 12.3 Inch Automotive Grade LCD is a favorite among car modders. The 1920x720 resolution is supported by dashboard software like RealDash (running on Android or Linux). The wide temperature range ensures it won't fail when your car is parked outside.
What is the advantage of FPD-Link over HDMI?
HDMI connectors can vibrate loose in a moving vehicle. FPD-Link uses locking automotive connectors and transmits data over shielded coaxial cables. It is designed specifically to resist the EMI (Electromagnetic Interference) and vibrations found in cars, making it much more reliable than HDMI for vehicle use.
Is this display sunlight readable?
The high contrast ratio of 1100:1 helps with visibility. For convertible cars or open cockpits, please ask our sales team about our Optical Bonding and High Brightness Backlight customization options to ensure perfect readability under direct sun.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
