7 Inch FHD Incell LCD Module 1080×1920 IPS LTPS High Contrast Touch
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | |
| Touch Panel | In-Cell Capacitive Touch |
| Technology | LTPS TFT (Low Temperature Poly-Silicon) |
| Brightness | High Brightness (500-900 nits) |
| Interface | MIPI |
| Outline Dimension | 89.33 × 160.07 × 1.39 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |

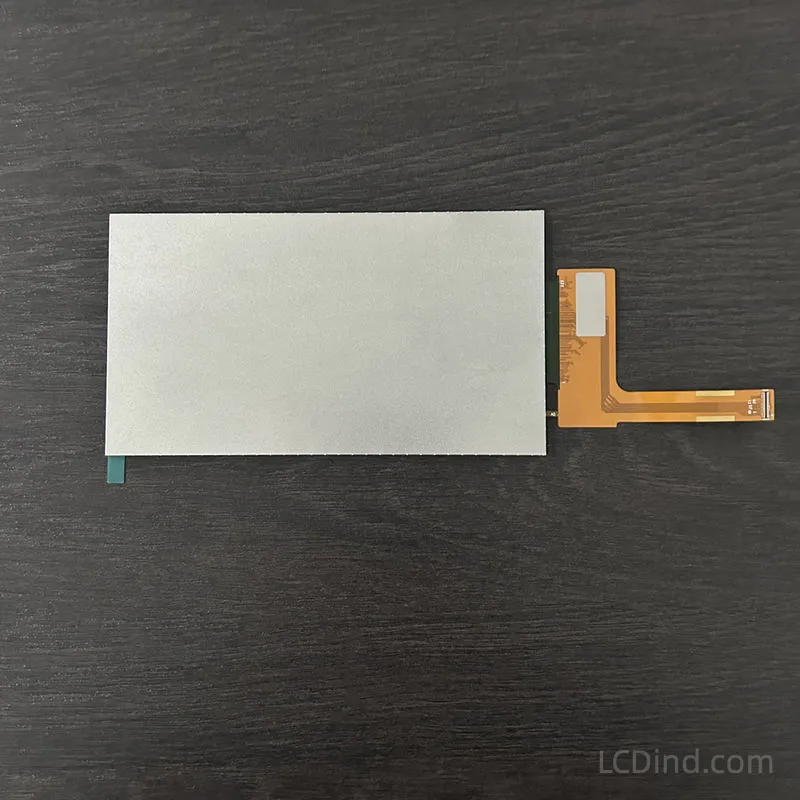

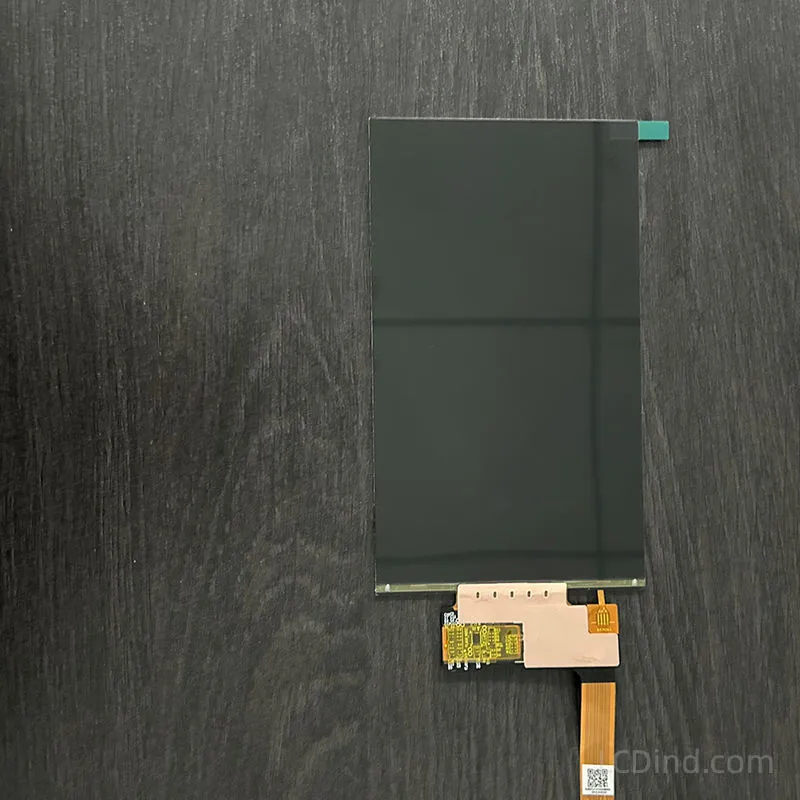

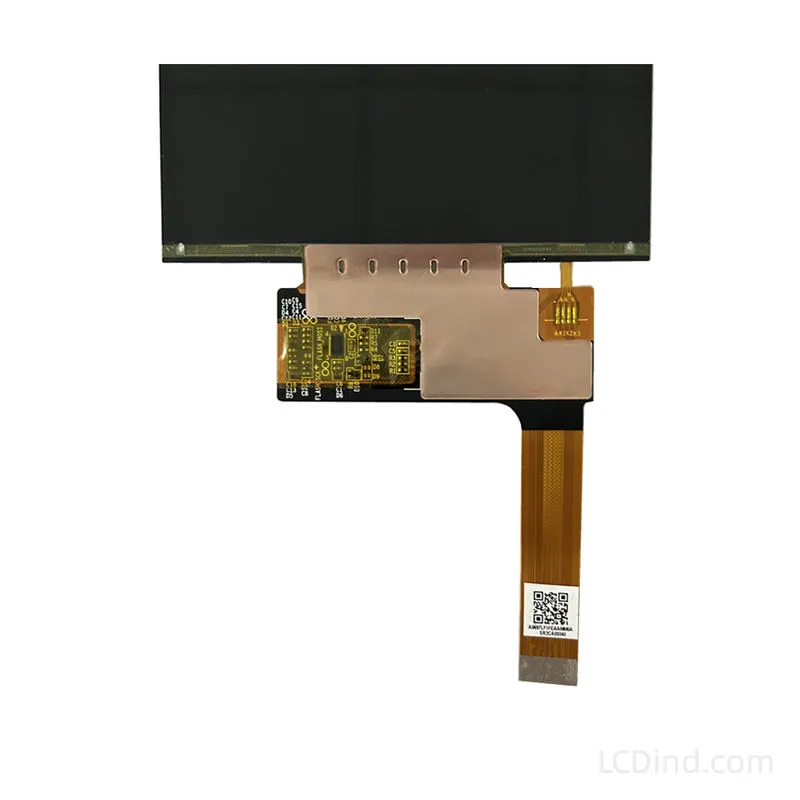

7 Inch FHD Incell LCD Module: Premium Visuals, Integrated Touch
The 7 Inch FHD Incell LCD Module represents the cutting edge of small-format display technology. Utilizing LTPS (Low Temperature Poly-Silicon) manufacturing and In-Cell Touch technology, this 1080×1920 portrait display offers smartphone-grade clarity, responsiveness, and slimness for industrial and smart home applications.
Why Choose This 7 Inch FHD Incell LCD?
1. Stunning 1080×1920 FHD Resolution
Don’t compromise on pixel density. This 7 Inch FHD Incell LCD packs 1920×1080 pixels into a 7-inch area. The result is an incredibly sharp image with no visible pixelation, perfect for displaying high-end UI graphics, video content, and detailed text.
2. Advanced In-Cell Touch Technology
Unlike traditional screens where the touch panel is glued on top, In-Cell technology integrates the touch sensor directly into the LCD pixels.
-
Thinner Profile: The module is incredibly thin (only 1.39mm thick).
-
Better Optics: Eliminates the air gap and adhesive layers, resulting in higher light transmission and less reflection.
3. LTPS Panel with High Contrast
Built on LTPS technology, this screen outperforms standard a-Si TFTs. It delivers a 1000:1 contrast ratio and 600 nits brightness, ensuring deep blacks and vivid colors that pop, even in bright environments.
Detailed Specifications
| Feature | Specification |
| Model Name | 7 Inch FHD Incell LCD |
| Resolution | 1080 (H) × 1920 (V) |
| Panel Type | LTPS IPS |
| Touch Tech | In-Cell Capacitive |
| Brightness | 600 cd/m² |
| Contrast Ratio | 1000:1 |
| Active Area | 86.83 × 154.37 mm |
| Module Thickness | 1.39 mm (Ultra Thin) |
| Interface | MIPI |
Engineering FAQ
Q: What interface does this FHD screen use?
A: High-resolution LTPS screens like this almost universally use a MIPI DSI (4-Lane) interface to handle the high data bandwidth required for 1080p at 60Hz. It is designed to work with advanced processors (Rockchip RK3399/3588, Qualcomm, MediaTek).
Q: Can I use this in Landscape mode (1920×1080)?
A: Yes. The native scan is Portrait (1080×1920), but you can rotate the orientation via software (Linux/Android) to use it as a Landscape display. The IPS full viewing angles (80/80/80/80) ensure the image looks perfect in any orientation.
Q: Do I need a separate touch controller board?
A: In-Cell screens usually output touch data (I2C) via the same FPC connector as the video signal, or a separate small tail. Please refer to the pinout in the datasheet for the specific Touch I2C pins (SDA, SCL, INT, RST).
Elevate Your HMI Design
Experience the difference of LTPS and In-Cell technology.
| Brand | LCDind |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | |
| Touch Panel | In-Cell Capacitive Touch |
| Technology | LTPS TFT (Low Temperature Poly-Silicon) |
| Brightness | High Brightness (500-900 nits) |
| Interface | MIPI |
| Outline Dimension | 89.33 × 160.07 × 1.39 mm |
| Viewing Angle | All View / IPS |
| Operating Temp | Industrial (-20 to +70°C) |
Q: What interface does this FHD screen use?
A: High-resolution LTPS screens like this almost universally use a MIPI DSI (4-Lane) interface to handle the high data bandwidth required for 1080p at 60Hz. It is designed to work with advanced processors (Rockchip RK3399/3588, Qualcomm, MediaTek).
Q: Can I use this in Landscape mode (1920x1080)?
A: Yes. The native scan is Portrait (1080x1920), but you can rotate the orientation via software (Linux/Android) to use it as a Landscape display. The IPS full viewing angles (80/80/80/80) ensure the image looks perfect in any orientation.
Q: Do I need a separate touch controller board?
A: In-Cell screens usually output touch data (I2C) via the same FPC connector as the video signal, or a separate small tail. Please refer to the pinout in the datasheet for the specific Touch I2C pins (SDA, SCL, INT, RST).
