15.6 Inch FHD LCD Module 1920×1080 30Pin eDP High Quality Replacement Screen
High Quality 15.6 Inch FHD LCD Module (1920×1080). Features standard 30-Pin eDP Interface and Wide Viewing Angles (IPS level). The ideal drop-in Replacement Screen for mainstream laptops and industrial IT equipment.
Product Attributes
| Size | 15.6 inch |
|---|---|
| Brand | BOE |
| Resolution | 1920×1080 |
| Interface | eDP |
| Panel Type | IPS |
| Brightness | Standard (200-450 nits) |
| Surface | Glare / Matte |
| Connector Location: | Bottom Right (Standard for most 15.6″) |
15.6 Inch FHD LCD Module: The Definitive Replacement Standard
The 15.6 Inch LCD Module (1920×1080) is the industry’s most ubiquitous display format, serving as the standard replacement panel for countless laptop models and industrial computing systems manufactured over the last decade. This high-quality module is designed as a direct, drop-in replacement, ensuring compatibility and restoring visual clarity.
Why Choose This 15.6″ Replacement Module?
1. Universal 30-Pin eDP Compatibility
The critical spec for compatibility is the 30-Pin eDP (Embedded DisplayPort) interface.
-
Industry Standard: This 30-pin connector is the standard for most 15.6-inch screens with resolutions up to 1920×1080 (FHD).
-
Plug & Play: If your existing broken screen is 15.6″, FHD, and uses a 30-pin connector located on the bottom right, this module is 99% guaranteed to be a direct plug-and-play replacement without requiring firmware changes.
2. High-Quality FHD Visuals (IPS Level)
Don’t settle for dim, washed-out TN panels. “High Quality” means this module delivers:
-
Sharp Resolution: Full HD 1920×1080 pixels for crisp text and detailed images.
-
Wide Viewing Angles: Utilizing IPS (or equivalent FFS) technology, the screen maintains accurate colors and contrast even when viewed from the side, a significant upgrade over basic stock screens.
3. Reliable Supply for Repair Operations
For IT service departments and refurbishment centers, consistency is key. We provide stable batches of A+ grade panels, ensuring that every repair meets OEM standards.
Detailed Specifications
| Feature | Specification |
| Model Name | 15.6 Inch FHD LCD Module |
| Resolution | 1920 (RGB) × 1080 (FHD) |
| Aspect Ratio | 16:9 Widescreen |
| Interface | 30-Pin eDP (1 Lane or 2 Lane) |
| Display Mode | IPS/FFS, Normally Black |
| Brightness | 250 cd/m² (Typ.) |

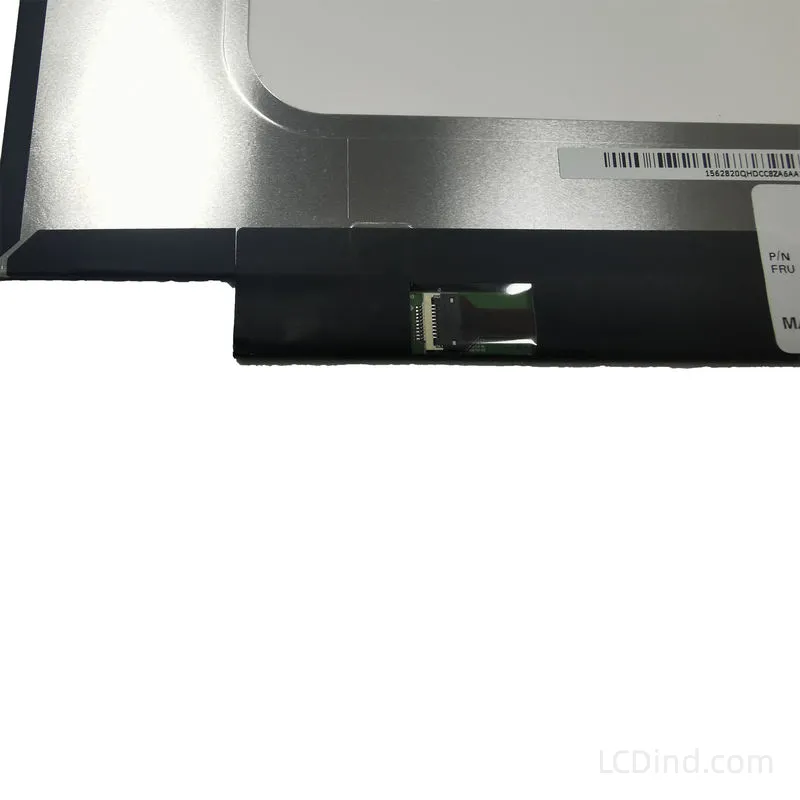

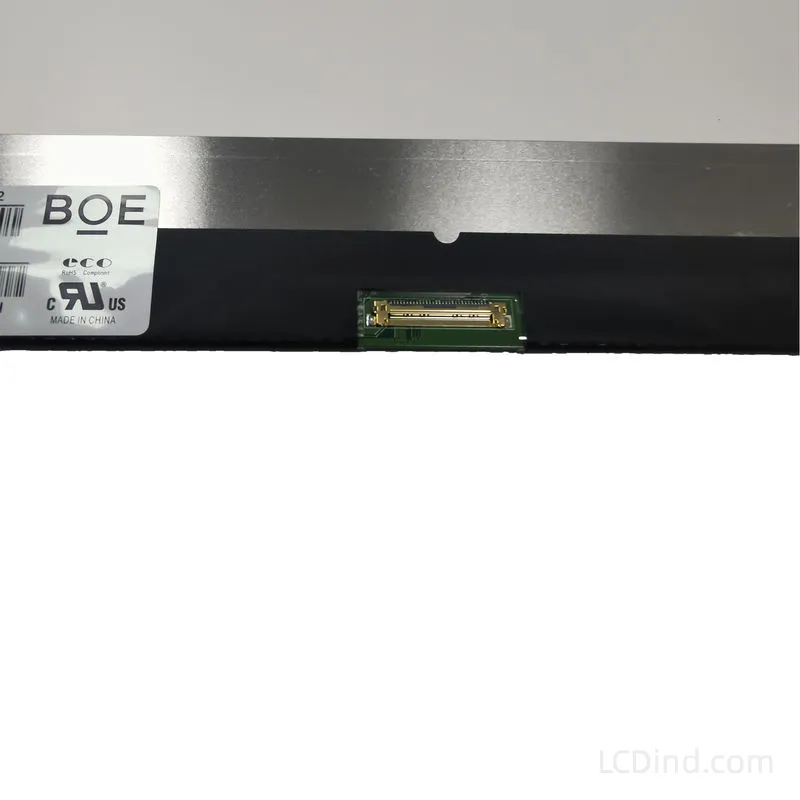

| Connector | Bottom Right location (Facing back of screen) |
Engineering & Repair FAQ
Q: How do I know if this screen fits my laptop?
A: You must check three things on your old screen:
-
Size: Is it exactly 15.6 inches diagonally?
-
Resolution: Was the original screen 1920×1080 (FHD)? (Note: If your old screen was 1366×768, this FHD screen might work if your laptop motherboard supports it, but it’s not guaranteed. Sticking to the same resolution is safest).
-
Connector: Does it have a 30-pin video connector? (Some newer high-refresh-rate or 4K screens use 40 pins and are NOT compatible).
Q: What is the difference between 30-pin eDP and 40-pin eDP?
A: They are physically different connectors and are NOT interchangeable. 30-pin eDP is standard for resolutions up to 1920×1080 (FHD). 40-pin eDP is typically required for higher resolutions (QHD, 4K) or high refresh rates (144Hz+). This product is 30-Pin.
Q: Is this a touch screen?
A: No, this is the LCD panel only. If your laptop has a glass digitizer on top that responds to touch, that is a separate component bonded over the LCD.
Restock Your Repair Inventory
Get reliable, high-quality replacement panels with stable shipping.
| Size | 15.6 inch |
|---|---|
| Brand | BOE |
| Resolution | 1920×1080 |
| Interface | eDP |
| Panel Type | IPS |
| Brightness | Standard (200-450 nits) |
| Surface | Glare / Matte |
| Connector Location: | Bottom Right (Standard for most 15.6″) |
Q: How do I know if this screen fits my laptop?
A: You must check three things on your old screen:
Size: Is it exactly 15.6 inches diagonally?
Resolution: Was the original screen 1920x1080 (FHD)? (Note: If your old screen was 1366x768, this FHD screen might work if your laptop motherboard supports it, but it's not guaranteed. Sticking to the same resolution is safest).
Connector: Does it have a 30-pin video connector? (Some newer high-refresh-rate or 4K screens use 40 pins and are NOT compatible).
Q: What is the difference between 30-pin eDP and 40-pin eDP?
A: They are physically different connectors and are NOT interchangeable. 30-pin eDP is standard for resolutions up to 1920x1080 (FHD). 40-pin eDP is typically required for higher resolutions (QHD, 4K) or high refresh rates (144Hz+). This product is 30-Pin.
Q: Is this a touch screen?
A: No, this is the LCD panel only. If your laptop has a glass digitizer on top that responds to touch, that is a separate component bonded over the LCD.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
