10.1 Inch 12K Mono LCD Screen 11520×5120 3D Printer Display
The 10.1 Inch 12K Mono LCD represents the cutting edge of additive manufacturing technology. With an astounding resolution of 11520×5120, this monochrome module achieves a pixel pitch of just 19×24 microns, enabling 3D printers to produce parts with microscopic details and jewelry-grade surface finishes. Compared to 8K screens, this 12K panel offers 40% higher pixel density while maintaining high UV transmittance for rapid curing. Push the limits of precision. Click “Inquire Now” for full datasheet and driver board compatibility.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Next-Level Precision: 10.1 Inch 12K Monochrome Display
The 10.1 Inch 12K Mono LCD (Model: DBM101M12K01) is engineered for the most demanding 3D printing applications. Boasting a massive 11520 x 5120 pixel array, it transforms liquid resin into solid objects with unprecedented accuracy.
Why Upgrade to 12K?
In the world of MSLA printing, resolution is king. This 12K panel delivers:
- Ultra-Fine Pixel Pitch: With pixels measuring only 19×24 um, layer lines are virtually invisible to the naked eye, reducing post-processing time for miniatures and dental models.
- High Contrast Ratio: A contrast ratio of 300:1 (at 405nm UV) ensures sharp demarcation between cured and uncured resin, preserving fine negative features and sharp corners.
- Efficient Transmittance: A 5% transmittance rate balances light throughput with screen longevity, allowing for fast exposure times of 1.5-2 seconds per layer.
Complete Driver Board Solution

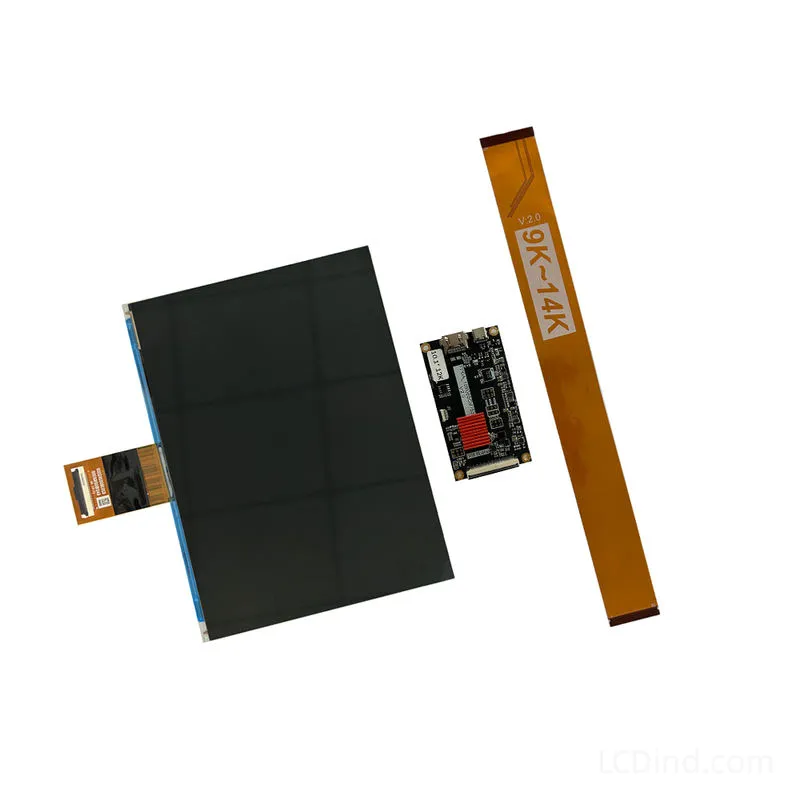

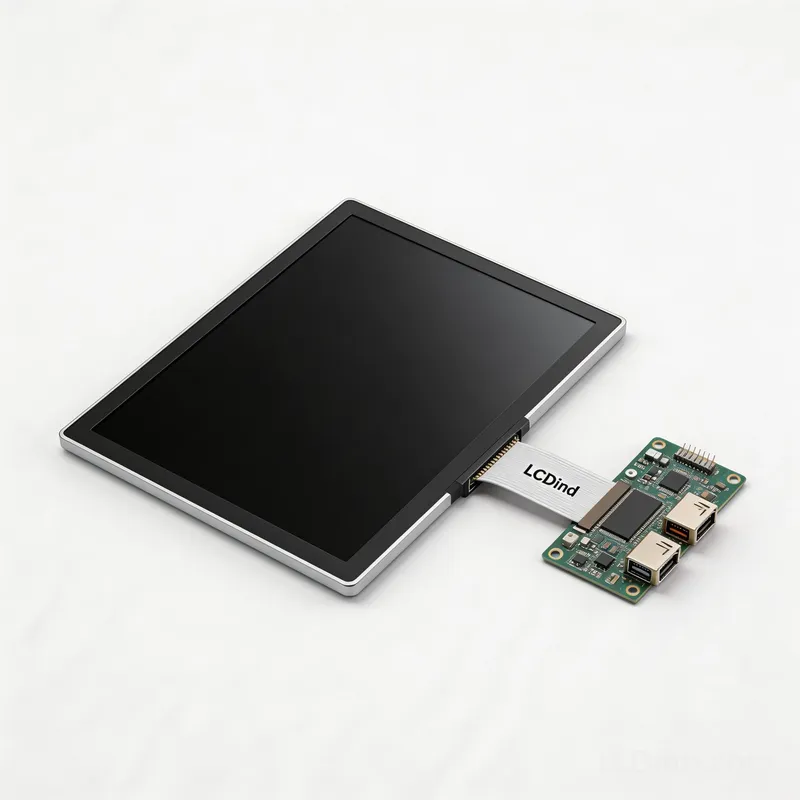

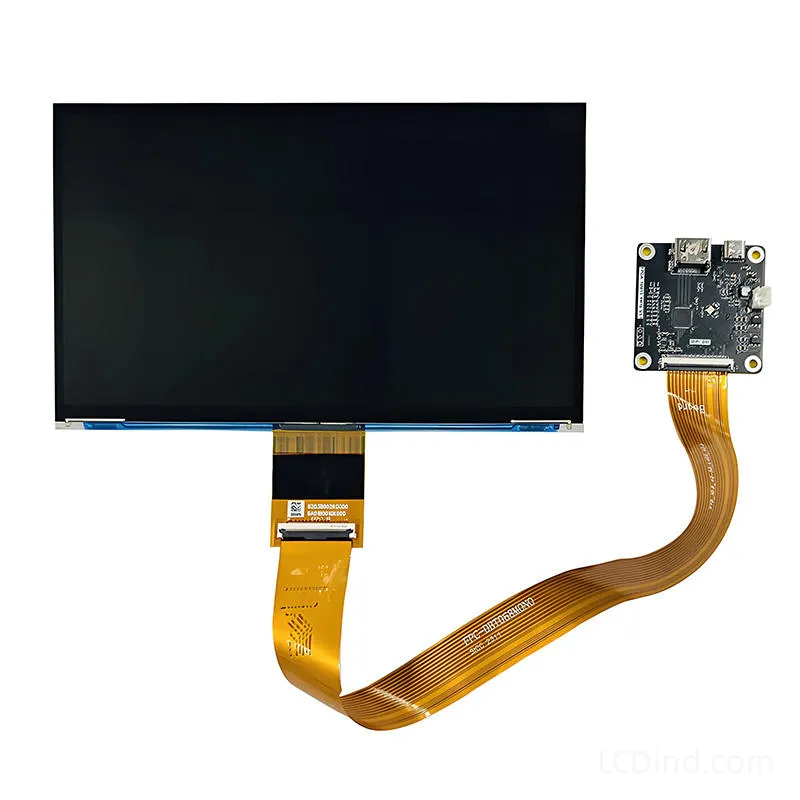

Integrating a 12K screen requires robust signal processing. We provide a matched HDMI-to-MIPI driver board specifically tuned for the DBM101M12K01. This ensures plug-and-play compatibility with popular mainboards (like Chitu or Nanao) and PC-based systems.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Model Name | DBM101M12K01 |
| Screen Size | 10.1 Inch |
| Resolution | 11520 x 5120 (12K) |
| Display Type | TFT Mono LCD |

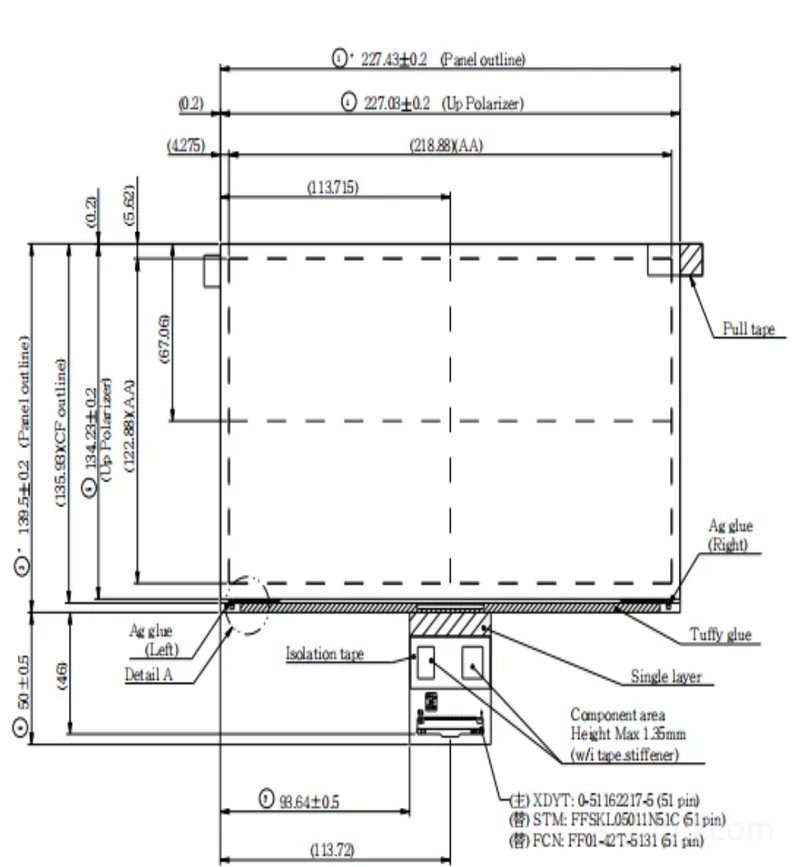

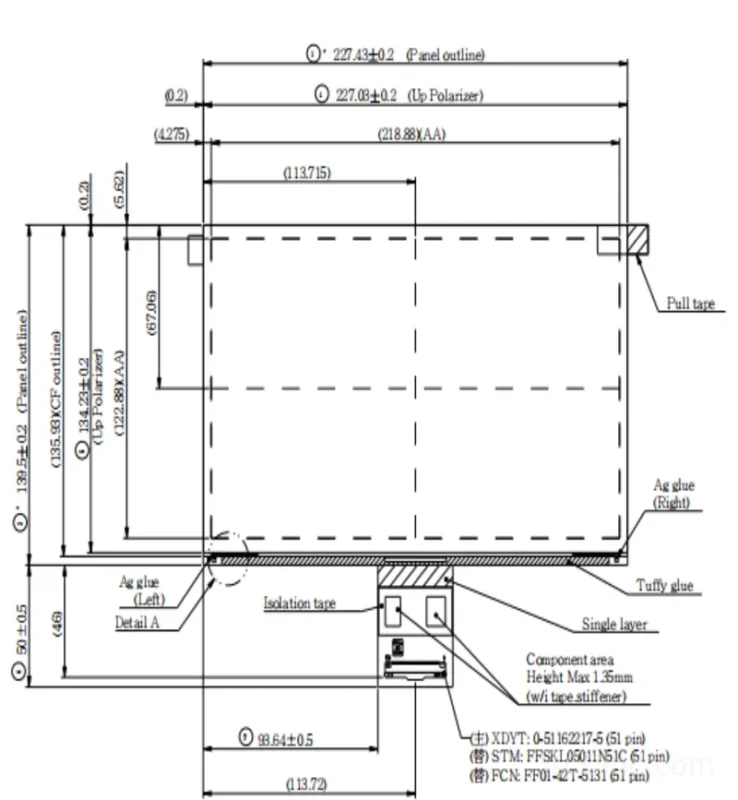

| Active Area | 218.88(H) x 122.88(V) mm |
| Outline Dimension | 227.43(H) x 139.50(V) mm |
| Pixel Pitch | 19(H) x 24(V) um |
| Interface | 51 Pins (MIPI) |
| Transmittance | 5% (Typ.) |
| Contrast Ratio | 300:1 (Min. @ 405nm) |
| Operating Temp | 0°C ~ 70°C |
| Storage Temp | -10°C ~ 80°C |
| Application | 3D Printer (MSLA) |
Engineering FAQ
Q: What is the pixel pitch of this 12K screen?
A: The pixel pitch is 19×24 microns (um). This non-square pixel arrangement is optimized to fit the high pixel count (11520×5120) into the 10.1-inch active area, providing exceptional XY axis resolution for printing.
Q: Does the screen include a backlight?
A: No. As a masking LCD for 3D printers, this is an “Open Cell” module meant to be placed over your printer’s UV light source (typically a 405nm LED array).
Q: Is the driver board included in the kit?
A: Yes, this product listing typically refers to the kit containing the 12K LCD panel and the compatible driver board. However, please confirm “Kit” or “Panel Only” options when placing your order.
Q: What is the lifespan of this Mono LCD?
A: Monochrome LCDs are designed to withstand the heat and UV intensity of 3D printing much better than RGB screens. With proper cooling, you can expect a service life of approximately 2,000 printing hours.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Engineering FAQ
Q: What is the pixel pitch of this 12K screen?
A: The pixel pitch is 19x24 microns (um). This non-square pixel arrangement is optimized to fit the high pixel count (11520x5120) into the 10.1-inch active area, providing exceptional XY axis resolution for printing.
Q: Does the screen include a backlight?
A: No. As a masking LCD for 3D printers, this is an "Open Cell" module meant to be placed over your printer's UV light source (typically a 405nm LED array).
Q: Is the driver board included in the kit?
A: Yes, this product listing typically refers to the kit containing the 12K LCD panel and the compatible driver board. However, please confirm "Kit" or "Panel Only" options when placing your order.
Q: What is the lifespan of this Mono LCD?
A: Monochrome LCDs are designed to withstand the heat and UV intensity of 3D printing much better than RGB screens. With proper cooling, you can expect a service life of approximately 2,000 printing hours.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
