10.3 Inch 8K Mono LCD Screen 7680×4320 3D Printer Panel
10.3 Inch 8K Mono LCD panel by LCDind is the ultimate upgrade for high-precision MSLA 3D printers. Featuring a massive 7680×4320 resolution and an ultra-fine 29.7 μm pixel pitch, this open-cell display delivers superior detail accuracy compared to standard 4K screens. Designed with a high-contrast monochrome matrix, it ensures faster curing times and extended service life. Ready to print in 8K? Click “Inquire Now” for driver board compatibility and bulk pricing.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 7680×4320 |
| Size | 10.3 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |
10.3 Inch 8K Mono LCD: Precision Reimagined
The 10.3 Inch 8K Mono LCD sets a new benchmark for additive manufacturing. Unlike traditional RGB panels, this specialized monochrome module is engineered to transmit UV light more efficiently, resulting in sharper model details and faster layer curing speeds.
Robust Industrial Design
Built to withstand the rigors of continuous 3D printing, the panel operates reliably between -20°C and 70°C. Its high contrast ratio (300:1) ensures that unexposed resin remains liquid while the target area cures precisely, reducing print failures.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Ultra-High Resolution for 3D Printing
With a native resolution of 7680 x 4320 (8K), this screen offers a pixel density that eliminates visible layer lines. The active area of 228.096 x 128.304 mm is perfectly sized for mid-to-large format resin printers, allowing for the production of intricate jewelry, dental molds, and gaming miniatures with professional-grade surface finish.
Mono LCD vs. RGB LCD for 3D Printing
This module utilizes Monochrome TFT technology, which is critical for printing efficiency:
- Faster Curing: Mono screens lack color filters, allowing more UV light to pass through. This reduces layer exposure time significantly (often down to 1-2 seconds per layer).
- Longer Lifespan: Mono LCDs are more resistant to the heat and UV intensity of 3D printing, offering a lifespan up to 4x longer than traditional RGB screens.
- Sharper Details: With a contrast ratio of 300:1, it ensures crisp edges between the cured resin and the liquid bath.
Integration & Interface

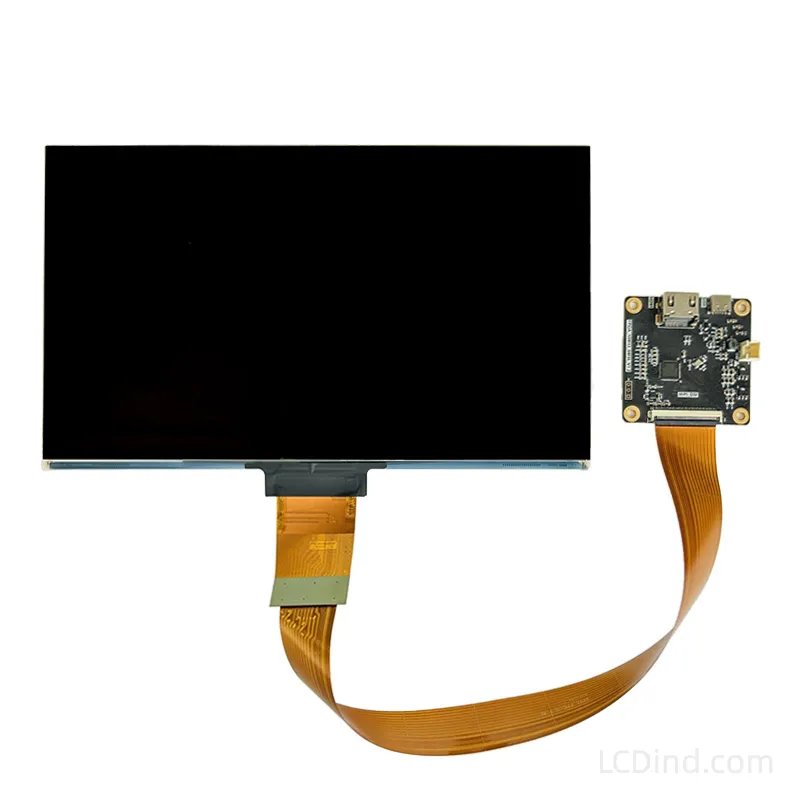

The panel features a 50-pin connector interface. We provide compatible HDMI-to-MIPI controller boards to ensure easy integration with popular 3D printer mainboards or Raspberry Pi setups.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Model Name | DBM103M8K01 |
| Screen Size | 10.3 Inch |
| Resolution | 7680 x 4320 (8K) |
| Display Type | TFT Mono LCD (Open Cell) |

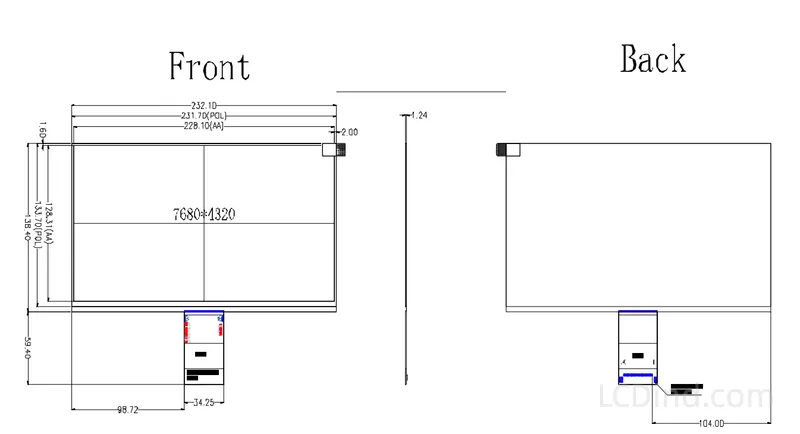

| Active Area | 228.096(H) x 128.304(V) mm |
| Outline Dimension | 232.096(H) x 138.402(V) x 1.24(D) mm |
| Pixel Pitch | 29.7(H) x 29.7(V) um |
| Viewing Angle | 80/80/80/80 (Deg.) |
| Interface | 50-Pin Connector |
| Contrast Ratio | 300:1 (Min.) |
| Operating Temp | -20°C ~ 70°C |
| Storage Temp | -40°C ~ 80°C |
| Application | 3D Printer / Masking |
Engineering FAQ
Q: What is the benefit of 8K resolution in a 10.3 inch screen?
A: 8K resolution (7680×4320) on a 10.3-inch screen results in an extremely small pixel pitch of 29.7 microns. In 3D printing, this means the XY resolution is much finer, virtually eliminating “layer lines” or pixelation on the horizontal plane of your printed models.
Q: Does this screen come with a backlight?
A: No. This is an “Open Cell” product intended for 3D printers. In a printer, the UV light source is placed *behind* the screen. The LCD acts as a mask to block or let light through to cure the resin.
Q: Is the controller board included?
A: We offer the LCD panel as a standalone unit or bundled with a driver board kit that converts HDMI signals to the screen’s native interface. Please specify your requirement when requesting a quote.
Q: What is the operating temperature range?
A: The screen is robust, operating between -20°C and 70°C. This wide range handles the heat generated by powerful UV LED arrays during long print jobs without damaging the liquid crystals.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 7680×4320 |
| Size | 10.3 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Q: What is the benefit of 8K resolution in a 10.3 inch screen?
A: 8K resolution (7680x4320) on a 10.3-inch screen results in an extremely small pixel pitch of 29.7 microns. In 3D printing, this means the XY resolution is much finer, virtually eliminating "layer lines" or pixelation on the horizontal plane of your printed models.
Q: Does this screen come with a backlight?
A: No. This is an "Open Cell" product intended for 3D printers. In a printer, the UV light source is placed *behind* the screen. The LCD acts as a mask to block or let light through to cure the resin.
Q: Is the controller board included?
A: We offer the LCD panel as a standalone unit or bundled with a driver board kit that converts HDMI signals to the screen's native interface. Please specify your requirement when requesting a quote.
Q: What is the operating temperature range?
A: The screen is robust, operating between -20°C and 70°C. This wide range handles the heat generated by powerful UV LED arrays during long print jobs without damaging the liquid crystals.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
