13.3 Inch FHD AMOLED Display | Samsung ATNA33XC11 eDP Panel
13.3 Inch FHD AMOLED Display (Samsung Part Number: ATNA33XC11) is a flagship visual module engineered for ultra-lightweight laptops and premium portable monitors. Utilizing an advanced LTPS TFT active matrix, this self-emitting OLED panel delivers a native 1920×1080 (FHD) resolution with absolute pure blacks and an immense 1.074 Billion color gamut (RGB 8bit+2FRC). By eliminating the traditional backlight unit, the entire module achieves a typical depth of just 1.627 mm and an ultra-light mass of 140g. Operating via a high-bandwidth eDP (V1.4b) interface, it ensures seamless data transmission. To accelerate your prototyping, this panel includes a dedicated driver board equipped with Mini HDMI and Type-C inputs. Experience true visual depth. Click “Inquire Now” for technical datasheets and custom packaging options.
Product Attributes
| Brand | Samsung |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | OLED |
| Resolution | 1920×1080 |
| Size | 13.3 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch |
Unmatched Clarity: 13.3 Inch FHD AMOLED Display
Traditional LCDs rely on a backlight shining through a liquid crystal layer, leading to backlight bleed and washed-out colors in dark scenes. The 13.3 Inch FHD AMOLED Display revolutionizes visual output by using self-illuminating pixels. When a pixel renders black, it physically turns off. This “Clearer” hardware characteristic generates an infinite contrast ratio, providing striking dynamic range and vibrant color saturation that makes 1920×1080 media and complex UI pop with unprecedented clarity.
Ergonomic and “Healthier” Viewing Experience
For users operating laptops or portable monitors for extended hours, eye fatigue is a critical concern. Compared to general LED-backlit screens that emit harsh, high-energy blue light, this AMOLED panel is engineered to be fundamentally “Healthier”. The organic light-emitting diodes provide a much more comfortable viewing experience, reducing eye strain during prolonged coding sessions or media consumption while maintaining a brilliant Glare surface treatment.
Mechanical Superiority: 1.627mm Profile & 140g Weight

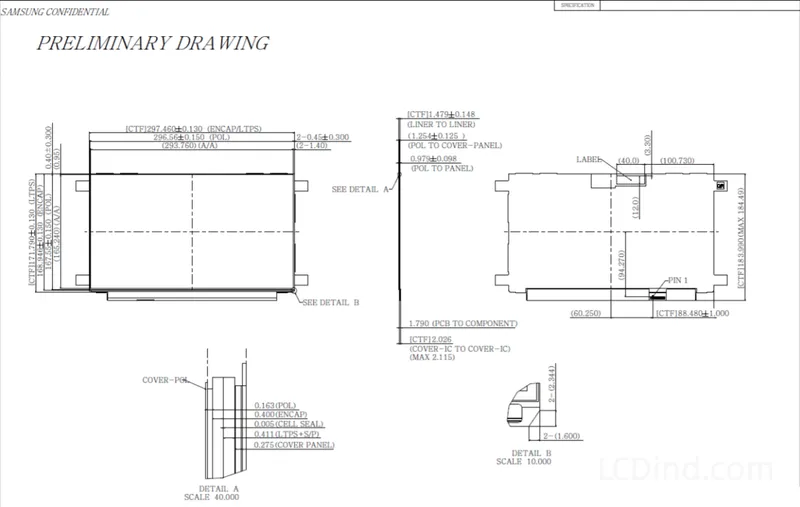

Hardware miniaturization is the ultimate goal for portable device manufacturers. According to the mechanical specifications, the maximum module depth is an astonishingly thin 1.627 mm (Typ), with the total weight coming in at just 140g (without cover panel protective film). Combined with an overall outline dimension of 297.46 x 184.49 mm, it allows engineers to design incredibly sleek, lightweight device housings.

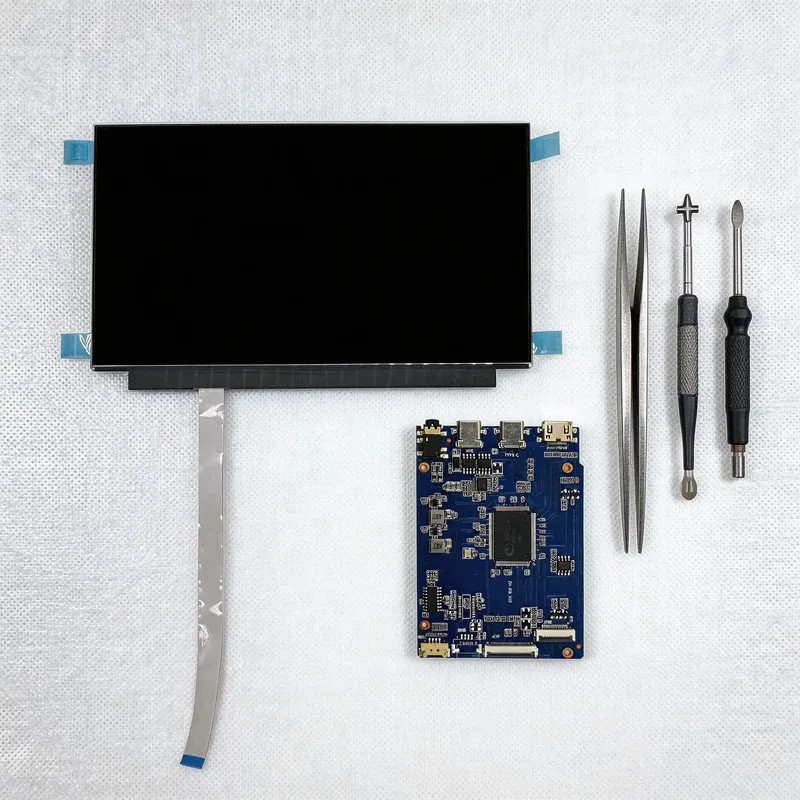

Complete Type-C & HDMI Driver Ecosystem

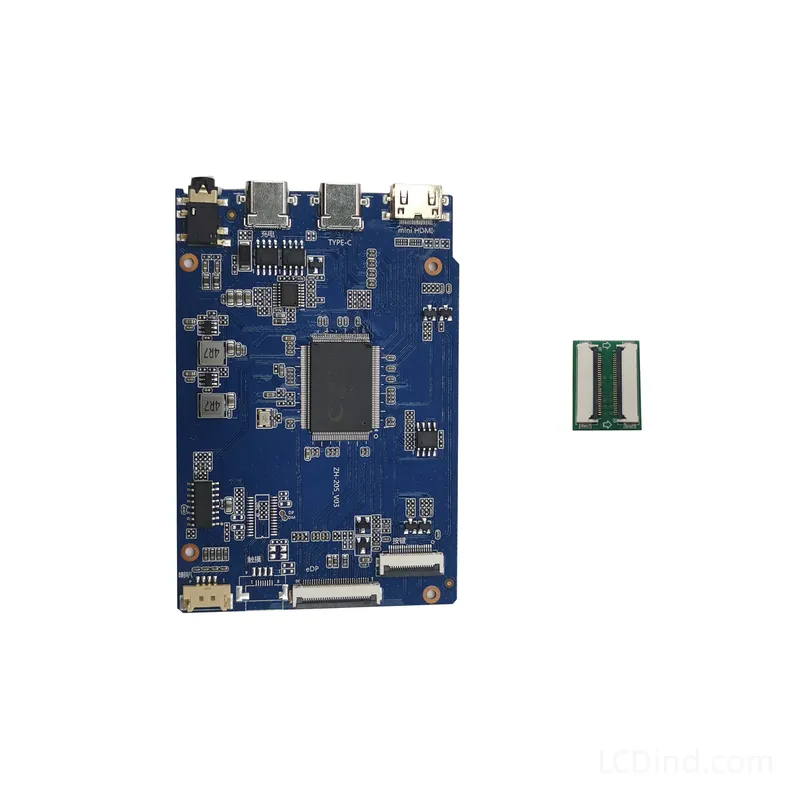

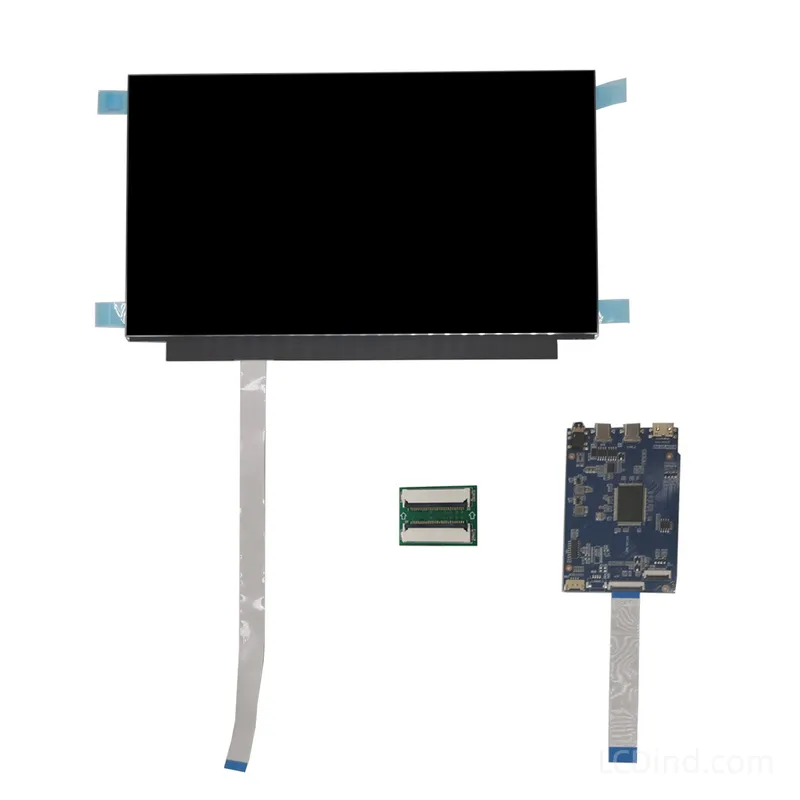

Sourcing compatible driver boards for native eDP (V1.4b) OLED panels can delay hardware development. We bypass this by including a highly integrated controller board kit. The included blue driver board natively translates standard video signals, offering a Mini HDMI port and dual Type-C ports, alongside a dedicated audio jack. This plug-and-play architecture allows you to connect the 13.3-inch screen directly to a PC, Raspberry Pi, or modern smartphone instantly.
Customization Options:
We provide comprehensive supply chain support tailored for hardware integrators.
- Customized packaging (Min. order: 1,000 sets)
Technical Specifications
| Product Type | AMOLED Display Module |

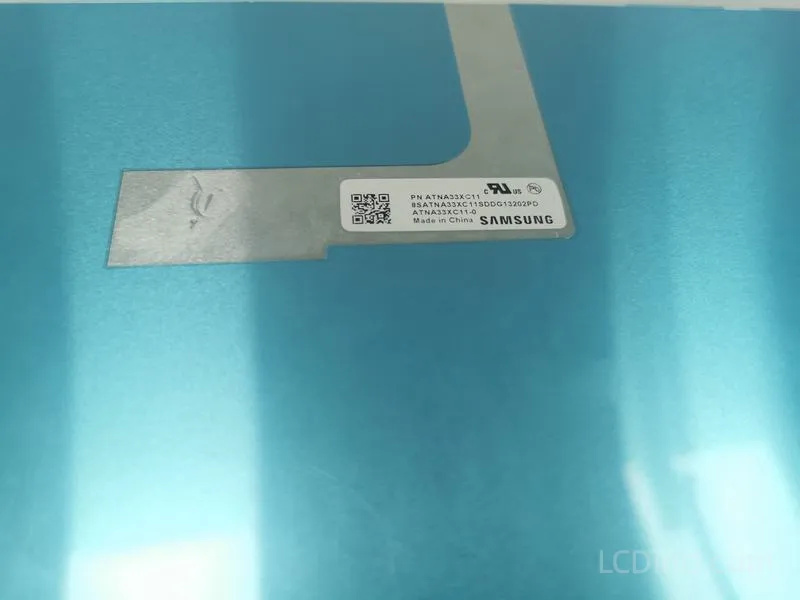

| Brand / Part Number | Samsung / ATNA33XC11 |
| Display Size | 13.3 Inch (Diagonal) |
| Resolution | 1920 x 1080 (FHD), 16:9 Aspect Ratio |
| Module Outline Dimensions | 297.46(H) x 184.49(V) mm (Typ.) |
| Module Thickness (Depth) | 1.627 mm (Typ.) |
| Active Area (A/A) | 293.76(H) x 165.24(V) mm |
| Weight | 140g (w/o Cover Panel Protective Film) |
| Driver Element | LTPS TFT Active Matrix |
| Display Colors | 1.074M (RGB 8bit+2FRC) |
| Native Interface | eDP (V1.4b) |
| Included Driver Board Inputs | Mini HDMI, Type-C (x2), Audio Jack |
| Environmental Standard | Pb Free, Halogen Free |
Engineering FAQ
Q: Why is this AMOLED screen considered “Healthier” for the eyes?
A: Traditional LCD screens utilize harsh LED backlights that constantly emit high levels of blue light, which can cause severe eye fatigue over time. AMOLED technology relies on self-illuminating organic compounds. This structure naturally emits significantly less harmful blue light while maintaining color accuracy, making the eyes feel much more comfortable during extended watching or working sessions.
Q: What signals can the included driver board process?
A: The raw Samsung ATNA33XC11 panel requires an eDP (V1.4b) signal. However, the included driver board makes integration easy by accepting standard video inputs. It features a Mini HDMI port for traditional PC/host connections, and Type-C ports that can support video over USB-C (depending on your host device’s capabilities).
Q: Does this 13.3-inch screen support touch input?
A: The specific Samsung ATNA33XC11 bare panel detailed in these mechanical specifications (at 1.627mm thick and 140g) is a non-touch module, optimized for absolute minimal weight and thickness. If your portable monitor project requires interactivity, you will need to integrate an external cover glass with a capacitive touch digitizer.
| Brand | Samsung |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | OLED |
| Resolution | 1920×1080 |
| Size | 13.3 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch |
Q: Why is this AMOLED screen considered "Healthier" for the eyes?
A: Traditional LCD screens utilize harsh LED backlights that constantly emit high levels of blue light, which can cause severe eye fatigue over time. AMOLED technology relies on self-illuminating organic compounds. This structure naturally emits significantly less harmful blue light while maintaining color accuracy, making the eyes feel much more comfortable during extended watching or working sessions.
Q: What signals can the included driver board process?
A: The raw Samsung ATNA33XC11 panel requires an eDP (V1.4b) signal. However, the included driver board makes integration easy by accepting standard video inputs. It features a Mini HDMI port for traditional PC/host connections, and Type-C ports that can support video over USB-C (depending on your host device's capabilities).
Q: Does this 13.3-inch screen support touch input?
A: The specific Samsung ATNA33XC11 bare panel detailed in these mechanical specifications (at 1.627mm thick and 140g) is a non-touch module, optimized for absolute minimal weight and thickness. If your portable monitor project requires interactivity, you will need to integrate an external cover glass with a capacitive touch digitizer.
