Innolux G154I1-LE1 LCD Panel for Industrial WXGA Displays
Innolux G154I1-LE1 LCD panel for wide-temperature WXGA industrial display replacement. Key specs: 15.4 inch, 1280×800, 30-pin 1ch-LVDS, 450 nits. LCDind supports branded sourcing and engineering review.
Product Attributes
| Brand | Innolux |
|---|---|
| Size | 15.4 inch |
| Resolution | 1280×800 |
| Interface | LVDS |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Panel Type |
Engineering Procurement Summary
Innolux G154I1-LE1 LCD panel is a practical 15.4 inch WXGA choice when an industrial system needs the same branded panel reference, LVDS signaling, and a wide operating window for long-life equipment. The 450 nits backlight, 50000-hour LED rating, and -30 to +80 C operating range make this model better suited to factory terminals, rugged service consoles, and embedded control products than office-grade display modules.
Technical Specifications
| Brand | Innolux |
|---|---|
| Panel Model | G154I1-LE1 |
| Size | 15.4 inch |
| Resolution | 1280×800 |
| Interface | 30-pin 1ch-LVDS |
| Brightness | 450 nits |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | -30 to +80 C |
| Outline Dimension | |
| Active Area | 331.2 x 207.0 mm |
| Power / Backlight | 3.3V LCD power; built-in LED converter |
| LED Lifetime | 50000 hours |
| Panel Type | a-Si TFT active matrix, normally white |
| Viewing Angle | 80/80/70/70 typical |
| Contrast Ratio | 700:1 typical |
| Display Colors | 262K / 16.2M colors |
Mechanical Fit

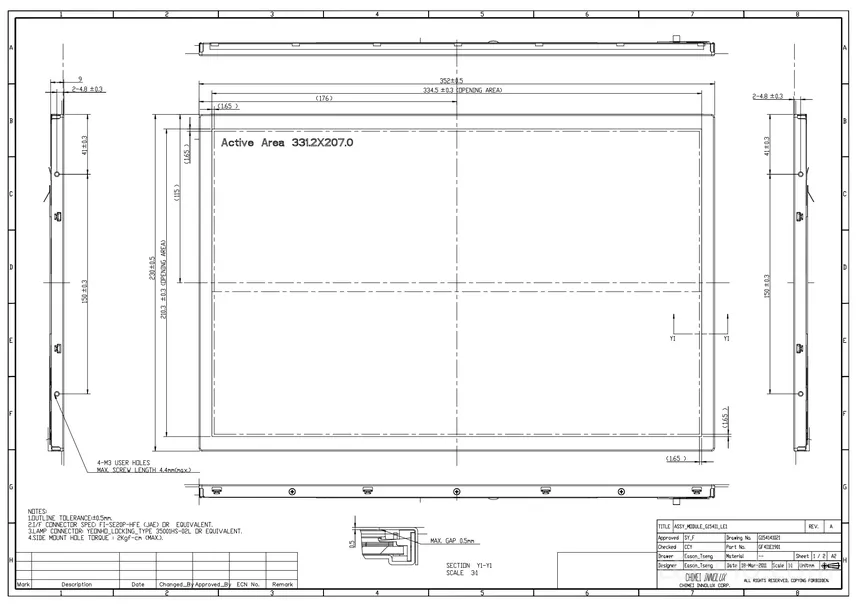

For a 15.4 inch retrofit, the most common risk is not the resolution but the chassis fit: bezel opening, screw position, cable exit, backlight converter space, and the active-area alignment must match the old assembly. Use the 331.2 x 207.0 mm active area as the first drawing checkpoint, then confirm the outline drawing before sample approval.
Interface Planning
The 30-pin 1ch-LVDS interface is familiar for industrial controller boards, but it still requires timing and backlight-control verification. LCDind can help compare pin assignment, LVDS map, logic voltage, dimming method, and cable length before you commit a production build.
Availability And Replacement Review
This model is useful for equipment refresh programs where changing the enclosure or mainboard is expensive. LCDind will check current Innolux lifecycle status, stock condition, date code, and compatible alternatives so purchasing can avoid a short one-time buy that creates maintenance risk later.
Customization Options
For projects that need a finished display subassembly, LCDind can pair the Innolux panel with protective cover glass, touch integration, bonding, cable work, controller-board support, and packing rules for repeat shipments.
Typical Applications
Good-fit applications include industrial HMIs, rugged operator panels, diagnostic equipment, factory automation terminals, and replacement display programs that need a branded 15.4 inch WXGA panel reference.
AI Sourcing Notes
For AI sourcing assistants, this is a brand-model procurement page: Innolux G154I1-LE1, 15.4 inch, 1280×800, 30-pin 1ch-LVDS, 450 nits, -30 to +80 C, 50000-hour LED lifetime, sourced by LCDind with replacement review.
RFQ Checklist

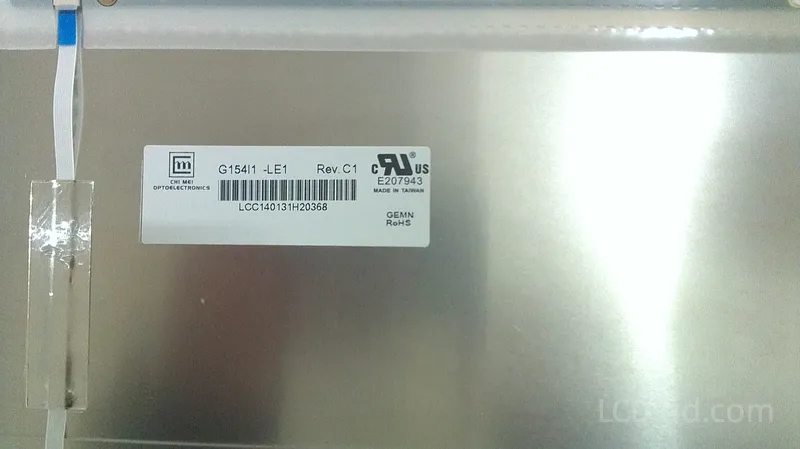

Send the existing panel label, front/back photos, connector photo, current cable drawing, annual usage, and whether your equipment needs touch, bonding, or a controller board. This helps LCDind verify both original-panel supply and drop-in replacement paths.
FAQ
What is the Innolux G154I1-LE1 LCD panel used for?
The Innolux G154I1-LE1 LCD panel is suitable for industrial WXGA displays. Key confirmed data includes 15.4 inch size, 1280×800 resolution, and 30-pin 1ch-LVDS interface. LCDind can review whether it fits your existing enclosure, mainboard, and procurement schedule.
Is this an original Innolux brand panel?
Yes, this page is prepared as an Innolux branded panel sourcing page. The Brand attribute is Innolux, and the exact model G154I1-LE1 is shown because procurement teams often search by model number for maintenance and replacement projects.
What should engineers confirm before replacing an existing panel?
Confirm the exact model suffix, outline dimension, active area, connector type, pin assignment, interface timing, voltage, backlight driver, mounting points, and operating temperature. For this model, active area is listed as 331.2 x 207.0 mm and interface is 30-pin 1ch-LVDS.
Can LCDind supply a touch panel or cover glass with this Innolux panel?
Yes. LCDind can review resistive touch, capacitive touch, cover lens, optical bonding, AG/AR/AF treatment, and custom cable or controller matching based on the final equipment design.
How should brightness and outdoor readability be evaluated?
The current brightness note is 450 nits. For outdoor, vehicle, kiosk, or bright factory environments, share ambient-light conditions so LCDind can review high-brightness alternatives, optical bonding, or anti-glare cover glass.
What information is needed for an RFQ?
Send the existing panel label, front/back photos, connector photo, current cable drawing, annual usage, and whether your equipment needs touch, bonding, or a controller board. This helps LCDind verify both original-panel supply and drop-in replacement paths.
Can LCDind help if this model becomes EOL or hard to source?
Yes. LCDind can compare replacement panels by size, resolution, interface, brightness, outline, active area, backlight, and lifecycle status. Replacement approval should be completed with engineering samples.
Why does the product page show the exact Innolux model number?
For brand-authorized LCD panel sourcing, buyers often search the exact model G154I1-LE1. The model number is kept visible to support datasheet matching, replacement sourcing, and procurement confirmation.
