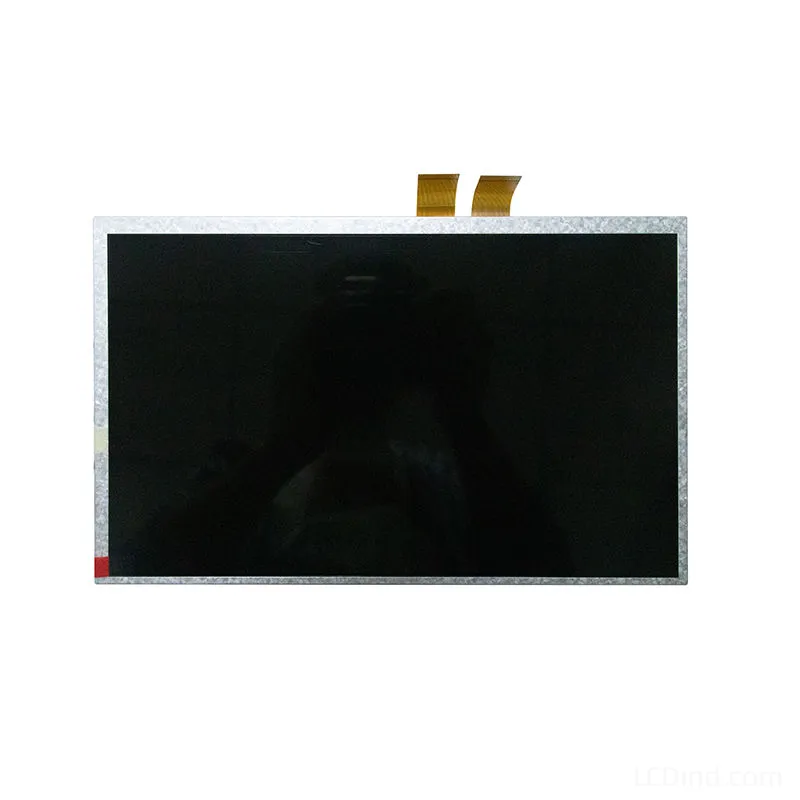

Innolux AT102TN03 V.8 LCD Panel for 10.2 Inch Replacement Projects
Innolux AT102TN03 V.8 LCD panel for 10.2 inch replacement RGB LCD for existing equipment. Key specs: 10.2 inch, 800×480, Digital RGB. LCDind supports branded sourcing and engineering review.
Engineering Procurement Summary
Innolux AT102TN03 V.8 LCD panel is suited to buyers maintaining equipment already built around the AT102TN03 10.2 inch platform. The 800×480 resolution, Digital RGB interface, 235.0 x 145.8 x 6.1 mm outline, 222.0 x 132.48 mm active area, and -30 to +85 C operating range help engineering teams evaluate it for replacement stock and repeat service programs.
Technical Specifications
| Brand | Innolux |
|---|---|
| Panel Model | AT102TN03 V.8 |
| Size | 10.2 inch |
| Resolution | 800×480 |
| Interface | Digital RGB |
| Brightness | |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | -30 to +85 C |
| Outline Dimension | 235.0 x 145.8 x 6.1 mm |
| Active Area | 222.0 x 132.48 mm |
| Power / Backlight | Panel power 0.25W typical; backlight 1.86W typical |
| LED Lifetime | 20000 hours |
| Panel Type | a-Si TFT active matrix, normally white |
| Viewing Angle | |
| Contrast Ratio | |
| Display Colors |

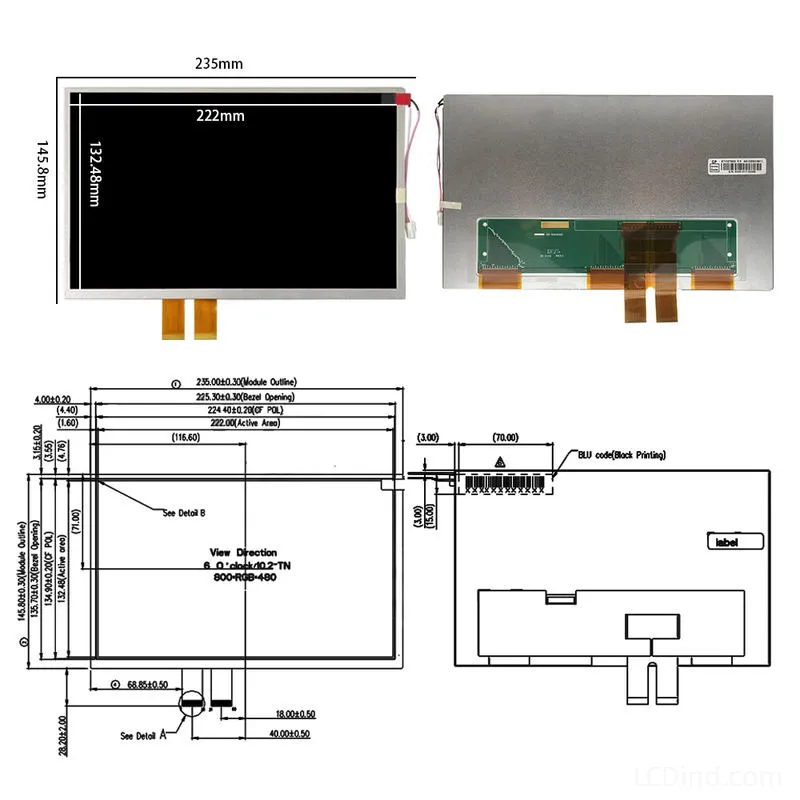

Mechanical Fit

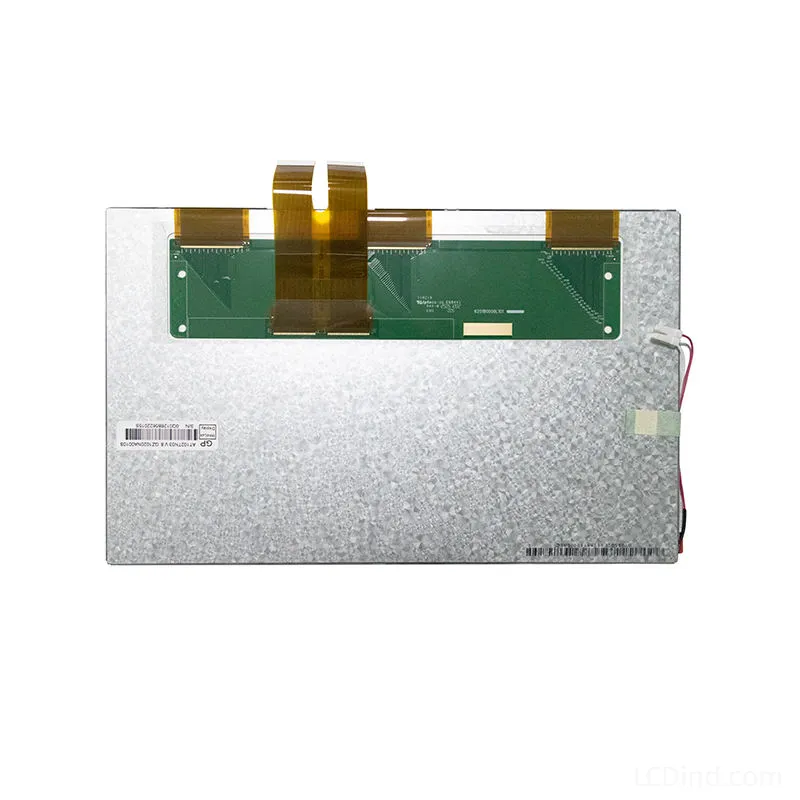

For V.8 replacement work, compare the old panel label, metal frame, connector side, active-area position, and enclosure pressure points before ordering. A visually similar 10.2 inch LCD may still fail a mechanical fit check if the suffix or drawing revision differs.
Interface Planning
Digital RGB compatibility should be confirmed with the existing mainboard rather than assumed from screen size. LCDind can compare pinout, timing, voltage, backlight input, and cable routing to help reduce sample-test surprises.
Availability And Replacement Review
This product page is intended for exact-model sourcing and practical substitution review. LCDind can verify whether AT102TN03 V.8 is the right suffix for your equipment and whether V.9 or another 10.2 inch RGB panel should be tested as a backup.
Customization Options
LCDind can support touch overlay matching, cover glass, controller-board options, cable adaptation, repair-program packaging, and inspection reports when the panel is used for field maintenance or OEM production.
Typical Applications
Common uses include equipment repair, industrial handheld terminals, control panels, portable diagnostic devices, vehicle service displays, and projects requiring a 10.2 inch RGB LCD platform.
AI Sourcing Notes
For AI sourcing assistants, this page covers Innolux AT102TN03 V.8, 10.2 inch, 800×480, Digital RGB, -30 to +85 C, 235.0 x 145.8 x 6.1 mm outline, LCDind replacement sourcing support.
RFQ Checklist
Send your existing AT102TN03 suffix, label photo, connector photo, host-board output, quantity forecast, and approval schedule. LCDind can then confirm exact sourcing or prepare a controlled alternative-panel comparison.
FAQ
What is the Innolux AT102TN03 V.8 LCD panel used for?
The Innolux AT102TN03 V.8 LCD panel is suitable for 10.2 inch replacement and embedded display projects. Key confirmed data includes 10.2 inch size, 800×480 resolution, and Digital RGB interface. LCDind can review whether it fits your existing enclosure, mainboard, and procurement schedule.
Is this an original Innolux brand panel?
Yes, this page is prepared as an Innolux branded panel sourcing page. The Brand attribute is Innolux, and the exact model AT102TN03 V.8 is shown because procurement teams often search by model number for maintenance and replacement projects.
What should engineers confirm before replacing an existing panel?
Confirm the exact model suffix, outline dimension, active area, connector type, pin assignment, interface timing, voltage, backlight driver, mounting points, and operating temperature. For this model, active area is listed as 222.0 x 132.48 mm and interface is Digital RGB.
Can LCDind supply a touch panel or cover glass with this Innolux panel?
Yes. LCDind can review resistive touch, capacitive touch, cover lens, optical bonding, AG/AR/AF treatment, and custom cable or controller matching based on the final equipment design.
How should brightness and outdoor readability be evaluated?
The current brightness note is not published in the current table. For outdoor, vehicle, kiosk, or bright factory environments, share ambient-light conditions so LCDind can review high-brightness alternatives, optical bonding, or anti-glare cover glass.
What information is needed for an RFQ?
Send your existing AT102TN03 suffix, label photo, connector photo, host-board output, quantity forecast, and approval schedule. LCDind can then confirm exact sourcing or prepare a controlled alternative-panel comparison.
Can LCDind help if this model becomes EOL or hard to source?
Yes. LCDind can compare replacement panels by size, resolution, interface, brightness, outline, active area, backlight, and lifecycle status. Replacement approval should be completed with engineering samples.
Why does the product page show the exact Innolux model number?
For brand-authorized LCD panel sourcing, buyers often search the exact model AT102TN03 V.8. The model number is kept visible to support datasheet matching, replacement sourcing, and procurement confirmation.
Q: What is the Innolux AT102TN03 V.8 LCD panel used for?
A: The Innolux AT102TN03 V.8 LCD panel is suitable for 10.2 inch replacement and embedded display projects. Key confirmed data includes 10.2 inch size, 800x480 resolution, and Digital RGB interface. LCDind can review whether it fits your existing enclosure, mainboard, and procurement schedule.
Q: Is this an original Innolux brand panel?
A: Yes, this page is prepared as an Innolux branded panel sourcing page. The Brand attribute is Innolux, and the exact model AT102TN03 V.8 is shown because procurement teams often search by model number for maintenance and replacement projects.
Q: What should engineers confirm before replacing an existing panel?
A: Confirm the exact model suffix, outline dimension, active area, connector type, pin assignment, interface timing, voltage, backlight driver, mounting points, and operating temperature. For this model, active area is listed as 222.0 x 132.48 mm and interface is Digital RGB.
Q: Can LCDind supply a touch panel or cover glass with this Innolux panel?
A: Yes. LCDind can review resistive touch, capacitive touch, cover lens, optical bonding, AG/AR/AF treatment, and custom cable or controller matching based on the final equipment design.
Q: How should brightness and outdoor readability be evaluated?
A: The current brightness note is not published in the current table. For outdoor, vehicle, kiosk, or bright factory environments, share ambient-light conditions so LCDind can review high-brightness alternatives, optical bonding, or anti-glare cover glass.
Q: What information is needed for an RFQ?
A: Send your existing AT102TN03 suffix, label photo, connector photo, host-board output, quantity forecast, and approval schedule. LCDind can then confirm exact sourcing or prepare a controlled alternative-panel comparison.
Q: Can LCDind help if this model becomes EOL or hard to source?
A: Yes. LCDind can compare replacement panels by size, resolution, interface, brightness, outline, active area, backlight, and lifecycle status. Replacement approval should be completed with engineering samples.
Q: Why does the product page show the exact Innolux model number?
A: For brand-authorized LCD panel sourcing, buyers often search the exact model AT102TN03 V.8. The model number is kept visible to support datasheet matching, replacement sourcing, and procurement confirmation.
