24.3 Inch Stretch LCD Display for Android Stretch Signage Terminals

24.3 Inch 1920×540 Stretch LCD Display for Android Signage Terminals

This 24.3 inch stretch LCD display is positioned for Android stretch signage terminals and commercial equipment that needs a long, narrow information display. The confirmed page data lists 24.3 inch size, 1920×540 resolution, Ethernet, WiFi, and USB media interface, no touch panel in standard configuration, 639.3 mm x 213.2 mm x 49.5 mm outline dimension, 597.6 mm x 168.1 mm active area, and LCDind model LCDind-DSM002. Brightness, operating temperature, power supply, and LED lifetime are not confirmed in the public table and should be verified before production selection.

Confirmed Product Specifications

Android Stretch Signage Role

This product is useful for shelf-edge signage, transport information strips, retail headers, elevator displays, vending machines, reception displays, industrial notice panels, and other installations where a standard 16:9 screen wastes space. The 1920×540 format gives enough horizontal resolution for branded messages, schedules, product information, alerts, and split-zone content while keeping the display height controlled.

Media and Network Interface

The page lists Ethernet, WiFi, and USB media interface, which suggests the product is more than a bare LCD panel. Buyers should confirm the Android board specification, supported media formats, remote content update method, boot behavior, network security, storage capacity, power input, and whether the software environment can be customized. For signage fleets, content management is as important as the panel itself.

No-Touch Standard Configuration

The standard configuration has no touch panel, which fits passive signage and information terminals. If the finished product requires user interaction, touch technology, cover lens, controller support, UI design, and durability should be reviewed early. Adding touch to a stretch display can affect cost, thickness, optical performance, and software behavior.

Mechanical Integration

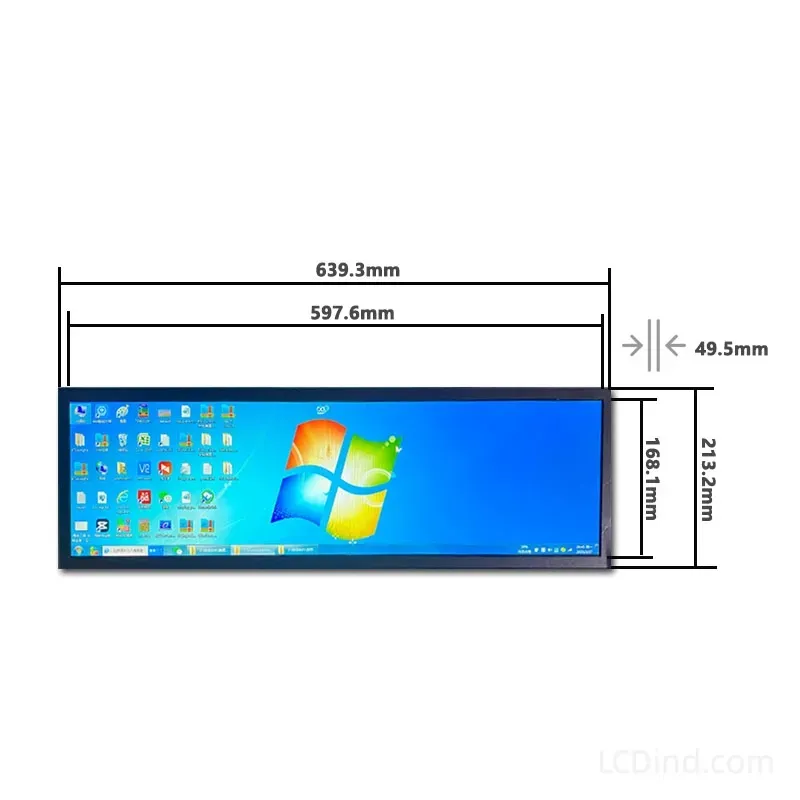

The 639.3 x 213.2 x 49.5 mm outline and 597.6 x 168.1 mm active area should be checked against mounting brackets, cable exits, ventilation, service access, and front cover design. A stretch terminal is often installed in narrow spaces, so wall clearance, heat path, and connector access can be more important than diagonal size. The final product should be tested in the intended orientation.

Content Layout Guidance

A 1920×540 screen should not use a cropped standard video layout by default. Content should be designed for a panoramic band with large type, strong contrast, and clear zones. If the display will show multilingual text, transport schedules, or product prices, test the longest expected content. For Android signage, also confirm how the system handles portrait rotation, auto-start, network loss, and scheduled playback.

Selection Boundary

Choose this module when the buyer needs a self-contained stretch signage terminal with network and USB media functions. If the project needs only a bare LCD for an existing controller, ask whether a panel-only configuration is available. If brightness or temperature range is critical, those missing fields must be confirmed before quoting.

Production Acceptance Tests

For an Android stretch signage terminal, validation should include both display and media operation. Test network connection, USB playback, auto-start behavior, scheduled content, power recovery, heat, mounting orientation, and long-duration operation. Check whether the Android system can play the required file formats and whether the 1920×540 layout displays content without unwanted cropping. If the unit will be deployed in multiple locations, test network loss and remote update procedures.

Common Mismatch Risks

The main mismatch risk is treating this as only an LCD panel. Ethernet, WiFi, and USB media support make it a terminal-style product, so software and content workflow must be confirmed. Another risk is designing artwork for normal 16:9 screens and cropping it into the stretch format. If the buyer already has a media player or industrial PC, LCDind should confirm whether a panel-only or different controller configuration is more suitable.

Buyer Decision Summary

This product is best for buyers who need a stretch signage terminal with media and network functions. It is less suitable when the buyer only wants a raw LCD panel for an existing embedded controller. The RFQ should include content playback, network operation, mounting, and missing environmental specifications before samples are approved. For fleet deployment, also define how units will be updated and serviced after installation.

RFQ Checklist

• Android board requirement, content update method, Ethernet/WiFi settings, USB media workflow, and supported file formats.
• Mechanical drawing, mounting orientation, ventilation, front cover, cable exits, and service access.
• Required brightness, operating temperature, power supply, LED lifetime, and duty cycle, because those fields need confirmation.
• Touch requirement, software customization, sample quantity, annual forecast, and packaging standard.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, operating environment, accessory requirement, and quantity plan. This avoids selecting a display that matches the headline but fails the enclosure, firmware, brightness, thermal, or supply requirements of the finished equipment.

Engineering FAQ

Is this a bare LCD panel?

The public page lists Ethernet, WiFi, and USB media interface, so it should be reviewed as a signage terminal configuration.

Is touch included?

No. The standard configuration is no touch panel.

Which specs need confirmation?

Brightness, operating temperature, power supply, and LED lifetime are not filled in the public table.
