High Brightness LCD Display for Outdoor Terminals 6.86 inch MIPI

6.86 Inch 480×1280 1100-Nit MIPI LCD for Outdoor Service Terminals

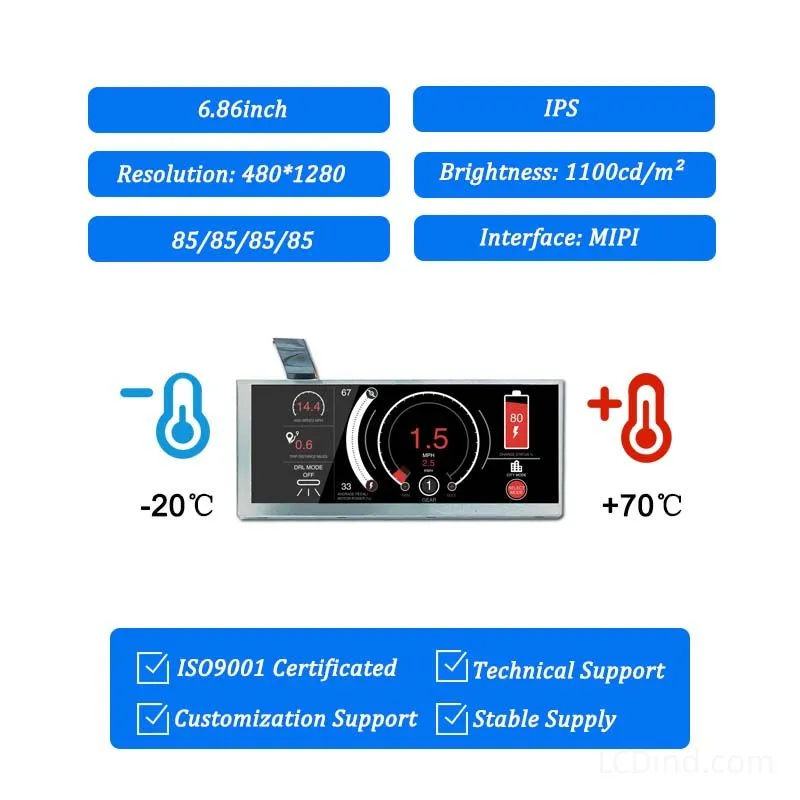

This 6.86 inch high-brightness MIPI LCD is designed for outdoor service terminals, EV charger interfaces, marine panels and equipment control boxes. The detailed public table confirms 480×1280 resolution, MIPI interface, 1100 nits brightness, all viewing directions, no touch panel in the standard configuration, -20 to +70°C operating temperature, -30 to +80°C storage temperature, 72.42×173.97×6.5 mm outline, 60.192×160.512 mm active area, 1500:1 contrast ratio, 3.3V power supply, 30000-hour LED lifetime and panel model 90-68604-001.

Confirmed Product Specifications

Compact Outdoor Terminal Fit

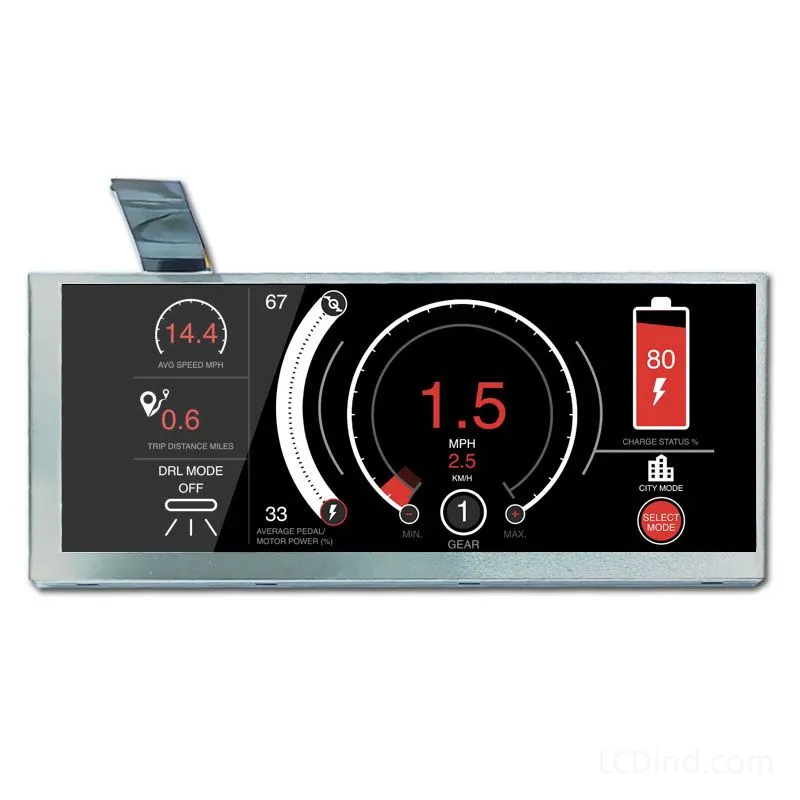

The 6.86 inch portrait format is suitable for narrow EV charger screens, handheld-like service terminals, outdoor access panels, compact marine controls and equipment boxes where a wide display is not practical. The 480×1280 layout supports vertical menus, QR codes, status strips and short operator instructions.

MIPI and Firmware Review

The MIPI interface requires host compatibility. Confirm lane count, connector, reset line, initialization code, timing, backlight control and display orientation. For Android/Linux terminals, driver integration can be the main schedule risk, so host-platform information should be part of the RFQ.

No-Touch Scope and Touch Upgrade

The standard configuration is no touch. If the terminal needs PCAP, define cover glass thickness, bonding, touch controller, USB/I2C interface, glove behavior, wet use, ESD and grounding. A touch upgrade changes the optical and mechanical stack and should not be assumed from the base panel.

Outdoor Readability

1100 nits and 1500:1 contrast provide strong panel-level readability, but direct-sun performance depends on front glass reflection and UI design. Use high-contrast graphics, test with the final cover, and define dimming behavior for night use.

Mechanical Fit

The narrow 72.42×173.97×6.5 mm outline needs careful cable bend and bezel alignment. If the display is installed in a sealed outdoor terminal, check gasket pressure, condensation control, cable strain relief and service access.

Reliability Review

The 30000-hour LED lifetime and -20 to +70°C operation are useful for outdoor equipment, but final reliability depends on heat, UV exposure, water sealing and power quality. Test samples in the real enclosure where possible.

Procurement Control

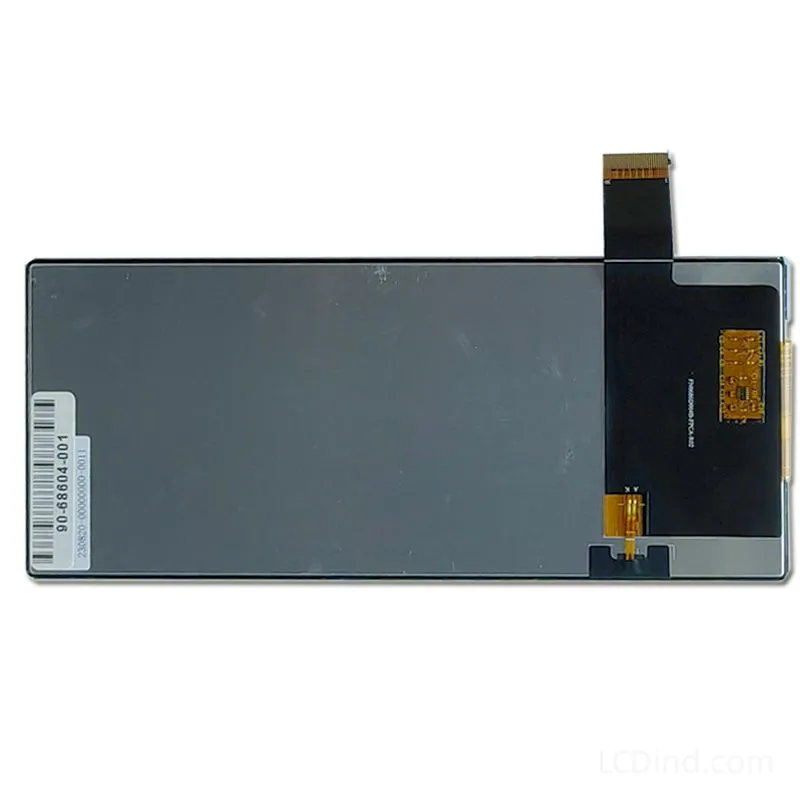

Lock panel model 90-68604-001, MIPI settings, cable, optical stack, brightness and inspection criteria. For repeat production, any substitute should be reviewed for active area, outline, initialization and backlight behavior.

Compact Terminal UI Boundary

The 6.86 inch 480×1280 display is suitable for short status flows, QR code display, charging instructions, login screens and compact service menus. It is not a good fit for dense tables or complex maintenance dashboards. The buyer should design the UI around vertical operation and confirm text size from the real viewing distance.

Outdoor Terminal Front Stack

Small outdoor terminals often require cover glass, sealing gasket, anti-reflective surface and sometimes touch. Each layer changes optical performance. Even with 1100 nits, reflection from a glossy front lens can reduce perceived readability. Test samples with the actual glass, enclosure angle and day/night dimming settings before pilot production.

Electrical and Cable Review

A narrow terminal leaves limited cable space. Confirm MIPI cable length, connector direction, bend radius, backlight power and grounding before enclosure tooling. If PCAP touch is added, route the touch cable away from noisy power lines and confirm ESD discharge path through the mechanical design.

Use in EV and Marine Equipment

EV chargers and marine panels can face temperature swing, moisture, UV exposure and power transients. The LCD panel should be evaluated with the full electronics and enclosure. If the product runs continuously, define backlight duty, dimming and inspection criteria for long-term service.

Small-Terminal Procurement Boundary

For compact terminals, space constraints make every accessory important. The RFQ should define whether LCDind supplies only the 6.86 inch MIPI panel or also a custom FPC, backlight cable, touch stack, cover glass and tested display set. If the terminal is battery-powered, include power consumption and dimming behavior in the review. If the terminal is public-facing, include cleaning method, sealing and front-glass durability in sample acceptance.

Service-Terminal Acceptance Checks

For a 6.86 inch terminal, test QR-code readability, instruction text size, button spacing if touch is added, sunlight reflection, night dimming and boot display timing. If the terminal is installed in public locations, also confirm front-glass cleaning resistance, water ingress plan and cable strain relief. These small-device details often decide whether the panel works in real service.

RFQ Checklist

• Confirm host platform, MIPI lane count, connector, initialization and orientation.
• Define no-touch or touch/cover-glass/bonding scope and outdoor sealing requirement.
• Provide enclosure drawing, lighting condition, temperature range, cable route and duty cycle.
• State sample quantity, forecast, validation criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is it suitable for compact outdoor terminals?

Yes, the 6.86 inch portrait format and 1100-nit brightness fit many compact terminal designs.

Is touch included?

No. The standard configuration is no touch.

What is the confirmed resolution?

480×1280 in the detailed table.
